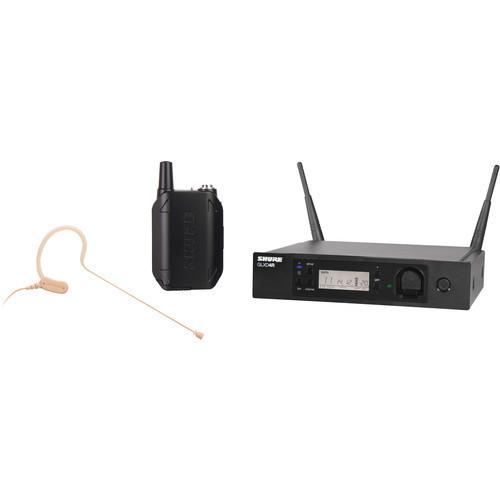

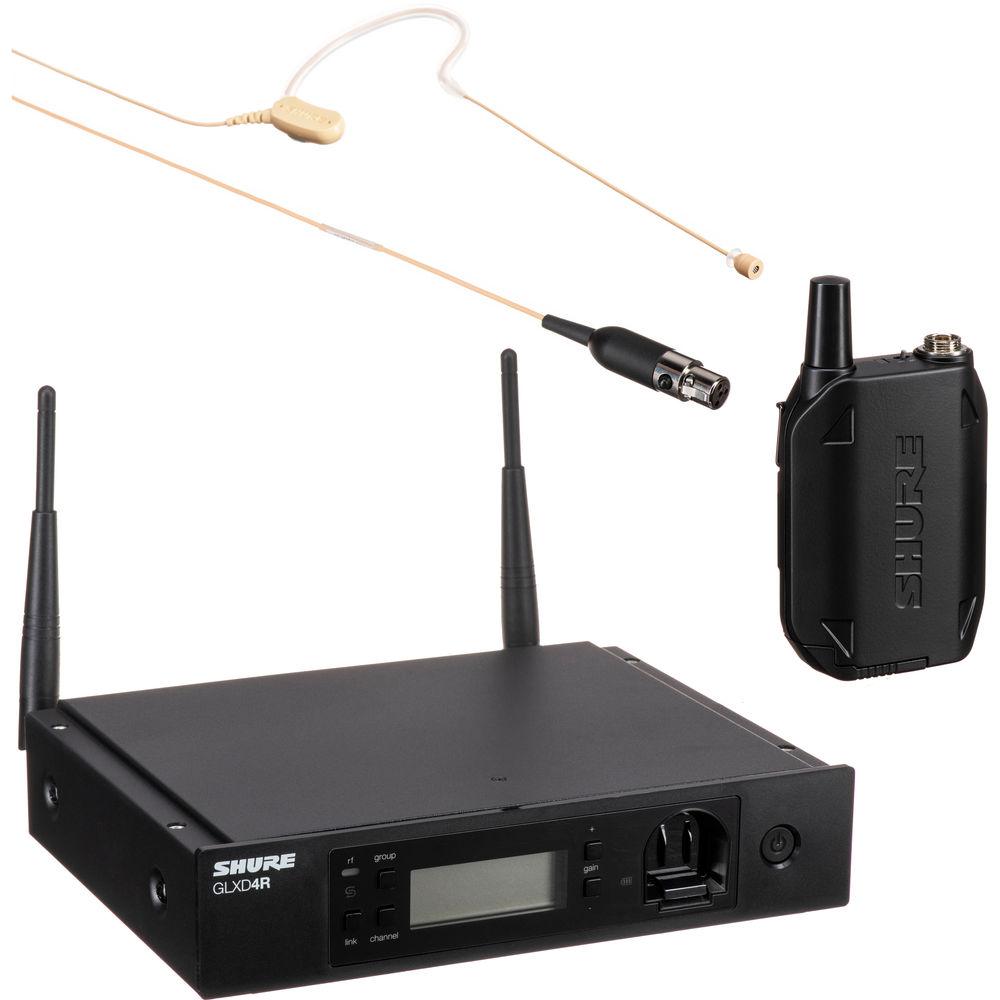

Shure GLXD14R MX53 Earset Headworn Wireless

User Manual for Shure GLXD14R MX53 Earset Headworn Wireless System

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz)
  • Shure GLX-D Advanced - How to Set up Frequency Manager

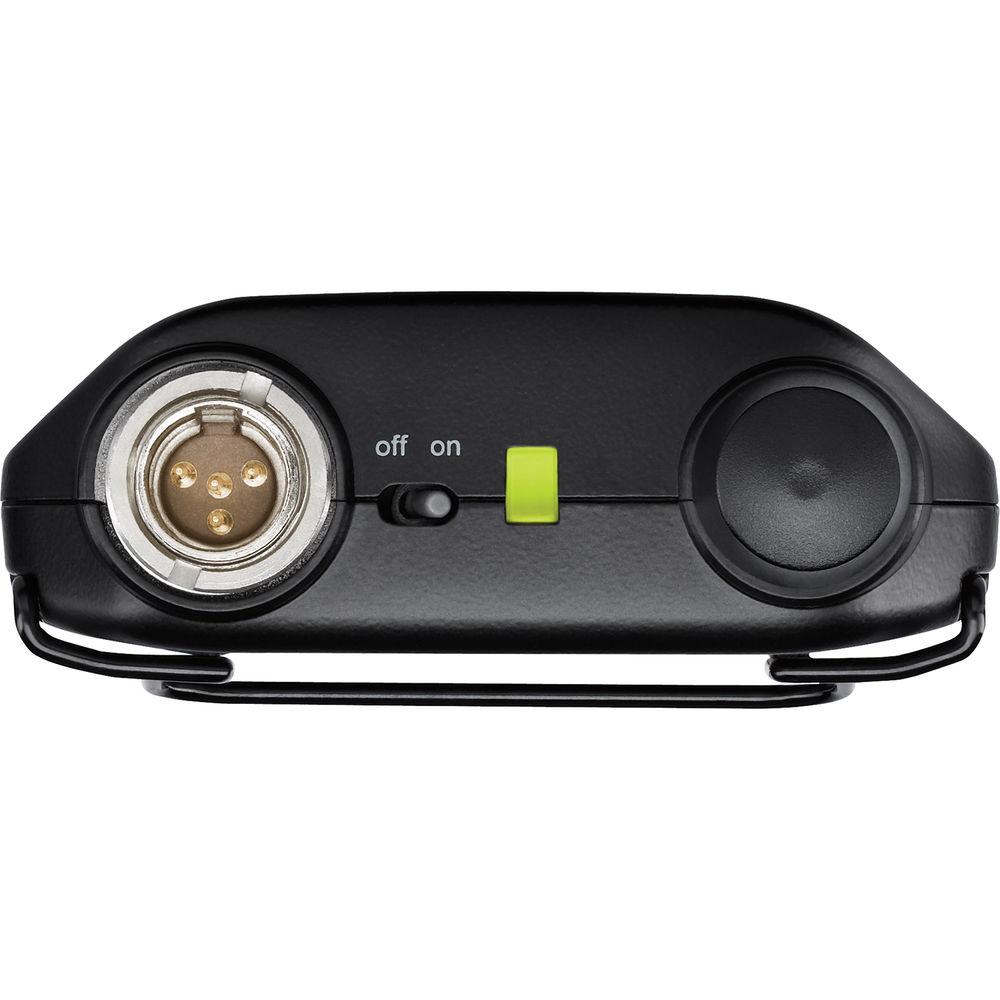

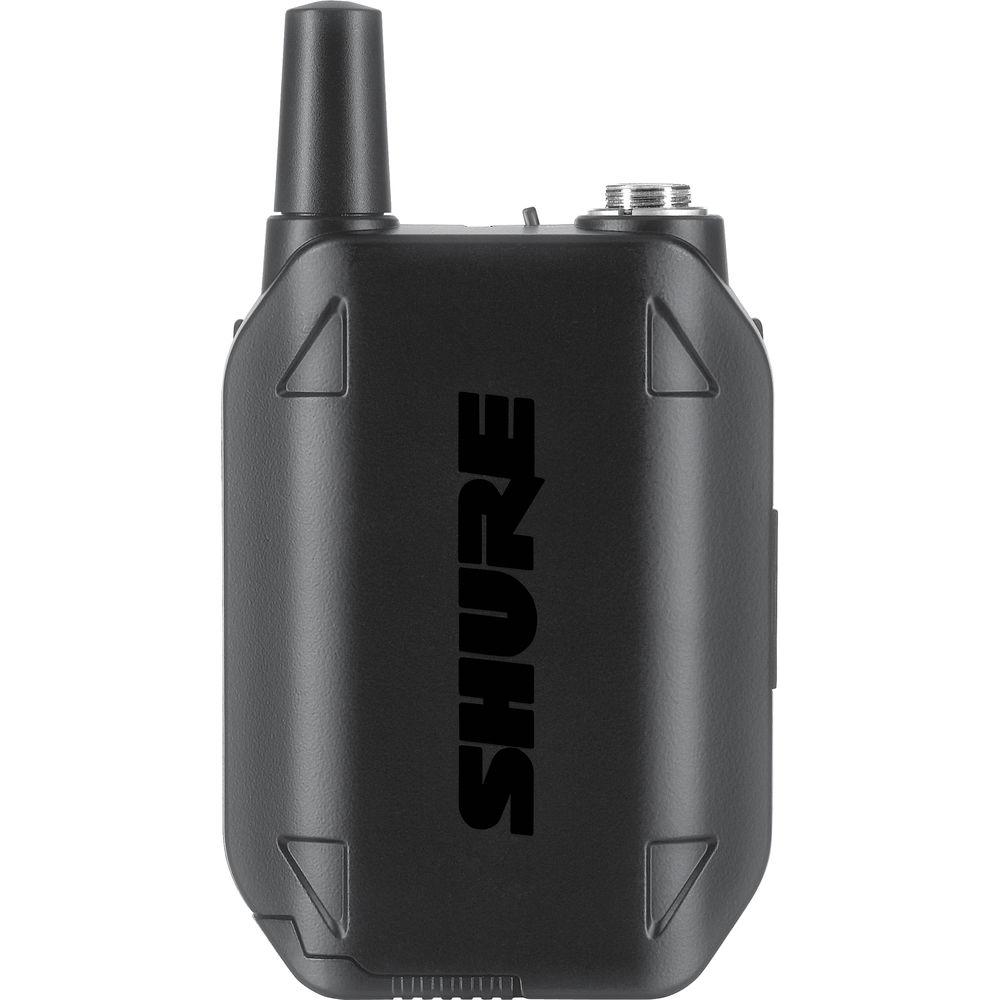

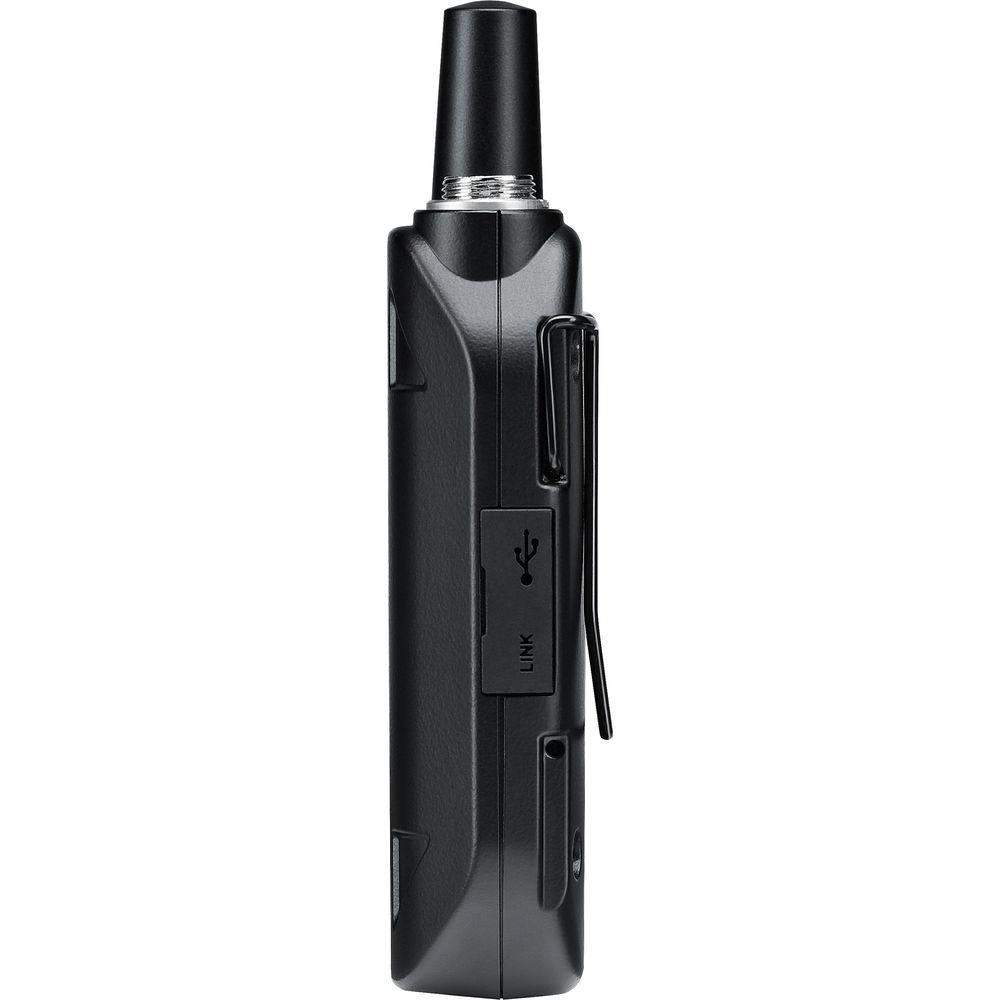

  The GLXD1 Bodypack Transmitter from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable. A 15-minute charge can provide up to 1.5 hours of performance time. The GLXD1 has a 4-pin TA4M connector and is compatible with both lavalier microphones as well as instrument cables with a proper adapter. UPC: 042406261104

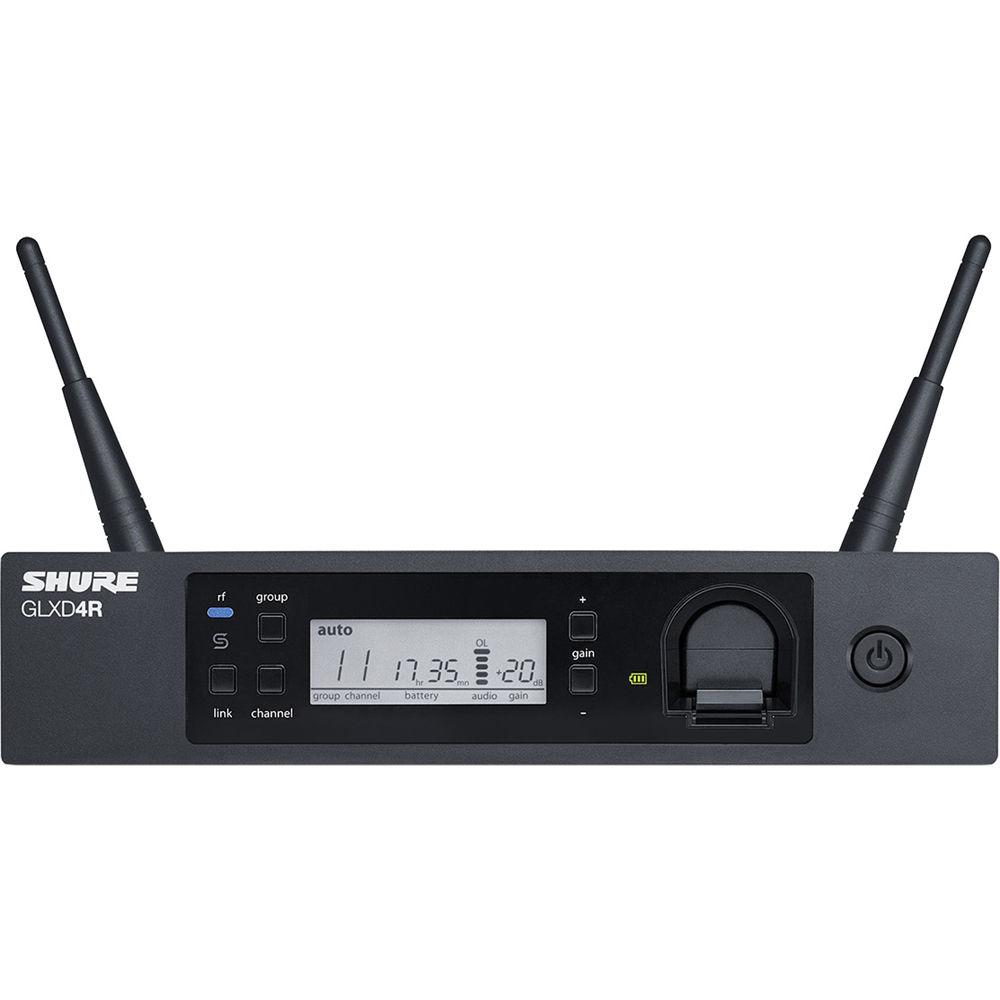

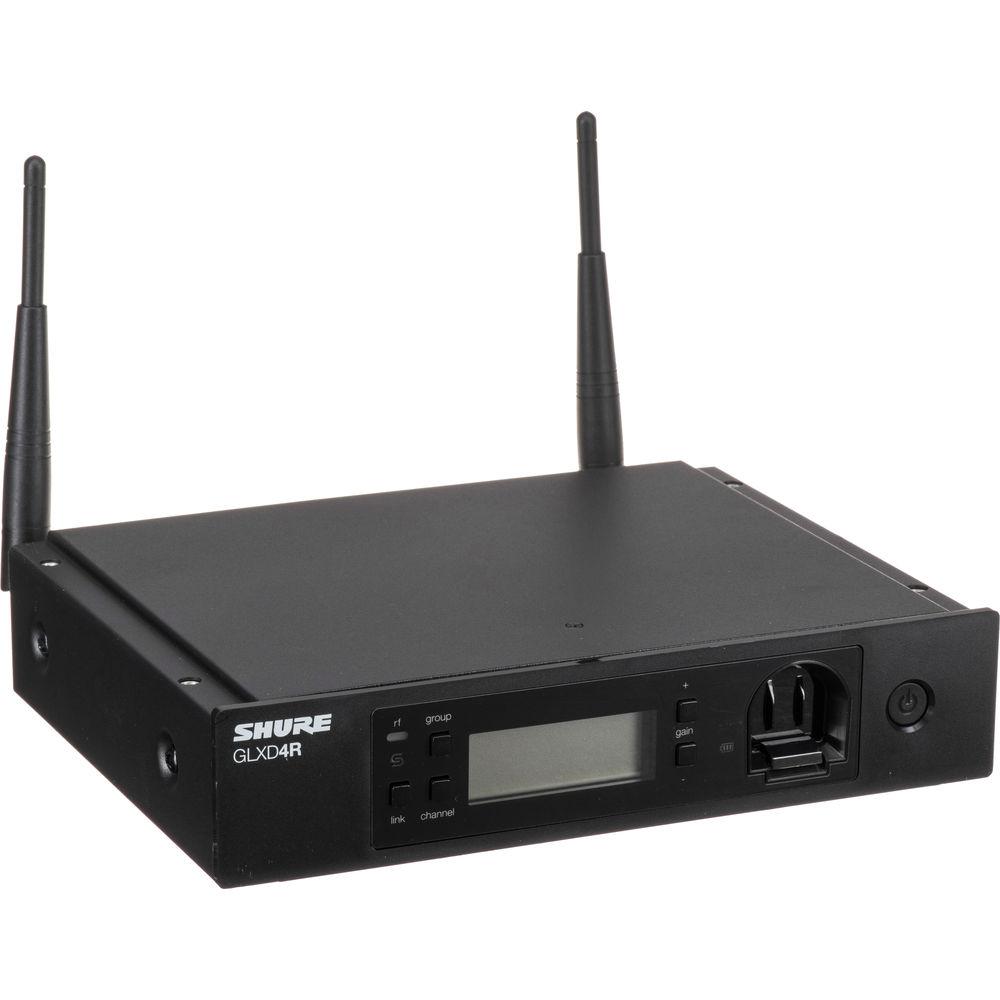

• GLX-D4R Digital Wireless Multi-System Receiver The Shure GLX-D4R Receiver is a single-channel rack-mountable receiver with removable antennas for improved audio and solid performance in multi-system installations for houses of worship, education and live music applications. The receiver features LINKFREQ Automatic Frequency Management (2.4 GHz) and an integrated battery charge port for charging a spare Shure lithium-ion battery. Up to nine compatible systems can be used in a typical setting, while a total of eleven systems can be achieved under optimum conditions when using optional GLX-D Frequency Managers.

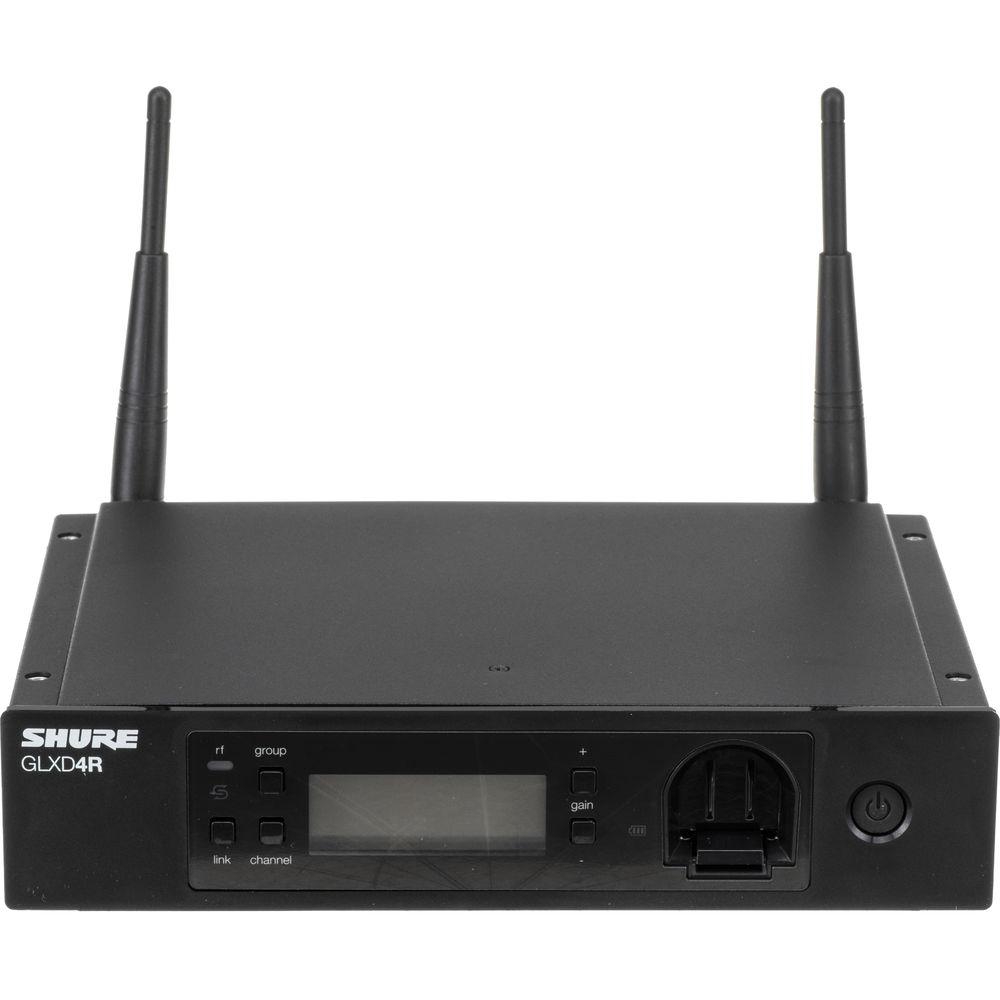

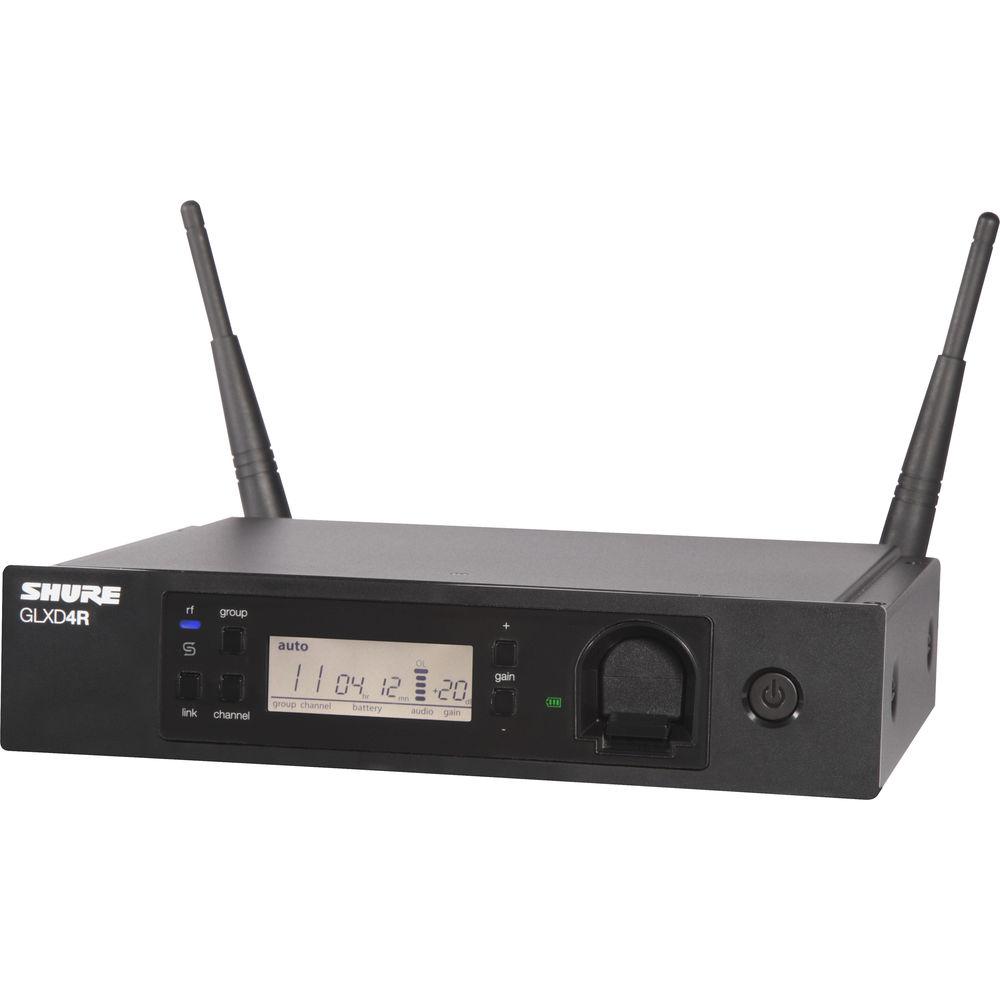

  The front panel features a high-resolution LCD screen, which displays the system status and real-time transmitter battery life in hours and minutes with an accuracy within ±15 minutes. Additional features include a remotely adjustable transmitter gain control, XLR & 1/4" output connectors, and a two-color LED charging indicator. The GLX-D4R receiver is enclosed in a rugged metal chassis and ships with two detachable antennas, a power supply, and rackmount hardware.
  • • Rock-solid RF performance from patented data communication
    • Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED
      • Green: Charged
      • Flashing Green: 90% charged
      • Red: Charging
    • Detachable antennas for remote mounting
    • Remote adjustable transmitter gain control
    • Hi-res LCD screen status display
    • Real-time battery run-time displayed in hours and minutes (accurate within ±15 minutes)
    • XLR and 1/4” output connectors
    • Rugged metal chassis design
    • Includes rackmount hardware
  UPC: 042406496100
• MX153 Earset Headworn Microphone (Tan) The Shure MX153 Earset Headworn Microphone is a subminiature, low-profile single ear-loop microphone with high gain before feedback, rich detail and clarity. The MX153 features a TQG terminated connector for use with compatible Shure bodypack transmitters. The sleek single ear-loop frame features a subminiature capsule with an omnidirectional polar pattern for optimal sensitivity and clarity at all times. The MX153 is ideal for corporate presentations, houses of worship, A/V conferencing, and live sound reinforcement applications.
  • Subminiature omnidirectional cartridge offers superior clarity and enhanced plosive protection with no proximity effect
  • Terminated with TQG connector for direct connectivity to Shure wireless bodypack transmitters
  • Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
  • CommShield Technology guards against interference from cellular RF devices and digital bodypack transmitters
  • Kevlar-reinforced soft flex cable
  • Matte black, tan, and cocoa color options available
  • Includes protective storage pouch, 3 windscreens, and collar clip
  UPC: 042406236140

• SB902 Rechargeable Lithium-Ion Battery

• Padded Zipper Case

• USB Charger Cable

• Limited 2-Year Warranty

• 2 x Antennas with Mounting Cables

• Rackmount Hardware

• Power Supply

• Limited 2-Year Warranty

• 3 x Windscreens

• Collar Clip

• 1 Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz)

  Connector	1x Unbalanced 4-pin TA4M male mini-connector
  Tuning Frequency Range	2400 to 2483.5 MHz
  Range of Operation	200' (60 m) (typical, depends on RF signal absorption, reflection, and interference)
  Transmit Mode	Frequency Hopping
  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	120 dB, A-weighted
  RF Sensitivity	-88 dBm, typical
  Total Harmonic Distortion	0.2%, typical
  RF Output	10 mW E.I.R.P, maximum
  Operating Temperature Range	0° to 135°F (-18° to 57°C)
  Storage Temperature Range	-20° to 165°F (-29° to 74°C)
  Polarity	Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output
  Battery Life	Up to 16 hours
  Power Requirements	3.7 V Rechargeable Li-Ion
  Input Impedance	900 kΩ
  RF Output	10 mW E.I.R.P. maximum
  Maximum Input Level	1 kHz at 1% THD 8.4 dBV (7.5 Vp-p)
  Antenna	Internal Monopole
  Pin Configuration	1: ground (cable shield) 2: +5 V bias 3: Audio 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
  Housing	Cast Metal
  Dimensions (H x W x D)	3.56 x 2.54 x 0.90" (90.4 x 64.5 x 22.9 mm), without antenna

  Box Dimensions (LxWxH)	11.024 x 5.433 x 3.228"

• GLX-D4R Digital Wireless Multi-System Receiver

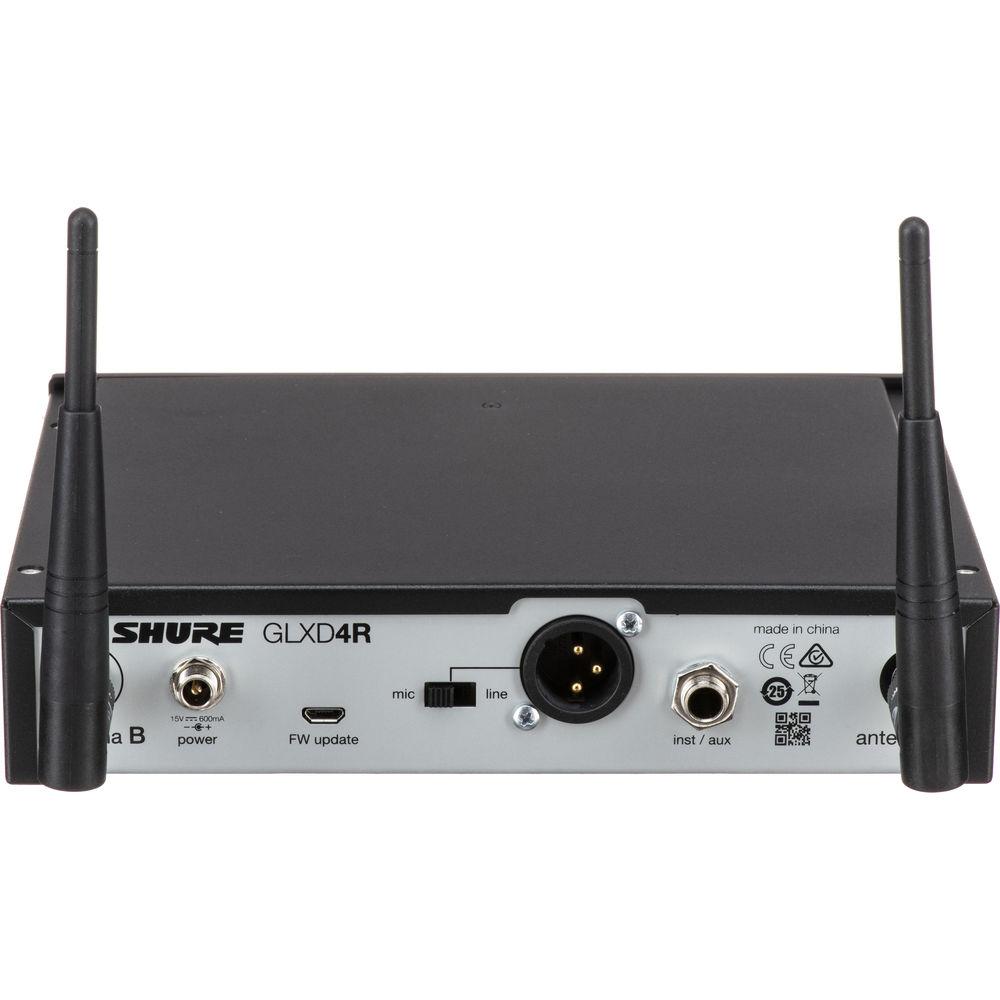

  Configuration	XLR Output: Balanced 1/4" / 6.35 mm Output: Impedance balanced
  Impedance	XLR Output: 100 Ohms 1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced)
  Full Scale Output	XLR Connector: Line Setting: +18 dBV Mic Setting: -12 dBV 1/4" / 6.35 mm Output: +12 dBV
  Pin Assignments	XLR Output: 1=ground, 2=hot, 3=cold 1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground
  Mic/Line Switch	30 dB pad
  Spurious Rejection	>35 dB, typical
  Gain Range	-18 to 42 dB in 1 dB steps
  Phantom Power Protection	Yes

  Impedance	50 Ohms
  Antenna Type	1/2 Wave Sleeve Dipole
  Maximum Input Level	-20 dBm

  Housing	Steel
  Power	Power Requirements: 14 to 18 VDC (Tip positive with respect to ring), 550 mA
  Dimensions (H x W x D)	1.7 x 7.8 x 6.4" / 42.0 x 197.0 x 163.0 mm
  Weight	32.0 oz / 907.2 g

  Box Dimensions (LxWxH)	18.3 x 14.8 x 4.3"

• MX153 Earset Headworn Microphone (Tan)

  Transducer	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Response	20Hz to 20kHz
  Sensitivity	Open circuit voltage, @ 1kHz, typical: -41dBV/Pa (9 mV/Pa)
  Maximum Input Sound Level	1kHz at 1% THD: 2500 Ω load: 107 dB SPL 1000 Ω load: 107 dB SPL
  Signal-to-Noise Ratio	60dB
  Dynamic Range (Typical)	@ 1kHz 2500 Ω load: 73 dB 1000 Ω load: 73 dB
  Self Noise	Equivalent SPL, A-weighted, typical: 34dB
  Common Mode Rejection	20Hz to 20kHz
  Operating Temperature	0 to 135° F (-18 to 57° C)
  Polarity	Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1.
  Power Requirements	+1 - 5VDC (500 μA max.)
  Dimensions	Cable Length: 48" (1.21m)
  Weight	0.69oz (19.76g)

  Box Dimensions (LxWxH)	10.1 x 4.9 x 3.3"
