Product description

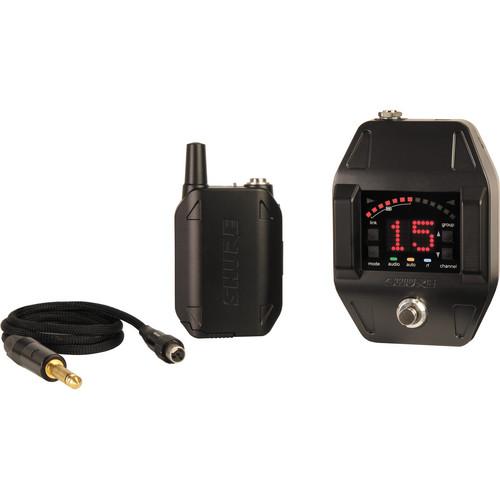

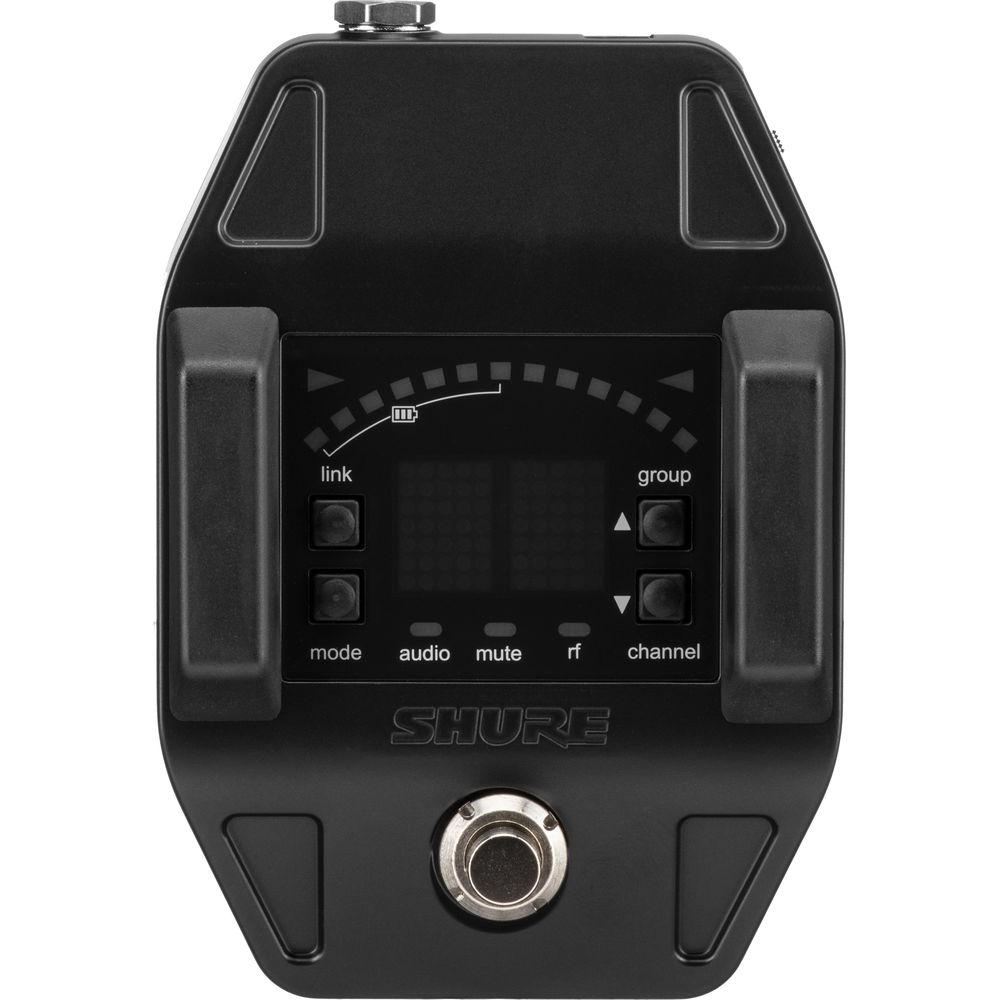

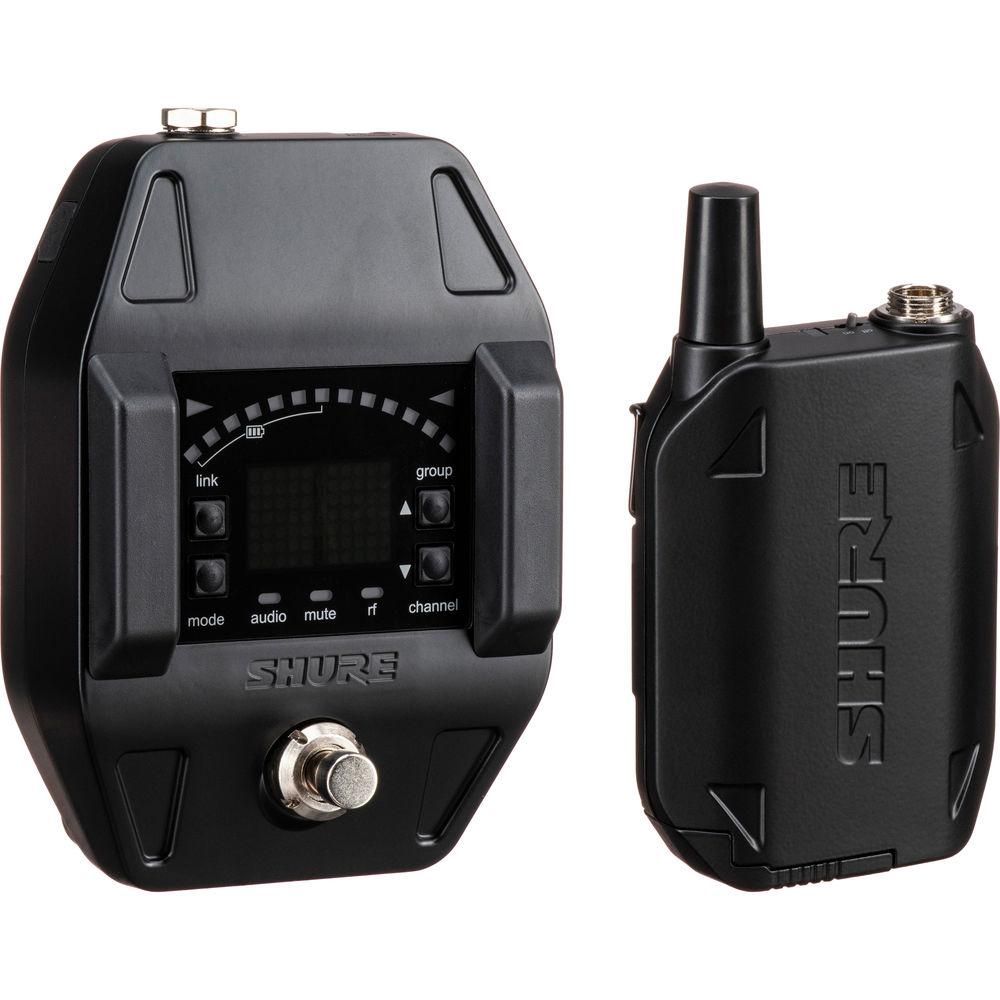

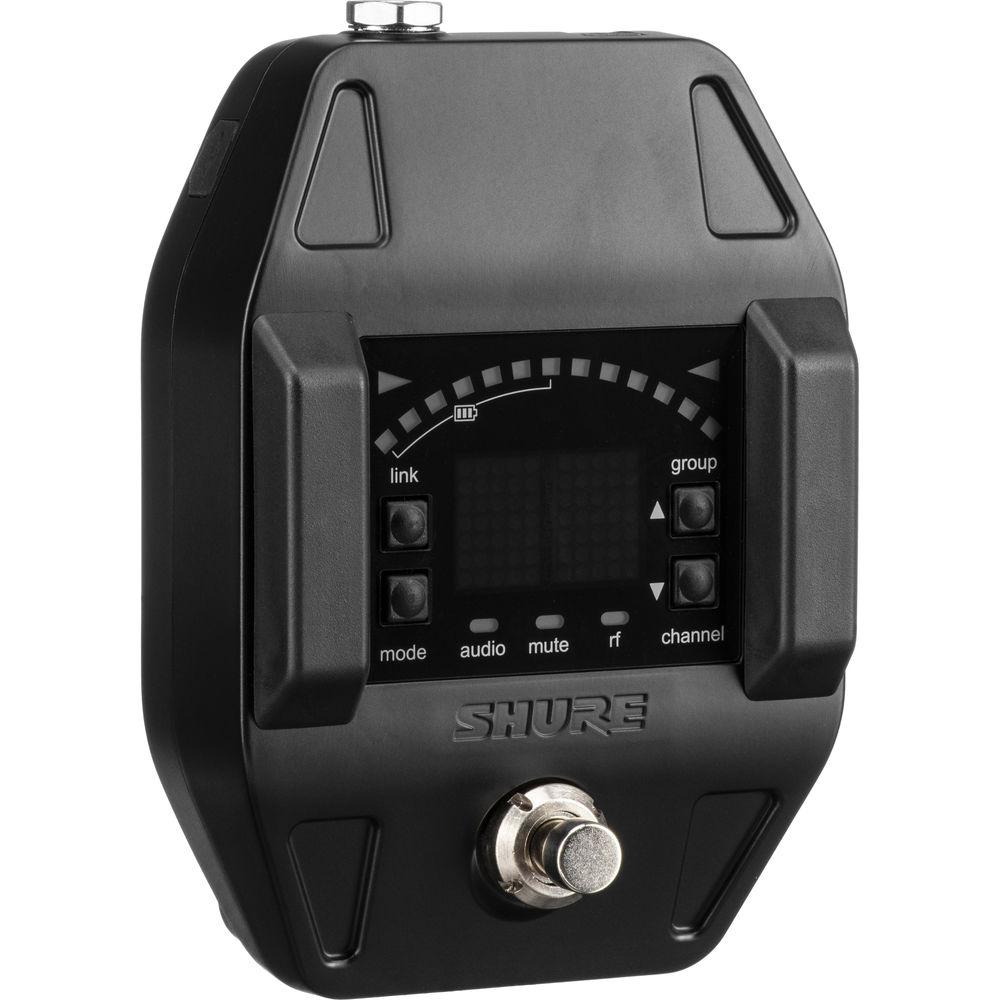

• GLXD6 Guitar Pedal Wireless Receiver with Integrated Tuner (Z2 Band: 2400 - 2483.5 MHz) The GLXD6 Guitar Pedal Wireless Receiver with Integrated Tuner from Shure is designed to work with Shure's GLX-D series digital wireless systems. The GLXD6 has a rugged metal chassis and is intended to be integrated into your guitar pedalboard alongside your other stompboxes and effects. Not simply a wireless receiver, the GLXD6 has an integrated tuner with both strobe and needle tuning modes with mutable output. Its LED display also provides information on transmitter battery life.

  Shure's proprietary LINKFREQ automatic frequency management, which scans for clearest available frequency range, will automatically link the GLXD6 and a compatible transmitter. The GLXD6 has continuous interference monitoring and will automatically switch frequencies to avoid interference and dropouts. It can be powered by the included power supply or from your pedalboard's power supply. Up to 8 systems can be used simultaneously. UPC: 042406262491

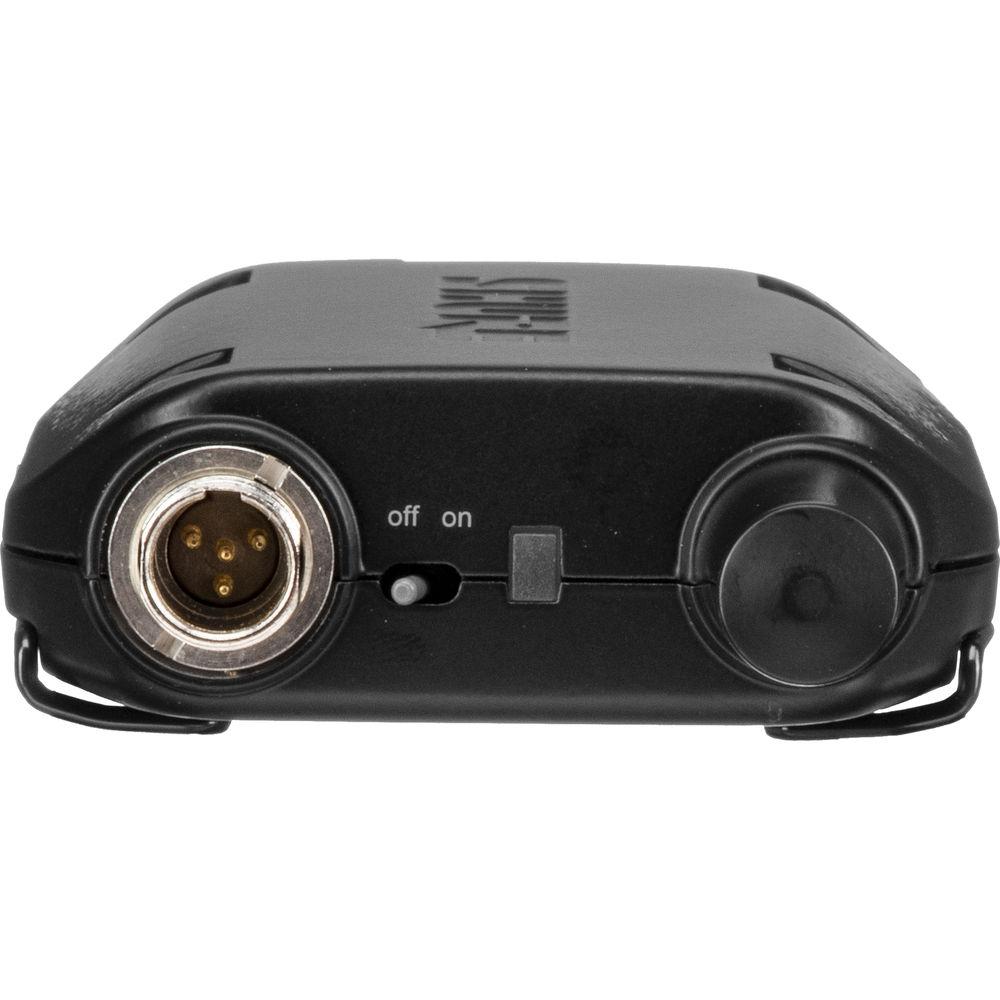

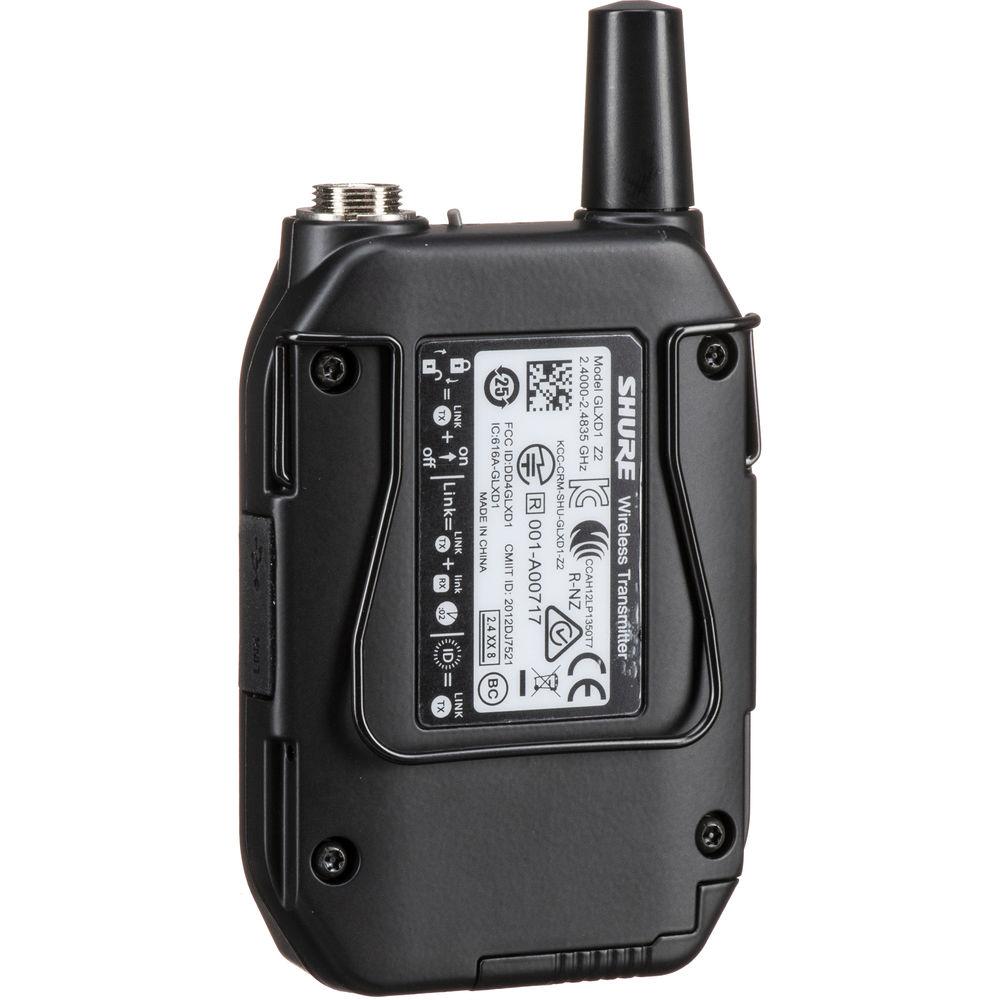

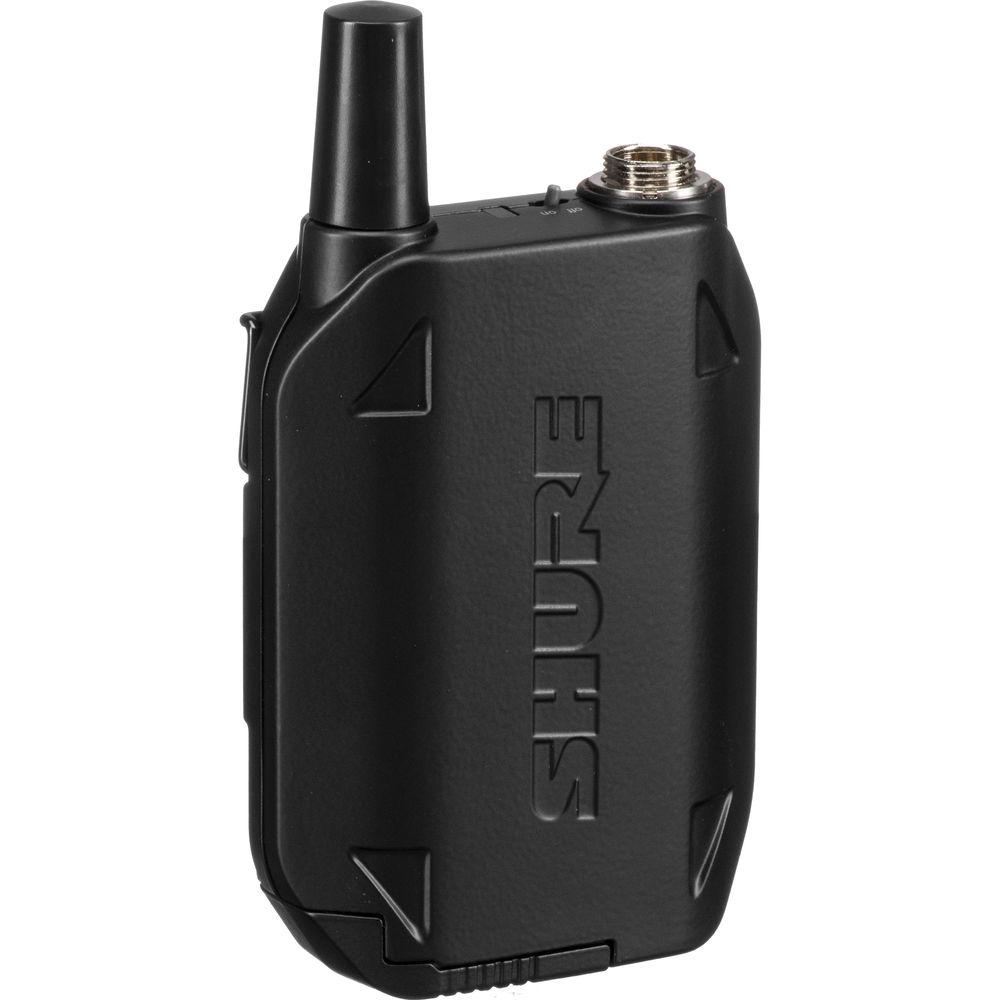

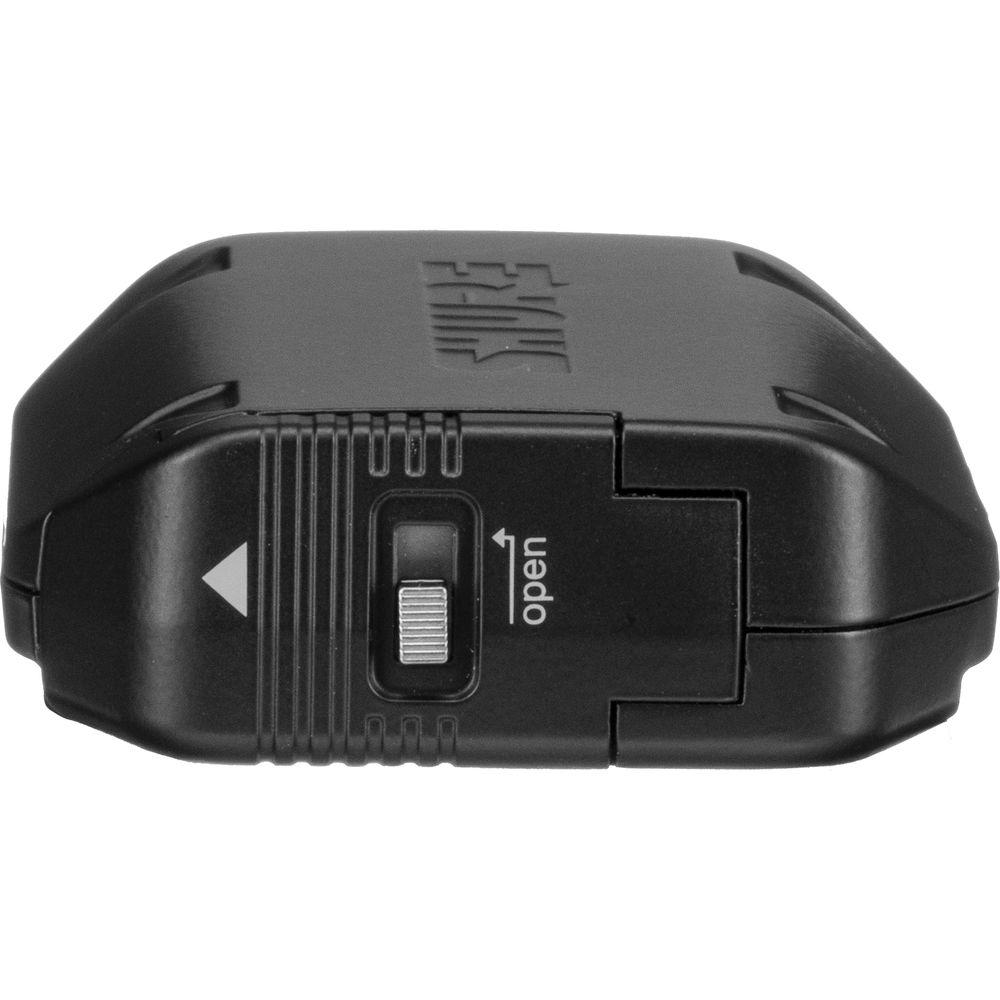

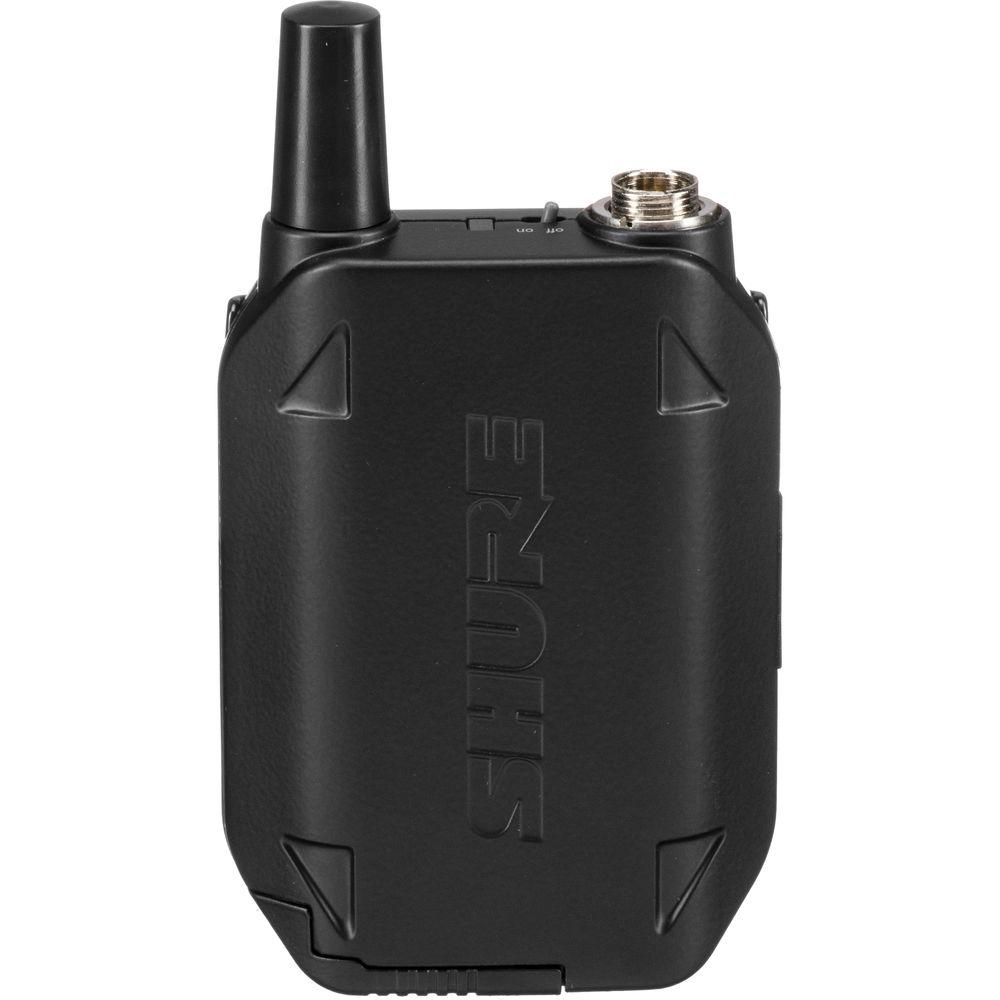

• GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz) The GLXD1 Bodypack Transmitter from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable. A 15-minute charge can provide up to 1.5 hours of performance time. The GLXD1 has a 4-pin TA4M connector and is compatible with both lavalier microphones as well as instrument cables with a proper adapter. UPC: 042406261104

• External Power Supply

• Limited 2-Year Warranty

• SB902 Rechargeable Lithium-Ion Battery

• Padded Zipper Case

• USB Charger Cable

• Limited 2-Year Warranty

Also Includes

• WA305 1/4" to TA4F Instrument Cable
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GLXD6 Guitar Pedal Wireless Receiver with Integrated Tuner (Z2 Band: 2400 - 2483.5 MHz)

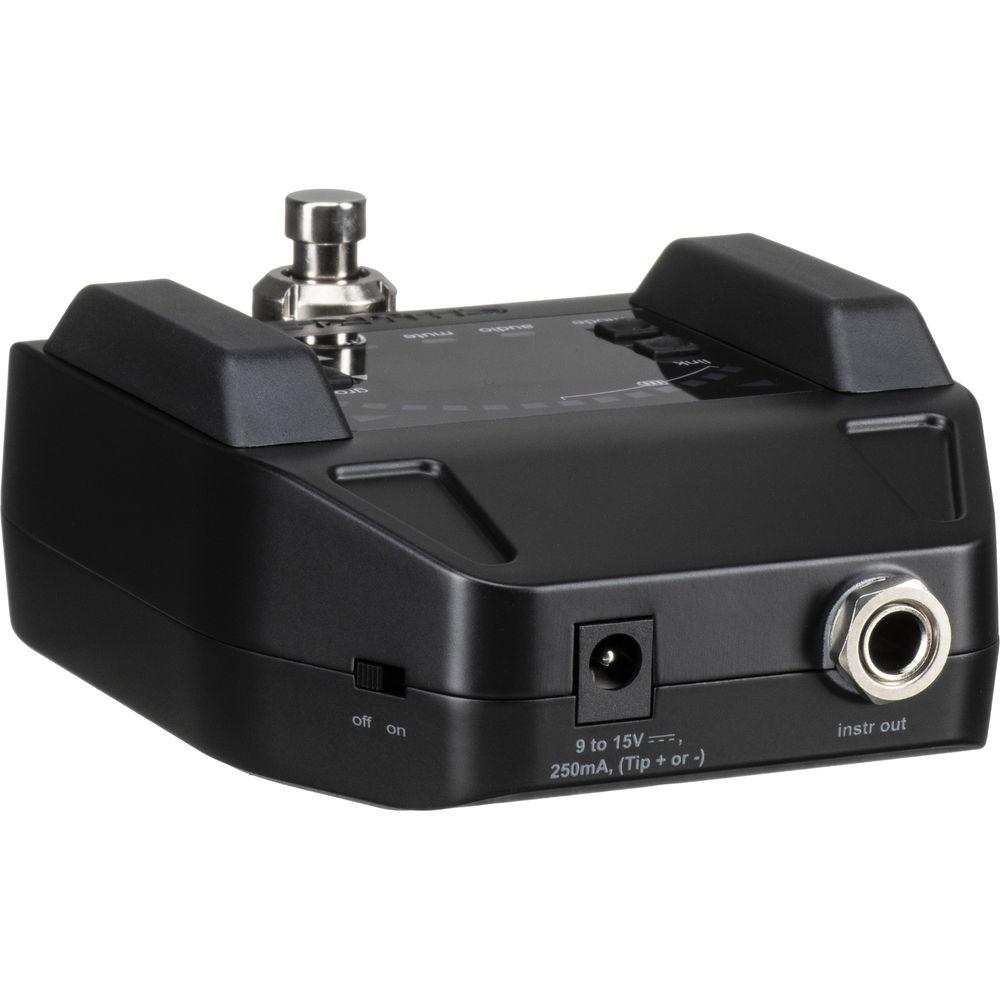

  Outputs	1x 1/4" (6.35 mm) TS output
  Power Supply	9 to 15 V DC, 250 mA minimum Powered by included AC adapter or pedalboard power
  Tuner	Mute Function Adjustable Reference Pitch (432 - 447 Hz) Selectable Strobe or Needle Tuning Modes
  Operating Range	Indoors: Up to 100' (30 m) typical, with a maximum of 200' (60 m) Outdoors: Up to 65' (20 m) typical, with a maximum of 165' (50 m)

  Box Dimensions (LxWxH)	18.25 x 13.0 x 4.63"

• GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz)

  Connector	1x Unbalanced 4-pin TA4M male mini-connector
  Tuning Frequency Range	2400 to 2483.5 MHz
  Range of Operation	200' (60 m) (typical, depends on RF signal absorption, reflection, and interference)
  Transmit Mode	Frequency Hopping
  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	120 dB, A-weighted
  RF Sensitivity	-88 dBm, typical
  Total Harmonic Distortion	0.2%, typical
  RF Output	10 mW E.I.R.P, maximum
  Operating Temperature Range	0° to 135°F (-18° to 57°C)
  Storage Temperature Range	-20° to 165°F (-29° to 74°C)
  Polarity	Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output
  Battery Life	Up to 16 hours
  Power Requirements	3.7 V Rechargeable Li-Ion
  Input Impedance	900 kΩ
  RF Output	10 mW E.I.R.P. maximum
  Maximum Input Level	1 kHz at 1% THD 8.4 dBV (7.5 Vp-p)
  Antenna	Internal Monopole
  Pin Configuration	1: ground (cable shield) 2: +5 V bias 3: Audio 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
  Housing	Cast Metal
  Dimensions (H x W x D)	3.56 x 2.54 x 0.90" (90.4 x 64.5 x 22.9 mm), without antenna

  Box Dimensions (LxWxH)	11.024 x 5.433 x 3.228"
