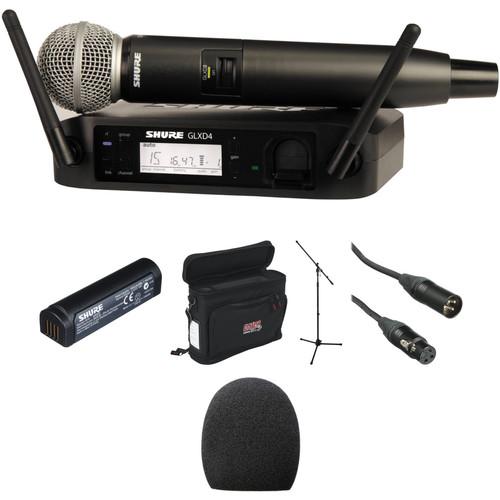

Product description The Shure GLXD24/SM58 Handheld Wireless Basic Package Kit from includes a Shure GLXD4 digital wireless receiver (Z2 Band: 2400 - 2483.5 MHz), a GLXD2 handheld transmitter with an SM58 microphone capsule, a Shure SB902 rechargeable lithium-ion battery, a Gator Cases GM-1W wireless mobile pack, an Auray MS-5230F tripod mic stand with a fixed boom, a premium microphone cable, and a black Auray foam windscreen for 1-5/8"-diameter microphones. Both the transmitter and the receiver feature Shure's LINKFREQ automatic frequency-management technology that allows you to scan for the clearest frequency available and automatically link to each other without any setup requirements other than turning both units on. The rechargeable SB902 lithium-ion battery provides up to 16 hours of operation on a full charge. Furthermore, the black Gator Cases GM-1W wireless mobile pack is a 600-denier nylon case with interior padding. It is designed to carry and protect an entire single wireless system and the zippered case has sufficient space for a lavalier microphone, cables, and accessories. In addition, the Auray tripod mic stand features a 31.5" boom arm and is built with all-steel construction. An ergonomic twist-action clutch helps adjust the height of the stand. Finally, the kit's premium XLR cable and black foam windscreen rounds out this package and provides everything you need to capture your vocal or speech performance in various applications. - Shure GLXD24/SM58 Handheld Wireless System (Z2 Band: 2400 - 2483.5 MHz) The GLXD24/SM58 Handheld Wireless System from Shure includes a GLXD4 wireless receiver and a GLXD2 handheld transmitter with an SM58 microphone element. The system operates on the 2.4GHz ISM band in the Z2 frequency band between 2400 and 2483.5MHz.
Both the GLXD2 transmitter and the GLXD4 receiver feature Shure's LINKFREQ automatic frequency management that allows them to scan for the clearest frequency available and automatically link to each other without any setup required from you besides turning both units on. With their continuous interference monitoring, both the transmitter and receiver automatically switch to the clearest frequencies available to avoid interference and dropouts.
The GLXD2 includes a rechargeable battery pack that provides up to 16 hours of operation on a full charge. It can be charged right in the GLXD4 receiver thanks to its integrated transmitter battery charging station. The system has a 200' range of operation and can be used with 7 other GLX-D systems simultaneously. UPC: 042406262415 - Shure SB902 Rechargeable Lithium-Ion Battery The Shure SB902 Rechargeable Lithium-Ion Battery serves either as a replacement or a spare battery to charge while using the GLX-D Digital Wireless System. UPC: 042406320191
- Gator Cases GM-1W Wireless Mobile Pack The Gator Cases GM-1W Wireless Mobile Pack (Black) is a 600 denier nylon case with interior padding. It is designed to carry and protect an entire single wireless system. The zippered case reveals sufficient space for lavalier microphones, cables and accessories. The foam padded interior protects the gear from shock while remaining lightweight and rugged. The receiver is functional while still in the bag. The front and back unzip for easy access. The bag is carried by a removable, adjustable shoulder strap and padded carrying handles.
- Construction
-
- 600 denier nylon
- Foam padded interior
- Zipper closure
- Access for antenna to be extended while in the case
- Space for lavalieres, cables and wireless mic with transporter
- Mounted front and rear access unzips for easy set up in the field
- Carrying options
-
- Removable, adjustable shoulder strap
- Padded carrying handles
- Compatible with most single microphone wireless systems
UPC: 716408503424 - Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
- Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558267 - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black) The black Auray WHF Series Foam Windscreens are designed to reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss. This WHF-158 Foam Windscreen is designed for use with many common handheld microphones with a 1-5/8" diameter head. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. When used on a handheld microphone, this windscreen is effective in minimizing wind noise and plosive sounds. It is most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a 4dB to 8dB reduction in wind noise, with very slight dampening of high frequencies. For most applications, the very slight high frequency dampening is a worthwhile exchange for the notable wind noise reduction. The WHF-158's foam is hypoallergenic and washable and helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Shure, Electro-Voice, AKG, Audio-Technica, Audix, Beyerdynamic, Sennheiser, Neumann and others. The WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones is an effective solution for basic wind protection.
- Fits these and other similar-sized microphones:
-
- Shure SM58, Beta 58, Beta 87A, Beta 87C, PG58, PG48, SM48, SM96, VP88, SM87, SM53, SM54, PE85, PE86, BG3.0, PE15, PE75, 12a, 14A, 587, 587SB
- Electro-Voice RE50/B, BBK1, Co5, Co7, Co9, DS35, MC100, 150, 300, MT200, N/D200, N/D247, 257, 267, N/D357, 367, 457, 757, N/D767, PL50, PL60, PL70, PL77, PL80, RE11, RE16, RE18
- Sennheiser e825S, e865, MD21, 200, MD400, 425, 427, 429, MD511, 512, 515, 516, 735, MD736, ME65, MKE44, SKM3072, SKM5000, SKM100, SKM300, SKM500, SKP30
- Audio-Technica AE3300, 4100, 5400, 6100, ATM23, 25, 29, 31, 41, 61, ATM91, AT801, AT802, AT813, AT814, ATW7375, ATW-T602, MB1000, Pro-1a, Pro-2ax, Pro-3, Pro-4, Pro-5, Pro-10
- Audix OM-2, OM-3, OM-5, OM-6, OM-7, VX-10
- AKG C900, D40, D50, D60, D80, D90, D95, D125, D130, D190, D200, D310, D321, D330, D590, D770, D880, C535, CK4, D3700, D3800, D5900
- Beyerdynamic BM85, EM85, M01, M59, M69, M260, M300, M400, M500, MCE81, TGX-20, TGX-40, TGX-58, TGX-60, TGX-80
- Neumann KMS105, KMS140, KMS150
- Nady SP-1, SP-3, SP-4, SP-5, SP-9, SP10, WHT14, WHT15, UH10
- Peavey Celebrity, PAA250, PVM835, PVM880, PV, PVi
- Telex HT700, SH100, FMR150, FMR450, EN6100, H12E, VR12E
UPC: 847628562868 In the Box - GLXD24/SM58 Handheld Wireless System (Z2 Band: 2400 - 2483.5 MHz) yqtsyvfycdbrsqxxyffvad
- GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz)
- GLXD2 Handheld Transmitter with SM58 Microphone Element (Z2 Band: 2400 - 2483.5 MHz)
- Limited 2-Year Warranty
- SB902 Rechargeable Lithium-Ion Battery
- Gator Cases - GM-1W Wireless Mobile Pack
- Auray - MS-5230F Tripod Microphone Stand with Fixed Boom
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
- Auray - WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure GLXD24 SM58 Handheld Wireless Basic Package Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz)
| Outputs | 1x XLR Output
1x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 100 Ω
1/4": 100 Ω, 50 Ω unbalanced | | Maximum Audio Output Level Analog | XLR: 1 dBV (into 600 Ω load)
1/4": 8.5 dBV (into 3 kΩ load) | | Tuning Frequency Range | 2400 to 2483.5 MHz | | Range of Operation | 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) | | Transmit Mode | Frequency Hopping | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 120 dB, A-weighted | | RF Sensitivity | -88 dBm, typical | | Total Harmonic Distortion | 0.2%, typical | | RF Output | 10 mW E.I.R.P., maximum | | Operating Temperature Range | 0° to 135°F (-18° to 57°C) | | Storage Temperature Range | -20° to 165°F (-29° to 74°C) | | Pin Configuration | XLR: 1= ground, 2= hot, 3=cold
1/4": Tip= audio, ring= no audio, sleeve= ground | | Antenna | Impedance: 50 Ω
Type: 1/2 wave sleeve dipole, non-removable
Max Input Level: -20 dBm | | Power Requirements | 14 to 18 V DC (tip positive with respect to ring), 550 mA | | Spurious Rejection | >35 dB, typical | | Gain Adjustment Range | -20 to 40 dB in 1 dB steps | | Phantom Power Protection | Yes | | Housing | Molded plastic | | Dimensions (HxWxD) | 1.6 x 7.2 x 4.6" (40 x 183 x 117 mm) | | Weight | 10.1 oz (286 g) | | | | Box Dimensions (LxWxH) | 18.25 x 13.0 x 4.63" | - Shure GLXD2 Handheld Transmitter with SM58 Microphone Element (Z2 Band: 2400 - 2483.5 MHz)
| | | RF Power Output | 10 mW E.I.R.P, maximum | | Maximum Input Level | 147 dB SPL | | Power Requirement | 3.7 V Rechargeable Li-Ion | | Housing | Molded plastic | | Dimensions | Body Length: 9.9" (252 mm)
Body Width: 1.5" (37 mm)
Capsule Width: 2" (51 mm) | | Weight | 9.4 oz (267 g), without batteries | | | | Type | Dynamic (Moving Coil) | | Frequency Response | 50 Hz to 15 kHz | | Polar Pattern | Cardioid, rotationally symmetrical about microphone axis, uniform with frequency | | | | Box Dimensions (LxWxH) | 10.9 x 5.4 x 3.3" | - Shure SB902 Rechargeable Lithium-Ion Battery
| | | Box Dimensions (LxWxH) | 4.7 x 3.3 x 1.7" | - Gator Cases GM-1W Wireless Mobile Pack
| Material | Exterior: 600 denier nylon
Interior: Foam padded | | Type of Closure | Zippers | | Exterior Dimensions | 15.35 x 5.0 x 11.42" (38.99 x 12.7 x 29cm) (LxDxH) | | Interior Dimensions | 8.5 x 2.0 x 8.5" (21.59 x 5.08 x 21.59cm) (LxDxH)
Mic Drops: 8.25" (20.96cm) | | Carrying/Transport Options | Shoulder strap
Padded carrying handles | | Weight | 4.4 lbs (2.0kg) | | | | Box Dimensions (LxWxH) | 14.724 x 10.315 x 4.882" | - Auray MS-5230F Tripod Microphone Stand with Fixed Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Material | Steel | | Weight | 4.5 lb / 2 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 6' / 1.8 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 3.5 x 0.9 x 0.2" | - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
| Compatible Mic Diameter | 1.62" / 4.13 cm | | Material | Foam | | | | Box Dimensions (LxWxH) | 2.6 x 2.6 x 1.8" |
