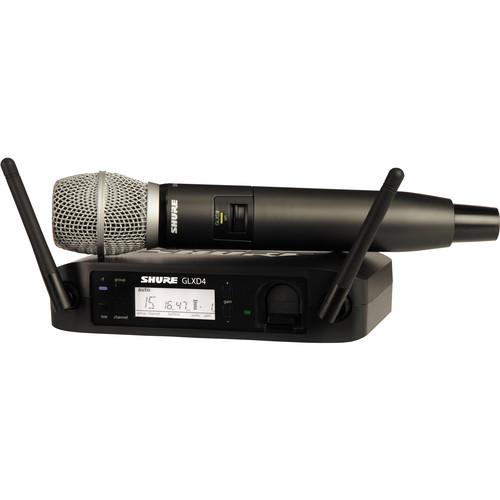

Product description The GLXD24/SM86 Handheld Wireless System from Shure includes a GLXD4 wireless receiver and a GLXD2 handheld transmitter with an SM86 microphone element. The system operates on the 2.4GHz ISM band in the Z2 frequency band between 2400 and 2483.5MHz.
Both the GLXD2 transmitter and the GLXD4 receiver feature Shure's LINKFREQ automatic frequency management that allows them to scan for the clearest frequency available and automatically link to each other without any setup required from you besides turning both units on. With their continuous interference monitoring, both the transmitter and receiver automatically switch to the clearest frequencies available to avoid interference and dropouts.
The GLXD2 includes a rechargeable battery pack that provides up to 16 hours of operation on a full charge. It can be charged right in the GLXD4 receiver thanks to its integrated transmitter battery charging station. The system has a 200' range of operation and can be used with 7 other GLX-D systems simultaneously. - GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz) The GLXD4 Digital Wireless Receiver from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. Shure's proprietary LINKFREQ automatic frequency management, which scans for clearest available frequency range, will automatically link the GLXD4 and a compatible transmitter. The GLXD4 has continuous interference monitoring and will automatically switch frequencies to avoid interference and drop outs. The integrated battery charging station allows you to charge your transmitter when not in use, or a back-up battery pack while in use. Your transmitters remaining battery life is displayed on the GLXD4's front-panel LCD screen. Up to 8 systems can be used simultaneously. UPC: 042406262460
- GLXD2 Handheld Transmitter with SM86 Microphone Element (Z2 Band: 2400 - 2483.5 MHz) The GLXD2 Handheld Transmitter with SM86 Microphone Element from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable or with the integrated charger in the GLXD4 wireless receiver. A 15-minute charge can provide up to 1.5 hours of performance time. UPC: 042406261845
In the Box Bundle Items GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz) GLXD2 Handheld Transmitter with SM86 Microphone Element (Z2 Band: 2400 - 2483.5 MHz) - SB902 Rechargeable Lithium-Ion Battery
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure GLXD24 SM86 Handheld Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz)
| Outputs | 1x XLR Output
1x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 100 Ω
1/4": 100 Ω, 50 Ω unbalanced | | Maximum Audio Output Level Analog | XLR: 1 dBV (into 600 Ω load)
1/4": 8.5 dBV (into 3 kΩ load) | | Tuning Frequency Range | 2400 to 2483.5 MHz | | Range of Operation | 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) | | Transmit Mode | Frequency Hopping | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 120 dB, A-weighted | | RF Sensitivity | -88 dBm, typical | | Total Harmonic Distortion | 0.2%, typical | | RF Output | 10 mW E.I.R.P., maximum | | Operating Temperature Range | 0° to 135°F (-18° to 57°C) | | Storage Temperature Range | -20° to 165°F (-29° to 74°C) | | Pin Configuration | XLR: 1= ground, 2= hot, 3=cold
1/4": Tip= audio, ring= no audio, sleeve= ground | | Antenna | Impedance: 50 Ω
Type: 1/2 wave sleeve dipole, non-removable
Max Input Level: -20 dBm | | Power Requirements | 14 to 18 V DC (tip positive with respect to ring), 550 mA | | Spurious Rejection | >35 dB, typical | | Gain Adjustment Range | -20 to 40 dB in 1 dB steps | | Phantom Power Protection | Yes | | Housing | Molded plastic | | Dimensions (HxWxD) | 1.6 x 7.2 x 4.6" (40 x 183 x 117 mm) | | Weight | 10.1 oz (286 g) | | | | Box Dimensions (LxWxH) | 18.25 x 13.0 x 4.63" | - GLXD2 Handheld Transmitter with SM86 Microphone Element (Z2 Band: 2400 - 2483.5 MHz)
