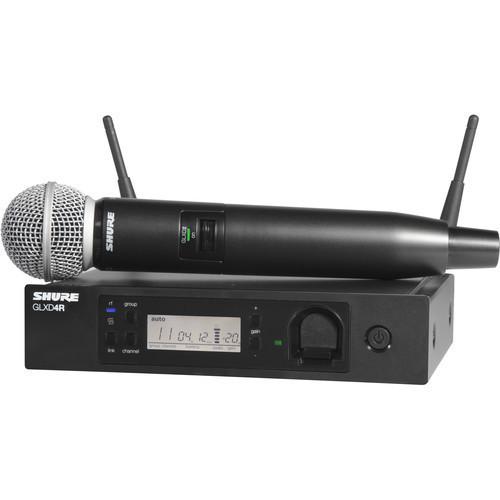

Shure GLXD24R SM58 Handheld Wireless System

User Manual for Shure GLXD24R SM58 Handheld Wireless System with SM58 Microphone

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• GLXD2 Handheld Transmitter with SM58 Microphone Element (Z2 Band: 2400 - 2483.5 MHz)
  • Shure GLX-D Advanced - How to Set up Frequency Manager

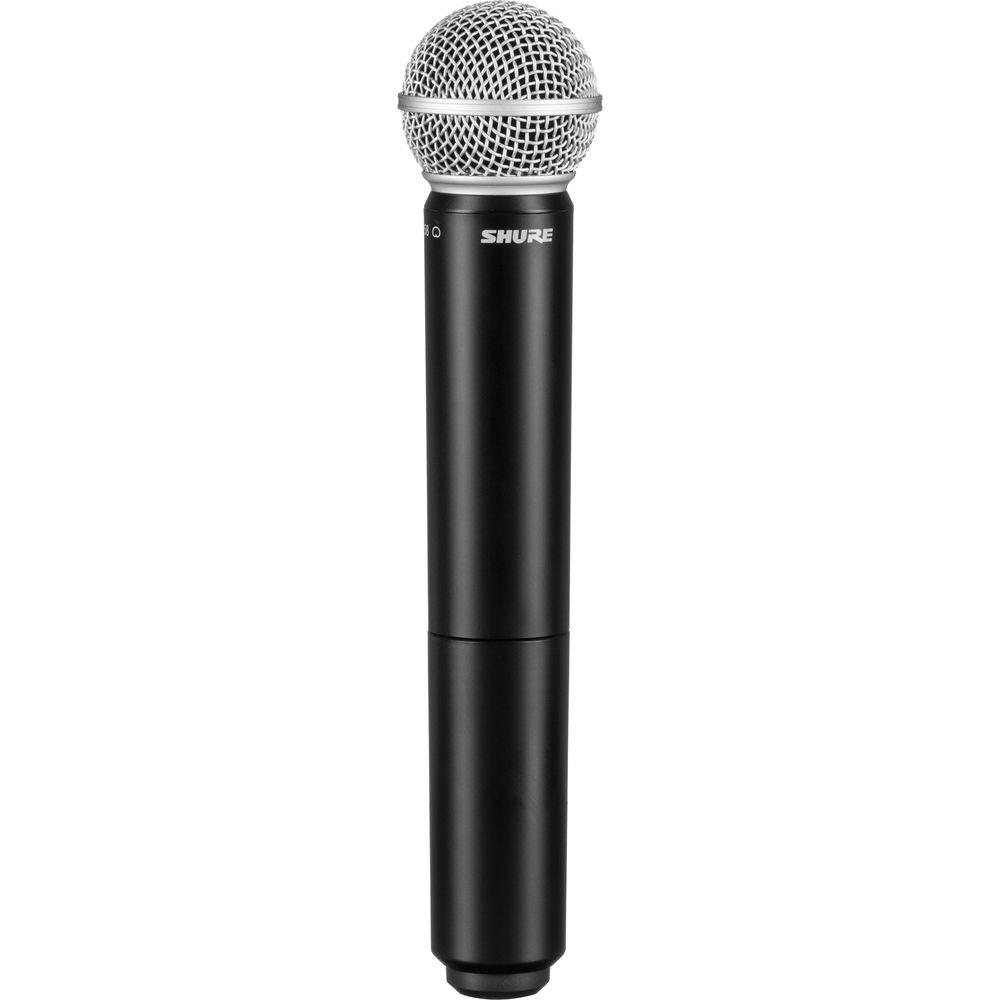

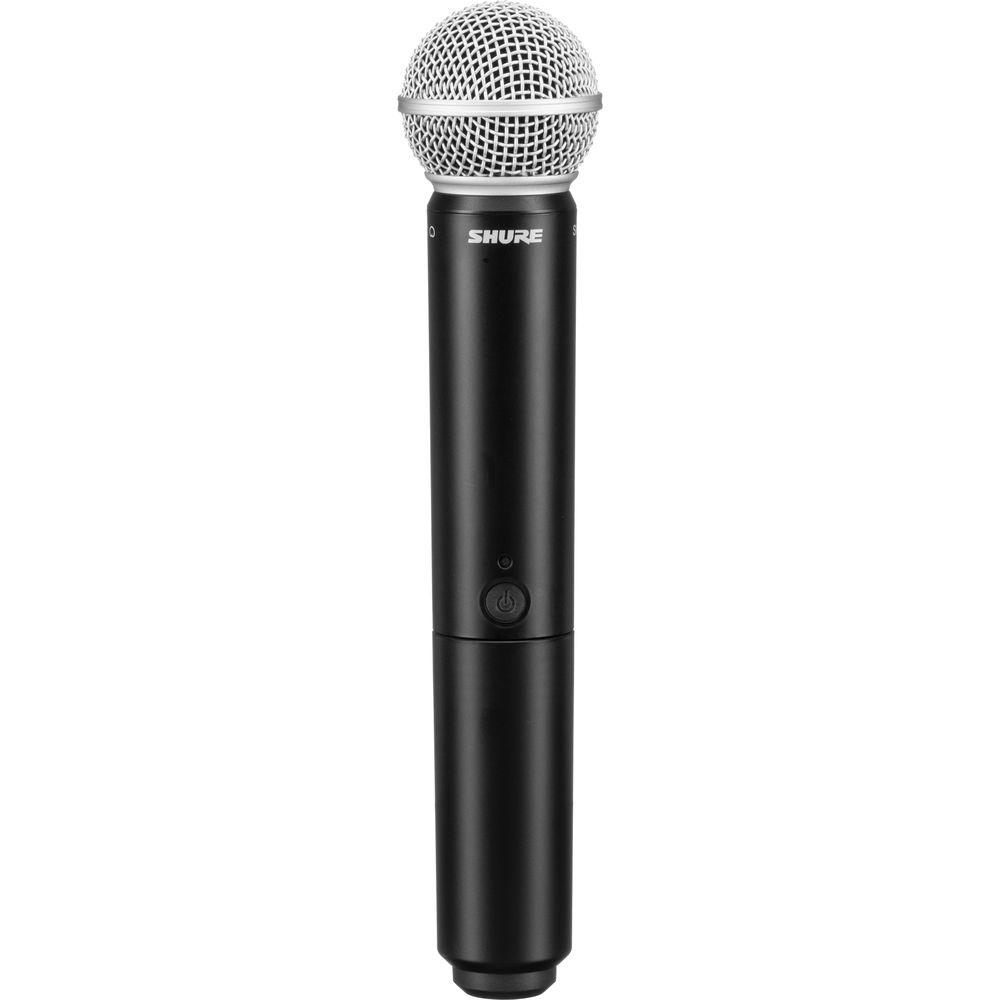

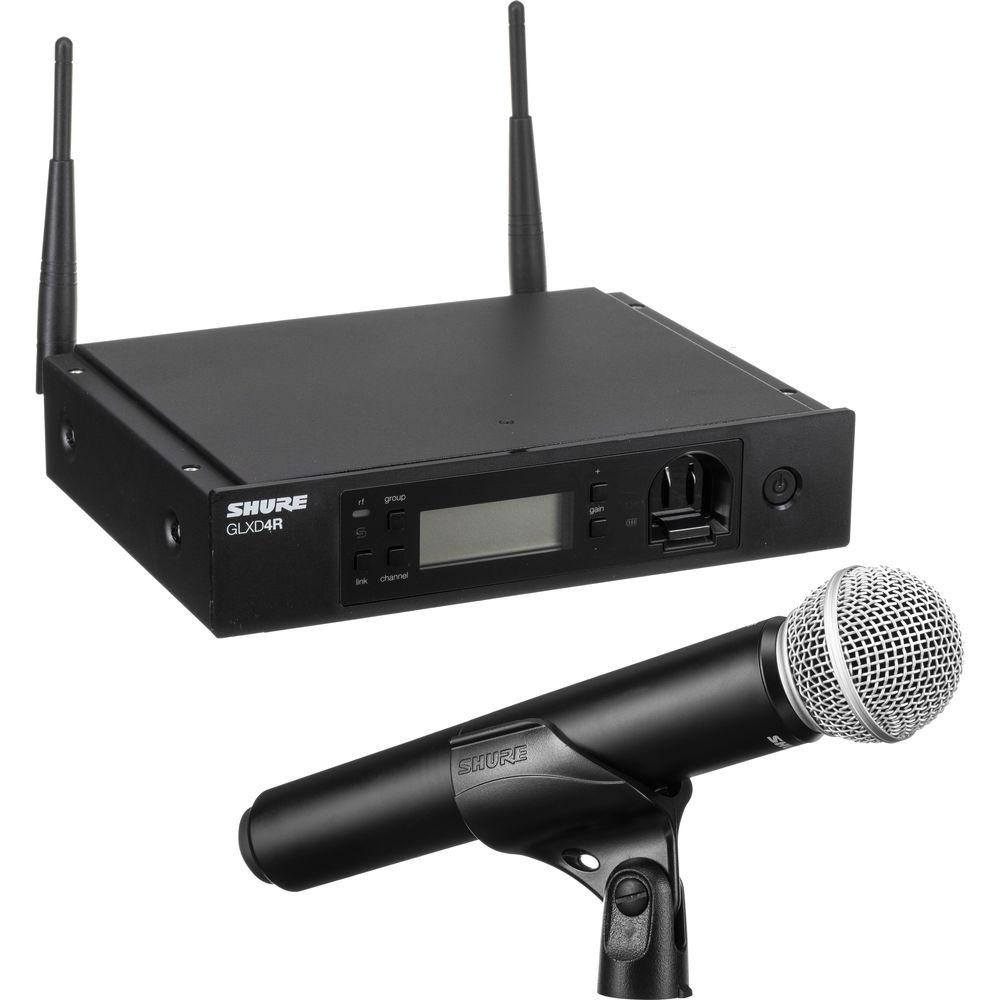

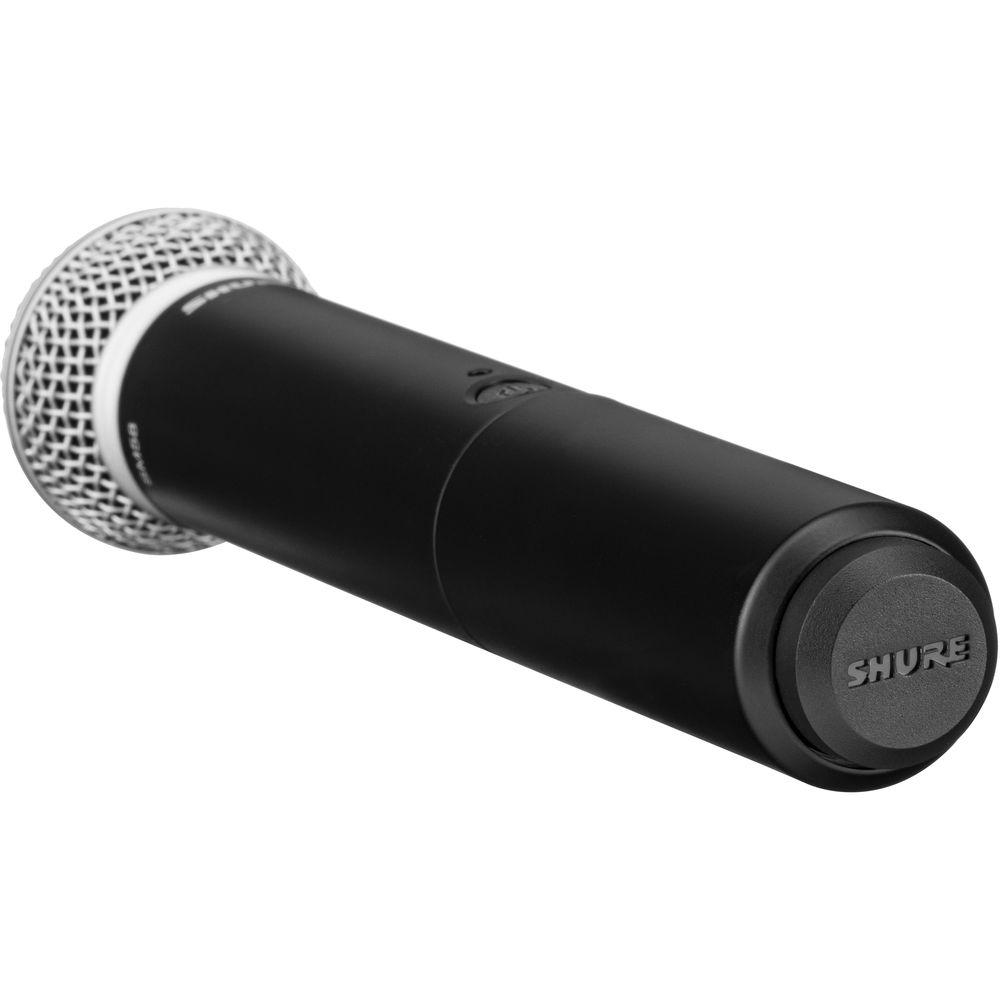

  The GLXD2 Handheld Transmitter with SM58 Microphone Element from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable or with the integrated charger in the GLXD4 wireless receiver. A 15-minute charge can provide up to 1.5 hours of performance time. UPC: 042406262316

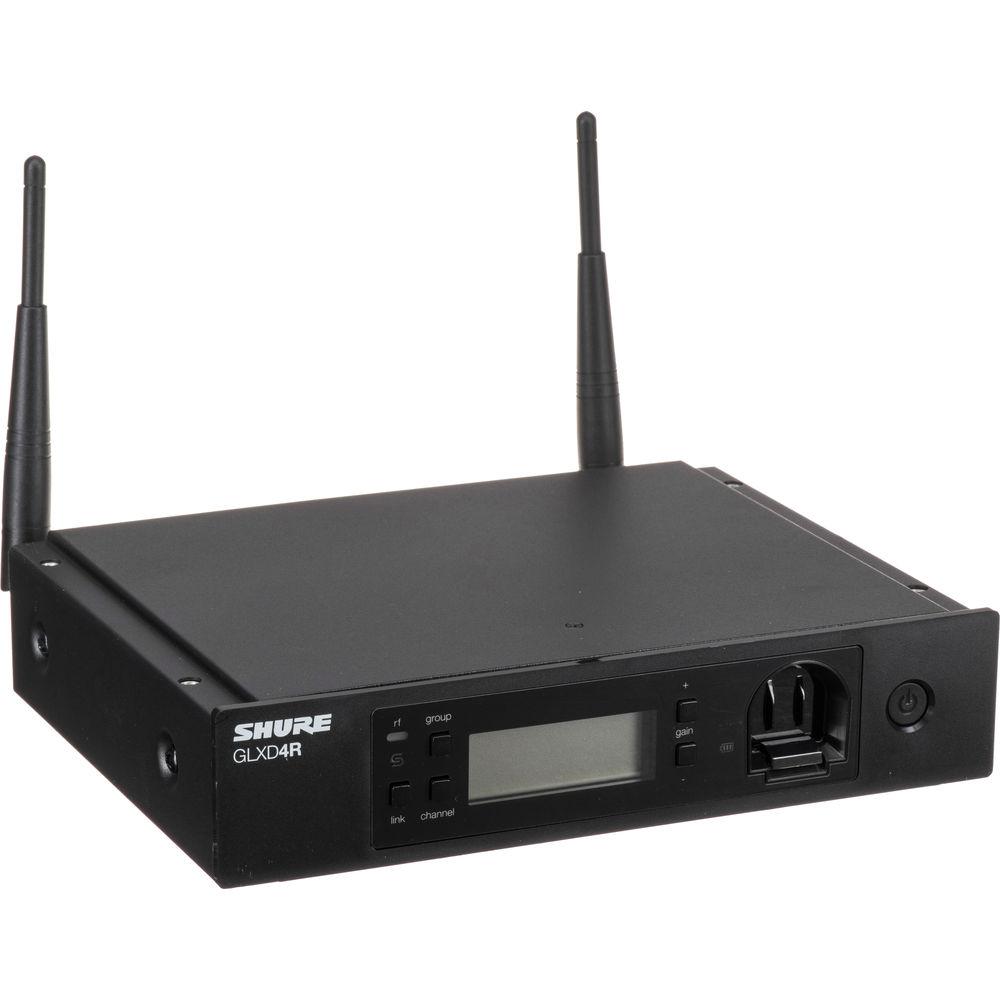

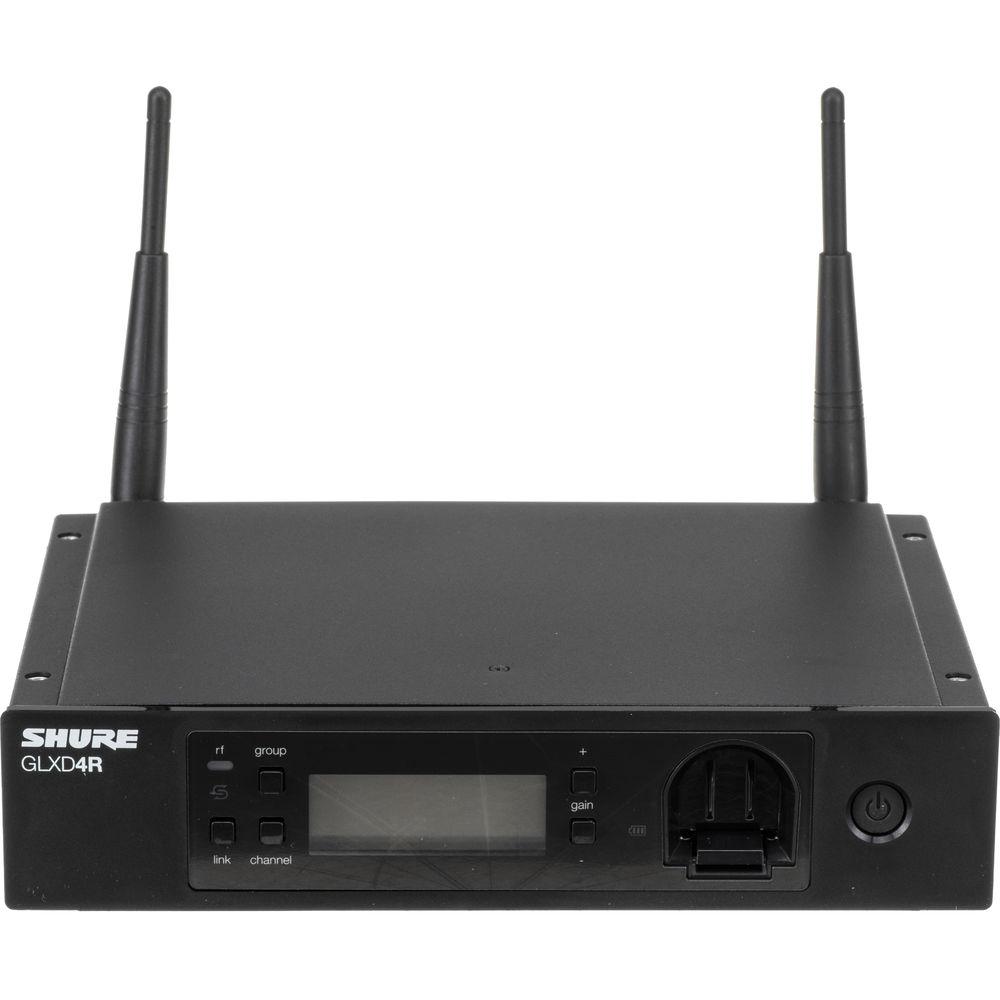

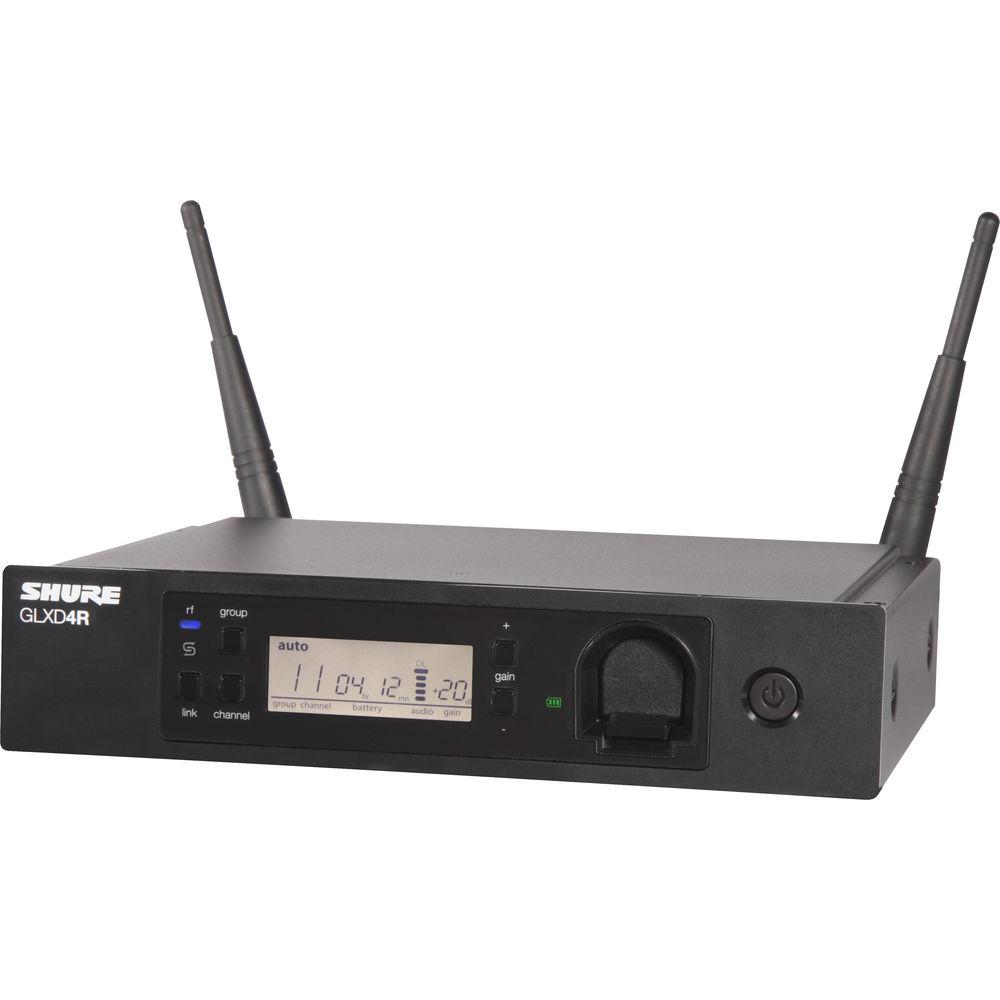

• GLX-D4R Digital Wireless Multi-System Receiver The Shure GLX-D4R Receiver is a single-channel rack-mountable receiver with removable antennas for improved audio and solid performance in multi-system installations for houses of worship, education and live music applications. The receiver features LINKFREQ Automatic Frequency Management (2.4 GHz) and an integrated battery charge port for charging a spare Shure lithium-ion battery. Up to nine compatible systems can be used in a typical setting, while a total of eleven systems can be achieved under optimum conditions when using optional GLX-D Frequency Managers.

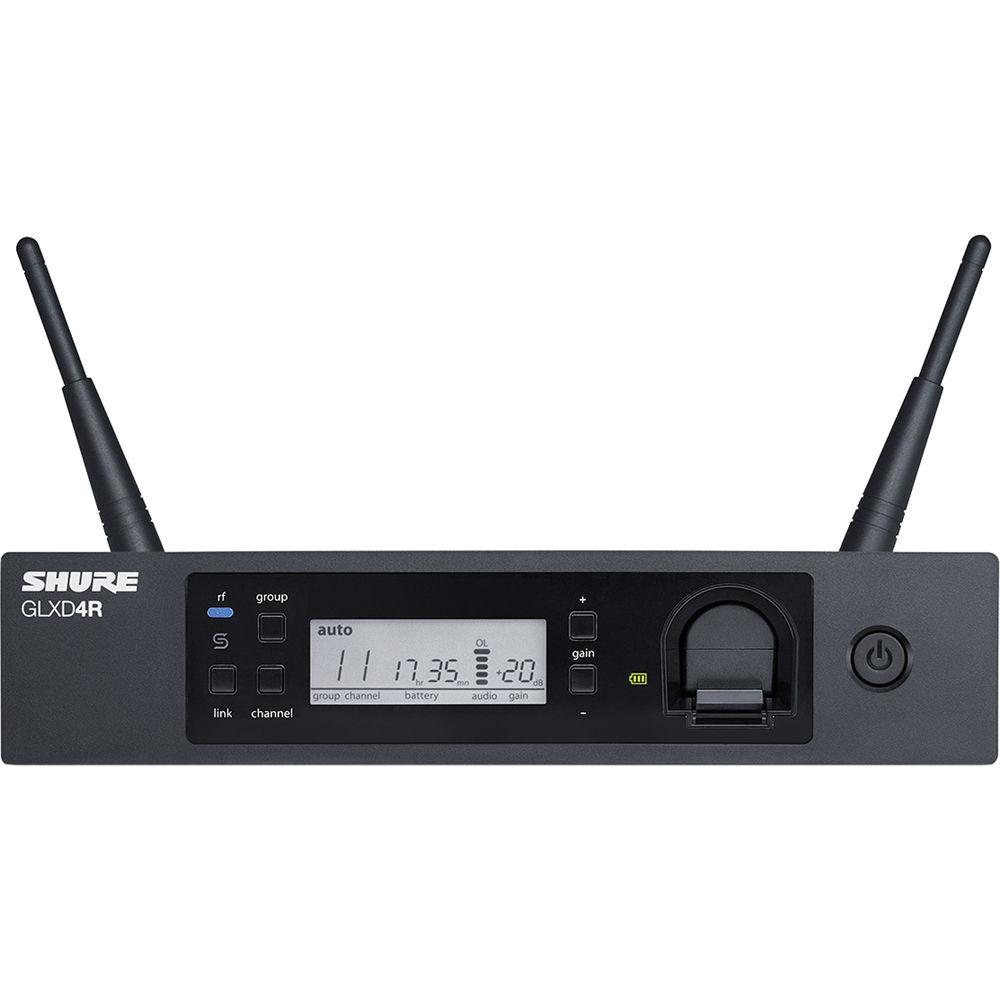

  The front panel features a high-resolution LCD screen, which displays the system status and real-time transmitter battery life in hours and minutes with an accuracy within ±15 minutes. Additional features include a remotely adjustable transmitter gain control, XLR & 1/4" output connectors, and a two-color LED charging indicator. The GLX-D4R receiver is enclosed in a rugged metal chassis and ships with two detachable antennas, a power supply, and rackmount hardware.
  • • Rock-solid RF performance from patented data communication
    • Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED
      • Green: Charged
      • Flashing Green: 90% charged
      • Red: Charging
    • Detachable antennas for remote mounting
    • Remote adjustable transmitter gain control
    • Hi-res LCD screen status display
    • Real-time battery run-time displayed in hours and minutes (accurate within ±15 minutes)
    • XLR and 1/4” output connectors
    • Rugged metal chassis design
    • Includes rackmount hardware
  UPC: 042406496100

• SB902 Rechargeable Lithium-Ion Battery

• Padded Zipper Case

• USB Charging Cable

• Limited 2-Year Warranty

• 2 x Antennas with Mounting Cables

• Rackmount Hardware

• Power Supply

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GLXD2 Handheld Transmitter with SM58 Microphone Element (Z2 Band: 2400 - 2483.5 MHz)

  RF Power Output	10 mW E.I.R.P, maximum
  Maximum Input Level	147 dB SPL
  Power Requirement	3.7 V Rechargeable Li-Ion
  Housing	Molded plastic
  Dimensions	Body Length: 9.9" (252 mm) Body Width: 1.5" (37 mm) Capsule Width: 2" (51 mm)
  Weight	9.4 oz (267 g), without batteries

  Type	Dynamic (Moving Coil)
  Frequency Response	50 Hz to 15 kHz
  Polar Pattern	Cardioid, rotationally symmetrical about microphone axis, uniform with frequency

  Box Dimensions (LxWxH)	10.9 x 5.4 x 3.3"

• GLX-D4R Digital Wireless Multi-System Receiver

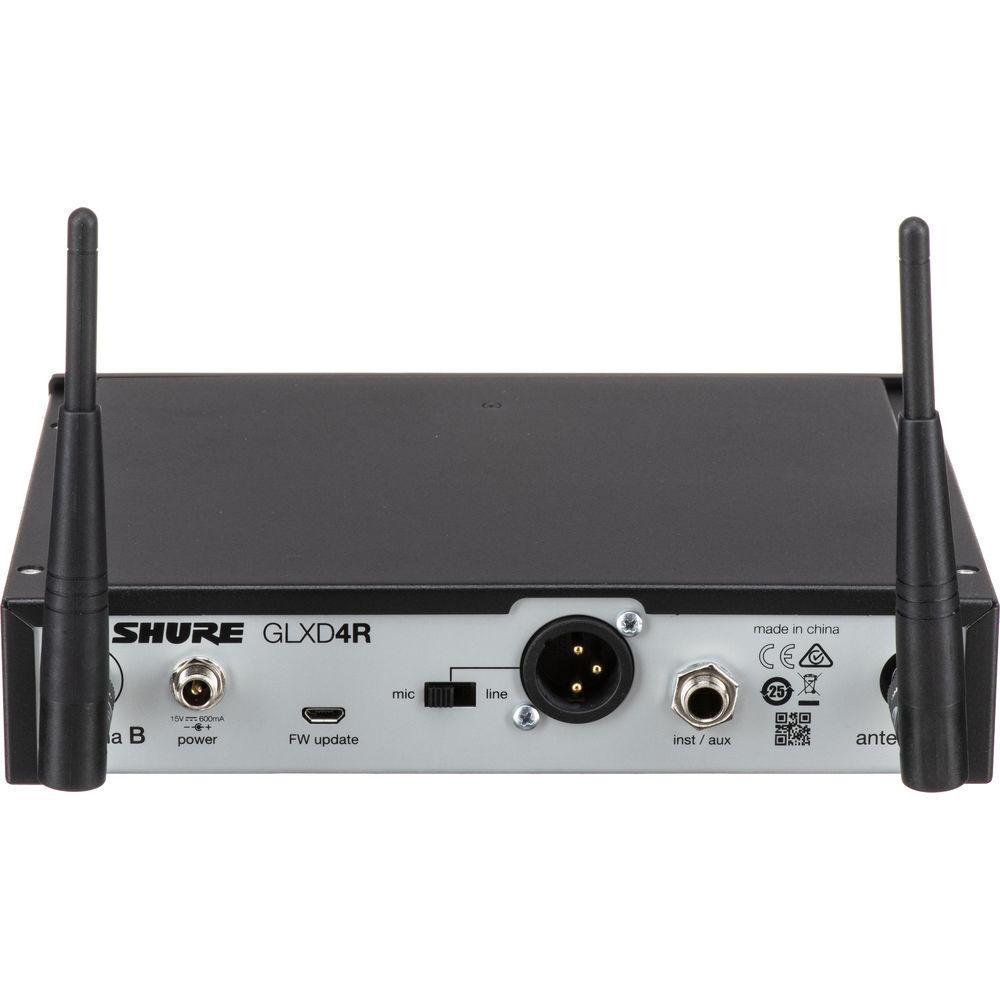

  Configuration	XLR Output: Balanced 1/4" / 6.35 mm Output: Impedance balanced
  Impedance	XLR Output: 100 Ohms 1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced)
  Full Scale Output	XLR Connector: Line Setting: +18 dBV Mic Setting: -12 dBV 1/4" / 6.35 mm Output: +12 dBV
  Pin Assignments	XLR Output: 1=ground, 2=hot, 3=cold 1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground
  Mic/Line Switch	30 dB pad
  Spurious Rejection	>35 dB, typical
  Gain Range	-18 to 42 dB in 1 dB steps
  Phantom Power Protection	Yes

  Impedance	50 Ohms
  Antenna Type	1/2 Wave Sleeve Dipole
  Maximum Input Level	-20 dBm

  Housing	Steel
  Power	Power Requirements: 14 to 18 VDC (Tip positive with respect to ring), 550 mA
  Dimensions (H x W x D)	1.7 x 7.8 x 6.4" / 42.0 x 197.0 x 163.0 mm
  Weight	32.0 oz / 907.2 g

  Box Dimensions (LxWxH)	18.3 x 14.8 x 4.3"
