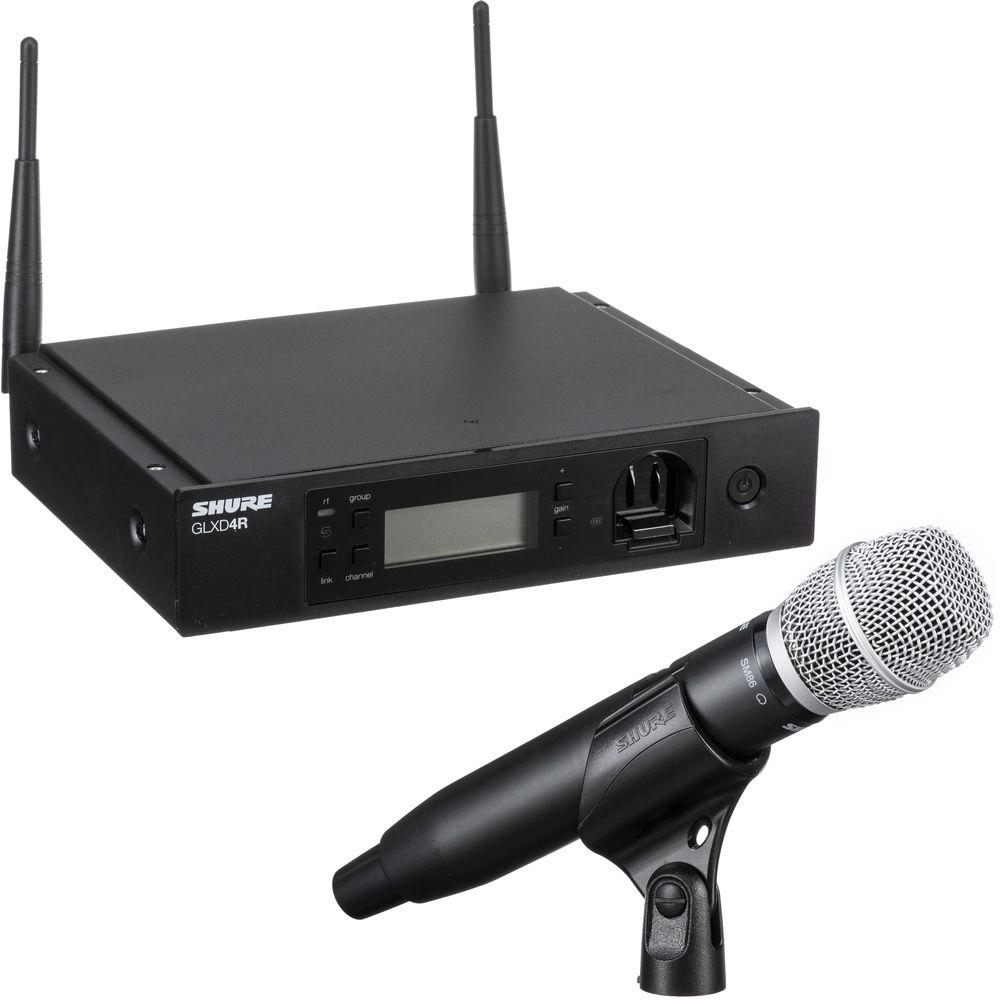

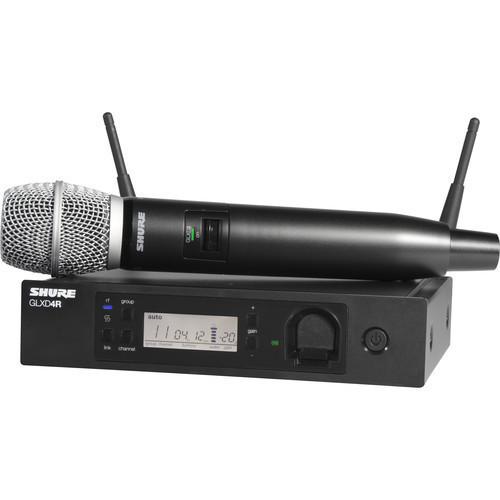

Product description The 2.4 GHz GLXD24R/SM86 Handheld Wireless System with SM86 Microphone from Shure includes a GLXD4R rackmount receiver, a GLXD2/SM86 handheld transmitter with integrated SM86 cardioid condenser microphone capsule, a microphone clip, an SB902 rechargeable lithium-ion battery, a USB charging cable, 2 detachable antennas, and rackmount hardware. It can be used to capture audio for vocals, meetings, interviews, conferences, speeches, and more. The wireless system features an intelligent rechargeable battery, RF performance, automatic frequency management, and increased channel count for vocal, speech, and spoken word applications. The SM86 vocal microphone capsule delivers warm, clear vocal reproduction and delivers wireless audio with digital clarity and reliability. It is part of the GLX-D Advanced wireless systems family. - GLXD2 Handheld Transmitter with SM86 Microphone Element (Z2 Band: 2400 - 2483.5 MHz)
- Shure GLX-D Advanced - How to Set up Frequency Manager

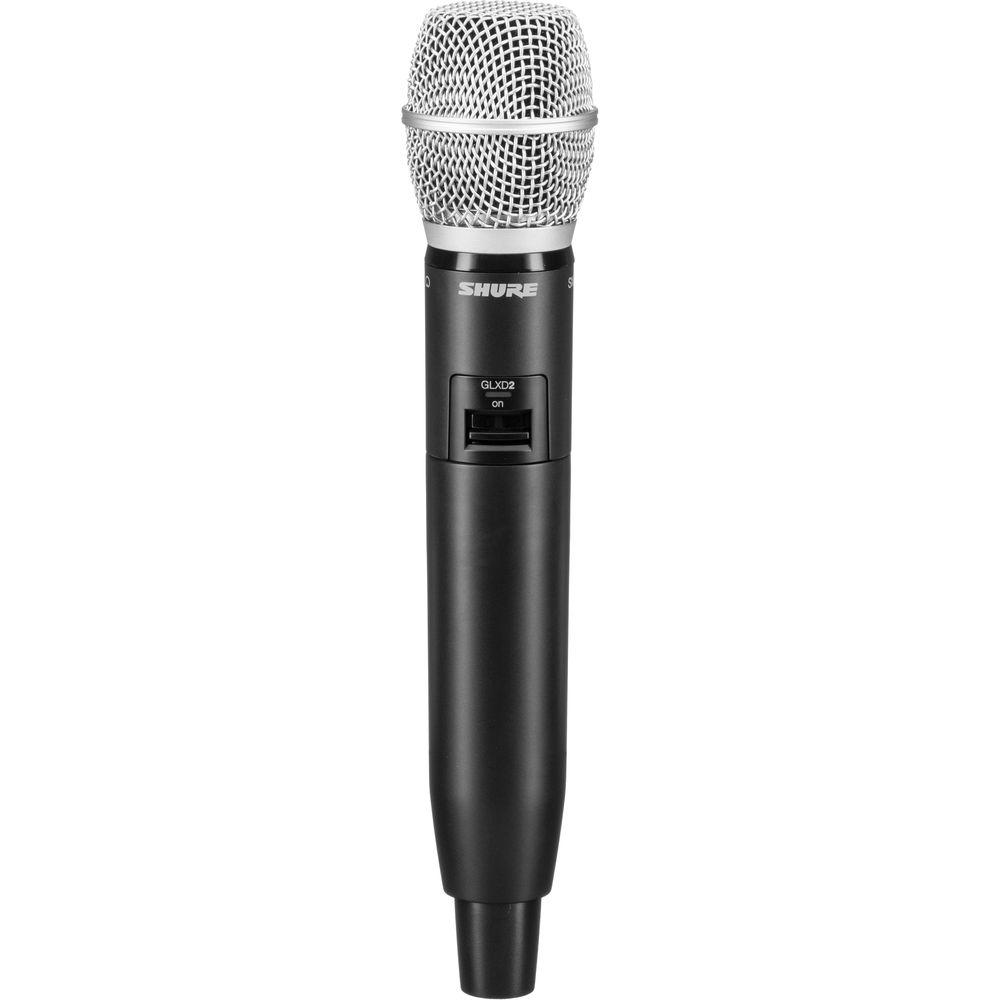

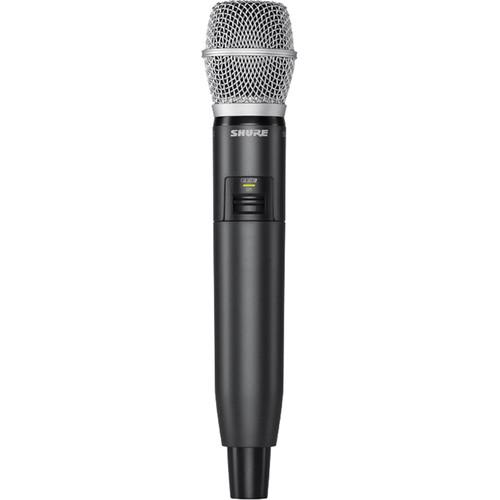

The GLXD2 Handheld Transmitter with SM86 Microphone Element from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable or with the integrated charger in the GLXD4 wireless receiver. A 15-minute charge can provide up to 1.5 hours of performance time. UPC: 042406261845 - GLX-D4R Digital Wireless Multi-System Receiver The Shure GLX-D4R Receiver is a single-channel rack-mountable receiver with removable antennas for improved audio and solid performance in multi-system installations for houses of worship, education and live music applications. The receiver features LINKFREQ Automatic Frequency Management (2.4 GHz) and an integrated battery charge port for charging a spare Shure lithium-ion battery. Up to nine compatible systems can be used in a typical setting, while a total of eleven systems can be achieved under optimum conditions when using optional GLX-D Frequency Managers.

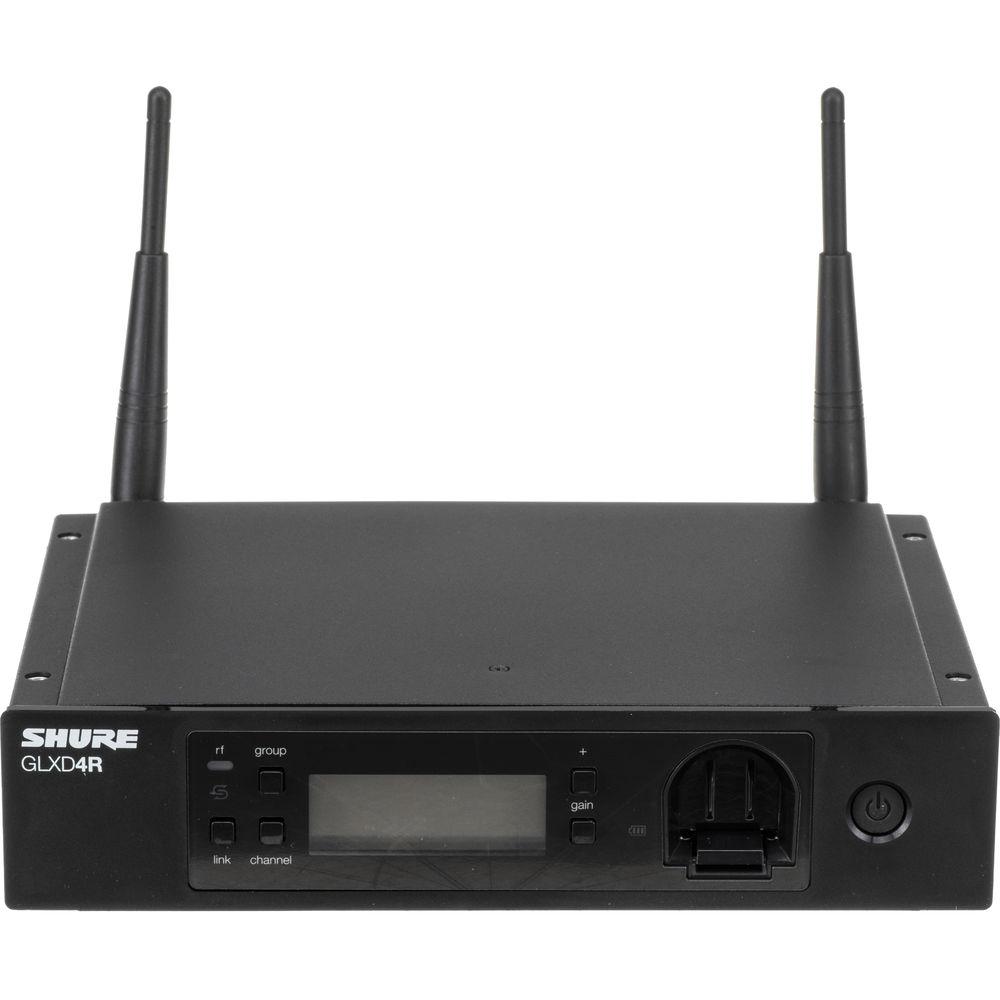

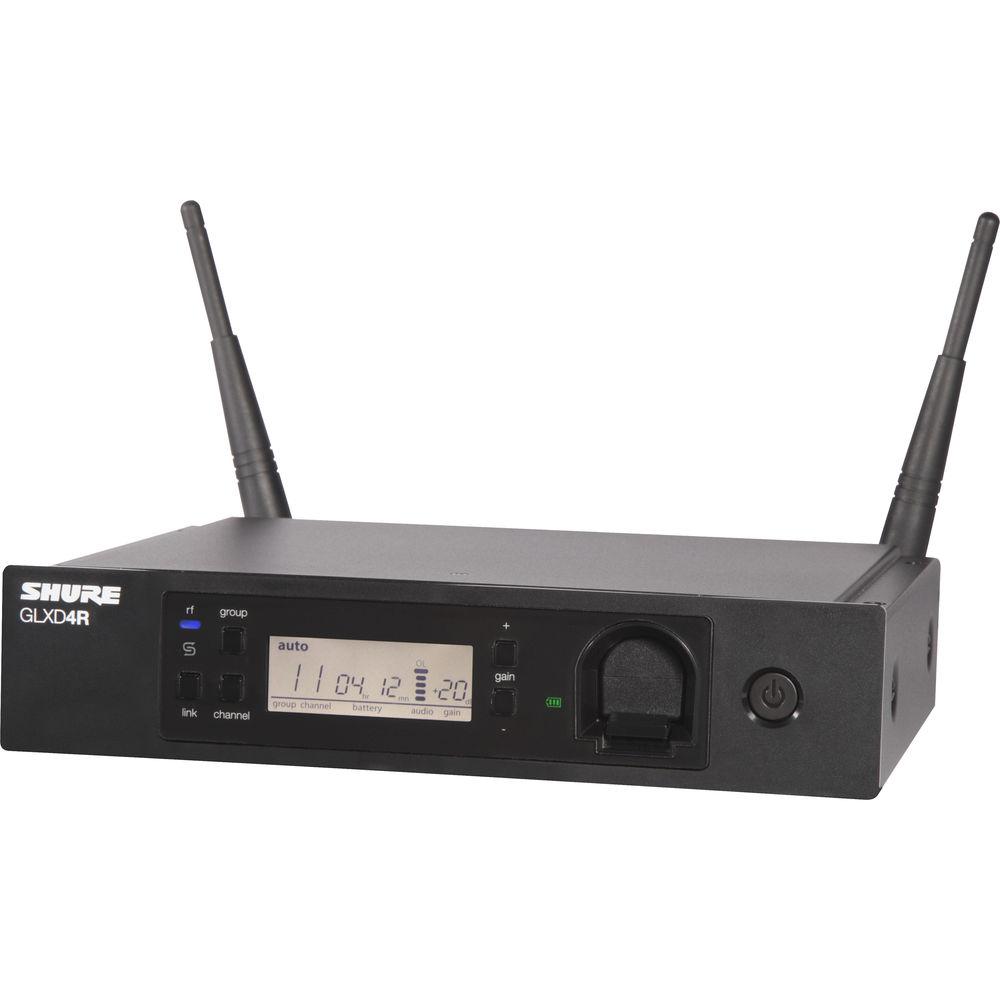

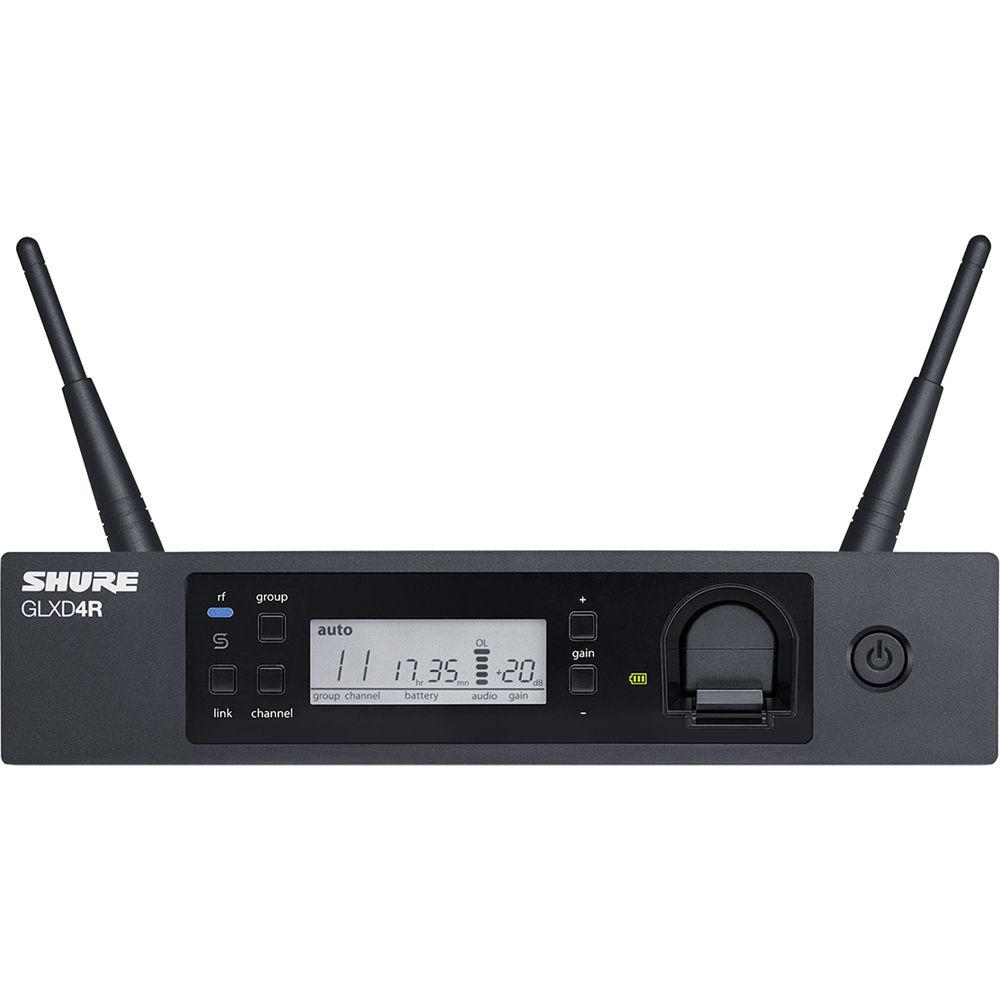

The front panel features a high-resolution LCD screen, which displays the system status and real-time transmitter battery life in hours and minutes with an accuracy within ±15 minutes. Additional features include a remotely adjustable transmitter gain control, XLR & 1/4" output connectors, and a two-color LED charging indicator. The GLX-D4R receiver is enclosed in a rugged metal chassis and ships with two detachable antennas, a power supply, and rackmount hardware. -
- Rock-solid RF performance from patented data communication
- Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED
- Green: Charged
- Flashing Green: 90% charged
- Red: Charging
- Detachable antennas for remote mounting
- Remote adjustable transmitter gain control
- Hi-res LCD screen status display
- Real-time battery run-time displayed in hours and minutes (accurate within ±15 minutes)
- XLR and 1/4” output connectors
- Rugged metal chassis design
- Includes rackmount hardware
UPC: 042406496100 In the Box Bundle Items GLXD2 Handheld Transmitter with SM86 Microphone Element (Z2 Band: 2400 - 2483.5 MHz) vssaceruszzecwtaarfceqrqsx - SB902 Rechargeable Lithium-Ion Battery
GLX-D4R Digital Wireless Multi-System Receiver - 2 x Antennas with Mounting Cables
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure GLXD24R SM86 Handheld Wireless System with SM86 Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GLXD2 Handheld Transmitter with SM86 Microphone Element (Z2 Band: 2400 - 2483.5 MHz)
| | | RF Power Output | 10 mW E.I.R.P, maximum | | Maximum Input Level | 147 dB SPL | | Power Requirement | 3.7 V Rechargeable Li-Ion | | Housing | Molded plastic | | Dimensions | Body Length: 9.9" (252 mm)
Body Width: 1.5" (37 mm)
Capsule Width: 1.9" (49 mm) | | Weight | 9.4 oz (267 g), without batteries | | | | Type | Condenser (electret bias) | | Frequency Response | 50 Hz to 18 kHz | | Polar Pattern | Cardioid | | | | Box Dimensions (LxWxH) | 11.0 x 5.3 x 3.3" | - GLX-D4R Digital Wireless Multi-System Receiver
| | | Configuration | XLR Output: Balanced
1/4" / 6.35 mm Output: Impedance balanced | | Impedance | XLR Output: 100 Ohms
1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced) | | Full Scale Output | XLR Connector:
Line Setting: +18 dBV
Mic Setting: -12 dBV
1/4" / 6.35 mm Output: +12 dBV | | Pin Assignments | XLR Output: 1=ground, 2=hot, 3=cold
1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground | | Mic/Line Switch | 30 dB pad | | Spurious Rejection | >35 dB, typical | | Gain Range | -18 to 42 dB in 1 dB steps | | Phantom Power Protection | Yes | | | | Impedance | 50 Ohms | | Antenna Type | 1/2 Wave Sleeve Dipole | | Maximum Input Level | -20 dBm | | | | Housing | Steel | | Power | Power Requirements: 14 to 18 VDC (Tip positive with respect to ring), 550 mA | | Dimensions (H x W x D) | 1.7 x 7.8 x 6.4" / 42.0 x 197.0 x 163.0 mm | | Weight | 32.0 oz / 907.2 g | | | | Box Dimensions (LxWxH) | 18.3 x 14.8 x 4.3" |
