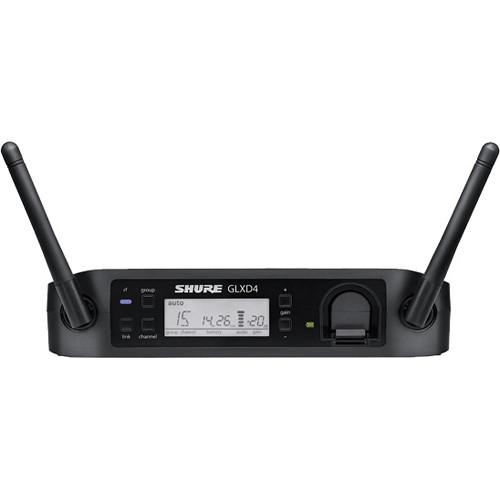

User Manual for Shure GLXD4 Digital Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Shure GLXD4 Digital Wireless Receiver
- Product category: Wireless Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Receivers
|
User manual for the Shure GLXD4 Digital Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The GLXD4 Digital Wireless Receiver from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. Shure's proprietary LINKFREQ automatic frequency management, which scans for clearest available frequency range, will automatically link the GLXD4 and a compatible transmitter. The GLXD4 has continuous interference monitoring and will automatically switch frequencies to avoid interference and drop outs. The integrated battery charging station allows you to charge your transmitter when not in use, or a back-up battery pack while in use. Your transmitters remaining battery life is displayed on the GLXD4's front-panel LCD screen. Up to 8 systems can be used simultaneously. UPC: 042406262460 In the Box Shure GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz) Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure GLXD4 Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure GLXD4 Specs | Outputs | 1x XLR Output
1x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 100 Ω
1/4": 100 Ω, 50 Ω unbalanced | | Maximum Audio Output Level Analog | XLR: 1 dBV (into 600 Ω load)
1/4": 8.5 dBV (into 3 kΩ load) | | Tuning Frequency Range | 2400 to 2483.5 MHz | | Range of Operation | 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) | | Transmit Mode | Frequency Hopping | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 120 dB, A-weighted | | RF Sensitivity | -88 dBm, typical | | Total Harmonic Distortion | 0.2%, typical | | RF Output | 10 mW E.I.R.P., maximum | | Operating Temperature Range | 0° to 135°F (-18° to 57°C) | | Storage Temperature Range | -20° to 165°F (-29° to 74°C) | | Pin Configuration | XLR: 1= ground, 2= hot, 3=cold
1/4": Tip= audio, ring= no audio, sleeve= ground | | Antenna | Impedance: 50 Ω
Type: 1/2 wave sleeve dipole, non-removable
Max Input Level: -20 dBm | | Power Requirements | 14 to 18 V DC (tip positive with respect to ring), 550 mA | | Spurious Rejection | >35 dB, typical | | Gain Adjustment Range | -20 to 40 dB in 1 dB steps | | Phantom Power Protection | Yes | | Housing | Molded plastic | | Dimensions (HxWxD) | 1.6 x 7.2 x 4.6" (40 x 183 x 117 mm) | | Weight | 10.1 oz (286 g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 18.25 x 13.0 x 4.63" |
