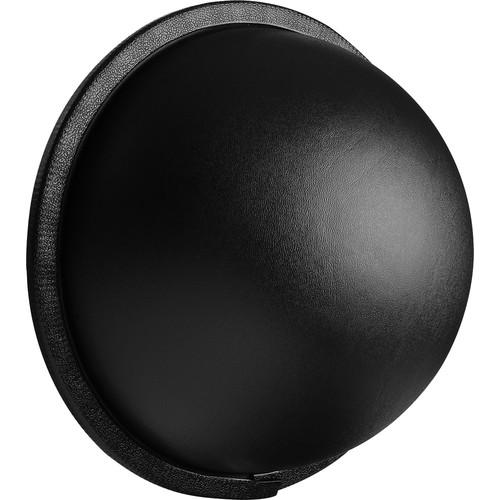

User Manual for Shure HA-8091 Domed Helical Antenna Click to enlarge the picture
Contents of the user manual for the Shure HA-8091 Domed Helical Antenna
- Product category: Antennas Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Antennas
 |
User manual for the Shure HA-8091 Domed Helical Antenna contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure HA-8091 is a domed helical antenna designed to provide reliable wireless signal transmission or reception with improved bandwidth and range for system integrators and audio engineers in large-scale live stage applications. 360° polarization reduces dropouts and yields dependable RF energy for receivers and transmitters, whether stationary or mobile. It operates in the 460 to 900 MHz frequency range and offers 14 dB of rear rejection. With 9 to 11 dBi of gain, signal strength is not compromised. A right-angle BNC female connector ensures standard connectivity. - Ideal for use in large-scale events, where it may be improbable to control the orientation of sending and receiving ends of the wireless system
- Unlike traditional whip antennas which transmit and receive signals in a single polarization, the circular motion of the RF field emitted by the helical antenna distributes the signal through all possible polarization, greatly reducing the risk of dropouts
- High gain ensures strong signal
- RF energy rotates through all 360 degrees of polarization, providing clear reception in the artist's ears and in the wireless mic's receiver no matter how they may move about on stage
- Use as a transmitting antenna or a receiving antenna
- Dual mounting adapter supports 5/8"-27 and 3/8"-16 standards
UPC: 042406535663 Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure HA-8091 Domed Helical Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure HA-8091 Specs | Frequency Range | 460 to 900 MHz | | Impedance | 50 Ohms | | Beamwidth | 72° | | Antenna Gain | 9 to 11 dBi (on axis) | | Rejection | Rear: 14 dB | | RF Connector | Right-angle BNC female | | Mounting | Dual Adapter: 5/8"-27 US standard and 3/8"-16 European standard | | Dimensions (W x H x D) | 14 x 14 x 10" / 35.6 x 35.6 x 25.4 cm | | Weight | 5 lb / 2.3 kg | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 14.8 x 14.1 x 10.6" |
