User Manual for Shure KSM137 SL ST PAIR Cardioid Microphone Click to enlarge the picture
Contents of the user manual for the Shure KSM137 SL ST PAIR Cardioid
- Product category: Small Diaphragm Condenser Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Small Diaphragm Condenser
 |
User manual for the Shure KSM137 SL ST PAIR Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

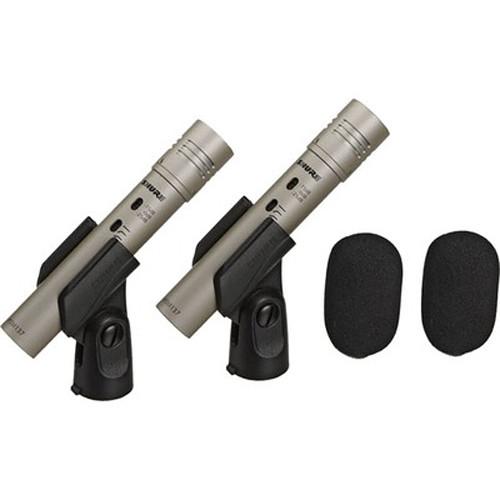

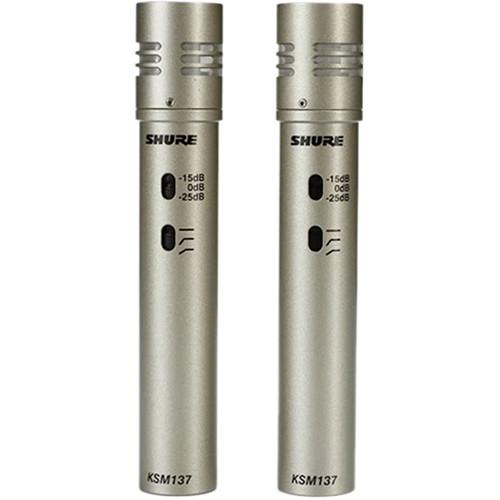

Product description The KSM137/SL ST PAIR from Shure is a stereo pair of cardioid condenser studio microphones designed for instrument recording and sound reinforcement. The KSM137/SL offers a wide 20 Hz to 20 kHz frequency response making it a flexible microphone for a variety of applications. The KSM137/SL features a cardioid element and permanently biased transducer design resulting in clean, accurate signal reproduction and frequency response. The transformer-less, class-A output circuitry provides a noise free output signal path while maintaining high gain levels. The tight cardioid pattern is effective in attenuating off-axis signal due to room ambiance, instruments, monitor noise etc.There is a 3-position low frequency roll-off switch, eliminating low frequency rumble noise and counteracting proximity effect. The KSM137/SL handles high sound pressure levels and features a 3-position pad switch providing attenuation at 0 dB, 15 dB and 25 dB. This allows confident miking of instruments high in transient response such as drums, percussion, and brass. the microphone is suitable for piano, strings, guitar, and woodwind as well. - Cardioid Pattern
- The cardioid polar pattern is effective in attenuating off-axis signal due to room ambiance, instruments, monitor noise etc.
- Class-A Transformer-Less Circuitry
- The transformer-less, class-A output circuitry provides a noise free output signal path while maintaining high gain levels.
- 3-Position Low Frequency Roll-Off Switch
- The KSM137/SL provides flexible low frequency attenuation, eliminating low frequency noise and rumble.

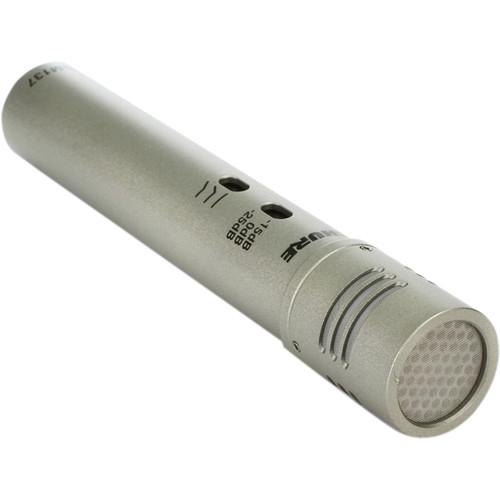

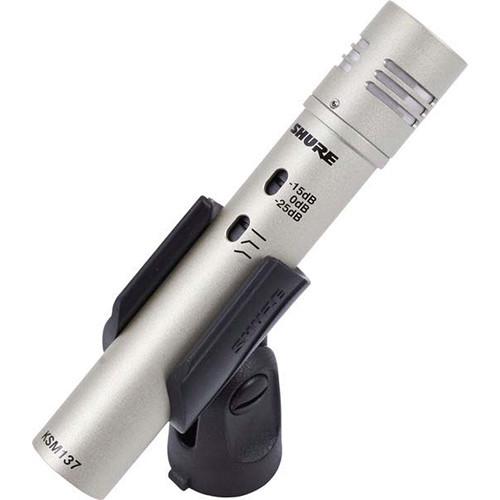

- 3-Position Pad Switch
- The 0, 15, and 25 dB Pad switch adds greater SPL handling allowing the microphone to withstand high audio levels without distortion.
- Wide Frequency Response
- The microphone offers a wide 20 Hz to 20 kHz frequency response making it a flexible microphone for a variety of applications.

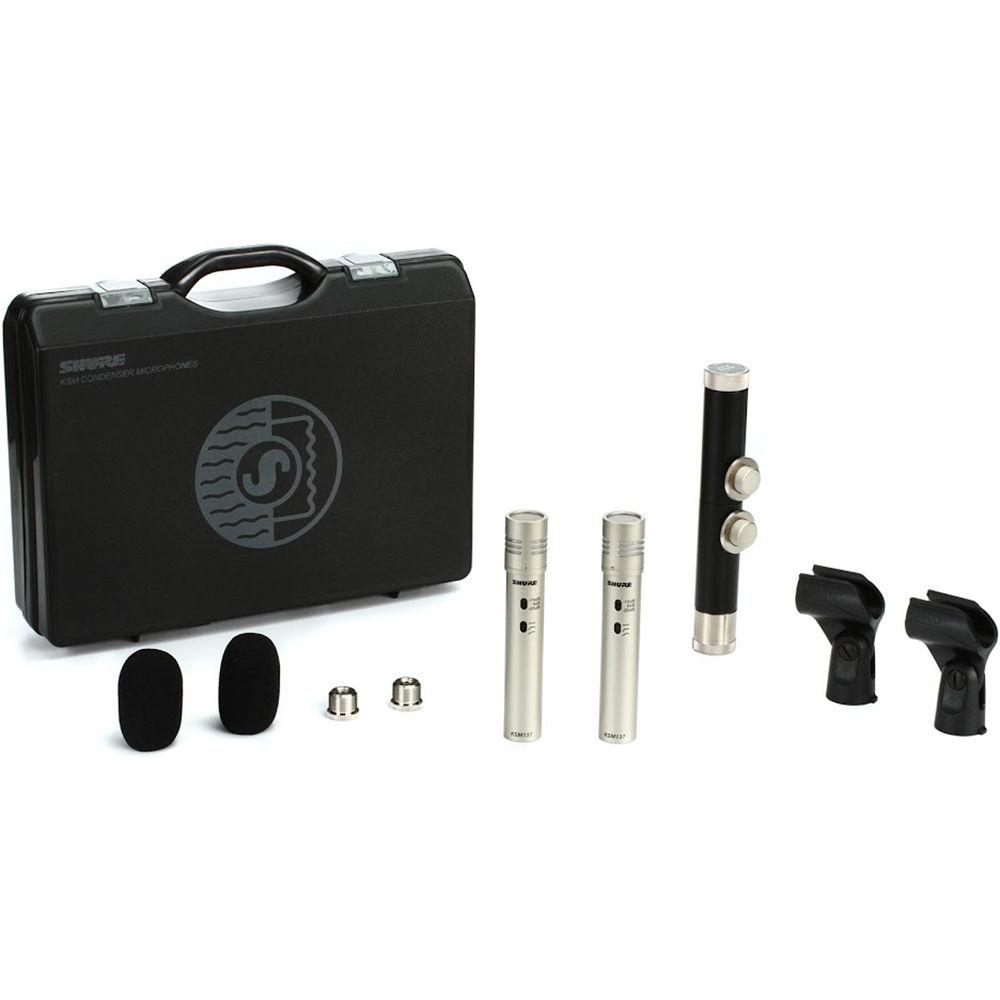

UPC: 042406112307 In the Box Shure KSM137/SL ST PAIR Cardioid Microphone (Stereo Pair) 2 x A57F Microphone Clip szbxxfqrbcazawfrrqdf 2 x A100WS Foam Windscreen 2 x European Threaded Adapters for A57F A137SPC Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure KSM137 SL ST PAIR Cardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure KSM137 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB | | Equivalent Noise Level | 14 dB A-Weighted | | Maximum SPL | 145 dB SPL | | Pad | -15 dB
-25 dB | | Impedance | 150 Ohms | | Sensitivity | -37 dB at 1 kHz | | Low-Cut Filter | 6 dB/Octave @ 115 Hz
18 dB/Octave @ 80 Hz | | Dynamic Range | 131 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.65 mA | | Operating Voltage | 48 V ± 4 V | | Length | 4.8" / 121.92 mm | | Diameter | 0.8" / 20.32 mm | | Weight | 3.53 oz / 100 g | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 12.0 x 9.2 x 3.0" |
