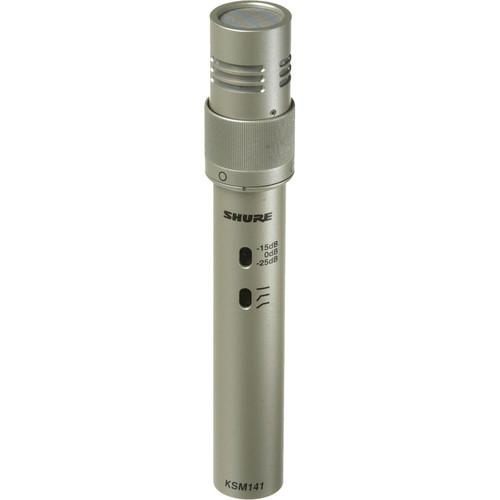

User Manual for Shure KSM141 SL Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure KSM141 SL Condenser Microphone
- Product category: Small Diaphragm Condenser Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Small Diaphragm Condenser
|
User manual for the Shure KSM141 SL Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The KSM141/SL from Shure is a switchable-polar-pattern condenser studio microphone designed for instrument recording and sound reinforcement. The capsule's pattern is switchable between omnidirectional and cardioid pick up. Omnidirectional offers a more generous pickup area while cardioid offers attenuation of noise and ambiance at the off-axis sections of the microphone. In addition, the microphone offers a wide 20 Hz to 20 kHz frequency response making it a flexible solution for a variety of applications. The KSM141/SL's element features a permanently biased transducer design resulting in clean, accurate signal reproduction and frequency response. The transformerless Class-A output circuitry provides a noise-free-output signal path while maintaining high gain levels.There is a 3-position low-frequency roll-off switch, eliminating low-frequency rumble noise and counteracting proximity effect. The KSM141/SL handles high sound-pressure levels and features a 3-position pad switch providing attenuation at 0, 15, 25 dB. This allows for confident miking of instruments high in transient response such as drums, percussion, and brass. The microphone is also suitable for recording piano, strings, guitar, and woodwinds. The KSM141/SL ships with a case, a microphone clip, and a foam windscreen. - Switchable Patterns
- The KSM141/SL features switchable polar patterns. Omnidirectional offers a generous pickup pattern suitable for recording ambiance, vocal groups etc. The cardioid pattern is tighter and provides effective rejection of off-axis signal.
- Class-A Transformerless Circuitry
- The transformerless, Class-A output circuitry provides a noise free output signal path while maintaining high gain levels.
- 3-Position Low-Frequency Roll-Off Switch
- The KSM141/SL provides flexible low-frequency attenuation, eliminating low-frequency noise and rumble.
- 3-Position Pad Switch
- The 0, 15, and 25 dB Pad switch adds greater SPL-handling allowing the microphone to withstand high audio levels without distortion.
- Wide Frequency Response
- The microphone offers a wide 20 Hz to 20 kHz frequency response making it a flexible microphone for a variety of applications.
UPC: 042406110143 In the Box Shure KSM141/SL Condenser Microphone (Single Microphone) A57F Microphone Clip A100WS Foam Windscreen European Threaded Adapter for A57F A137C Carrying Case Limited 2-Year Warranty User Manual PDF 490.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure KSM141 SL Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure KSM141 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB | | Equivalent Noise Level | 14 dB A-Weighted | | Maximum SPL | 145 dB SPL | | Pad | -15 dB
-25 dB | | Impedance | 150 Ohms | | Sensitivity | -37 dB at 1 kHz | | Low-Cut Filter | 6 dB/Octave @ 115 Hz
18 dB/Octave @ 80 Hz | | Dynamic Range | 131 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.65 mA | | Operating Voltage | 48 V ± 4 V | | Length | 5.75" / 146.05 mm | | Diameter | 0.8" / 20.32 mm | | Weight | 5.50 oz / 156 g | | | | Package Weight | 1.71 lb | | Box Dimensions (LxWxH) | 10.55 x 8.2 x 2.4" |
