Product description

• Shure KSM32/SL Studio Condenser Microphone (Champagne)

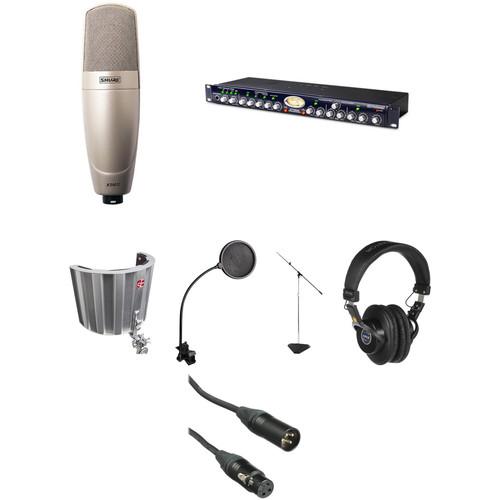

  • KSM32/SL Project-Studio Vocal Solution
  The champagne KSM32/SL Studio Condenser Microphone from Shure is a side-address, cardioid condenser microphone for highly critical studio recording and live sound productions. It offers an extended frequency response for an open, natural sounding reproduction of the original sound source. A 15 dB attenuation switch allows the KSM32 to handle the high sound pressure levels associated with drums, percussion, and ensembles.
  Class A Output Stage
  • Class A transformerless preamplifier circuitry eliminates cross-over distortion for improved linearity across the full frequency range
  Extended Low Frequency Response
  • Embossed, high-compliance diaphragm provides extended low-frequency response
  15 dB Pad
  • 15 dB attenuation switch for handling extremely high sound pressure levels (SPL)
  Low Cut Filter
  • Switchable low-frequency filter provides greater flexibility to reduce background noise or to counteract proximity effect
  3 Stage Pop Filter
  • Integrated 3-stage pop protection grille reduces "pop" and other breath noise
  Internal Shock Mount
  • Internal shock mount reduces transmission of handling noise
  UPC: 042406065931
• PreSonus Studio Channel
  • KSM32/SL Project-Studio Vocal Solution
  The Presonus Studio Channel is a channel strip that features a tube preamp, a VCA compressor, and a 3-band parametric EQ. The tube preamp section features two knobs: Gain and Tube Drive. This allows you to adjust the amount of signal that hits the tube circuitry, opening up a wide range of sonic options. The VCA compressor section is well-suited to help all different kinds of audio sit nicely in a mix, whether it's percussion with fast transients, or smooth and silky vocals. The parametric EQ features a custom amplifier with a gain control on each of the 3 bands, with a variable Q knob on the mid frequency.If you're curious about outboard gear and want to upgrade your signal path from the stock preamp found on most audio interfaces, the Presonus Studio Channel is an excellent choice for deeper sonic exploration. Likewise, experienced professionals will appreciate the Studio Channel's solid set of sound shaping tools, as well as its afforable pricetag.
  Class-A Vacuum Tube Preamp
  • The Studio Channel features a high-voltage 12AX7 tube with both Gain and Tube Drive controls, giving you the ability to dial in a variety of different tones.
  VU Meter
  • The illuminated VU meter displays both output level and gain reduction.
  A Host of Useful Tools and Controls
  • • 80 Hz High-Pass Filter
    • 20 dB Pad
    • Phase Invert
    • Make-Up Gain, Auto, and Soft (Compressor Section)
    • Low Noise Design
  UPC: 673454001000
• sE Electronics SPACE Reflection Filter
  • KSM32/SL Project-Studio Vocal Solution
  Allowing you to tracks isolated vocals and instruments, the SPACE Reflection Filter from sE Electronics features a 10-layer acoustic filter design that surrounds your microphone and limits the amount of direct sound that reaches your room, therefore reducing the amount of reflections headed back toward the microphone. The SPACE (Specialized Portable Acoustic Control Environment) filter is constructed of 7 vertical bass pillars and employs sE Electronics' Multi-Layer Air-Gap technology. It mounts to your stand with a vertically and horizontally adjustable and lockable clamp that can be tilted to accommodate instrument recording. UPC: 819032010174
• Auray PFSS-55 Pop Filter with Gooseneck
  • KSM32/SL Project-Studio Vocal Solution
  The Auray PFSS-55 Pop Filter with Gooseneck features double-layered nylon to greatly reduce noise from aspirated plosives like "p" and "b" sounds. The PFSS-55's double-layered nylon filter gently disperses the explosive rush of air from speaking and breathing, while protecting your microphone from corrosive moisture. The flexible gooseneck makes it easy to position the filter exactly where you need it, the spring-loaded clamp provides fast and easy mounting and the locking bolt holds the PFSS-55 firmly into place. These features make the PFSS-55 Pop Filter ideal for desktops and also compatible with microphone stands. UPC: 847628569249
• On-Stage SMS7630B Hex-Base Studio Microphone Stand w/ Telescoping Boom (Black)
  • KSM32/SL Project-Studio Vocal Solution
  The SMS7630B (Black) from On-Stage Stands is a heavy duty Studio Microphone Stand with a telescoping boom. This stand utilizes an internal air suspension which can rest on its rubber feet or the optional casters for extra mobility. With its 17 lbs hex-base, the SMS7630B has stability plus saves room on your studio floor. The telescoping boom can adjust from 32-49" and the boom will angle 320° while the base has height adjustment from 42-70".
  • Telescoping boom extends from 32-49"
  • Heavy 17 lbs hex-base is both sturdy and space saving
  • Internal air suspension
  • Optional locking casters can be purchased separately for extra mobility
  UPC: 659814349760
• Senal SMH-1000 Professional Field and Studio Monitor Headphones
  • KSM32/SL Project-Studio Vocal Solution
  The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.

  Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical.

  The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility.

  Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device.

  The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening.
  • An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
  • Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
  • Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
  • Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
  • Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
  • Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
  • Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
  • Easy storage via collapsible folding mechanism.
  UPC: 847628015821
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black
  • KSM32/SL Project-Studio Vocal Solution
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (15') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558281

• KSM32/SL Studio Condenser Microphone (Champagne) zbbatefystdrybu
• ShureLock Stand Mount
• ShureLock Rubber Isolated Shock Mount
• Protective Velveteen Pouch
• Aluminum Carrying Case
• Limited 1-Year Warranty

• PreSonus - Studio Channel zbbatefystdrybu

• sE Electronics - SPACE Reflection Filter zbbatefystdrybu

• Auray - PFSS-55 Pop Filter with Gooseneck

• On-Stage - SMS7630B Hex-Base Studio Microphone Stand w/ Telescoping Boom (Black)

• Senal - SMH-1000 Professional Field and Studio Monitor Headphones

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure KSM32/SL Studio Condenser Microphone (Champagne)

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Equivalent Noise Level	13 dB A-Weighted
  Maximum SPL	139 dB SPL 133 dB SPL
  Pad	-15 dB
  Impedance	150 Ohms
  Sensitivity	16 mV/Pa
  Dynamic Range	126 dB 119 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	4.65 µA
  Operating Voltage	48 V ± 4 V
  Length	7.36" / 187 mm
  Diameter	2.20" / 55.9 mm
  Weight	17.3 oz / 490 g

  Box Dimensions (LxWxH)	17.4 x 13.1 x 6.7"

• PreSonus Studio Channel

  Number of Channels	Single
  Inputs	1 x XLR 1 x 1/4" TS, unbalanced
  Outputs	1 x XLR 1 x 1/4" TRS, balanced
  Frequency Response	10 Hz to 50 kHz
  Noise	-96 dBu

  Gain Range	-6 to +66 dB (+/-10 dB trim on line input)
  Maximum Output	+22 dBu
  Phantom Power	+48V

  Threshold Range	-40 to +2 dBu
  Ratio	1-10 (1:1 to 2:1)
  Attack Time	0.1 to 200 ms
  Release Time	0.05 to 3S ms
  Sidechain	No
  Frequency Bands	Low frequencies = variable from 40 to 500 Hz Mid frequencies = variable from 200 Hz to 3 kHz High frequencies = variable from 2 to 20 kHz
  Range (Boost/Cut)	Low and high frequencies = variable between +/-10 dB Mid frequencies = variable from -10 to +10 dB

  Power Requirements	120 VAC, 60 Hz for included external power adapter
  Dimensions (WxDxH)	19 x 5.5 x 1.75" (483 x 140 x 44 mm)
  Weight	5 lb (2.3 kg)
  Specialties	Tube gain and tube drive EQ Pre/Post compressor switch

  Box Dimensions (LxWxH)	23.8 x 12.0 x 4.9"

• sE Electronics SPACE Reflection Filter

  Layers

  Layer 1: 7 vertical bass trap pillars Layer 2: Punched aluminum diffuser Layer 3: Acoustic grade wool absorber Layer 4: Tensioned aluminum foil membrane diffuser Layer 5: Isolating air gap Layer 6: Tensioned aluminum foil membrane diffuser Layer 7: Acoustic grade wool absorber Layer 8: Polycarbonate diffuser Layer 9: Asymmetric isolating air gaps Layer 10: Polyester acoustic fiberboard

  Box Dimensions (LxWxH)	19.685 x 13.858 x 9.37"

• Auray PFSS-55 Pop Filter with Gooseneck

  Box Dimensions (LxWxH)	14.3 x 6.8 x 2.3"

• On-Stage SMS7630B Hex-Base Studio Microphone Stand w/ Telescoping Boom (Black)

  Height	42 to 70" / 106.7 to 177.8 cm
  Base Type	Triangle

  Length	32 to 49" / 81.3 to 124.5 cm

  Weight	17 lb / 7.7 kg (Base Only)

  Box Dimensions (LxWxH)	46.0 x 25.0 x 6.0"

• Senal SMH-1000 Professional Field and Studio Monitor Headphones

  Driver Size	1.6" / 40 mm
  Magnet Type	Neodymium
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	10 Hz to 20 kHz
  Sensitivity	102 dB at 1 kHz / 1 mW
  Impedance	58 Ohms
  Maximum Power Handling	1000 mW
  Total Harmonic Distortion (THD)	1%

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Detachable	Yes

  Weight	8 oz / 226.8 g

  Box Dimensions (LxWxH)	9.1 x 8.8 x 3.8"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	15' / 4.6 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.8 x 2.9 x 1.3"
