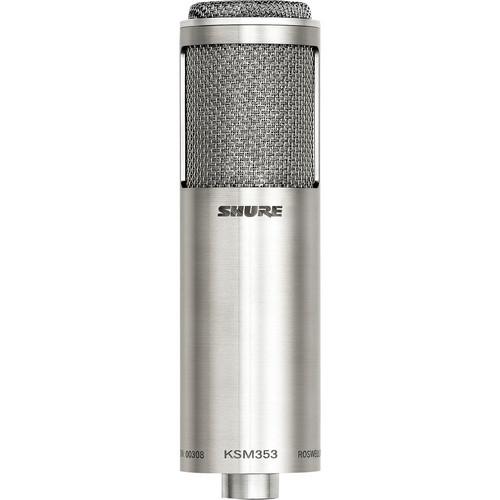

User Manual for Shure KSM353 ED Premier Bi-Directional Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the Shure KSM353 ED Premier Bi-Directional Ribbon
- Product category: Ribbon Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Ribbon Microphones
|
User manual for the Shure KSM353 ED Premier Bi-Directional Ribbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The KSM353/ED from Shure is a superior ribbon microphone designed for high-quality reproduction in the studio or concert hall. The mic is hand-assembled in the United States, and features the build quality that Shure mics are renowned for.
Shure outfitted the KSM353/ED with its proprietary Roswellite ribbon material, which has more strength and resilience than a conventional foil ribbon. The mic is also equipped with a custom ribbon-motor assembly, which helps tailor bass response and improve presence. A custom-wound double-shielded, full-size transformer keeps signal loss at a minimum and increases output.
The KSM353/ED's bi-directional polar pattern delivers totally symmetrical audio and superior off-axis rejection. Shure recommends using mic preamps with impedances of at least 1 kOhm to get optimal low-end and midrange performance. The mic offers a low noise floor, and an output level that's on par with moving-coil microphones. - Bi-directional polar pattern delivers premier, completely symmetrical audio with superior off-axis rejection
- Revolutionary Roswellite proprietary ribbon material replaces traditional foil ribbons with high-tensile strength, toughness, and shape memory that provides superior resilience at extreme SPLs
- Patented custom ribbon motor assembly tailors bass response without attenuating the overall output for full low and mid ranges, and superior upper range presence from a rising frequency response
- Double-shielded matched full-sized transformer minimizes signal loss and maximizes output while reducing magnetic and RF interference from 90-degree placement, offset relative to the ribbon
- 146 dB SPL across 30 - 15,000 Hz frequency response ideal for capturing fast transients in vocals, acoustic instruments, and concert halls
- Legendary Shure quality and superior construction from hand-assembly of machined steel, silver, gold, and aluminum materials, and housed in a pure stainless steel casing
UPC: 042406204507 In the Box Shure KSM353/ED Premier Bi-Directional Ribbon Microphone Aluminum Flight Case A300SM ShureLock Wire Rope Shock Mount for KSM353/ED Microphone A353VB Velveteen Pouch for KSM353 and KSM353/ED Ribbon Microphones Polishing Cloth For KSM Microphones Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure KSM353 ED Premier Bi-Directional Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure KSM353/ED Specs | | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 30 Hz to 15 kHz | | Maximum SPL | 146 dB SPL | | Impedance | 330 Ohms | | Sensitivity | 2.11 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.2" / 157.48 mm | | Diameter | 1.9" / 48.26 mm | | Weight | 1.4 lb / 635 g | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 14.5 x 10.4 x 6.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
