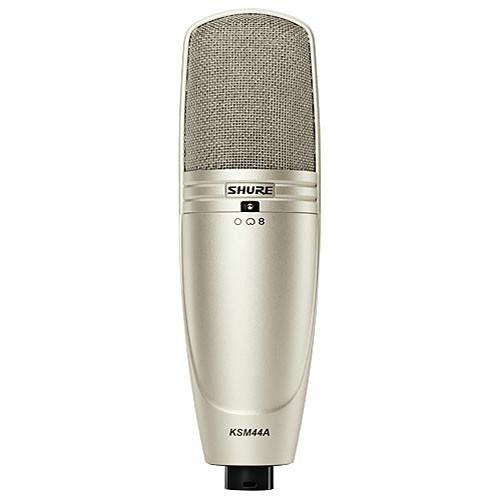

User Manual for Shure KSM44A SL Side-Address Condenser Vocal Microphone Click to enlarge the picture
Contents of the user manual for the Shure KSM44A SL Side-Address Condenser Vocal
- Product category: Large Diaphragm Condenser Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Large Diaphragm Condenser
|
User manual for the Shure KSM44A SL Side-Address Condenser Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The KSM44A/SL Side-Address Condenser Vocal Microphone from Shure is a large-diaphragm, side-address condenser microphone with multiple polar pattern options, including cardioid, omnidirectional, and figure-8. The KSM44A features an externally biased, dual 1" diaphragm, extensive internal pop filtering and Prethos Advanced Preamplifier Technology for low self-noise. - Prethos Advanced Preamplifier Technology provides 4 dB of self-noise and max SPL of 131 dB for a total dynamic range of 127 dB
- Multiple polar patterns including cardioid, omnidirectional and figure-8 for flexibility in a wide variety of recording applications
- Dual, 1" externally biased, ultra-thin, 2.5 μm, 24K gold-layered, low mass diaphragms provide superior transient response
- Class A, discrete, transformerless preamplifier for transparency, extremely wide frequency response and no crossover distortion, minimizing harmonic and intermodulation distortions
- Subsonic filter eliminates rumble from mechanical vibration below 17 Hz
- Switchable 15 dB pad for handling extremely high sound pressure levels (SPL)
- 3-position switchable low-frequency filter helps reduce unwanted stand vibration noise or counteract proximity effect
- Integrated three-stage "pop" protection grille reduces plosives and other breath noise
UPC: 042406186391 In the Box Shure KSM44A/SL Side-Address Condenser Vocal Microphone ShureLock Stand Mount RK383 Elastic Shockmount Cords Aluminum Carrying Case for KSM44A Condenser Microphones A44AVB Velveteen Protective Pouch for KSM44A Condenser Microphones ShureLock Elastic Shock Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure KSM44A SL Side-Address Condenser Vocal Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure KSM44A Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 90 dB
Omnidirectional: 88 dB
Figure 8: 86.5 dB | | Equivalent Noise Level | Cardioid: 4 dB A-Weighted
Omnidirectional: 6 dB A-Weighted
Figure 8: 7.5 dB A-Weighted | | Maximum SPL | Cardioid: 134 dB SPL
Omnidirectional: 140 dB SPL
Figure 8: 139 dB SPL | | Pad | -15 dB | | THD | 1% | | Impedance | 50 Ohms | | Sensitivity | Cardioid: 29.8 mV/Pa at 1 kHz
Omnidirectional: 14.8 mV/Pa at 1 kHz
Figure 8: 16.8 mV/Pa at 1 kHz | | Low-Cut Filter | 6 dB/Octave @ 115 Hz
18 dB/Octave @ 80 Hz | | Dynamic Range | Cardioid: 130 dB
Omnidirectional: 134 dB
Figure 8: 131 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 5.8 µA | | Operating Voltage | 48 V ± 4 V | | Weight | 17.35 oz / 492 g | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 14.3 x 10.5 x 6.4" |
