Product description

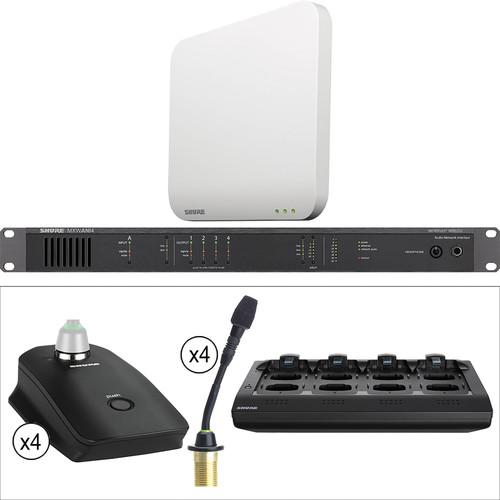

The Microflex 4-Channel 5" Gooseneck Microphone Wireless System from Shure includes 4 MXW8 gooseneck base transmitters with MX405LP 5" gooseneck microphones, an MXWAPT4 4-channel access point transceiver, an MXWANI4 4-channel audio network interface with connector kit and power cable, an MXWNCS8 8-port networked charging stations, and a USB memory stick. The system transmits and receives AES 256-bit encrypted signals to help keep your audio secure and safe. Each of the transmitters has an earphone out, allowing you to listen to a return channel of audio for translation or program material.
  • Shure MXWANI4 4-Channel Audio Network Interface The MXWANI4 4-Channel Audio Network Interface from Shure is designed to connect and distribute Shure's Microflex wireless system to conference room AV systems. It is Dante network compatible and features 4 analog outputs as well as a 4-port gigabit Ethernet switch. The MXWANI4 can be controlled through either its front-panel or through a networked Mac or PC running the Microflex Wireless Control software.

    The unit can provide power over Ethernet (PoE) through its first port, allowing you to power such components as the Microflex MXWAPT transceiver. You can monitor your audio via the front-panel 1/4" headphone output.
      • Four port gigabit switch: Optimized port configurations for connection to the Access Point Transceiver and Networked Charging Stations, third party control systems, and corporate networks
      • Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a corporate network
      • Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the Access Point Transceiver for simplified installation
      • Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the network for security and to reduce bandwidth
      • Front panel controls: Mute or solo channels and set input/output levels easily from the front panel
      • PC/Mac software control: Access the Microflex Wireless Control Software from a networked computer for input/output levels and port configuration
      • Dante networking: Transports low latency digital audio received from wireless microphones over Ethernet to any other Dante-equipped device
      • Headphone output: Solo audio signal on any channel
    UPC: 042406250061
  • 4 x Shure MXW8 Gooseneck Base Transmitter The MXW8 Gooseneck Base Transmitter from Shure is a bi-directional base transmitter for optional gooseneck microphones and is compatible with Shure's Microflex wireless system. The unit has an earphone output that allows you to monitor return audio, useful for translations or programming material. It is capable of AES 256-bit encryption audio transmission to assure a secure signal. It is powered by a built-in rechargeable battery that can provide up to 8 hours of operation.
      • Wide frequency response: Full range audio for clear voice transmission
      • Concealed power switch: Prevents accidental powering off
      • Bi-directional wireless: Enables return channel audio and real time remote control of all wireless microphone settings including light ring indication
      • Earphone output: Listen to audio from a return channel for translation, cueing, or program material
      • Programmable mute button: Customize local or remote muting behavior per application, with options including push-to talk, push-to-mute, and external control
      • Encrypted wireless: AES 256-bit encryption for secure wireless transmission
      • Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
      • Out of range alert: Emits beeping sound when range limit is exceeded
      • Wireless linking: Assign the microphone to an Access Point channel by simply docking it in a Networked Charging Station and pressing "link"
      • Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
      • Standby mode: Enabled remotely during periods of inactivity to significantly extend battery life when not in use
      • Low-battery LED: Visually alerts when there is 30 minutes of charge remaining
      • USB charging: Connects to any standard USB power source for "always on" usage
    UPC: 042406268738
  • 4 x Shure MX405 5-inch Gooseneck Mic with Surface Mount Preamplifier (Cardioid Capsule) The Shure MX405 Gooseneck Microphone is a flexible speech microphone designed for applications in meeting rooms, lecture halls, houses-of-worship and anywhere a high-quality speech microphone is desired. This 5-inch gooseneck microphone features interchangeable capsules and a choice of a desk-mount preamplifier or direct flush-mounting into a table surface. The microphone is also available with an LED light ring. Wireless options enable full compatibility with the Shure SLX series wireless systems.
      Interchangeable Capsules
    • The MX405's interchangeable capsules enable users to easily switch between cardioid and supercardioid polar patterns. The microphone is also available without a capsule.
      Desktop Preamplifier or Flush Mount Base
    • The microphone is available with a desktop stand / preamplifier or sold alone for flush mount installation into a desk or podium surface.
      LED Ring
    • The MX405 is also available with an LED light ring for a quick read on microphone status.
    UPC: 042406141291
  • Shure MXWAPT4 4-Channel Access Point Transceiver The MXWAPT4 4-Channel Access Point Transceiver from Shure is a bi-directional transceiver designed for use in Shure's Microflex wireless systems. It receives and sends up to 4 channels of AES 256-bit encrypted transmissions to and from compatible transmitters and audio network interfaces in an AV environment. The unit itself is wall and ceiling mountable and has a paintable cover, allowing it to blend in to its environment.

    The MXWAPT4 is Ethernet compatible allowing for PoE and Dante network compatibility. It can be connected with additional units for up to 32 compatible channels.
      • Slim profile: Lightweight, discreet unit with paintable cover to match interior room colors and blend into AV environments
      • Includes wall/ceiling mounting plate and connects to the system over single Ethernet cable (PoE compatible)
      • Plenum rated: Meets rigorous fire safety test standards for installation above drop ceiling tiles
      • Scalable configurations: Multiple units can be combined to support configurations of up to 32 compatible channels
      • Bi-directional wireless: Provides return channel audio to wireless transmitters and enables real time remote control of all wireless microphone settings
      • Automated frequency coordination: Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
      • Dante digital networked audio: Transports low latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
      • Encrypted wireless: AES 256-bit encryption for secure transmission
      • Selectable output power: Optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range
      • Diagnostic LEDs: Provide easy visual reference to system activity and indicate power, wireless connection, and network audio status
    UPC: 042406273503
  • Shure MXWNCS8 8-Port Networked Charging Station The MXWNCS8 8-Port Networked Charging Station from Shure is designed to provide networked charging for up to 8 Microflex wireless transmitter units. Thanks to its networking abilities, the MXWNCS8 can display charge time info to networked computers in addition to being able to assign channels to docked transmitters.
      • Station accepts all Microflex Wireless transmitters
      • Charge status indicators: 5-segment LEDs on the unit display charge status individually for every docked microphone
      • Remote charge status monitoring: Ethernet connection to the system enables remote monitoring of battery charge status in hours and minutes via the control software or third party control systems
      • Transmitter linking: Assign docked wireless microphones to channels on an Access Point Transceiver by simply pressing "link"
      • Rapid charge times: Reaches 50% charge in one hour and fully charges transmitters in two hours
      • Overcharge protection: Smart recharging circuitry safeguards against battery damage and extends life cycles
    UPC: 042406249850
In the Box
  • MXWANI4 4-Channel Audio Network Interface vftasrvexavbu
  • Limited 2-Year Warranty
  • 4 x MXW8 Gooseneck Base Transmitter
  • 4 x MX405 5-inch Gooseneck Mic with Surface Mount Preamplifier (Cardioid Capsule)
  • MXWAPT4 4-Channel Access Point Transceiver vftasrvexavbu
  • MXWNCS8 8-Port Networked Charging Station
Table of Contents




Upload User Manual

Have you got an user manual for the Shure Microflex 4-Channel 5" Gooseneck Microphone Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Shure MXWANI4 4-Channel Audio Network Interface
    Frequency Response 20 Hz to 20 kHz
    Dynamic Range Analog-to-Dante: 113 dB (20 Hz to 29 kHz, A-weighted, typical)
    Dante-to-Analog: 110 dB (20 Hz to 29 kHz, A-weighted, typical)
    Output Noise Line: −84.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
    Aux: −95.2 dBV (20 Hz to 29 kHz, A-weighted, typical)
    Mic: −106.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
    THD + N < 0.05% (20 Hz to 20 kHz@ +4dBu analog input, -10 dBFS digital input)
    Polarity Non-inverting, any input to any output
    Configuration Active balanced
    Impedance 10.6 kΩ
    Clipping Level Line: 23.8 dBV (minimum)
    Aux: 10.8 dBV (minimum)
    Configuration Active balanced
    Impedance 310 Ω
    Clipping Level Line: 26.2 dBV
    Aux: 16.2 dBV
    Mic: −3.8 dBV
    Headphone Output 1/4" (6.3 mm) TRS, 100 mW, 350 Ω, dual mono (will drive stereo phones)
    AD/DA Conversion 24-bit, 48 kHz
    Latency Analog-to-Dante: 0.21 ms (Estimated Nominal, ±0.1 ms)
    Dante-to-Analog: 0.24 ms + TN (Estimated Nominal, ±0.1 ms)
    TN = Network latency in milliseconds, as set in Dante Controller

    Note: Dante network latency is typically associated with the receiving device
    Network Interface Four-Port Gigabit Ethernet Switch, Dante digital audio
    Uplinks Port: Selectable, blocks multicast traffic (Port 4)
    PoE Provided on Port 1 to power MXWAPT
    Cable Requirements Cat 5e or higher, shielded, 100 m maximum between network devices
    Network Addressing Capability DHCP, link-local, static
    Power Requirements 100 to 240 V AC, 50-60 Hz, 1 A
    Housing Steel; Extruded aluminum
    Temperature Range Operating: 0 to 145°F (-18 to 63°C)
    Storage: -20 to 165°F (-29 to 74°C)
    Dimensions (H x W x D) 1.7 x 19.0 x 14.4" (44 x 483 x 366 mm)
    Weight 6.9 lb (3.1 kg)
    Box Dimensions (LxWxH) 22.047 x 15.039 x 2.52"
  • 4 x Shure MXW8 Gooseneck Base Transmitter
    Gain Adjustment Range -25 to 15 dB (in 1 dB steps)
    Maximum Input Level −9 dBV (mic gain @ -16 dB)
    Headphone Output 1/8" (3.5 mm) dual mono (will drive stereo headphones)
    Output Power Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 Ω)
    Antenna Type Internal, spacial diversity, linear polarization
    Battery Type Rechargeable Li-Ion
    Battery Life Up to 9 hours (Calculated with a new battery. Runtimes vary depending on battery health)
    Charge Connector USB 3.0 Type A
    Housing Molded plastic
    Temperature Range Recommended for Storage: 32 to 77°F (0 to 25°C)
    Connector 6-pin connector for Shure MX405/10/15
    Configuration Unbalanced
    Input Impedance >20 kΩ (@ 1 kHz)
    Dimensions (HxWxD) 1.4 x 2.8 x 4.9" (36 x 71 x 124 mm)
    Weight 6.8 oz (193 g) with batteries, without microphone
    Box Dimensions (LxWxH) 6.7 x 4.3 x 2.3"
  • 4 x Shure MX405 5-inch Gooseneck Mic with Surface Mount Preamplifier (Cardioid Capsule)
    Transducer Condenser
    Polar Pattern Cardioid
    Frequency Response 50kHz to 17Hz
    Dynamic Range (Typical) 96.2dB
    100dB at 0 gain
    Signal-to-Noise Ratio Cardioid: 66.0dB
    Supercardioid: 67.5dB
    Maximum Input Sound Level Cardioid: 124.2dB
    Supercardioid: 122.7dB
    All values +6dB at 0 gain
    Power Requirements 11 to 52 VDC phantom, 2.0 mA
    Output Impedance 180 ohms actual (EIA rated at 150 ohms)
    Output Connectors All these mics go in Shure proprietary transmitters, the connector is proprietary
    Pad No
    Low Frequency Roll-Off No
    Dimensions 5 inch (127 mm) (Length)
    Weight 0.4 lbs (181g)
    Box Dimensions (LxWxH) 9.8 x 4.7 x 3.2"
  • Shure MXWAPT4 4-Channel Access Point Transceiver
    Network Interface RJ45: Gigabit Ethernet, Dante digital audio
    Plenum Rating: UL 2043
    Power Requirement Power over Ethernet (PoE) Class 0, 6.5 W
    Antenna Type Internal, spacial diversity, circular polarization
    Housing Molded plastic, cast zinc
    Dimensions (HxWxD) 1.35 x 6.70 x 6.70" (24 x 170 x 170 mm)
    Weight Unit: 1.88 lb (856 g)
    Paintable Cover: 0.2 lb (85 g)
    Mounting Bracket: 0.15 lb (68 g)
    Box Dimensions (LxWxH) 8.268 x 7.559 x 2.992"
  • Shure MXWNCS8 8-Port Networked Charging Station
    Charge Time MXW1, MXW6, MXW8: 50% = 1 hour, 100% = 2 hours
    MXW2: 50% = 1.5 hours, 100% = 3 hours
    Network Interface 10/100 Mbps Ethernet
    Power Requirement 15 V DC @ 3.3 A maximum, supplied by external power supply (tip positive)
    Housing Molded plastic, cast zinc
    Dimensions (HxWxD) 2.7 x 13.5 x 7.25" (68 x 343 x 184 mm)
    Weight 6.4 lb (2.9 kg)
    Box Dimensions (LxWxH) 15.039 x 12.756 x 3.465"
