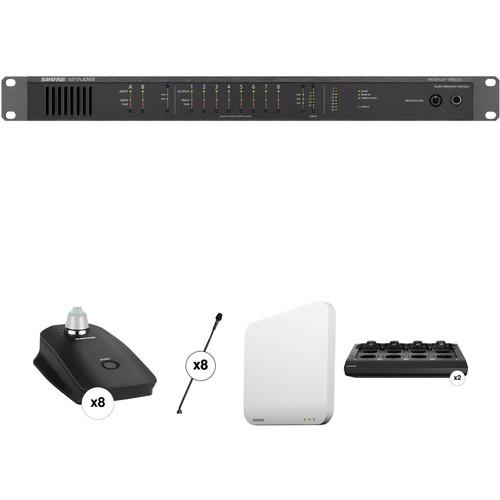

Shure Microflex 8-Channel 15" Gooseneck Microphone

User Manual for Shure Microflex 8-Channel 15" Gooseneck Microphone Wireless System

• Product category: Audio Conferencing Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Audio Conferencing

Product description

• Shure MXWANI8 8-Channel Audio Network Interface The MXWANI8 8-Channel Audio Network Interface from Shure is designed to connect and distribute Shure's Microflex wireless system to conference room AV systems. It is Dante network compatible and features 8 analog outputs as well as a 4-port gigabit Ethernet switch. The MXWANI8 can be controlled through either its front-panel or through a networked Mac or PC running the Microflex Wireless Control software.

  The unit can provide power over Ethernet (PoE) through its first port, allowing you to power such components as the Microflex MXWAPT transceiver. You can monitor your audio via the front-panel 1/4" headphone output.
  • • Four port gigabit switch: Optimized port configurations for connection to the Access Point Transceiver and Networked Charging Stations, third party control systems, and corporate networks
    • Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a corporate network
    • Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the Access Point Transceiver for simplified installation
    • Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the network for security and to reduce bandwidth
    • Front panel controls: Mute or solo channels and set input/output levels easily from the front panel
    • PC/Mac software control: Access the Microflex Wireless Control Software from a networked computer for input/output levels and port configuration
    • Dante networking: Transports low latency digital audio received from wireless microphones over Ethernet to any other Dante-equipped device
    • Headphone output: Solo audio signal on any channel
  UPC: 042406250115
• 8 x Shure MXW8 Gooseneck Base Transmitter The MXW8 Gooseneck Base Transmitter from Shure is a bi-directional base transmitter for optional gooseneck microphones and is compatible with Shure's Microflex wireless system. The unit has an earphone output that allows you to monitor return audio, useful for translations or programming material. It is capable of AES 256-bit encryption audio transmission to assure a secure signal. It is powered by a built-in rechargeable battery that can provide up to 8 hours of operation.
  • • Wide frequency response: Full range audio for clear voice transmission
    • Concealed power switch: Prevents accidental powering off
    • Bi-directional wireless: Enables return channel audio and real time remote control of all wireless microphone settings including light ring indication
    • Earphone output: Listen to audio from a return channel for translation, cueing, or program material
    • Programmable mute button: Customize local or remote muting behavior per application, with options including push-to talk, push-to-mute, and external control
    • Encrypted wireless: AES 256-bit encryption for secure wireless transmission
    • Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
    • Out of range alert: Emits beeping sound when range limit is exceeded
    • Wireless linking: Assign the microphone to an Access Point channel by simply docking it in a Networked Charging Station and pressing "link"
    • Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
    • Standby mode: Enabled remotely during periods of inactivity to significantly extend battery life when not in use
    • Low-battery LED: Visually alerts when there is 30 minutes of charge remaining
    • USB charging: Connects to any standard USB power source for "always on" usage
  UPC: 042406268738
• 8 x Shure MX415/C Microflex Modular Cardioid 15" Gooseneck Microphone with Preamp The Shure MX415/C Microflex Modular Cardioid 15" Gooseneck Microphone with Preamp is suitable for use in boardrooms, conference rooms, and classrooms. This mic can be mounted on desktops, conference tables, or lecterns by using optional surface or desktop mounts, and is fully compatible with the SLX Wireless Systems when used with the MX890 Wireless Desktop Base (sold separately).
  • 15" (38.1 cm) long gooseneck design
  • Cardioid polar pattern cartridge
  • Bi-color status indicator
  • Comes with a preamp
  • Programmable mute switch (desktop models only)
  • Snap-fit foam windscreen to reduce interference from wind noise
  • Logic input/output for remote LED and mute control
  • Surface-mount and wired or wireless desktop base options
  • CommShield Technology for improved RF filtering
  • CE certified, EMC Directive 2004/108/EC conformant, and meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments.
  UPC: 042406209489
• Shure MXWAPT8 8-Channel Access Point Transceiver The MXWAPT8 8-Channel Access Point Transceiver from Shure is a bi-directional transceiver designed for use in Shure's Microflex wireless systems. It receives and sends up to 8 channels of AES 256-bit encrypted transmissions to and from compatible transmitters and audio network interfaces in an AV environment. The unit itself is wall and ceiling mountable and has a paintable cover, allowing it to blend in to its environment.

  The MXWAPT8 is Ethernet compatible allowing for PoE and Dante network compatibility. It can be connected with additional units for up to 32 compatible channels.
  • • Slim profile: Lightweight, discreet unit with paintable cover to match interior room colors and blend into AV environments
    • Includes wall/ceiling mounting plate and connects to the system over single Ethernet cable (PoE compatible)
    • Plenum rated: Meets rigorous fire safety test standards for installation above drop ceiling tiles
    • Scalable configurations: Multiple units can be combined to support configurations of up to 32 compatible channels
    • Bi-directional wireless: Provides return channel audio to wireless transmitters and enables real time remote control of all wireless microphone settings
    • Automated frequency coordination: Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
    • Dante digital networked audio: Transports low latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
    • Encrypted wireless: AES 256-bit encryption for secure transmission
    • Selectable output power: Optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range
    • Diagnostic LEDs: Provide easy visual reference to system activity and indicate power, wireless connection, and network audio status
  UPC: 042406273527
• 2 x Shure MXWNCS8 8-Port Networked Charging Station The MXWNCS8 8-Port Networked Charging Station from Shure is designed to provide networked charging for up to 8 Microflex wireless transmitter units. Thanks to its networking abilities, the MXWNCS8 can display charge time info to networked computers in addition to being able to assign channels to docked transmitters.
  • • Station accepts all Microflex Wireless transmitters
    • Charge status indicators: 5-segment LEDs on the unit display charge status individually for every docked microphone
    • Remote charge status monitoring: Ethernet connection to the system enables remote monitoring of battery charge status in hours and minutes via the control software or third party control systems
    • Transmitter linking: Assign docked wireless microphones to channels on an Access Point Transceiver by simply pressing "link"
    • Rapid charge times: Reaches 50% charge in one hour and fully charges transmitters in two hours
    • Overcharge protection: Smart recharging circuitry safeguards against battery damage and extends life cycles
  UPC: 042406249850

• MXWANI8 8-Channel Audio Network Interface atebrzbwaczfqbwaa
• Limited 2-Year Warranty

• 8 x MXW8 Gooseneck Base Transmitter

• 8 x MX415/C Microflex Modular Cardioid 15" Gooseneck Microphone with Preamp

• MXWAPT8 8-Channel Access Point Transceiver

• 2 x MXWNCS8 8-Port Networked Charging Station

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure MXWANI8 8-Channel Audio Network Interface

  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	Analog-to-Dante: 113 dB (20 Hz to 29 kHz, A-weighted, typical) Dante-to-Analog: 110 dB (20 Hz to 29 kHz, A-weighted, typical)
  Output Noise	Line: −84.5 dBV (20 Hz to 29 kHz, A-weighted, typical) Aux: −95.2 dBV (20 Hz to 29 kHz, A-weighted, typical) Mic: −106.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
  THD + N	< 0.05% (20 Hz to 20 kHz@ +4dBu analog input, -10 dBFS digital input)
  Polarity	Non-inverting, any input to any output

  Configuration	Active balanced
  Impedance	10.6 kΩ
  Clipping Level	Line: 23.8 dBV (minimum) Aux: 10.8 dBV (minimum)

  Configuration	Active balanced
  Impedance	310 Ω
  Clipping Level	Line: 26.2 dBV Aux: 16.2 dBV Mic: −3.8 dBV
  Headphone Output	1/4" (6.3 mm) TRS, 100 mW, 350 Ω, dual mono (will drive stereo phones)

  AD/DA Conversion	24-bit, 48 kHz
  Latency	Analog-to-Dante: 0.21 ms (Estimated Nominal, ±0.1 ms) Dante-to-Analog: 0.24 ms + TN (Estimated Nominal, ±0.1 ms) TN = Network latency in milliseconds, as set in Dante Controller Note: Dante network latency is typically associated with the receiving device

  Network Interface	Four-Port Gigabit Ethernet Switch, Dante digital audio
  Uplinks	Port: Selectable, blocks multicast traffic (Port 4)
  PoE	Provided on Port 1 to power MXWAPT
  Cable Requirements	Cat 5e or higher, shielded, 100 m maximum between network devices
  Network Addressing Capability	DHCP, link-local, static

  Power Requirements	100 to 240 V AC, 50-60 Hz, 1 A
  Housing	Steel; Extruded aluminum
  Temperature Range	Operating: 0 to 145°F (-18 to 63°C) Storage: -20 to 165°F (-29 to 74°C)
  Dimensions (H x W x D)	1.7 x 19.0 x 14.4" (44 x 483 x 366 mm)
  Weight	7.1 lb (3.2 kg)

  Box Dimensions (LxWxH)	22.3 x 15.6 x 2.7"

• 8 x Shure MXW8 Gooseneck Base Transmitter

  Gain Adjustment Range	-25 to 15 dB (in 1 dB steps)
  Maximum Input Level	−9 dBV (mic gain @ -16 dB)
  Headphone Output	1/8" (3.5 mm) dual mono (will drive stereo headphones)
  Output Power	Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 Ω)
  Antenna Type	Internal, spacial diversity, linear polarization
  Battery Type	Rechargeable Li-Ion
  Battery Life	Up to 9 hours (Calculated with a new battery. Runtimes vary depending on battery health)
  Charge Connector	USB 3.0 Type A
  Housing	Molded plastic
  Temperature Range	Recommended for Storage: 32 to 77°F (0 to 25°C)
  Connector	6-pin connector for Shure MX405/10/15
  Configuration	Unbalanced
  Input Impedance	>20 kΩ (@ 1 kHz)
  Dimensions (HxWxD)	1.4 x 2.8 x 4.9" (36 x 71 x 124 mm)
  Weight	6.8 oz (193 g) with batteries, without microphone

  Box Dimensions (LxWxH)	6.7 x 4.3 x 2.3"

• 8 x Shure MX415/C Microflex Modular Cardioid 15" Gooseneck Microphone with Preamp

  Type	Condenser (electret bias)
  Frequency Response	50 to 17000 Hz
  Polar Pattern	Cardioid polar pattern (at 1 kHz)
  Output Impedance	EIA Rated at 150 Ω (170 Ω actual)
  Configuration	Output: Active balanced
  Sensitivity	-35 dBV/Pa (18 mV) / at 1 kHz, open circuit voltage
  Maximum SPL	121 dB (1 kHz at 1% THD, 1 kW load)
  Output Noise	28 dB SPL (A-weighted)
  Signal-to-Noise Ratio	66 dB (referenced at 94 dB SPL at 1 kHz)
  Dynamic Range	93 dB (1 kΩ load at 1 kHz)
  Common Mode Rejection	45 dB minimum (10 Hz to 100 kHz)
  Clipping Level	Preamplifier Output (1% THD): -8 dBV (0.4 V)
  Polarity	3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  Attenuation	Mute Switch: -50 dB minimum
  Connections	LED IN: Active low (≤1.0 V); TTL compatible; Absolute maximum voltage: -0.7 V to 50 V LOGIC OUT: Active low (≤1.0 V), sinks up to 20 mA; TTL compatible; Absolute maximum voltage: -0.7 V to 50 V (up to 50 V through 3 kΩ)
  Power Requirements	48 to 52 VDC phantom, 8.0 mA
  Operating Temperature	0 to 135°F (-18 to 57°C)
  Storage Temperature	-20 to 165°F (-29 to 74°C)
  Relative Humidity	0 to 95%
  Weight	0.154 lb (0.069 kg)
  Dimensions (L x W)	14.8 x 0.7 (37.6 x 1.9 cm)

  Box Dimensions (LxWxH)	24.8 x 5.5 x 2.9"

• Shure MXWAPT8 8-Channel Access Point Transceiver

  Network Interface	RJ45: Gigabit Ethernet, Dante digital audio
  Plenum	Rating: UL 2043
  Power Requirement	Power over Ethernet (PoE) Class 0, 6.5 W
  Antenna Type	Internal, spacial diversity, circular polarization
  Housing	Molded plastic, cast zinc
  Dimensions (HxWxD)	1.35 x 6.70 x 6.70" (24 x 170 x 170 mm)
  Weight	Unit: 1.86 lb (845 g) Paintable Cover: 0.2 lb (85 g) Mounting Bracket: 0.15 lb (68 g)

  Box Dimensions (LxWxH)	8.268 x 7.638 x 3.15"

• 2 x Shure MXWNCS8 8-Port Networked Charging Station

  Charge Time	MXW1, MXW6, MXW8: 50% = 1 hour, 100% = 2 hours MXW2: 50% = 1.5 hours, 100% = 3 hours
  Network Interface	10/100 Mbps Ethernet
  Power Requirement	15 V DC @ 3.3 A maximum, supplied by external power supply (tip positive)
  Housing	Molded plastic, cast zinc
  Dimensions (HxWxD)	2.7 x 13.5 x 7.25" (68 x 343 x 184 mm)
  Weight	6.4 lb (2.9 kg)

  Box Dimensions (LxWxH)	15.039 x 12.756 x 3.465"
