Product description
Video: Hands-On Review Of Shure MOTIV Series Read More
Recording Music with Shure MOTIV MV5 iOS and USB Microphone
Podcasting with Shure MOTIV MV5 iOS and USB Microphone
Vlogging with Shure MOTIV MV5 iOS and USB Microphone
Shure MOTIV MV5 Digital Condenser Microphone Product Video
ShurePlus MOTIV Video - Record your band rehearsal
ShurePlus MOTIV Video - Record a live performance

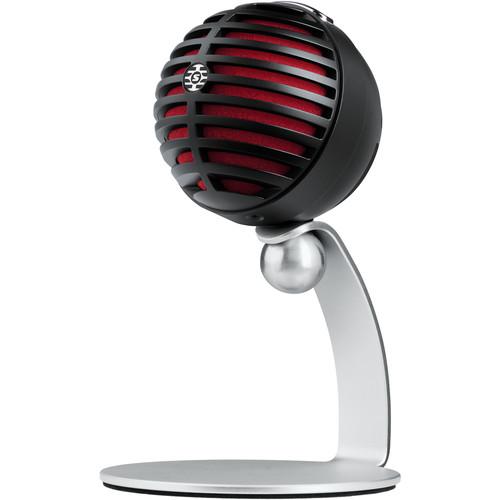

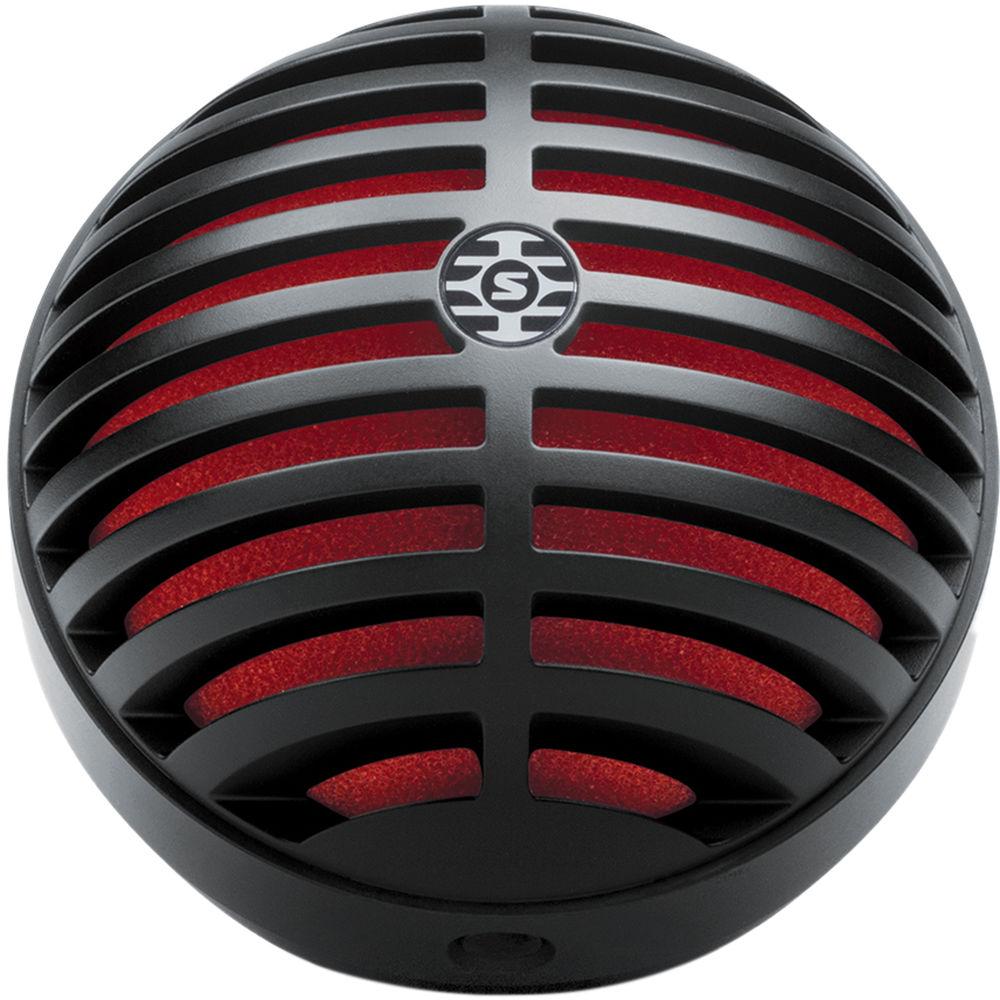

The black MOTIV MV5 from Shure is a portable digital condenser microphone that has a detachable desktop stand. It can be used to capture audio on Mac or Windows computers, iPods, iPhones, iPads, iOS devices, and some Android devices in applications such as music, podcasting, video chats, and more.The MV5 microphone features a low-profile design and allows you to monitor in real time via its integrated headphone output jack. It is built with an integrated thread mount that is compatible with any 1/4" standard camera tripod. The following cables are also included: a Micro-B to USB cable, and a Lightning cable. The MOTIV MV5 is compatible with the ShurePlus MOTIV Video App.
Key Features
Features a custom-tuned microphone capsule for best-in-class audio
Connects directly to any iOS device: no adapters required
Offers 3 DSP preset modes (vocals, flat, instrument) that automatically optimize EQ, compression and limiting for the sound source
Mounts on any 1/4" standard camera tripod via an integrated thread mount for convenient positioning or use the detachable desktop stand
Compatible with Android devices that support USB Audio Class 2.0 and USB On-The-Go (OTG) connectivity (not all Android devices are compatible)

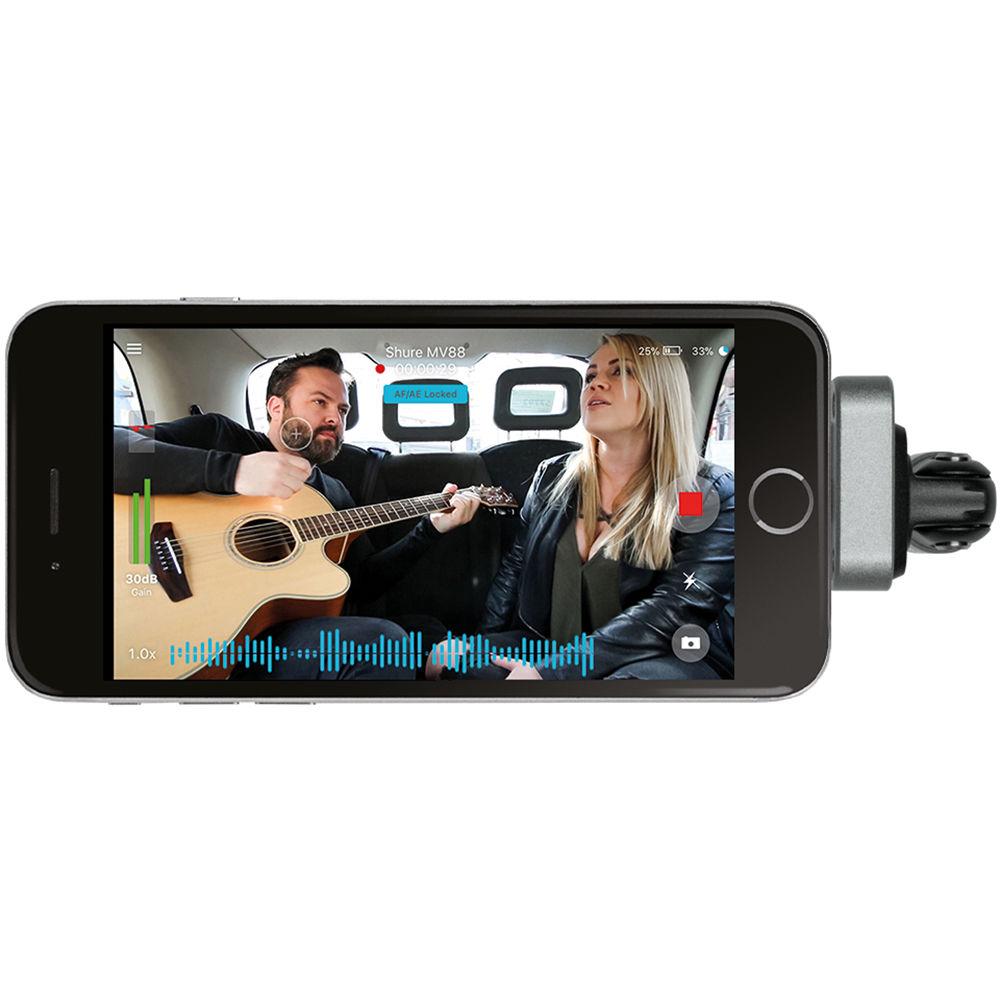

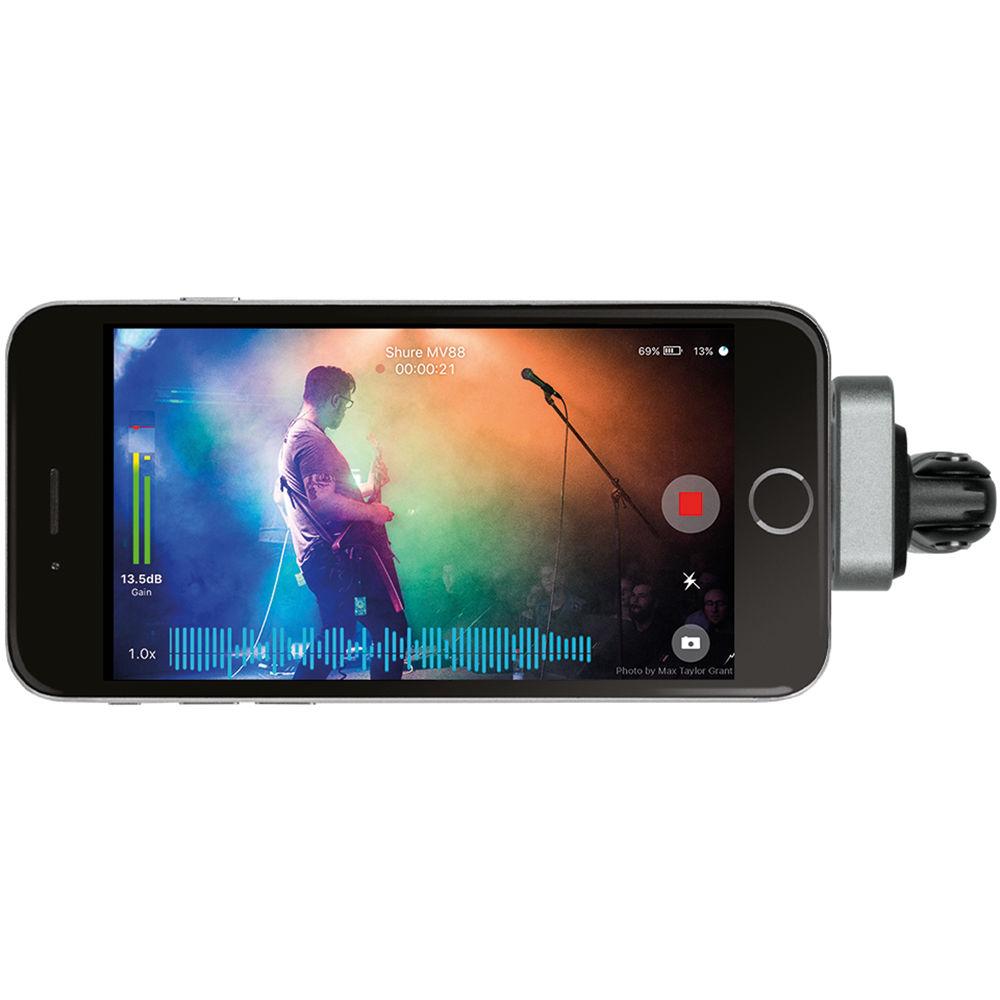

ShurePlus MOTIV Video App
iOS mobile video application enabling users to record uncompressed audio for video (free download available separately)

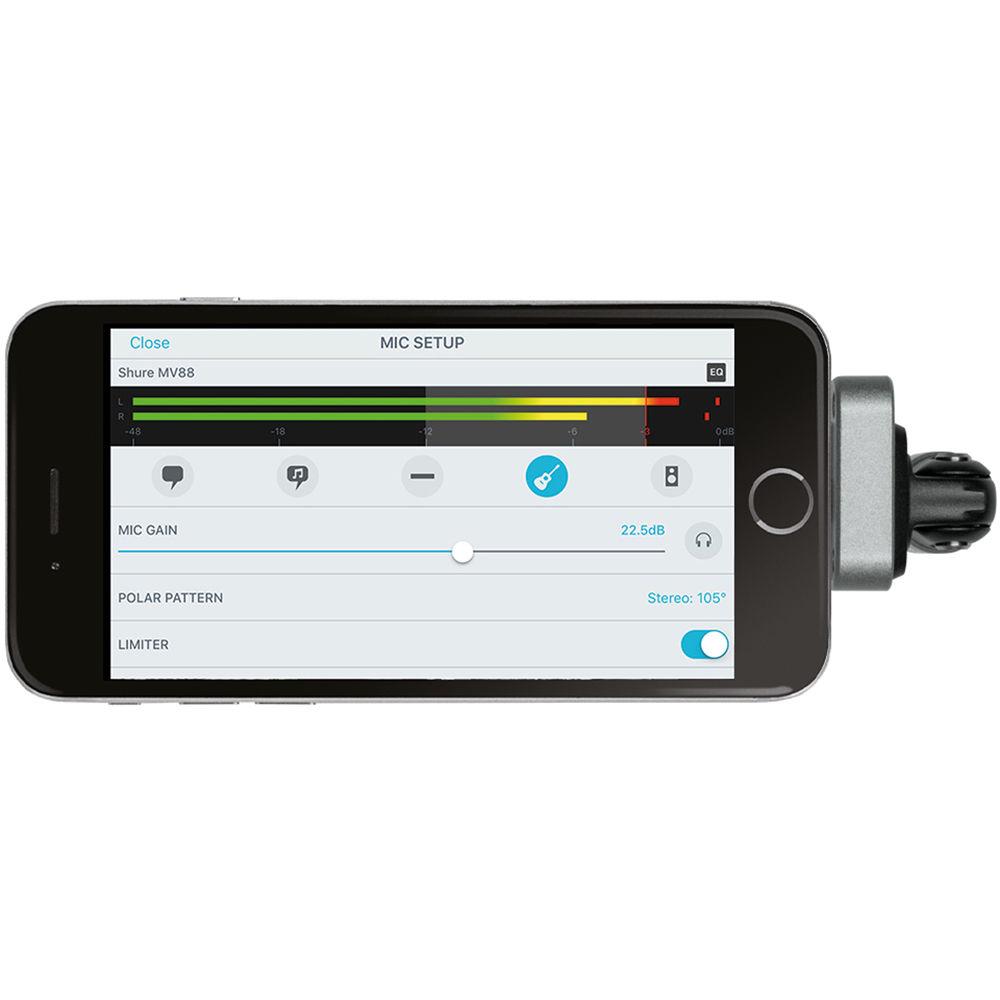

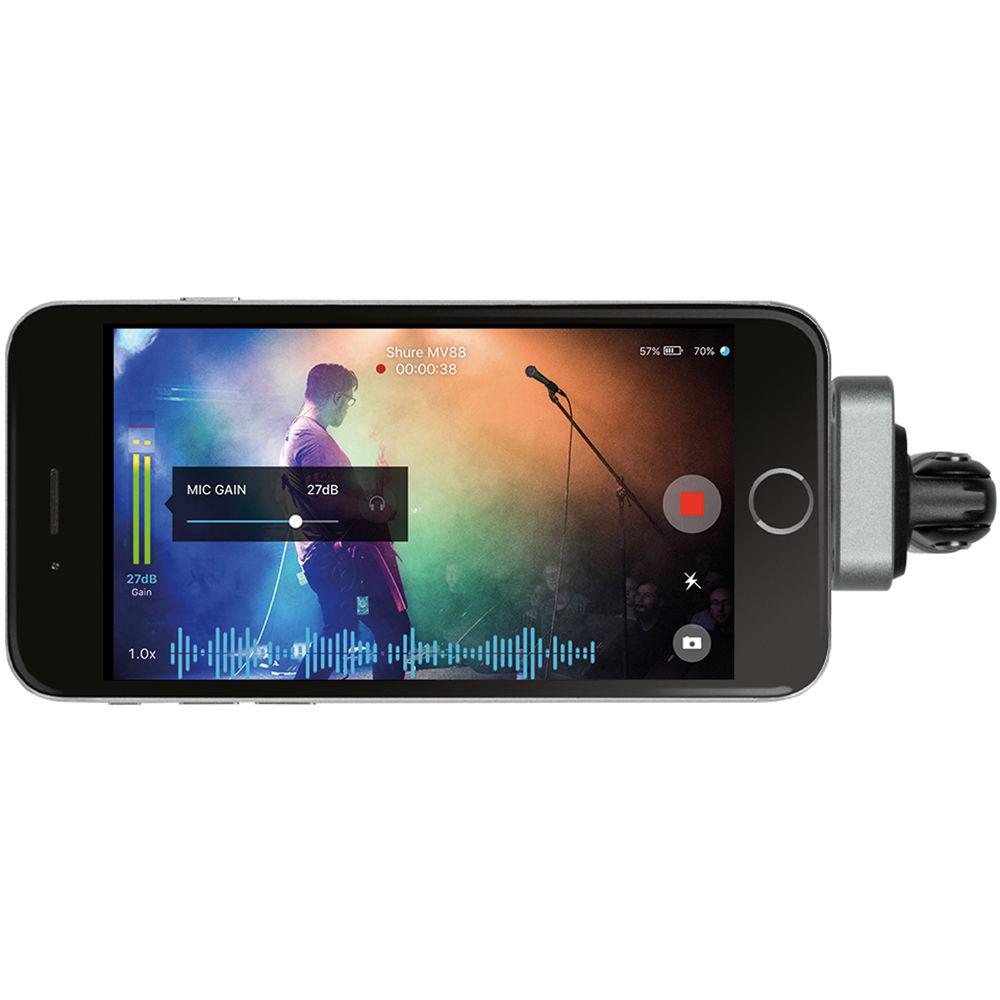

Features all functionality of MOTIV audio app, including gain control, EQ, and compression
On-screen audio metering

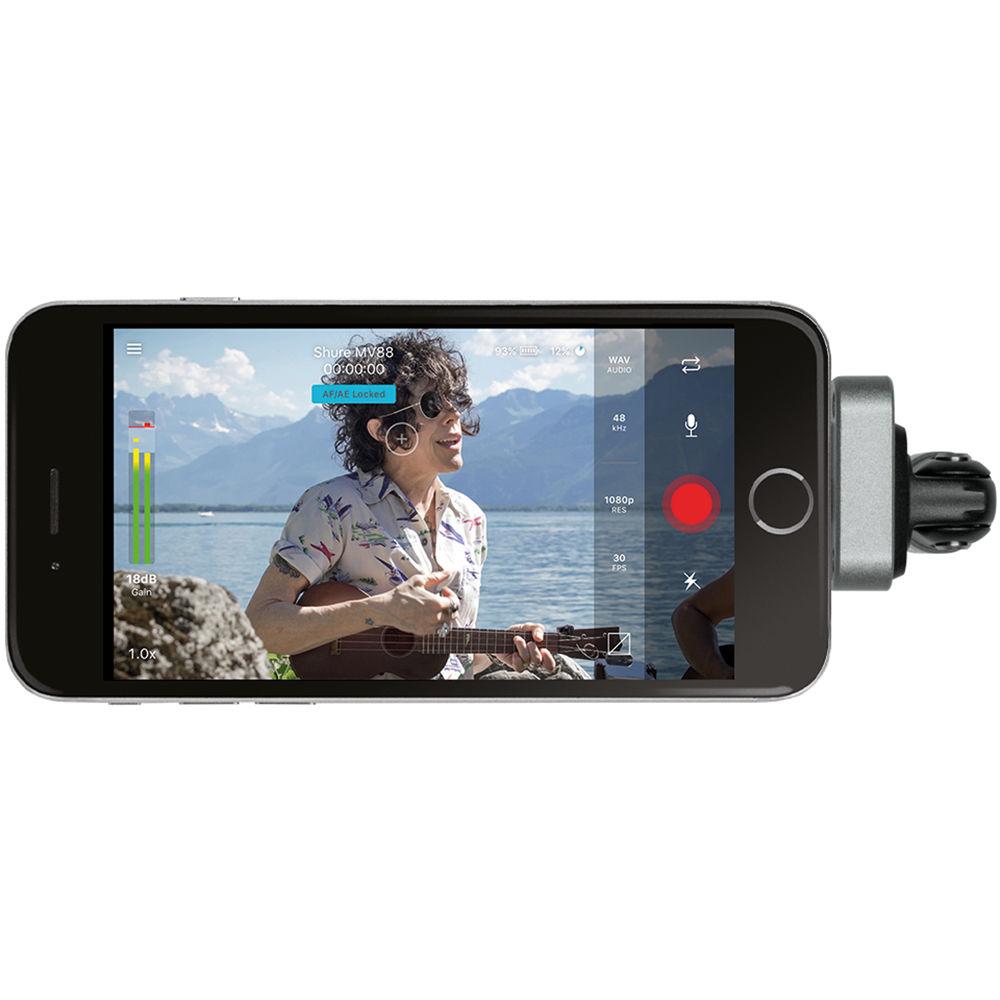

Choice of video resolution, device dependent (720p, 1080p, 4K)
Choice of audio format (WAV, AAC, ALAC)
For iOS 10 or later
64-bit iPhone (iPhone 5S and later)
UPC: 042406491396 In the Box Shure MOTIV MV5 - Digital Condenser Microphone (Black)
Micro-B to USB Cable
Micro-B to Lighting Cable
Limited 2-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Shure MOTIV MV5 - Digital Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Shure MV5 Specs
MFi Certified
Yes
DSP Modes
Presets: Voice/instrument/flat
Type
Electret condenser (16 mm)
Polar Pattern
Unidirectional (cardioid)
A/D Converter
Up to 24-bit/48 kHz
Frequency Range
20 Hz to 20 kHz
Gain Range
Adjustable: 0 to +36 dB
Sensitivity
-40 dBFS/Pa at 1 kHz At Minimum Gain, Flat Mode: 1 Pa=94 SPL
Maximum SPL
At Minimum Gain, Flat Mode: 130 dB SPL

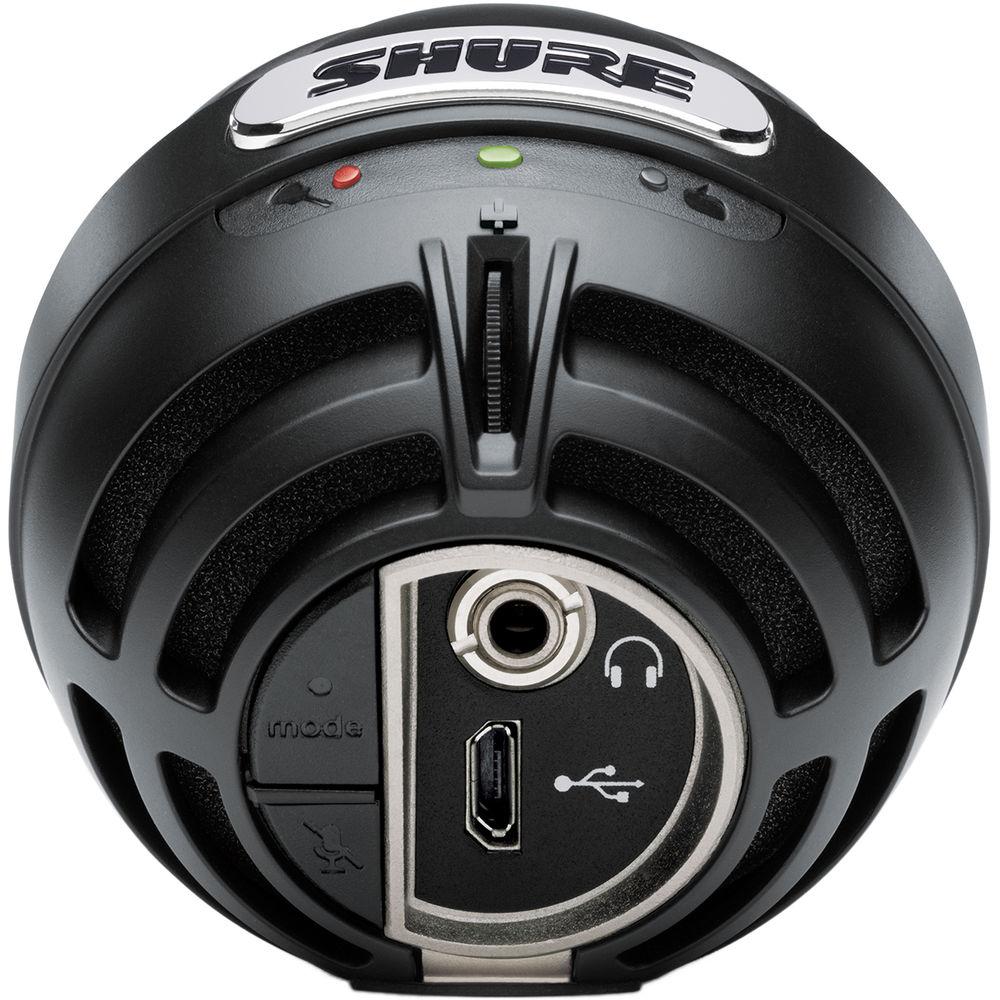

Headphone Output
1/8" (3.5 mm) mini-jack
Power Requirements
Powered through USB or Lightning connector
Microphone Mute
Yes
Housing
PC/ABS with die-cast zinc frame
Dimensions (H x W x D)
2.60 x 2.64 x 2.56" (66 x 67 x 65 mm) without mounting stand 3.50 x 5.59 x 3.82" (89 x 142 x 97 mm) with mounting stand
Weight
3.2 oz (90 g) without mounting stand 5.6 oz (160 g) with mounting stand
Package Weight
0.85 lb
Box Dimensions (LxWxH)
5.2 x 4.5 x 4.0"
