User Manual for Shure MOTIV MV5 - Digital Condenser Microphone
Click to enlarge the picture Contents of the user manual for the Shure MOTIV MV5 - Digital Condenser
Product category: Mobile Microphones Shure
Brand: Shure
Description and content of package
Technical information and basic settings
Frequently asked questions – FAQ
Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
Authorized service for Shure Mobile Microphones
User manual for the Shure MOTIV MV5 - Digital Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
Product description
Video: Hands-On Review Of Shure MOTIV Series Read More
Recording Music with Shure MOTIV MV5 iOS and USB Microphone
Podcasting with Shure MOTIV MV5 iOS and USB Microphone
Vlogging with Shure MOTIV MV5 iOS and USB Microphone
Shure MOTIV MV5 Digital Condenser Microphone Product Video
ShurePlus MOTIV Video - Record your band rehearsal
ShurePlus MOTIV Video - Record a live performance

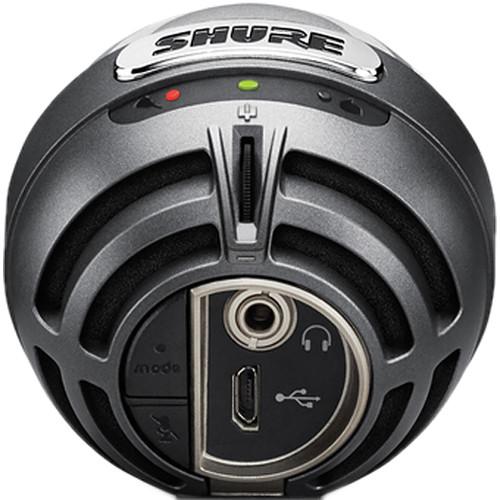

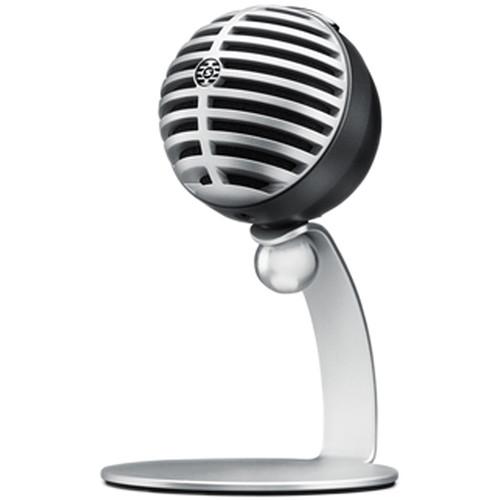

The gray MOTIV MV5 from Shure is a portable digital condenser microphone that has a detachable desktop stand. It can be used to capture audio on Mac or Windows computers, iPods, iPhones, iPads, iOS devices, and some Android devices in applications such as music, podcasting, video chats, and more.The MV5 microphone features a low-profile design and allows you to monitor in real time via its integrated headphone output jack. It is built with an integrated thread mount that is compatible with any 1/4" standard camera tripod. The following cables are also included: a Micro-B to USB cable, and a Lightning cable. The MOTIV MV5 is compatible with the ShurePlus MOTIV Video App.
Key Features
Features a custom-tuned microphone capsule for best-in-class audio
Connects directly to any iOS device: no adapters required
Offers 3 DSP preset modes (vocals, flat, instrument) that automatically optimize EQ, compression and limiting for the sound source
Mounts on any 1/4" standard camera tripod via an integrated thread mount for convenient positioning or use the detachable desktop stand
Compatible with Android devices that support USB Audio Class 2.0 and USB On-The-Go (OTG) connectivity (not all Android devices are compatible)

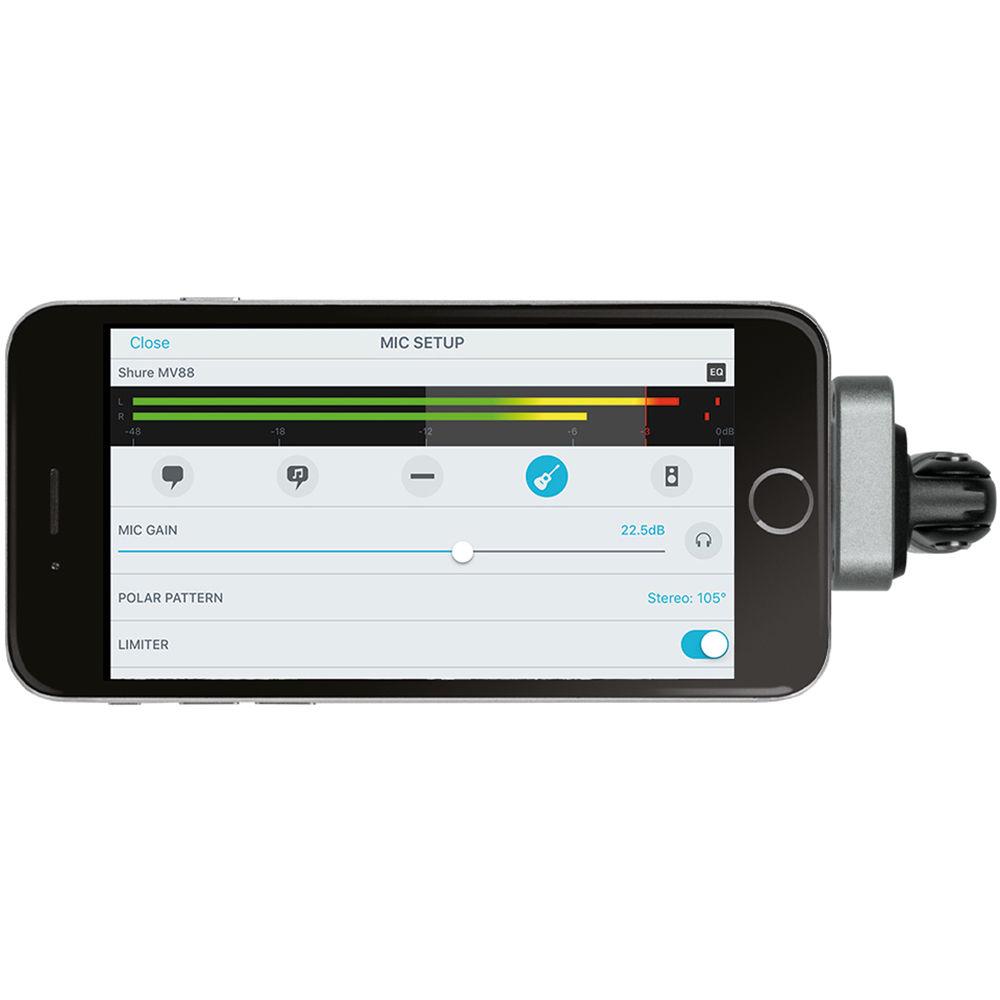

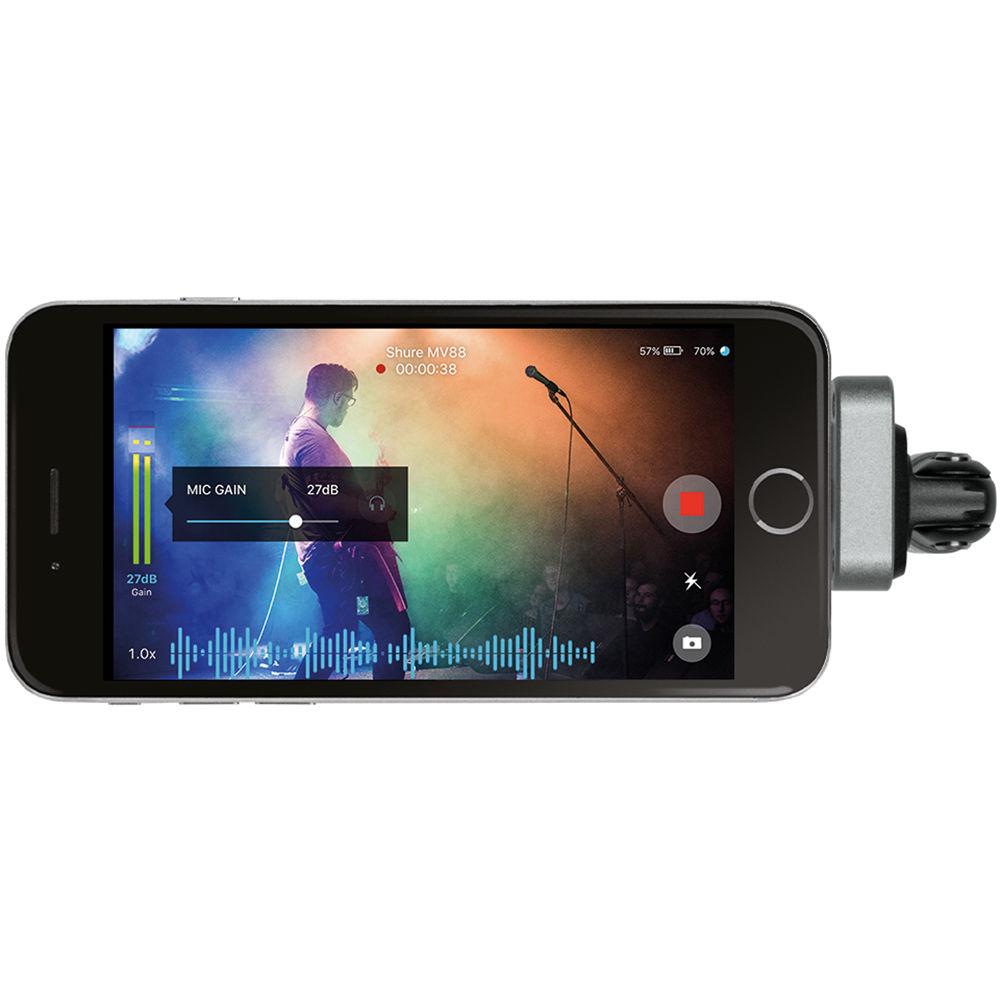

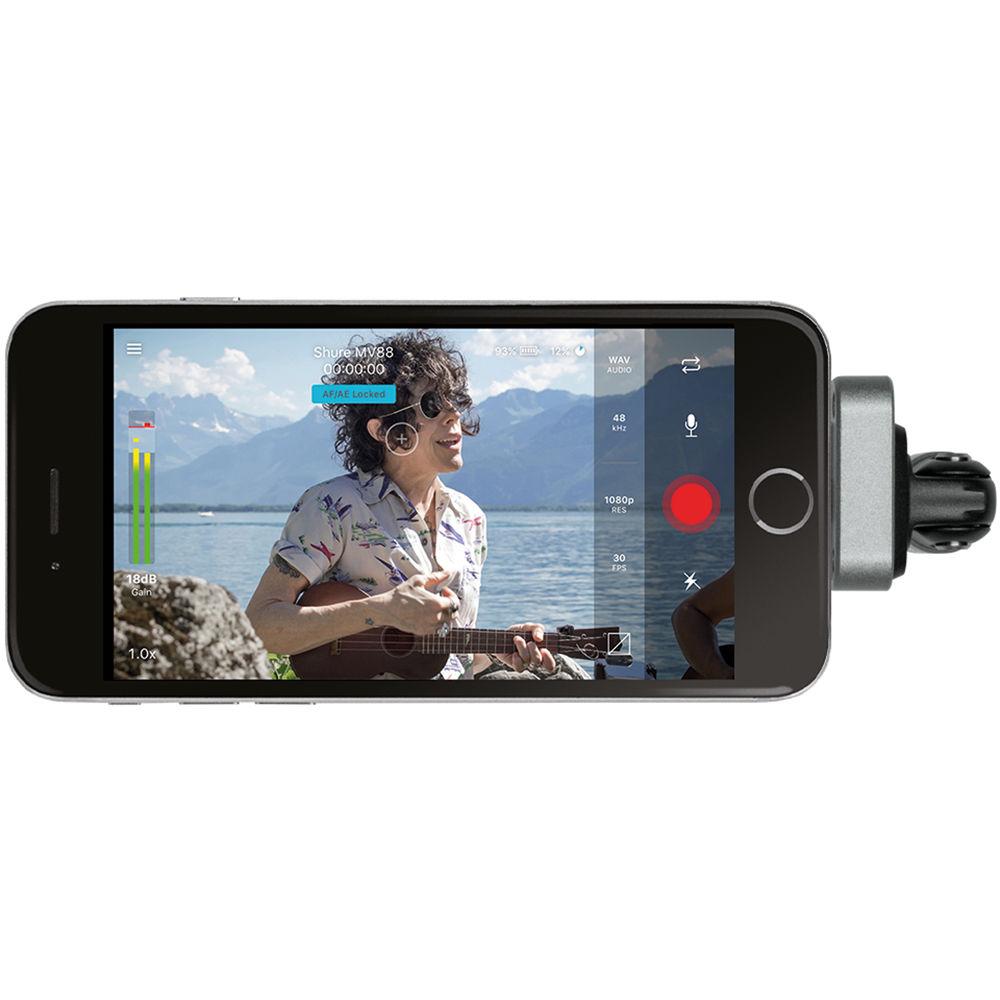

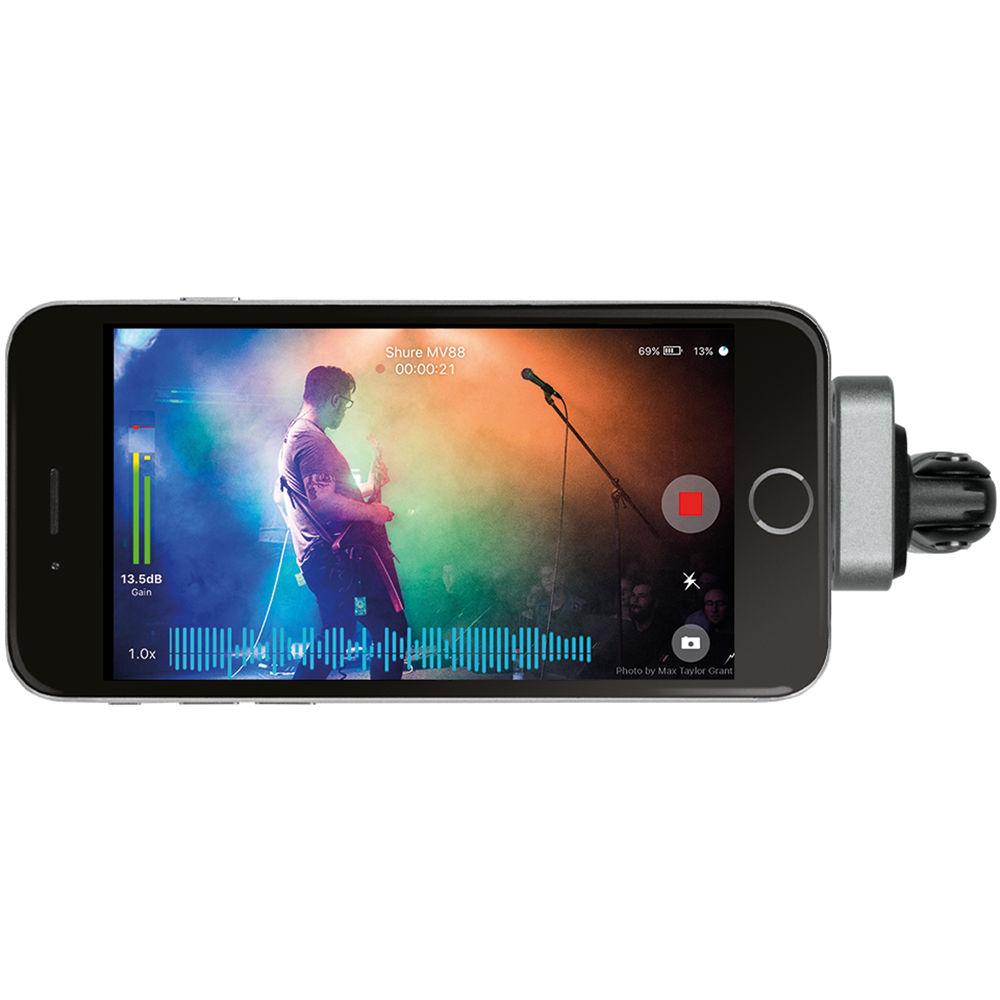

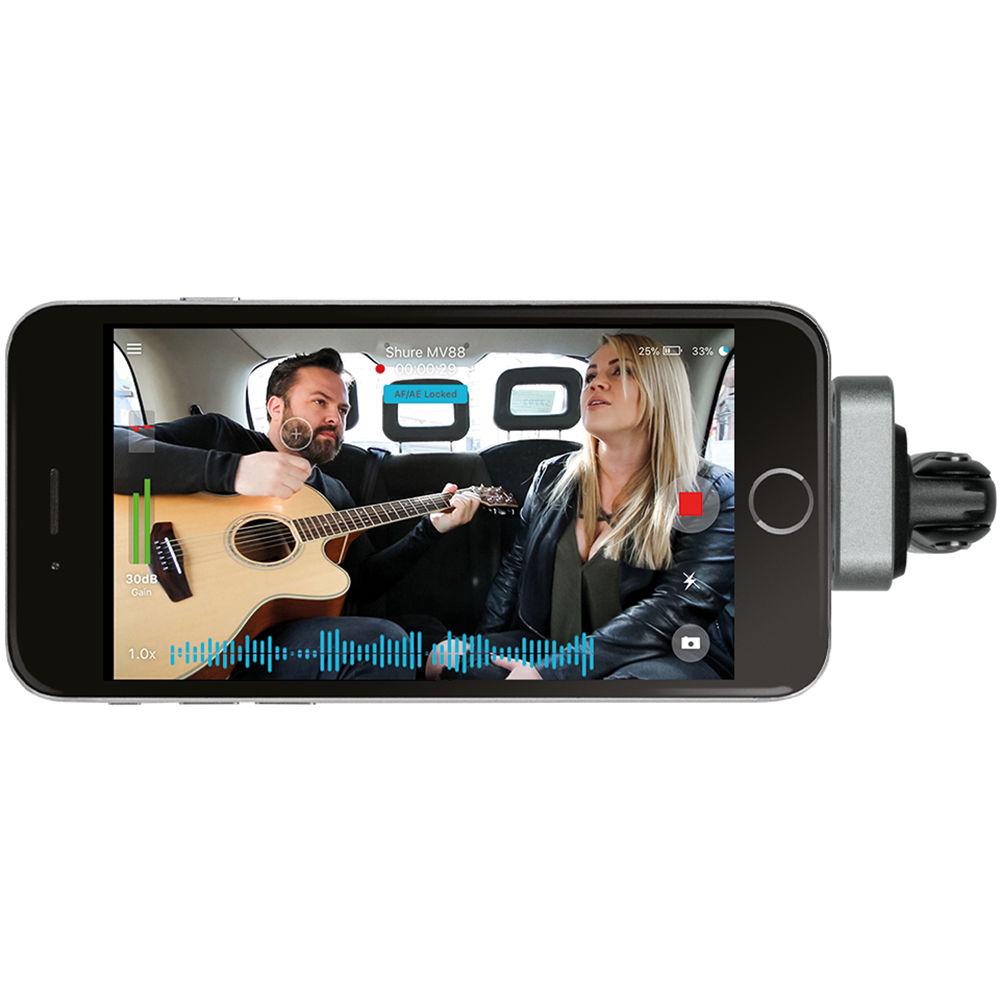

ShurePlus MOTIV Video App
iOS mobile video application enabling users to record uncompressed audio for video (free download available separately)
Features all functionality of MOTIV audio app, including gain control, EQ, and compression
On-screen audio metering
Choice of video resolution, device dependent (720p, 1080p, 4K)
Choice of audio format (WAV, AAC, ALAC)
For iOS 10 or later
64-bit iPhone (iPhone 5S and later)
UPC: 042406491457 In the Box Shure MOTIV MV5 - Digital Condenser Microphone (Gray)
Micro-B to USB Cable
Micro-B to Lighting Cable
Limited 2-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Shure MOTIV MV5 - Digital Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Shure MV5 Specs
MFi Certified
Yes
DSP Modes
Presets: Voice/instrument/flat
Type
Electret condenser (16 mm)
Polar Pattern
Unidirectional (cardioid)
A/D Converter
Up to 24-bit/48 kHz
Frequency Range
20 Hz to 20 kHz
Gain Range
Adjustable: 0 to +36 dB
Sensitivity
-40 dBFS/Pa at 1 kHz At Minimum Gain, Flat Mode: 1 Pa=94 SPL
Maximum SPL
At Minimum Gain, Flat Mode: 130 dB SPL
Headphone Output
1/8" (3.5 mm) mini-jack
Power Requirements
Powered through USB or Lightning connector
Microphone Mute
Yes
Housing
PC/ABS with die-cast zinc frame
Dimensions (H x W x D)
2.60 x 2.64 x 2.56" (66 x 67 x 65 mm) without mounting stand 3.50 x 5.59 x 3.82" (89 x 142 x 97 mm) with mounting stand
Weight
3.2 oz (90 g) without mounting stand 5.6 oz (160 g) with mounting stand
Package Weight
0.825 lb
Box Dimensions (LxWxH)
5.2 x 4.45 x 4.15"
