Product description
Video: Hands-On Review Of Shure MOTIV Series Read More
Recording Music with Shure MOTIV MV51 iOS and USB Microphone
Podcasting with Shure MOTIV MV51 iOS and USB Microphone
Shure MOTIV MV51 Digital Large-Diaphragm Condenser Microphone
ShurePlus MOTIV Video - Record your band rehearsal
ShurePlus MOTIV Video - Record a live performance

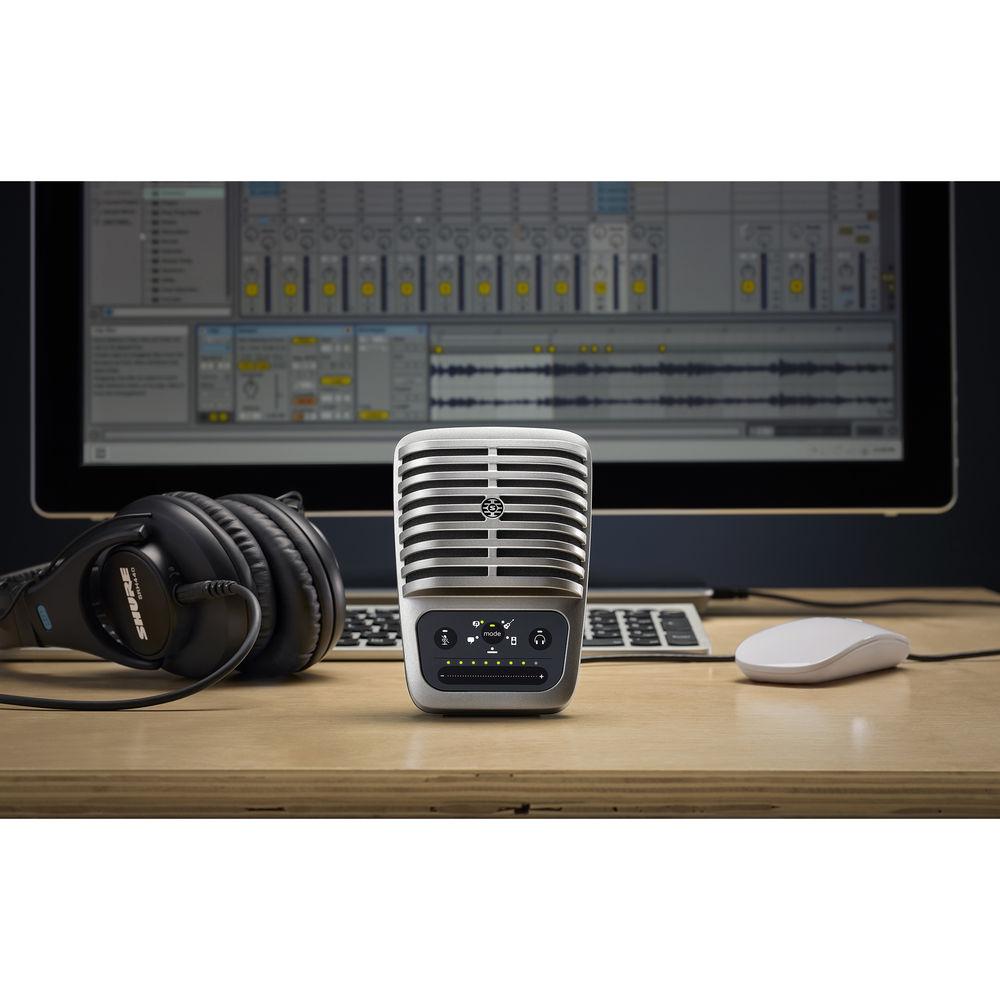

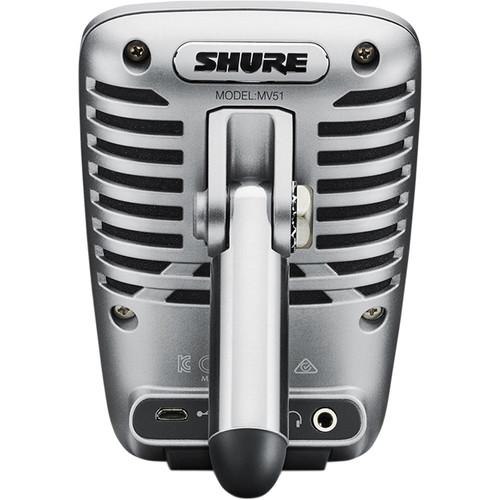

The silver MOTIV MV51 from Shure is a 1" capsule large-diaphragm condenser microphone that connects to any Mac, Windows, iPhone, iPod, iPad, and some Android devices for convenient digital recording. It can be used for capturing audio and is equipped with five onboard DSP preset modes and a built-in 1/8" headphone output for real-time monitoring during audio or video applications. With a vintage design and a durable all-metal construction, the microphone is built with an integrated kickstand and is compatible with any standard mic stand. A unique onboard touch-panel control provides quick access to gain, mute, and headphone volume adjustments. Includes a 5/8" standard thread to mount on any microphone stand, one Micro-B-to-USB cable, and one Micro-B-to-Lighting cable. The MOTIV MV51 is compatible with the ShurePlus MOTIV Video App.
Key Features
Apple MFi (made for iPhone/iPod/iPad) & certified for direct connection to any iOS device without the need for any additional adapters or connection kits
Five DSP preset modes (speech, singing, flat, acoustic instrument, and loud)
Automatically adjusts gain, EQ, compression, and limiting for optimal results

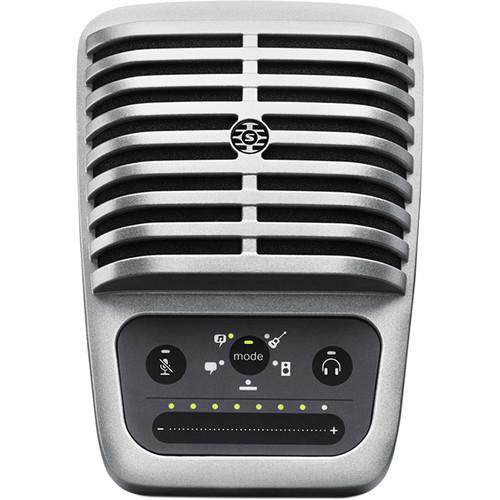

Front panel touch controls for mode selection, headphone volume, microphone gain, and mute
Built-in headphone output for real-time monitoring
1" microphone capsule element provides best-in-class audio

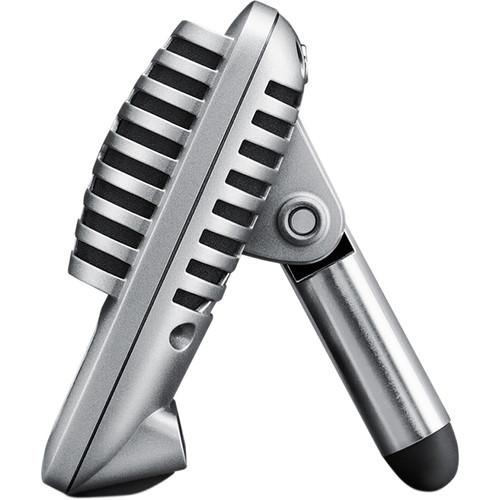

Integrated rear kickstand provides optimal positioning on any desktop
Includes standard 5/8" thread to mount on any microphone stand
Includes one Micro-B to USB cable and one Micro-B to Lightning cable
All-metal construction, vintage-inspired design
Compatible with Android devices that support USB Audio Class 2.0 and USB On-The-Go (OTG) connectivity (not all Android devices are compatible)

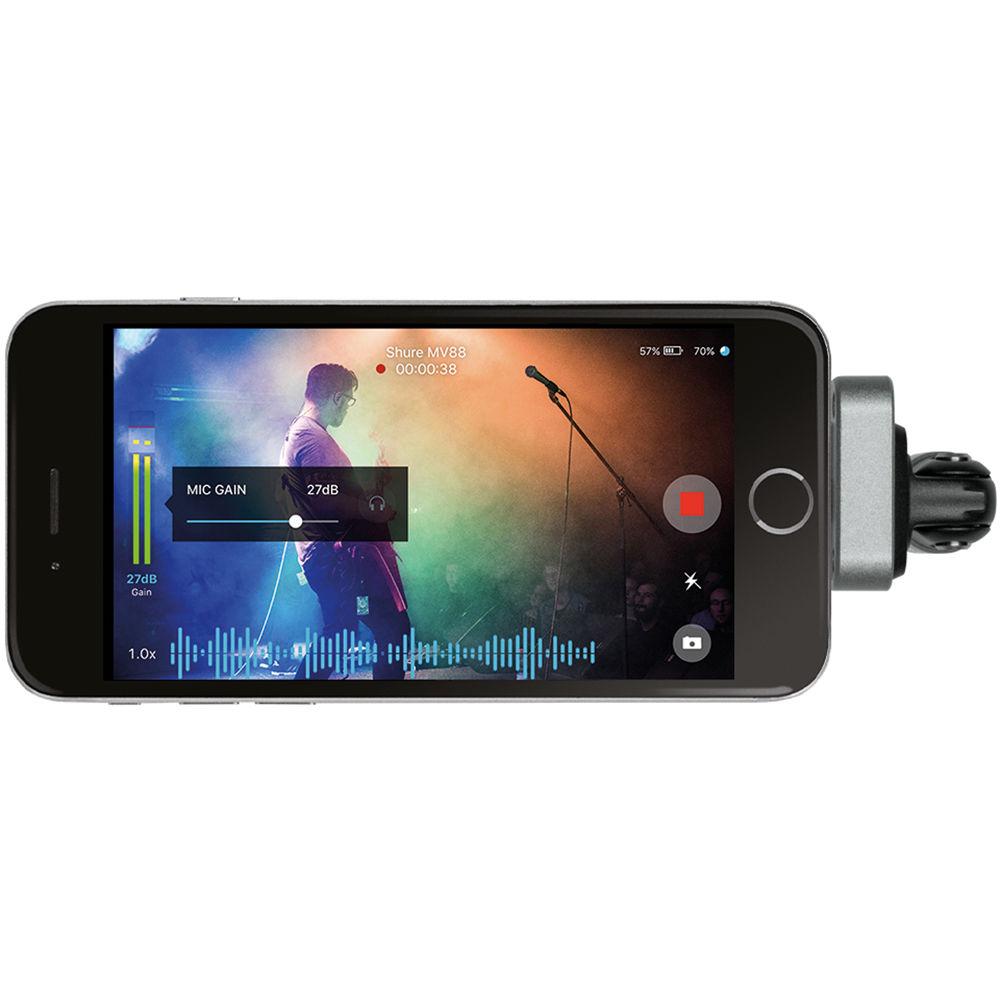

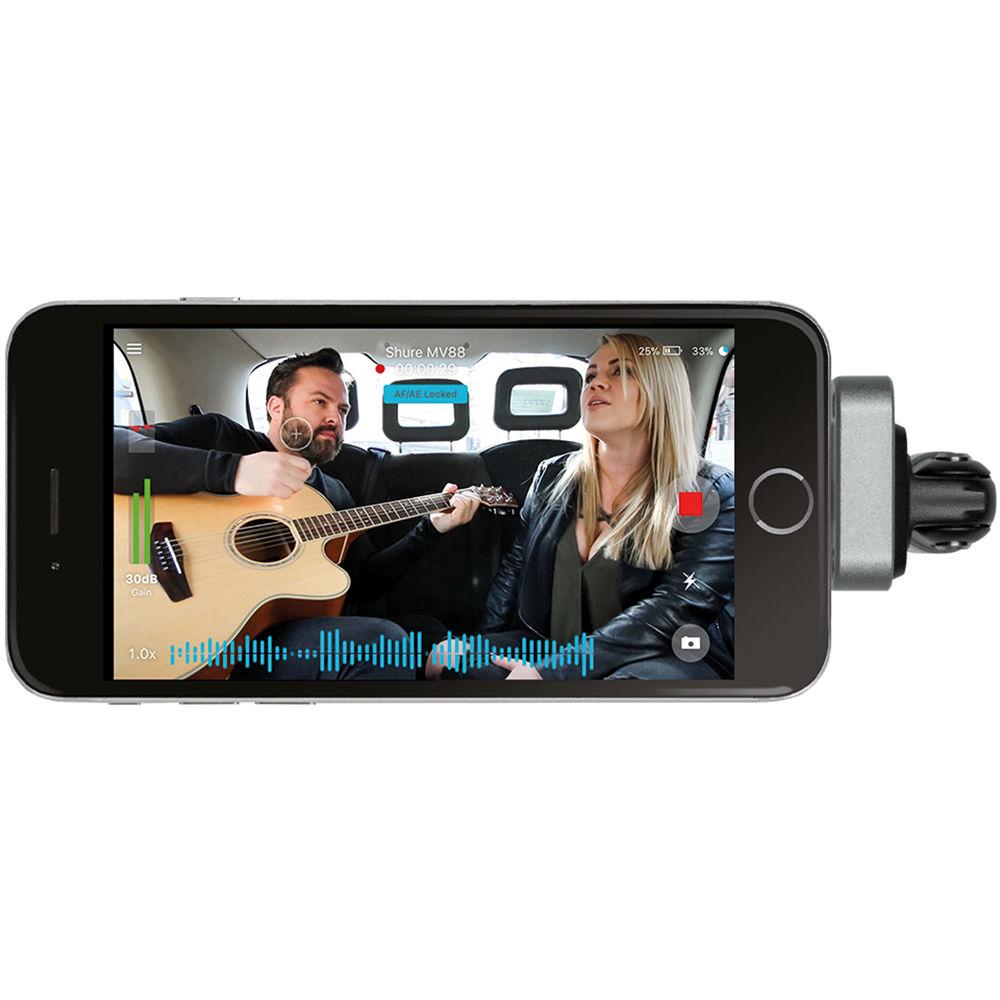

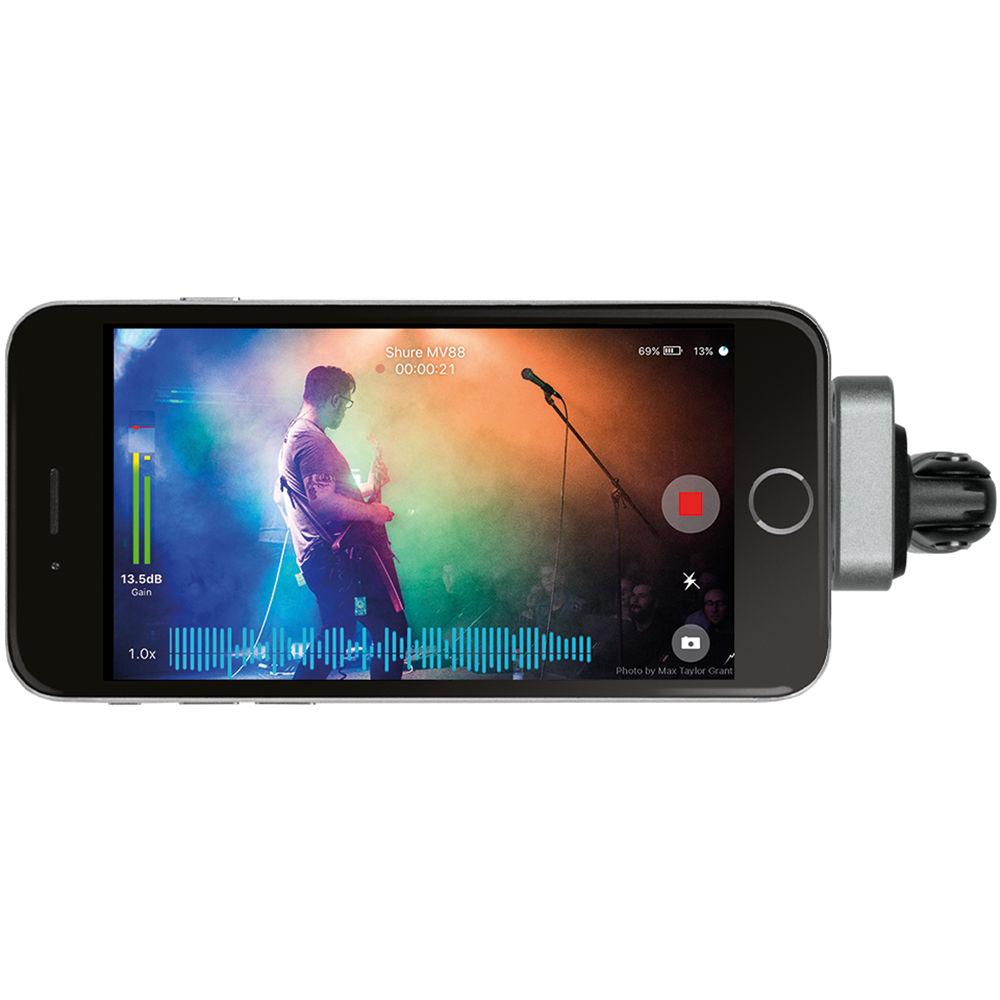

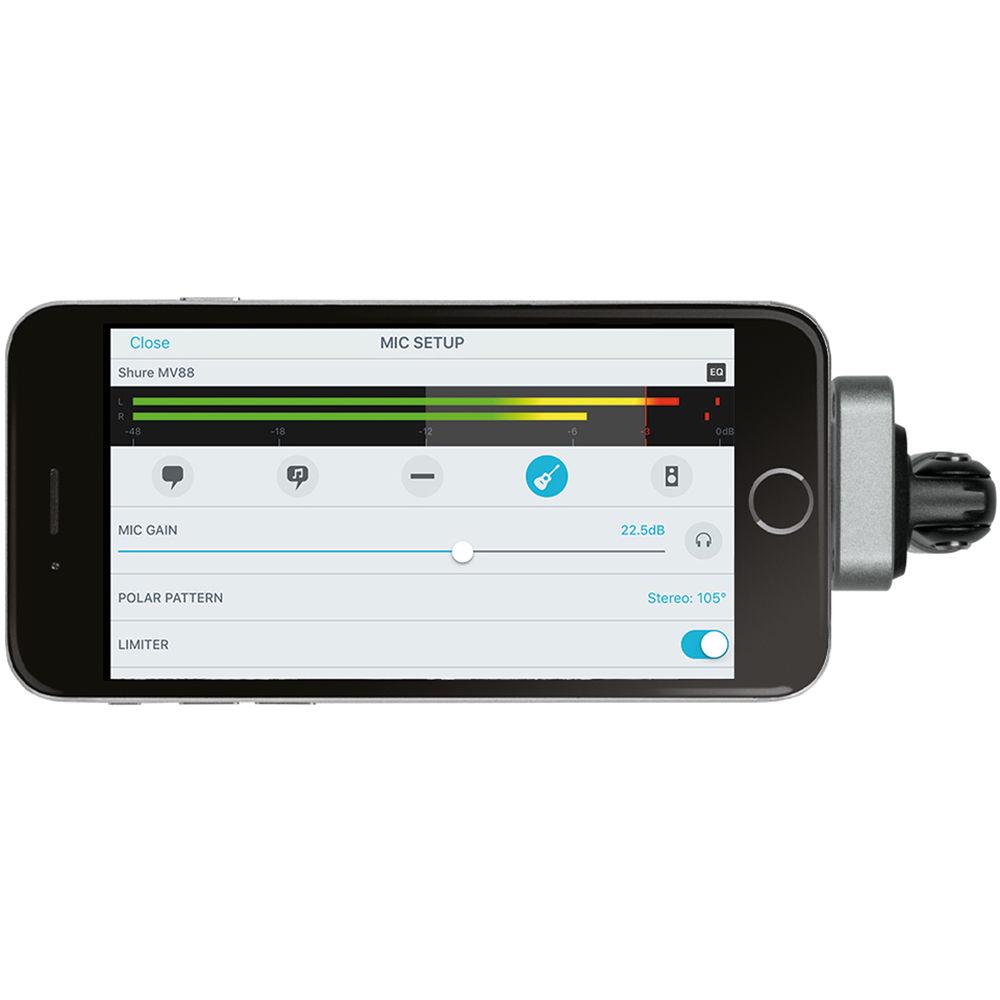

ShurePlus MOTIV Video App
iOS mobile video application enabling users to record uncompressed audio for video (free download available separately)
Features all functionality of MOTIV audio app, including gain control, EQ, and compression
On-screen audio metering
Choice of video resolution, device dependent (720p, 1080p, 4K)
Choice of audio format (WAV, AAC, ALAC)
For iOS 10 or later
64-bit iPhone (iPhone 5S and later)

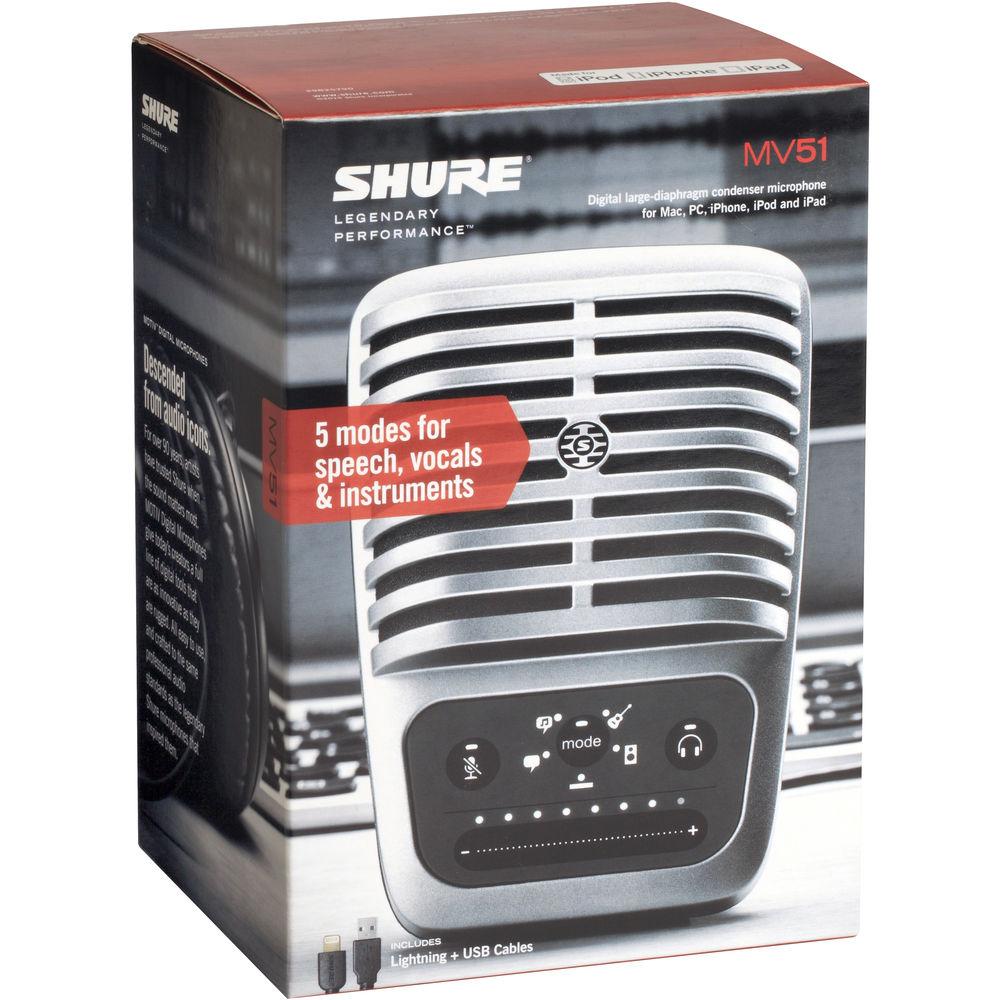

UPC: 042406397285 In the Box Shure MOTIV MV51 Digital Large-Diaphragm Condenser Microphone (Silver)
5/8"-27 Thread Adapter
3' (1 m) Micro-B to USB Cable
3' (1 m) Micro-B to Lighting Cable
Limited 2-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Shure MOTIV MV51 Digital Large-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
iOS 7.0 and higher: iPhone 5, iPhone 5c, iPhone 5s, iPhone 6, iPhone 6 Plus; iPod touch 5th generation; iPad 4th generation, iPad Air, iPad Air 2; iPad Mini 1st generation, iPad Mini 2nd generation, iPad Mini 3rd Generation
Android System Requirements
Compatible with Android devices that support USB Audio Class 2.0 and Micro-B OTG (On-The-Go) connectivity. Not all Android devices are compatible.
MFi Certified
Yes
DSP Modes
Presets: Speech/Singing/Acoustic/Loud/Flat
Type
Electret condenser, 1" (25 mm)
Polar Pattern
Unidirectional (cardioid)
A/D Converter
Up to 24-bit/48 kHz
Frequency Response
20 Hz to 20 kHz
Gain Range
0 to +36 dB (adjustable)
Sensitivity
-39 dBFS/Pa (1 Pa=94 SPL) at 1 kHz (minimum gain, flat mode)
Maximum SPL
130 dB SPL (minimum gain, flat mode)
Headphone Output
1/8" (3.5 mm)
Power Requirements
Powered through USB or Lightning connector
Microphone Mute
Yes
Material of Construction
Housing: All-metal construction
Dimensions (H x W x D)
5.0 x 3.4 x 2.8" (128 x 86 x 70 mm)
Net Weight
20.3 oz (574.7 g)
Package Weight
1.95 lb
Box Dimensions (LxWxH)
6.3 x 4.4 x 3.9"
