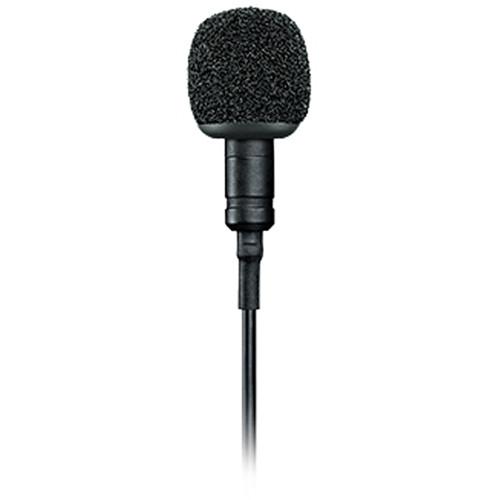

User Manual for Shure MOTIV MVL Omnidirectional Condenser Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Shure MOTIV MVL Omnidirectional Condenser Lavalier
- Product category: Mobile Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Mobile Microphones
 |
User manual for the Shure MOTIV MVL Omnidirectional Condenser Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Mobile Journalism with Shure MOTIV MVL Mobile Lavalier Microphone
- Shure MOTIV MVL Lavalier Microphone
- ShurePlus MOTIV Video - Record your band rehearsal
- ShurePlus MOTIV Video - Record a live performance

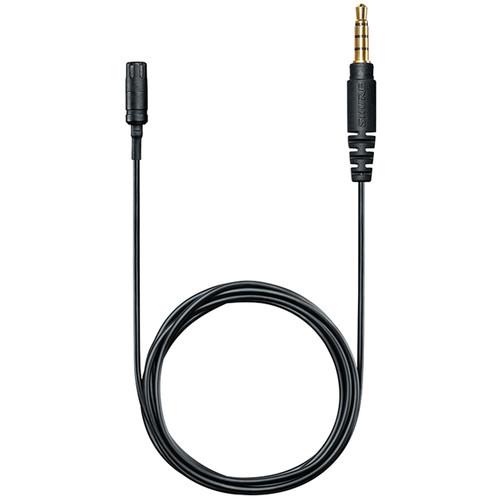

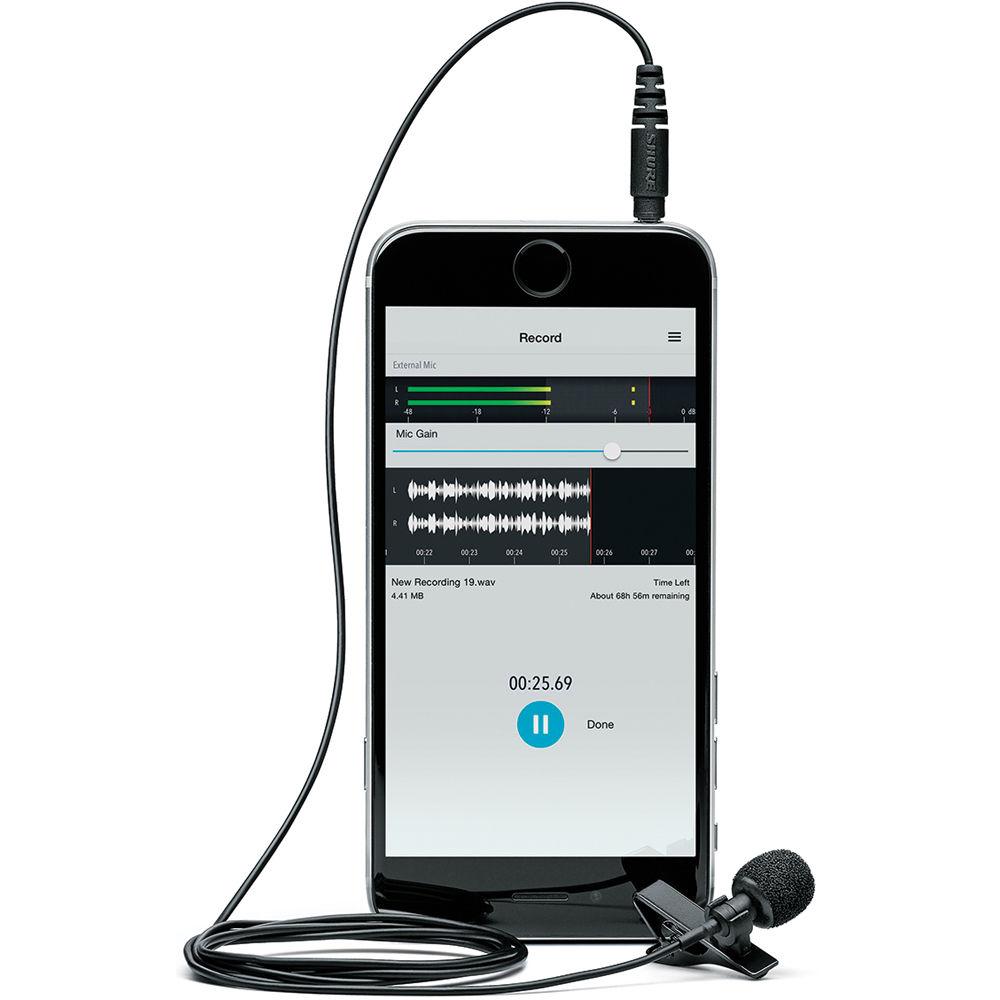

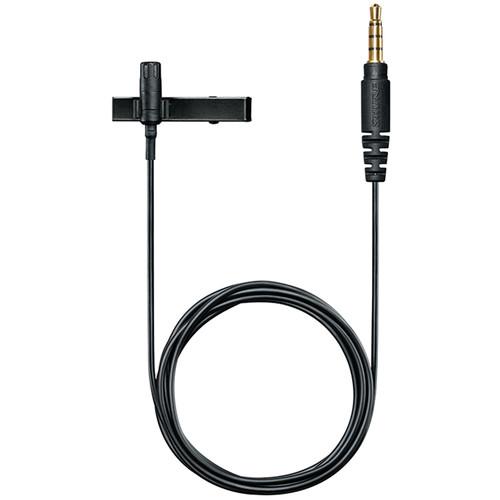

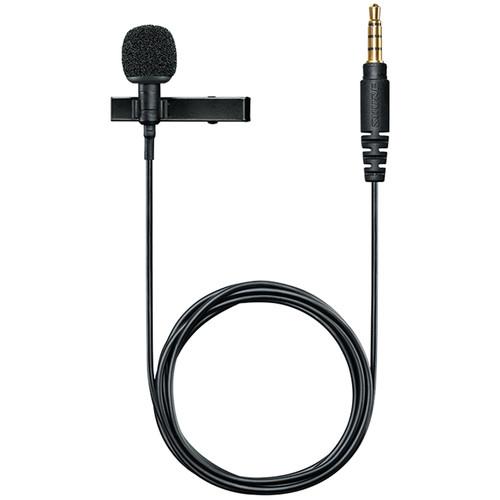

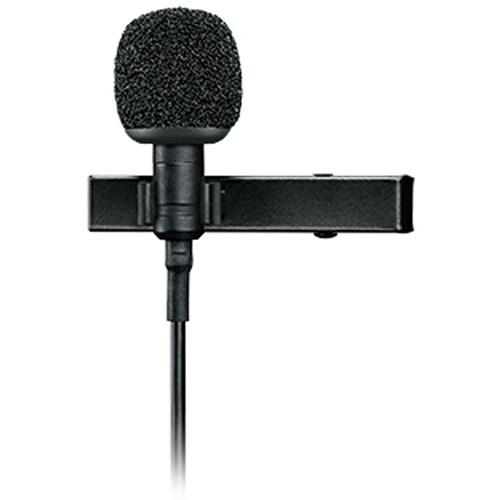

The MOTIV MVL from Shure is a digital omnidirectional condenser lavalier microphone that has a 1/8" (3.5mm) TRRS connector. It can be used in various recording environments to capture audio for speeches, interviews, lectures, voiceovers, and more. The MOTIV MVL clips directly onto clothing and plugs into the headphone jack of any mobile phone or tablet. The mic allows you to record using a free download of the MOTIV App for iOS software from the App store, or any other digital recording platform. You can then share the recording via email or text. A windscreen, carrying pouch, and clip are also included. - Sleek, miniature form factor for a discreet appearance onscreen
- Best-in-class signal-to-noise ratio, headroom, and maximum SPL
- Proven Shure RF/GSM interference that blocks errant noise artifacts
- Durable design and construction

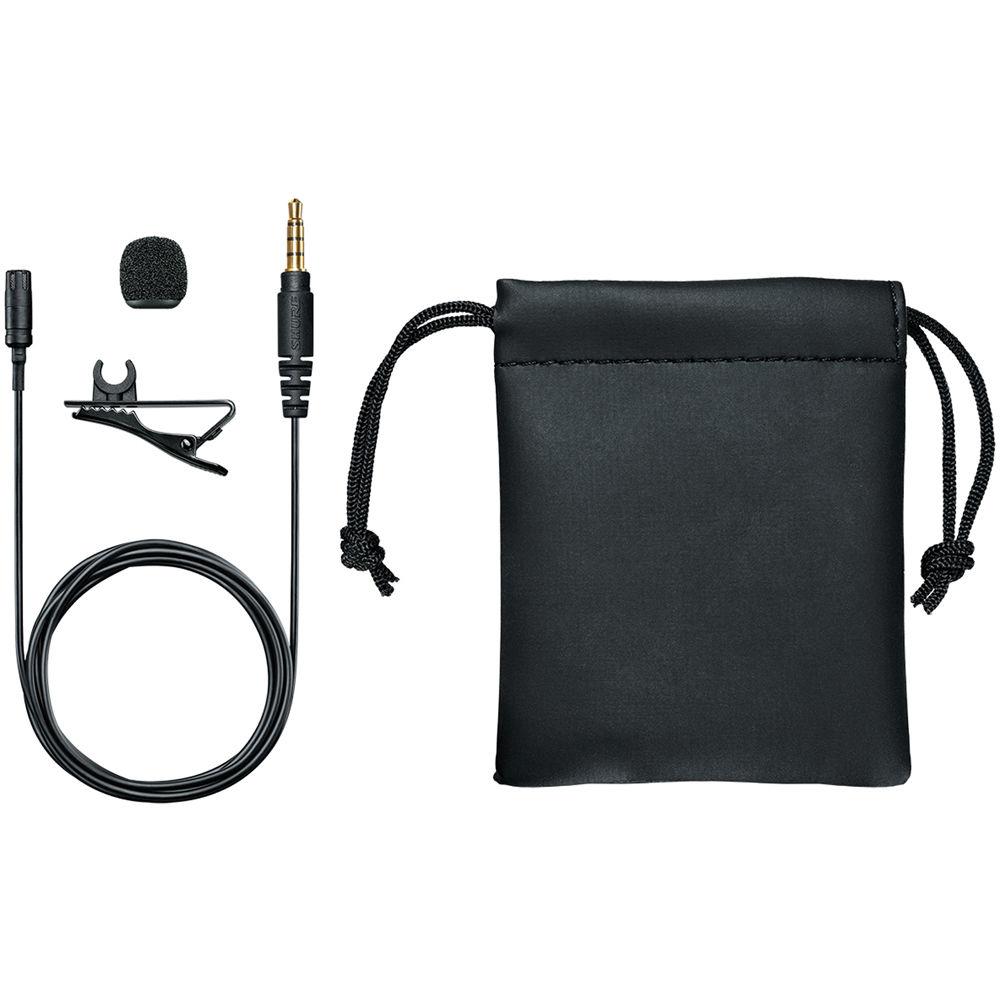

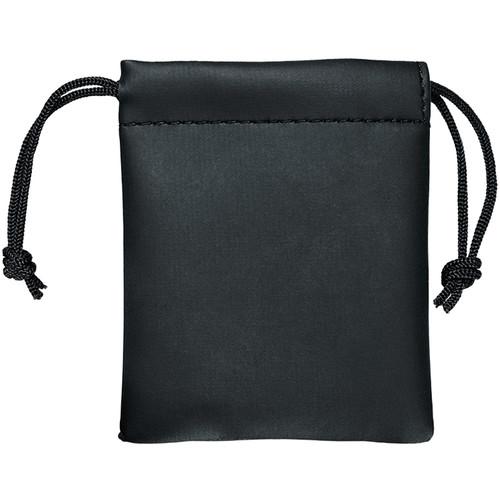

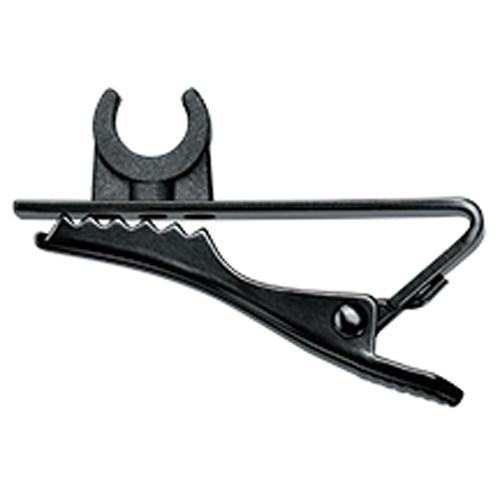

UPC: 042406491341 In the Box Shure MOTIV MVL Omnidirectional Condenser Lavalier Microphone Foam Windscreen Drawstring Carrying Pouch Metal Tie Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MOTIV MVL Omnidirectional Condenser Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MVL Specs | Microphone Capsule | MEMS | | Polar Pattern | Omnidirectional | | Frequency Response | 45 Hz to 20 kHz | | Output Impedance | 350 Ohms | | Signal to Noise Ratio | 65 dB | | Maximum SPL | 124 dB SPL | | Dynamic Range | 95 dB, typical | | Sensitivity | -44.0 dBFS/Pa @ 1 kHz (Ref. 1 kHz) | | Output Noise | 29 dB A-weighted | | Microphone Connector | 1/8" (3.5 mm) TRRS (Tip=no connection, Ring 1=no connection, Ring 2=ground, Sleeve=audio | | Microphone Bias | 2.7 VDC through 2.2 kOhms resistor | | Current Drain | 245 µA, typical | | Housing | Cast zinc | | Dimensions (L x W x D) | 52 x .6 x .22" (132 x 15.2 x 5.5 mm) with cable | | Net Weight | 8.0 g (.28 oz) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.0 x 3.2 x 1.7" |
