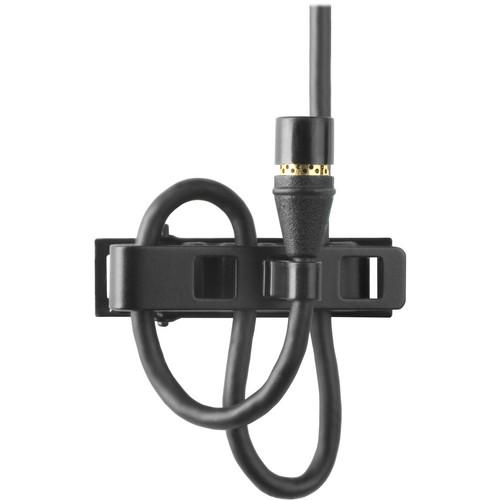

User Manual for Shure MX150 Subminiature Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Shure MX150 Subminiature Lavalier Microphone
- Product category: Microphones for Wireless Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Microphones for Wireless
|
User manual for the Shure MX150 Subminiature Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure MX150 Subminiature Lavalier Microphone is a subminiature, multi-positioned clip-on microphone well suited for broadcast operation, sermons, presentations, public address and much more. This version features a TQG connection for use with Shure wireless bodypack transmitters. Shure's CommShield technology makes the MX150 impervious to noise caused by cell phones, PDAs, WiFi and other RFI. The microphone ships with a snap-fit foam windscreen and multi-position tie clip with an integrated cable management system that minimizes noise without increasing cable strain and tension. - Cardioid polar pattern and wired TQG connection
- CommShield Technology guards against interference from cellular RF devices and digital bodypack transmitters
- Matte black, sleek design for inconspicuous placement
- Multi-position tie clip allows for a variety of placement options and features an integrated cable management system for convenient cable dress with minimal handling noise
- Kevlar-reinforced soft-flex cable design further reduces handling noise while providing superior flexibility for routing and placement
- Snap-fit, concise windscreen provides protection from plosives and wind noise with minimal visibility
- Legendary Shure quality, ruggedness, and reliability
UPC: 042406227933 In the Box Shure MX150 Subminiature Lavalier Microphone (TQG Connection) 3 x Multi-Position Tie Clip 3 x Snap Fit Windscreen Storage Pouch 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX150 Subminiature Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX150 Specs | Transducer | Electret condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 to 20,000Hz | | Sensitivity | -51.0 dBV/Pa (3.0 mV) | | Max Input Sound Level (SPL) | 2500 Ω load: 147.5 dB SPL; 1000 Ω load: 147.5 dB SPL | | Signal-to-Noise Ratio | 57.5 dB | | Dynamic Range | @1kHz
2500 Ω load: 111.0 dB SPL; 1000 Ω load: 111.0 dB SPL | | Self Noise | 36.5 dB
(equivalent SPL, A-weighted, typical) | | Operating Temperature | Operating: 0 to 135°F (-18 to 57°C)
Storage: -20 to 165°F (-29 to 74°C) | | Polarity | TQG: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 | | Power Requirements | 11-52VDC phantom power (IEC-61938), < 2.2mA | | Dimensions (LxDiameter) | Length: 5' (1.52m)
Diameter: 0.23" (5.8mm) | | Weight | 0.7 oz (21 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.6 x 4.3 x 3.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
