Shure MX180 N - Lavalier Microphone

Search your instruction manual in PDF to download

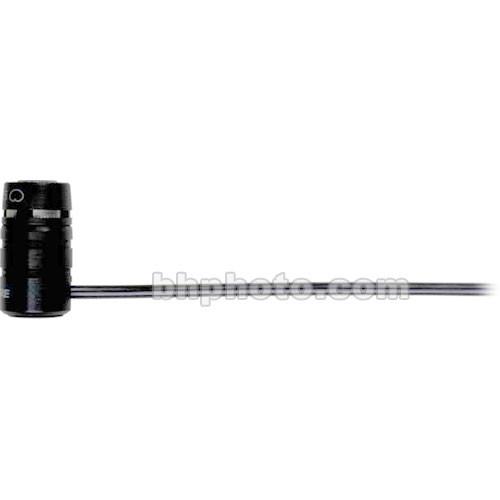

User Manual for Shure MX180 N - Lavalier Microphone Housing

Click to enlarge the picture
Shure MX180 N - Lavalier Microphone Housing Contents of the user manual for the Shure MX180 N - Lavalier Microphone
  • Product category: Modular Microphone Components Shure
  • Brand: Shure
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Shure Modular Microphone Components

User manual for the Shure MX180 N - Lavalier Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Shure product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!



Product description

They're no bigger than a paper clip unless you consider the sound they produce. The Microflex Lavalier microphones bring a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, the Lavaliers use Shure's interchangeable condenser cartridges, available in cardioid, supercardioid or omnidirectional polar patterns. That means you can be sure there's a Microflex Lavalier that's right for your job. Each Microflex Lavalier includes all the accessories you need.

The Microflex Lavaliers are completely compatible with all Shure Wireless transmitters, and their high sensitivity and wide frequency response guarantee great sound with a minimum of RF interference or electromagnetic hum. Plus, each Microflex Lavalier features the same Shure quality sound that has become an industry standard. But don't take our word for it. Just listen, and you'll hear how the best solution just got better.
  • MX 180 N Lavalier Microphone Housing:
    • Housing for 183 (Omnidirectional), 184 (Supercardiod), or 185 (Cardioid) Capsules
    • Operates off of Phantom or Battery Power When Using the (Optional) MX1BP Pre-Amplifier
UPC: 042406076418 In the Box Shure MX180/N - Lavalier Microphone Housing
  • Lavalier Microphone Housing
  • In-Line Preamp
  • NO Cartridge
  • 2 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Shure MX180 N - Lavalier Microphone Housing in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Shure MX180/N Specs

    Transducer Electret Bias Condenser This Kit Consists of a Lavalier Housing with NO Cartridge
    Polar Pattern N/A, (Must Use One of the Following Cartridges: R183B - Omnidirectional, R184B - Supercardioid, or R185B - Cardioid)
    Frequency Response 50 Hz - 17 kHz
    Dynamic Range (Typical) 92.6 dB, (100 dB at 0 Gain)
    Signal-to-Noise Ratio MX183: 73.5 dB
    MX184: 67.5 dB
    MX185: 66.0 dB, (All Referenced at 94 dB SPL)
    Maximum Input Sound Level MX183: 116.7 dB
    MX184: 122.7 dB
    MX185: 124.2 dB, (All Settings +6 dB 0 Gain)
    Power Requirements Phantom Power, (11 to 52v DC , 2.0 mA)
    Output Impedance 150 Ohms, (180 Ohms Actual)
    Output Connectors Switchcraft TA4F, (Mini 4 Pin Connector), (@ End of Microphone Housing Wire)
    XLR-3M Type, (@ End of In-Line Pre-Amp)
    Pad None
    Low Frequency Roll-Off None
    Applications Speech, Lectures, Plays, Videography etc.
    Dimensions Microphone Housing: .85 x .46" (22 x 12mm) LxDiameter
    In-Line Pre-Amp: 3.89 x .79" (99 x 20mm) LxDiameter
    Cable: 4' (1.2m) Long (w/TA4F Connector)
    Weight .06 oz. (1.7 g)
    Package Weight 0.91 lb
    Box Dimensions (LxWxH) 10.0 x 4.8 x 3.3"
