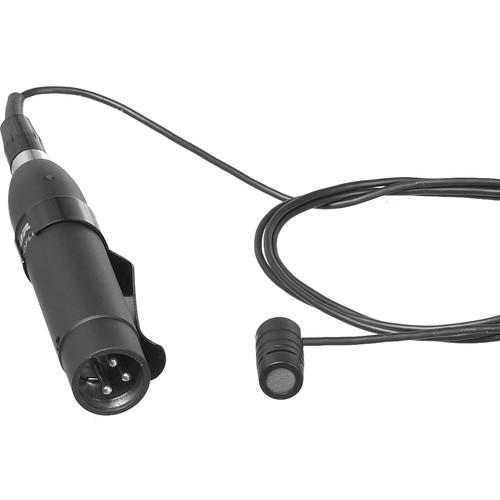

User Manual for Shure MX185 - Cardioid Wired Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Shure MX185 - Cardioid Wired Lavalier
- Product category: Lavalier Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Lavalier Microphones
|
User manual for the Shure MX185 - Cardioid Wired Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More ydxydavtvaduafrtfyfxexytzeuzxcdsec The Shure MX185 Cardioid Lavalier Microphone features a wide dynamic range and frequency response for accurate sound reproduction of vocals, instruments and other sound sources. The microphone may be clipped to neckties, lapels, and other articles of clothing, making it an ideal solution for interviews, presentations, dictation and sound reinforcement. The cardioid polar pattern features a uniform frequency response and adequately rejects noise and feedback at the off-axis sections of the capsule. The MX series lavalier microphone feature interchangeable cartridges for easy servicing and replacement. The MX185 features a 4' (1.2 m) long cable with an TA4-F connection. The supplied RK100PK preamplifier provides the standard 3-pin XLR connection. Additional accessories include tie clips, a foam windscreen, zipper pouch, and snap-fit windscreen. - Highly sensitive condenser lavalier capsule
- Interchangeable cartridges for easy replacement and servicing
- 4' (1.2 m) long cable with 4-pin female (TA4-F) connection
UPC: 042406051651 In the Box Shure MX185 - Cardioid Wired Lavalier Microphone Zipper Bag Foam Windscreen Snap-Fit Windscreen Tie Clip Dual Tie Clip RK100PK In-Line Preamp with XLR Connection Hex Wrench #4 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX185 - Cardioid Wired Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX185 Specs | Transducer | Electret Bias Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50Hz - 17kHz | | Dynamic Range (Typical) | 94dB, (@ 1kHz, A-Weighted) | | Signal-to-Noise Ratio | 65dB | | Maximum Input Sound Level | 123dB, (@ 1kHz, 1% THD) | | Power Requirements | 11 - 52VDC (with Belt Clip Preamp, Included) | | Output Impedance | 150 Ohms (180 Ohms Actual) | | Output Connectors | TA4-F (4-pin mini connection)
XLR-3M Type (with included RK183T2 preamplifier) | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Radio, Videography, Television and Broadcast. | | Dimensions | Microphone Housing: .85 x .46" (22 x 12mm) LxDiameter
In-Line Pre-Amp: 3.89 x .79" (99 x 20mm) LxW
Cable: 4' (1.2 m) Long (w/TA4F Connector) | | Weight | 0.12 oz (3.4g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 10.0 x 4.7 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
