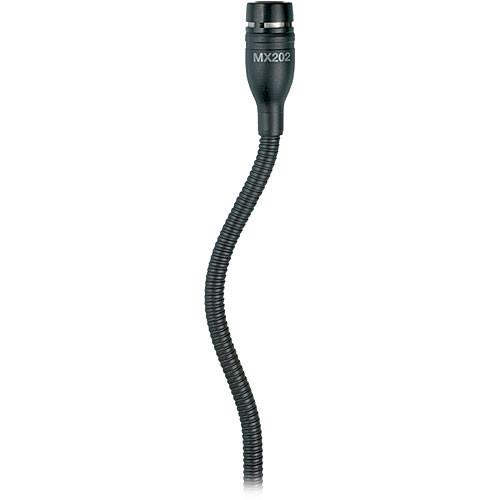

User Manual for Shure MX202BC - Microphone with In-Line Preamp Click to enlarge the picture
Contents of the user manual for the Shure MX202BC - Microphone with In-Line
- Product category: Hanging Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Hanging Microphones
|
User manual for the Shure MX202BC - Microphone with In-Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure MX202BC Microphone is small, unobtrusive and designed for overhead mounting in houses of worship, theater stages, lecture halls and more. The microphone includes a stand adapter and is available in black or white finishes. The Microflex Overhead condenser microphones deliver high quality sound in a compact, adjustable design.Each model features one of the three interchangeable condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable. The microphone reproduces sound with minimal RF interference or electromagnetic hum. The new Microflex Overheads feature interchangeable cardioid, supercardioid and omnidirectional condenser cartridges that fit every model in the Microflex product line for enhanced convenience and consistent sound. Note: Current available capsules are compatible. Some soldering may be required upon installation. - Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Balanced, transformerless output for increased immunity to noise over long cable runs
- White or black finish that blends unobtrusively with most surroundings
- Interchangeable cartridges that provide an optimal polar pattern choice for each application
UPC: 042406051644 In the Box Shure MX202BC - Microphone with In-Line Preamp (Black) 30' Cable In-Line Preamplifier Stand Mount Hardware 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX202BC - Microphone with In-Line Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX202 Specs Transducer | Condenser | Polar Pattern | Cardioid | Frequency Response | 50Hz - 17kHz | Output Impedance | 180 ohms actual (EIA rated at 150 ohms) | Sensitivity | -35.0dBV/Pa (17.8 mV) | Max Input Sound Level (SPL) | 124.2dB | Dynamic Range (Typical) | 96.2 dB, (@ 1 kW Load) | Signal-to-Noise Ratio | 66.0dB, (Referenced @ 94 dB SPL) Equivalent Output Noise (A-weighted): 28.0dB SPL | Common Mode Rejection | 45.0dB minimum | Clipping Indicator | Preamplifier Output Clipping Level (1% THD) -6.0 dBV (0.5 V) -12 dBV at 0 gain | Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector. | Temperature | Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F) Relative Humidity: 0 to 95% | Power Requirements | Phantom, 11 to 52VDC phantom, 2.0mA | Pad | None | Low Frequency Roll-Off | None | Applications | Choirs and Performance Groups, Stage, etc. | Dimensions | Microphone: 5.69 x .46" LxDiameter Mounting Plate: 4.45 x 2.70" (113.0 x 68.6mm) LxW Cable: 30' (9m) | Weight | 17.8 oz. (504.6 g) | | Package Weight | 1.0 lb | Box Dimensions (LxWxH) | 9.9 x 4.7 x 3.2" |
