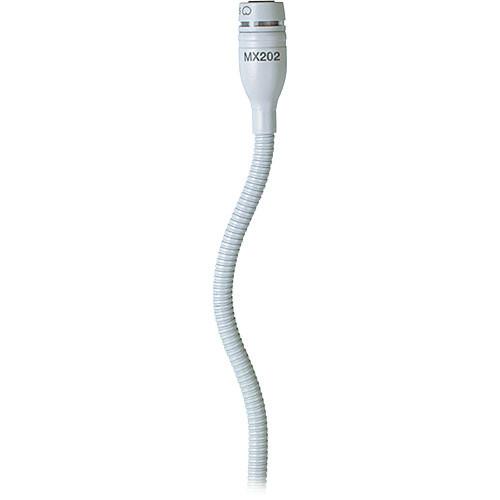

User Manual for Shure MX202WS - Super-Cardioid Hanging Condenser Microphone with Stand Adapter Click to enlarge the picture
Contents of the user manual for the Shure MX202WS - Super-Cardioid Hanging Condenser
- Product category: Hanging Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Hanging Microphones
|
User manual for the Shure MX202WS - Super-Cardioid Hanging Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description It's hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available in black or white finishes, and with in line or plate mount preamps, the Microflex Overhead condenser microphones capture Shure quality sound in a compact, adjustable package. Each model features one of the three interchangeable condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable.
The preamp options available offer easy installation in ceilings or microphone stands, and when combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with a minimum of RF interference or electromagnetic hum. The new Microflex Overheads feature interchangeable cardioid, supercardioid and omnidirectional condenser cartridges that fit every model in the Microflex product line for enhanced convenience and consistent sound. - Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Balanced, transformerless output for increased immunity to noise over long cable runs
- Supplied stand-mount adapter for portable applications (in-line preamplifier versions only)
- White or black finish that blends unobtrusively with most surroundings
- Interchangeable cartridges that provide an optimal polar pattern choice for each application:
Cardioid: "R-185B" (Black), "R-185W" (White)
Supercardioid: "R-184B" (Black), "R-184W" (White)
Omnidirectional: "R-183B" (Black), "R-183W" (White) - Special Note: The Omnidirectional Hanging Microphones (Model # MX202BO, for example) Have Been Discontinued. However, the Omnidirectional Cartridges Have NOT Been Discontinued. Therefore, the End User May Purchase And Install an 'R-183' Omnidirectional Cartridge to Achieve the Same Results!
UPC: 042406051569 In the Box Shure MX202WS - Super-Cardioid Hanging Condenser Microphone with Stand Adapter (White) 30' Cable In-Line Preamp Microphone Stand Adapter Preamp Mounting Hardware 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX202WS - Super-Cardioid Hanging Condenser Microphone with Stand Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX202 Specs | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 50 Hz - 17 kHz | | Dynamic Range (Typical) | 96.2 dB, (@ 1 kW Load) | | Signal-to-Noise Ratio | 67.5 dB, (Referenced @ 94 dB SPL) | | Maximum Input Sound Level | 122.7 dB | | Power Requirements | Phantom, (11 - 52v DC) | | Output Impedance | 150 Ohms, (180 Ohms Actual) | | Output Connectors | Screw Terminals, (Plate Mount) | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Choirs and Perfomance Groups, Stage, etc. | | Dimensions | Microphone: 5.69 x .46" LxDiameter
Mounting Plate: 4.45 x 2.70" (113.0 x 68.6mm) LxW
Cable: 30' (9m) | | Weight | 17.8 oz. (504.6 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 10.0 x 4.5 x 3.0" |
