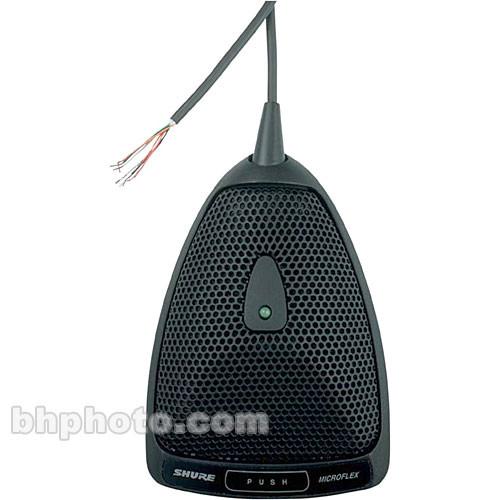

User Manual for Shure MX392 S Microflex Supercardioid Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Shure MX392 S Microflex Supercardioid Boundary
- Product category: Boundary Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Boundary Microphones
|
User manual for the Shure MX392 S Microflex Supercardioid Boundary contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MX392 from Shure is a surface-mounted, electret condenser microphone. It is designed to be mounted on conference tables, stage floors, and lecterns. Its high sensitivity and wide frequency range makes it especially suitable for picking up speech and vocals in sound reinforcement and recording applications. Interchangeable cartridges provide the installer with greater flexibility and make it possible to easily reconfigure microphone coverage as the need arises. An internal preamplifier is included.
MX392 series microphones take advantage of the principle that, at a barrier or boundary, the sound pressure level doubles. When placed near a sufficiently large boundary surface, the microphone has 6 dB higher sensitivity and approximately 3 dB greater direct-to-reverberant sound ratio. - Flat frequency response across the vocal range for uncolored sound
- Interchangeable cartridges that provide a choice of polar pattern for each application
- Sleek, low-profile design for surface mounting
- Balanced, transformerless output for increased immunity to noise
- Logic input/output for remote control or use with automatic mixers
UPC: 042406051385 In the Box Shure MX392/S Microflex Supercardioid Boundary Microphone Paint Mask Switch Paint Mask 5 x Rubber Pads with Adhesive Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX392 S Microflex Supercardioid Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX392 Specs | | | Transducer | Electret Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 17 kHz | | Signal to Noise Ratio | 73 dB | | Equivalent Noise Level | 21 dB A-Weighted | | Maximum SPL | 118 dB SPL | | THD | 1% | | Impedance | 180 Ohms | | Sensitivity | -28 dB | | Dynamic Range | 96 dB | | | | Cable Length | 12' / 3.66 m | | Operating Current Consumption | 2 mA | | Operating Voltage | 11 to 52 V | | Operating Temperature | 0 to 135°F / -17.78 to 57.22°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -20 to 165°F / -28 to 73.89°C | | Length | 4.264" / 108.31 mm | | Weight | 0.38 lb / 172 g | | | | Package Weight | 1.21 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 3.0" |
