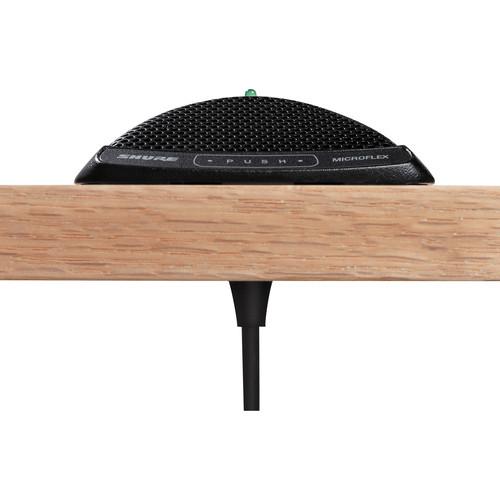

User Manual for Shure MX392BEO Microflex Boundary Microphone with Bottom Exit Click to enlarge the picture
Contents of the user manual for the Shure MX392BEO Microflex Boundary Microphone with
- Product category: Boundary Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Boundary Microphones
|
User manual for the Shure MX392BEO Microflex Boundary Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MX392BEO from Shure is a Microflex wired boundary microphone that is equipped with a programmable, silent membrane switch, logic inputs and outputs, and green LED indicators. It can be used in boardrooms, learning centers, houses of worship, and more.The MX392BEO features a flat frequency response of 50 Hz to 17 kHz across the vocal range, and has a sleek, low-profile design for an inconspicuous appearance. There are LED logic-input and switch logic-output terminals, screw terminal connections, and an attached unterminated cable with a bottom-exit option available.Finally, with a balanced, transformerless output for increased immunity to noise over long cable runs, and features like the LED on/off indicator, the MX392BEO is a suitable choice to capture audio for that special event. In the Box Shure MX392BEO Microflex Boundary Microphone with Bottom Exit Paint Mask Switch Paint Mask 5 x Rubber Pads with Adhesive Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX392BEO Microflex Boundary Microphone with Bottom Exit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX392BE Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 50 Hz to 17 kHz | | Signal to Noise Ratio | Omnidirectional: 80 dB | | Equivalent Noise Level | Omnidirectional: 15 dB | | Maximum SPL | Omnidirectional: 111 dB SPL | | Sensitivity | Omnidirectional: -22 dBV/Pa at 1 kHz | | CMRR | 45 dB | | Dynamic Range | Omnidirectional: 96 dB | | | | Cable Length | 12' / 3.66 m | | Operating Voltage | 11 to 52 V | | Operating Temperature | 0 to 135°F / -17.78 to 57.22°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -20 to 165°F / -28 to 73.89°C | | Weight | 0.38 lb / 172 g | | | | Box Dimensions (LxWxH) | 9.25 x 5.0 x 3.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
