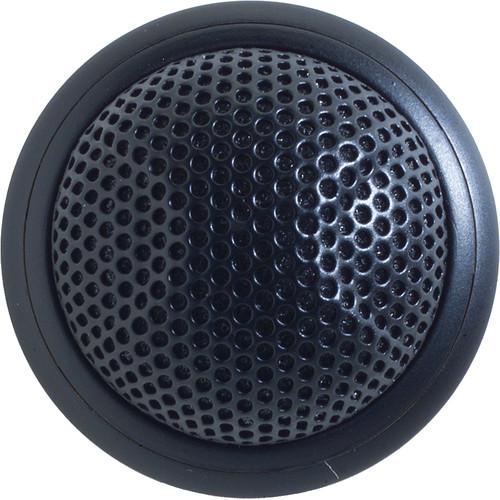

User Manual for Shure MX395 Microflex Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Shure MX395 Microflex Boundary Microphone
- Product category: Boundary Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Boundary Microphones
|
User manual for the Shure MX395 Microflex Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MX395 Microflex Button Microphone from Shure is a low profile boundary microphone designed for concealed capturing of conversations, speech, and ambient audio while mounted in a flat surface, such as a desktop, ceiling, or podium. The MX395 measures just 1.25" in diameter, making it an ideal solution for video and broadcast operation.The microphone features an optimized frequency response and is available in a bi-directional, cardioid or omnidirectional polar patterns. Additional features include logic-controlled mute and a bi-colored LED ring for indicating open or mute status. The MX395 is an ideal choice for speech capturing in meetings, executive boardrooms, conferences, news broadcasts and more. - Miniature Size
- The MX395 measures just 1.25" (3.8cm) in diameter, making it an ideal solution for video and broadcast operation.
- Figure 8
- This MX395 features a figure 8 polar pattern that allows an even response at either side of the microphone. The is pattern is best used for interview style capturing.
- Bi-color LED Ring
- Additional features include logic-controlled mute and a bi-colored LED ring for indicating open or mute status.
UPC: 042406141260 In the Box Shure MX395 Microflex Boundary Microphone (Figure 8) (Black) Rubber Isolation Rings Fastening Hex Nut Wing Nut Limited 2-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX395 Microflex Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX395 Specs | | | Transducer | Electret Condenser | | Polar Pattern | Figure-8 | | Frequency Range | 50 Hz to 17 kHz | | Signal to Noise Ratio | 65 dB | | Equivalent Noise Level | 29 dB A-Weighted | | Maximum SPL | 123 dB SPL | | THD | 1% | | Impedance | 170 Ohms | | Sensitivity | 14 mV/Pa | | Dynamic Range | 94 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2 mA | | Operating Voltage | 11 to 52 V | | Operating Temperature | 0 to 135°F / -17.78 to 57.22°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -20 to 165°F / -28 to 73.89°C | | Length | 4" / 101.60 mm | | Diameter | 1.25" / 31.75 mm | | Weight | 0.3 lb / 136 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 9.9 x 4.7 x 3.2" |
