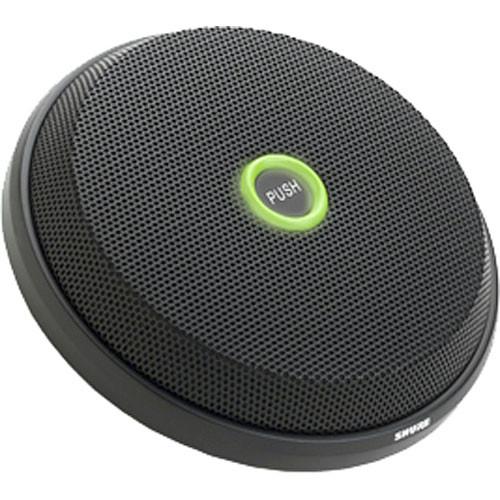

User Manual for Shure MX396 C Dual-Element Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Shure MX396 C Dual-Element Boundary Microphone
- Product category: Boundary Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Boundary Microphones
|
User manual for the Shure MX396 C Dual-Element Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MX396/C Boundary Microphone from Shure is capable of 0 to 180 degrees of coverage for excellent speech pick up between two people seated across from each other, or groups seated within the 180 degree range. The MX396/C is designed for capturing speeches in conference settings, education, telecommunication and more. The capsules feature cardioid polar patterns for maximum surface reflection and off-axis noise rejection. The mounting hardware allows for the attached (unterminated) cable to be side or bottom mounted. Also features are a Mute switch and Logic connections. - Dual-Element Boundary
- The dual element design allows for 0 to 180 degree of pickup coverage. The cardioid polar patterns eliminate surface noise and reflection issues
- Bottom or Side Exit Cable
- The included hardware allows for the attached, 20' unterminated cable to exit the side, or bottom of the microphone
- Logic Connections
- Logic connections are provided for remote operation
UPC: 042406141413 In the Box Shure MX396/C Dual-Element Boundary Microphone Fastening Wing Nut Fastening Tube 2 x Rubber Isolation Rings Cardioid Replacement Cartridge Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX396 C Dual-Element Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX396/C Specs | | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 17 kHz | | Signal to Noise Ratio | 66 dB | | Equivalent Noise Level | 28 dB A-Weighted | | Maximum SPL | 122 dB SPL | | THD | 1% | | Impedance | 170 Ohms | | Sensitivity | 18 mV/Pa | | Dynamic Range | 94 dB | | | | Cable Length | 20' / 6.1 m | | Operating Current Consumption | 10 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | 0 to 135°F / -17.78 to 57.22°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -20 to 165°F / -28 to 73.89°C | | Diameter | 4.33" / 110 mm | | Weight | 1.29 lb / 0.59 kg | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.3 x 6.1 x 3.4" |
