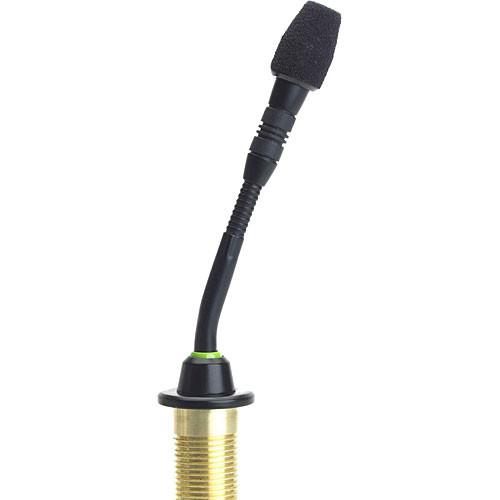

User Manual for Shure MX405 5-inch Gooseneck Mic with Surface Mount Preamplifier Click to enlarge the picture
Contents of the user manual for the Shure MX405 5-inch Gooseneck Mic with
- Product category: Gooseneck Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Gooseneck Microphones
|
User manual for the Shure MX405 5-inch Gooseneck Mic with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure MX405 Gooseneck Microphone is a flexible speech microphone designed for applications in meeting rooms, lecture halls, houses-of-worship and anywhere a high-quality speech microphone is desired. This 5-inch gooseneck microphone features interchangeable capsules and a choice of a desk-mount preamplifier or direct flush-mounting into a table surface. The microphone is also available with an LED light ring. Wireless options enable full compatibility with the Shure SLX series wireless systems. - Interchangeable Capsules
- The MX405's interchangeable capsules enable users to easily switch between cardioid and supercardioid polar patterns. The microphone is also available without a capsule.
- Desktop Preamplifier or Flush Mount Base
- The microphone is available with a desktop stand / preamplifier or sold alone for flush mount installation into a desk or podium surface.
- LED Ring
- The MX405 is also available with an LED light ring for a quick read on microphone status.
In the Box Shure MX405 5-inch Gooseneck Mic with Surface Mount Preamplifier (LED Ring) (No Capsule) MX400SMP Surface Mount Preamplifier Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX405 5-inch Gooseneck Mic with Surface Mount Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX405 Specs | Transducer | Condenser | | Polar Pattern | Capsule Not Included | | Frequency Response | 50kHz to 17Hz | | Dynamic Range (Typical) | 96.2dB
100dB at 0 gain | | Signal-to-Noise Ratio | Cardioid: 66.0dB
Supercardioid: 67.5dB | | Maximum Input Sound Level | Cardioid: 124.2dB
Supercardioid: 122.7dB All values +6dB at 0 gain | | Power Requirements | 11 to 52 VDC phantom, 2.0 mA | | Output Impedance | 180 ohms actual (EIA rated at 150 ohms) | | Output Connectors | All these mics go in Shure proprietary transmitters, the connector is proprietary | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 5 inch (127 mm) (Length) | | Weight | 0.4 lbs (181g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.9 x 4.9 x 3.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
