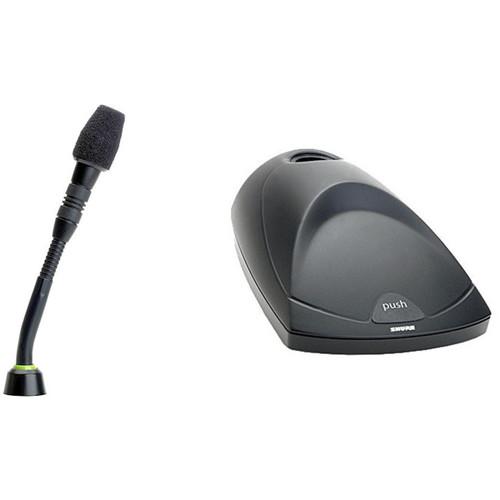

Shure MX405W 5-inch Gooseneck Microphone and

User Manual for Shure MX405W 5-inch Gooseneck Microphone and Wireless Desktop Base

• Product category: Wireless Transmitters Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Transmitters

Product description

• Shure MX405 5-inch Gooseneck Mic without Surface Mount Preamplifier (Supercardioid Capsule) The Shure MX405 Gooseneck Microphone is a flexible speech microphone designed for applications in meeting rooms, lecture halls, houses-of-worship and anywhere a high-quality speech microphone is desired. This 5-inch gooseneck microphone features interchangeable capsules and a choice of a desk-mount preamplifier or direct flush-mounting into a table surface. The microphone is also available with an LED light ring. Wireless options enable full compatibility with the Shure SLX series wireless systems.
  Interchangeable Capsules
  • The MX405's interchangeable capsules enable users to easily switch between cardioid and supercardioid polar patterns. The microphone is also available without a capsule.
  Desktop Preamplifier or Flush Mount Base
  • The microphone is available with a desktop stand / preamplifier or sold alone for flush mount installation into a desk or podium surface.
  LED Ring
  • The MX405 is also available with an LED light ring for a quick read on microphone status.
  UPC: 042406141369
• Shure MX890 Microflex Wireless Desktop Base (H5: 518 to 542 MHz) The Shure MX890 Microflex Wireless Desktop Base features a built-in wireless transmitter that is compatible with Shure's SLX series wireless microphone receivers. The internal wireless transmitter eliminates the need to run cable and drill holes. A programmable Mute switch includes push-to-talk and push-to-mute modes. A bi-color LED provides status information and the MX890 is conveniently powered by two AA alkaline batteries.
  • Sleek, low profile design
  • Frequency agile, microprocessor controlled transmitter
  • IR link for automatic frequency synchronization
  • Programmable frequency group/channel display
  • Programmable mute function
  • Operates on two AA batteries
  • Compatible with all Shure SLX series wireless systems
  • Supports Shure MX405, MX410, and MX415 Microflex Modular gooseneck microphones
  • CommShield technology for protection from RF interference
  UPC: 042406141574

• MX405 5-inch Gooseneck Mic without Surface Mount Preamplifier (Supercardioid Capsule) fqqswrvdzu
• Supercardioid Capsule
• Limited 2-Year Warranty

• MX890 Microflex Wireless Desktop Base (H5: 518 to 542 MHz) fqqswrvdzu

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure MX405 5-inch Gooseneck Mic without Surface Mount Preamplifier (Supercardioid Capsule)

  Transducer	Condenser
  Polar Pattern	Supercardioid
  Frequency Response	50kHz to 17Hz
  Dynamic Range (Typical)	96.2dB 100dB at 0 gain
  Signal-to-Noise Ratio	Cardioid: 66.0dB Supercardioid: 67.5dB
  Maximum Input Sound Level	Cardioid: 124.2dB Supercardioid: 122.7dB All values +6dB at 0 gain
  Power Requirements	11 to 52 VDC phantom, 2.0 mA
  Output Impedance	180 ohms actual (EIA rated at 150 ohms)
  Output Connectors	All these mics go in Shure proprietary transmitters, the connector is proprietary
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	5 inch (127 mm) (Length)
  Weight	0.1 lbs (45g)

  Box Dimensions (LxWxH)	9.8 x 4.8 x 3.2"

• Shure MX890 Microflex Wireless Desktop Base (H5: 518 to 542 MHz)

  Operating Range	100' (30 m) Actual range depends on RF signal absorption, reflection, and interference
  Channel Frequency	H5: 518 to 542 MHz
  Frequency Stability	+/-10 ppm
  Frequency Deviation	45 kHz
  Oscillator	Phase-locked loop (PLL) controlled synthesizer
  Power Supply	3 V (2 x AA alkaline or rechargeable batteries) ≥8 hours (alkaline)
  Power Consumption	130 mA, 15 mA
  Temperature	0 - 135 °F (-18 - 57 °C)
  Dimensions (HxWxD)	1.69 x 3.42 x 5.82" (43 x 87 x 148 mm)
  Weight	11 oz (312 g)

  Box Dimensions (LxWxH)	10.0 x 4.6 x 3.2"
