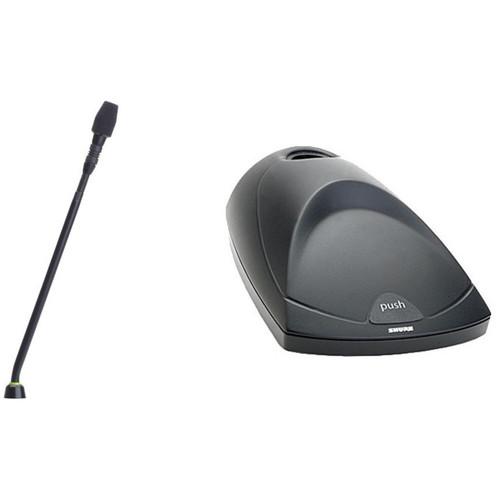

Shure MX410W 10-inch Gooseneck Microphone and

User Manual for Shure MX410W 10-inch Gooseneck Microphone and Wireless Desktop Base

• Product category: Wireless Transmitters Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Transmitters

Product description

• Shure MX410 10" Gooseneck Mic without Surface Mount Preamplifier (Supercardioid Capsule) The Shure MX410 Gooseneck Microphone is a flexible speech microphone designed for applications in meeting rooms, lecture halls, houses-of-worship and anywhere a high-quality speech microphone is desired. This 10" gooseneck microphone features interchangeable capsules and the choice of a desk-mount preamplifier or direct flush-mounting into a table surface. The microphone is also available with an LED light ring. Wireless options enable full compatibility with the Shure SLX series wireless systems.
  Interchangeable Capsules
  • The MX410's interchangeable capsules enable users to easily switch between cardioid and supercardioid polar patterns. The microphone is also available without a capsule.
  Desktop Preamplifier or Flush Mount Base
  • The microphone is available with a desktop stand/preamplifier or sold alone for flush mount installation into a desk or podium surface.
  LED Ring
  • The MX410 is also available with an LED light ring for a quick read on microphone status.
  UPC: 042406141390
• Shure MX890 Microflex Wireless Desktop Base (H5: 518 to 542 MHz) The Shure MX890 Microflex Wireless Desktop Base features a built-in wireless transmitter that is compatible with Shure's SLX series wireless microphone receivers. The internal wireless transmitter eliminates the need to run cable and drill holes. A programmable Mute switch includes push-to-talk and push-to-mute modes. A bi-color LED provides status information and the MX890 is conveniently powered by two AA alkaline batteries.
  • Sleek, low profile design
  • Frequency agile, microprocessor controlled transmitter
  • IR link for automatic frequency synchronization
  • Programmable frequency group/channel display
  • Programmable mute function
  • Operates on two AA batteries
  • Compatible with all Shure SLX series wireless systems
  • Supports Shure MX405, MX410, and MX415 Microflex Modular gooseneck microphones
  • CommShield technology for protection from RF interference
  UPC: 042406141574

• MX410 10" Gooseneck Mic without Surface Mount Preamplifier (Supercardioid Capsule) bcazszwfvsebxwrae
• Supercardioid Capsule
• Limited 2-Year Warranty

• MX890 Microflex Wireless Desktop Base (H5: 518 to 542 MHz)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure MX410 10" Gooseneck Mic without Surface Mount Preamplifier (Supercardioid Capsule)

  Transducer	Condenser
  Polar Pattern	Supercardioid
  Frequency Response	50kHz to 17Hz
  Dynamic Range (Typical)	96.2dB 100dB at 0 gain
  Signal-to-Noise Ratio	Cardioid: 66.0dB Supercardioid: 67.5dB
  Maximum Input Sound Level	Cardioid: 124.2dB Supercardioid: 122.7dB All values +6dB at 0 gain
  Power Requirements	11 - 52VDC phantom, 2.0 mA
  Output Impedance	180Ω actual (EIA rated at 150Ω)
  Output Connectors	All these mics go in Shure proprietary transmitters; the connector is proprietary
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	10" (254mm) (Length)
  Weight	0.1 lbs (45g)

  Box Dimensions (LxWxH)	25.0 x 5.5 x 3.0"

• Shure MX890 Microflex Wireless Desktop Base (H5: 518 to 542 MHz)

  Operating Range	100' (30 m) Actual range depends on RF signal absorption, reflection, and interference
  Channel Frequency	H5: 518 to 542 MHz
  Frequency Stability	+/-10 ppm
  Frequency Deviation	45 kHz
  Oscillator	Phase-locked loop (PLL) controlled synthesizer
  Power Supply	3 V (2 x AA alkaline or rechargeable batteries) ≥8 hours (alkaline)
  Power Consumption	130 mA, 15 mA
  Temperature	0 - 135 °F (-18 - 57 °C)
  Dimensions (HxWxD)	1.69 x 3.42 x 5.82" (43 x 87 x 148 mm)
  Weight	11 oz (312 g)

  Box Dimensions (LxWxH)	10.0 x 4.6 x 3.2"
