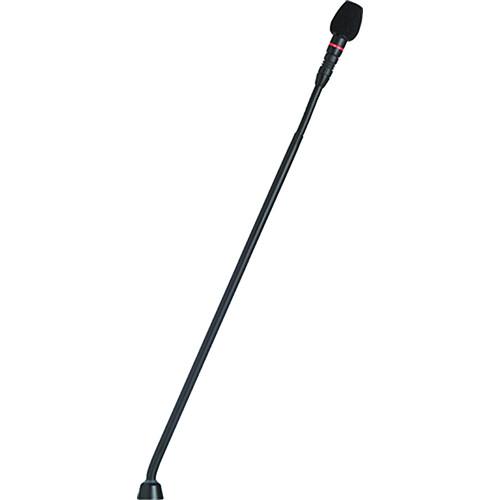

User Manual for Shure MX415LP C Microflex Modular Cardioid 15" Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Shure MX415LP C Microflex Modular Cardioid
- Product category: Gooseneck Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Gooseneck Microphones
|
User manual for the Shure MX415LP C Microflex Modular Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure MX415LP/C Microflex Modular Cardioid 15" Gooseneck Microphone is suitable for use in boardrooms, conference rooms, and classrooms. This mic can be mounted on desktops, conference tables, or lecterns by using optional surface or desktop mounts, and is fully compatible with the SLX Wireless Systems when used with the MX890 Wireless Desktop Base (sold separately). - 15" (38.1 cm) long gooseneck design
- Cardioid polar pattern cartridge
- Bi-color status indicator
- Programmable mute switch (desktop models only)
- Snap-fit foam windscreen to reduce interference from wind noise
- Logic input/output for remote LED and mute control
- Surface-mount and wired or wireless desktop base options
- CommShield Technology for improved RF filtering
- CE certified, EMC Directive 2004/108/EC conformant, and meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments.
UPC: 042406209458 In the Box Shure MX415LP/C Microflex Modular Cardioid 15" Gooseneck Microphone Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX415LP C Microflex Modular Cardioid 15" Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX415 Specs | Type | Condenser (electret bias) | | Frequency Response | 50 to 17000 Hz | | Polar Pattern | Cardioid polar pattern (at 1 kHz) | | Output Impedance | EIA Rated at 150 Ω (170 Ω actual) | | Configuration | Output: Active balanced | | Sensitivity | -35 dBV/Pa (18 mV) / at 1 kHz, open circuit voltage | | Maximum SPL | 121 dB (1 kHz at 1% THD, 1 kW load) | | Output Noise | 28 dB SPL (A-weighted) | | Signal-to-Noise Ratio | 66 dB (referenced at 94 dB SPL at 1 kHz) | | Dynamic Range | 93 dB (1 kΩ load at 1 kHz) | | Common Mode Rejection | 45 dB minimum (10 Hz to 100 kHz) | | Polarity | 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector | | Attenuation | Mute Switch: -50 dB minimum | | Connections | LED IN: Active low (≤1.0 V); TTL compatible; Absolute maximum voltage: -0.7 V to 50 V
LOGIC OUT: Active low (≤1.0 V), sinks up to 20 mA; TTL compatible; Absolute maximum voltage: -0.7 V to 50 V (up to 50 V through 3 kΩ) | | Power Requirements | 48 to 52 VDC phantom, 8.0 mA | | Operating Temperature | 0 to 135°F (-18 to 57°C) | | Storage Temperature | -20 to 165°F (-29 to 74°C) | | Relative Humidity | 0 to 95% | | Weight | 0.154 lb (0.069 kg) | | Dimensions (L x W) | 14.8 x 0.7 (37.6 x 1.9 cm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 24.9 x 5.4 x 2.8" |
