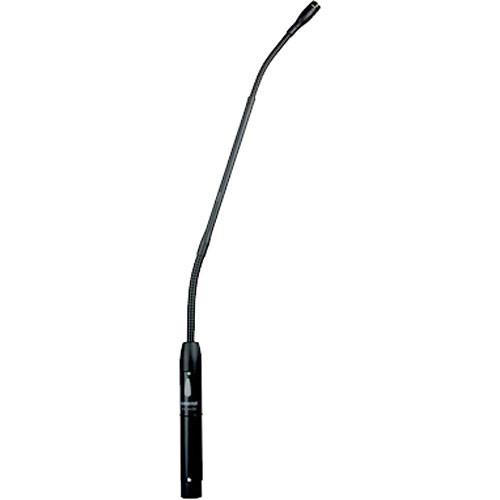

User Manual for Shure MX418SS - 18" Super-Cardioid Gooseneck Microphone with Switch Click to enlarge the picture
Contents of the user manual for the Shure MX418SS - 18" Super-Cardioid Gooseneck
- Product category: Gooseneck Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Gooseneck Microphones
|
User manual for the Shure MX418SS - 18" Super-Cardioid Gooseneck contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure MicroFlex MX418 is a fully adjustable cardioid gooseneck microphone designed for podium and desktop use in speech, presentations, conferences and more. The MicroFlex gooseneck microphone series offers the flexibility of removable capsules offering cardioid, supercardioid (included) and omnidirectional polar patterns. In addition, the MicroFlex series features high sensitivity and balanced, transformerless output for maximum immunity to electromagnetic hum and RF interference, even over long cable runs. - Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Interchangeable cartridges provide the right polar pattern for every application
- Balanced, transformerless output for increased immunity to noise over long cable runs
- Shock mount that provides over 20 dB isolation from surface vibration noise
- Locking flange mount for permanently securing microphone to lecterns, pulpits, or conference tables
UPC: 042406052207 In the Box Shure MX418SS - 18" Super-Cardioid Gooseneck Microphone with Switch 18" (457mm) Gooseneck with Cartridge Attached XLR Preamp Shock Mount Flange Mount Snap-Fit Foam Windscreen Mute Switch LED Indicator Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX418SS - 18" Super-Cardioid Gooseneck Microphone with Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX418SS Specs | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 50 Hz to 17 kHz | | Dynamic Range (Typical) | 94 dB, (@ 1 kW Load) | | Signal-to-Noise Ratio | 66.0 dB, (Referenced @ 94 dB SPL) | | Maximum Input Sound Level | 122.0 dB, (1 kHz @ 1% THD, 1 kW Load) | | Power Requirements | Phantom, (11 to 52v, DC) | | Output Impedance | 150 Ohms (180 Ohms Actual) (@ 1 kHz) | | Output Connectors | XLR-3M Type | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Speeches, Lectures, Houses of Worship, Mount on Podiums, Lecturnes, etc. | | Dimensions | Microphone: 23.92 x .79" (607.64 x 20.07mm) LxDiameter
Mounting Flange: 2.62" (66.70mm) In Diameter | | Weight | 1.82 lbs. (825 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 24.961 x 5.512 x 2.835" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
