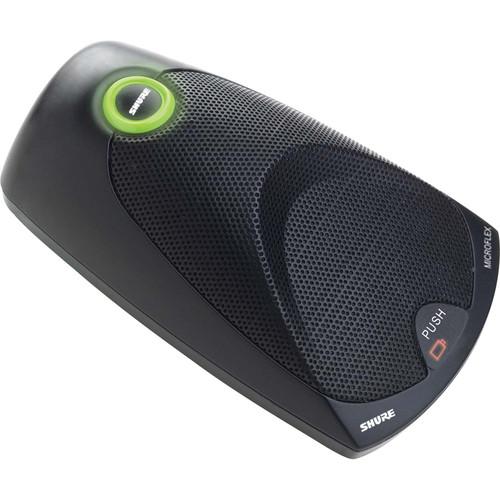

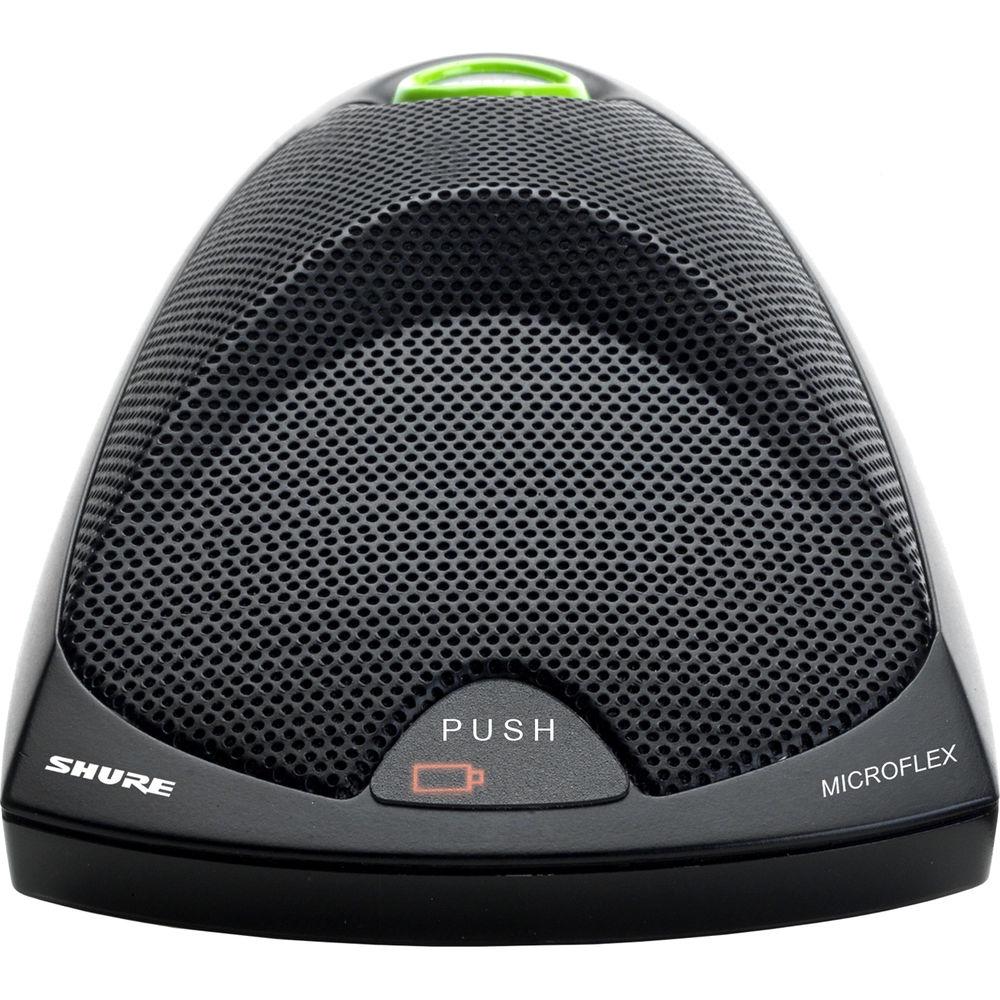

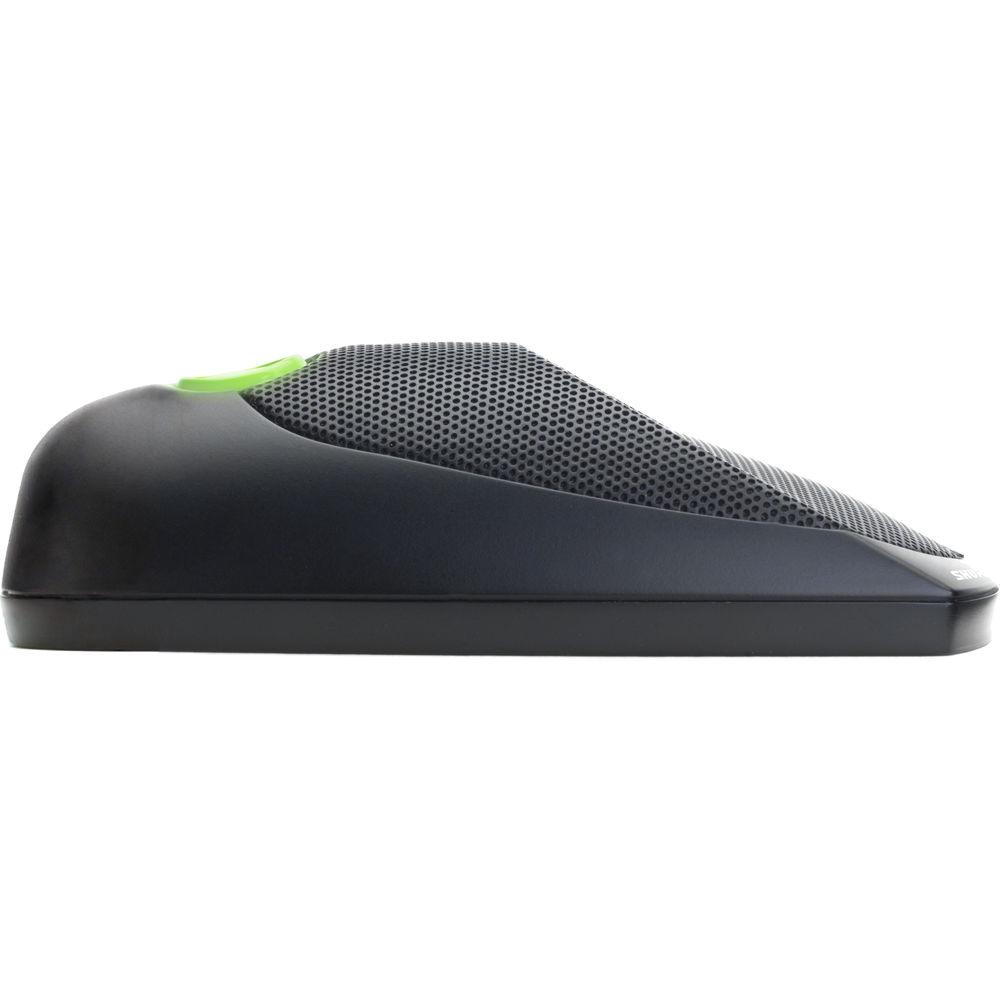

Product description The MX690 Boundary Microphone from Shure features a built-in wireless transmitter that is compatible with Shure's SLX UHF series wireless microphone receivers. The boundary microphone features a cardioid polar pattern for sufficient noise suppression and optimum pick up of conversations, speech, interviews etc. The internal wireless transmitter eliminates the need to run cable and drill holes. A programmable Mute switch includes push-to-talk and push-to-mute modes. Bi-color LED provides status information and the MX690 is conveniently powered on two AA alkaline batteries. This microphone operates within the 542.275 to 571.750 MHz frequency band. - Sleek, low profile design
- Frequency agile, microprocessor controlled transmitter
- Bi-color status indicator
- IR link to SLX receiver for automatic frequency synchronization
- Programmable mute function
- Operates on two AA batteries
- Logic output for remote LED and mute control
- CommShield Technology for improved RF filtering
UPC: 042406469975 In the Box Shure MX690 Microflex Wireless Boundary Microphone (H19) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX690 Microflex Wireless Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX690 Specs | | | Type | Condenser (electret bias) | | Frequency Response | 50 Hz-17 kHz | | Polar Pattern | Cardioid (at 1 kHz) | | Sensitivity | -33 dBV/Pa (33 mV) 1 Pascal=94 dB SPL (at 1 kHz, open circuit voltage) | | Dynamic Range | 96 dB (1 kOhms load at 1 kHz) | | Common Mode Rejection | 45 dB minimum (10 Hz to 100 kHz) | | Clipping Level | Pre-amplifier Output: -6 dBV (0.5 V) (1% THD) | | Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector or tip of 1/4" phone plug. | | | | Operating Range | 100' (30 m)
Note: Actual range depends on RF signal absorption, reflection, and interference | | Frequency Stability | ±10 ppm | | Frequency Deviation | Maximum: 45 kHz | | Oscillator Type | Phase-locked loop (PLL) controlled synthesizer | | Power Requirements | 3 V (2 x AA alkaline or rechargeable batteries) | | Battery Life | ≥8 hours (alkaline) | | Power Consumption | 130 mA, ±15 mA | | Operating Temperature Range | 0-135°F (-18-57°C) | | Dimensions (H x W x D) | 1.7 x 3.4 x 5.8" (43 x 87 x 148 mm) | | Weight | 11.2 oz (318 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.9 x 4.7 x 3.2" |
