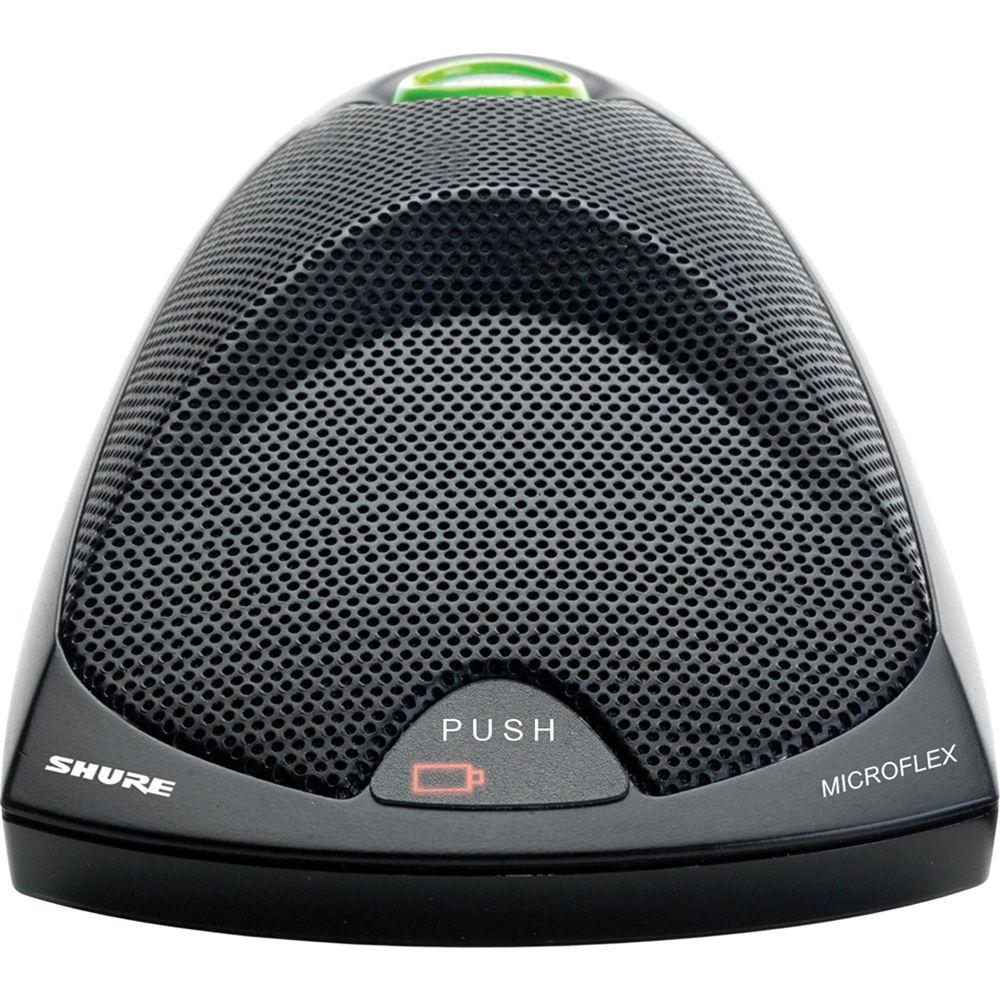

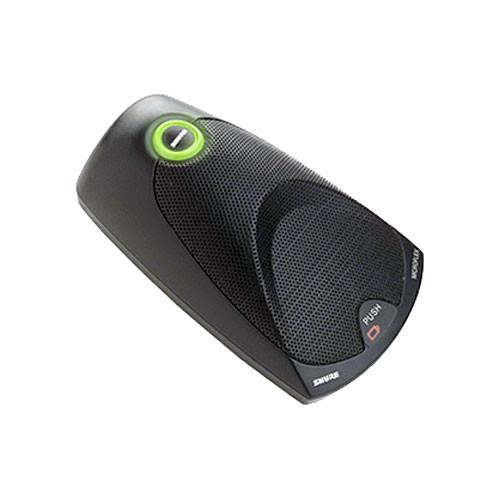

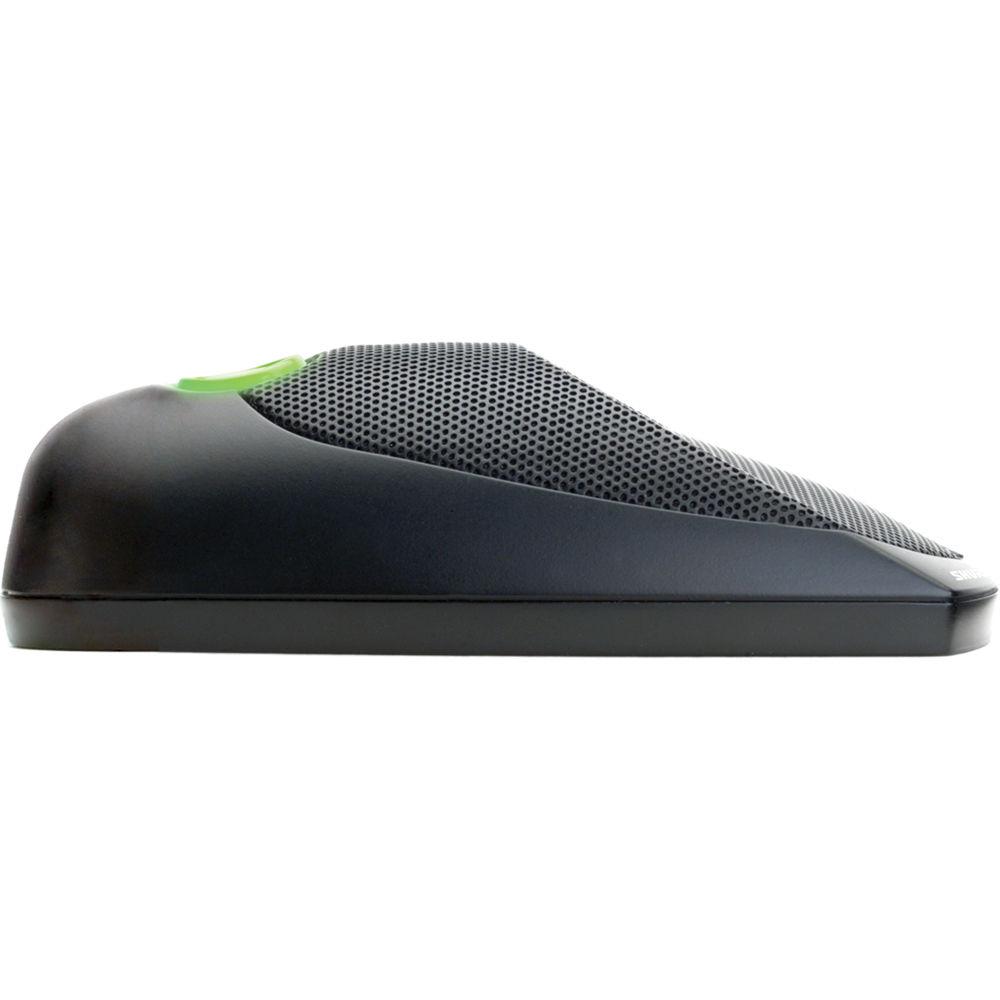

User Manual for Shure MX690 Microflex Wireless Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Shure MX690 Microflex Wireless Boundary Microphone
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
 |
User manual for the Shure MX690 Microflex Wireless Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MX690 Boundary Microphone from Shure features a built-in wireless transmitter that is compatible with Shure's SLX UHF series wireless microphone receivers. The boundary microphone features a cardioid polar pattern for sufficient noise suppression and optimum pick up of conversations, speech, interviews etc. The internal wireless transmitter eliminates the need to run cable and drill holes. A programmable Mute switch includes push-to-talk and push-to-mute modes. Bi-color LED provides status information and the MX690 is conveniently powered on two AA alkaline batteries. This microphone operates within the 572.200 to 595.800 MHz frequency band. - Sleek, low profile design
- Frequency agile, microprocessor controlled transmitter
- Bi-color status indicator
- IR link to SLX receiver for automatic frequency synchronization
- Programmable mute function
- Operates on two AA batteries
- Logic output for remote LED and mute control
- CommShield Technology for improved RF filtering
UPC: 042406141666 In the Box Shure MX690 Microflex Wireless Boundary Microphone (J3) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MX690 Microflex Wireless Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MX690 Specs | | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 17 kHz | | Sensitivity | 33 mV/Pa | | Dynamic Range | 96 dB | | | | Operating Current Consumption | 130 mA +/-15 mA | | Length | 5.83" / 148 mm | | Weight | 11.2 oz / 0.32 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.9 x 4.6 x 3.3" |
