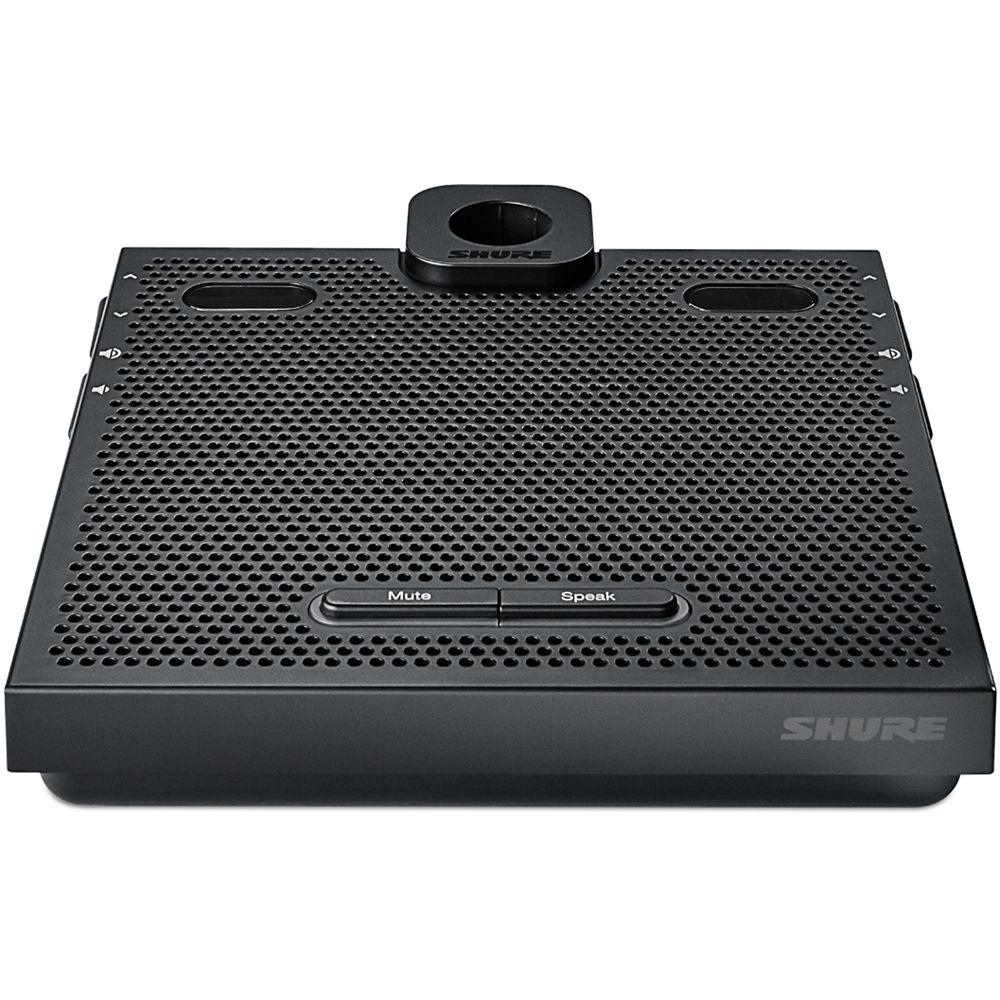

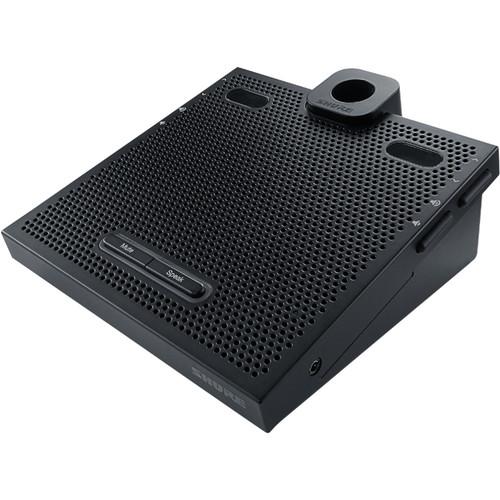

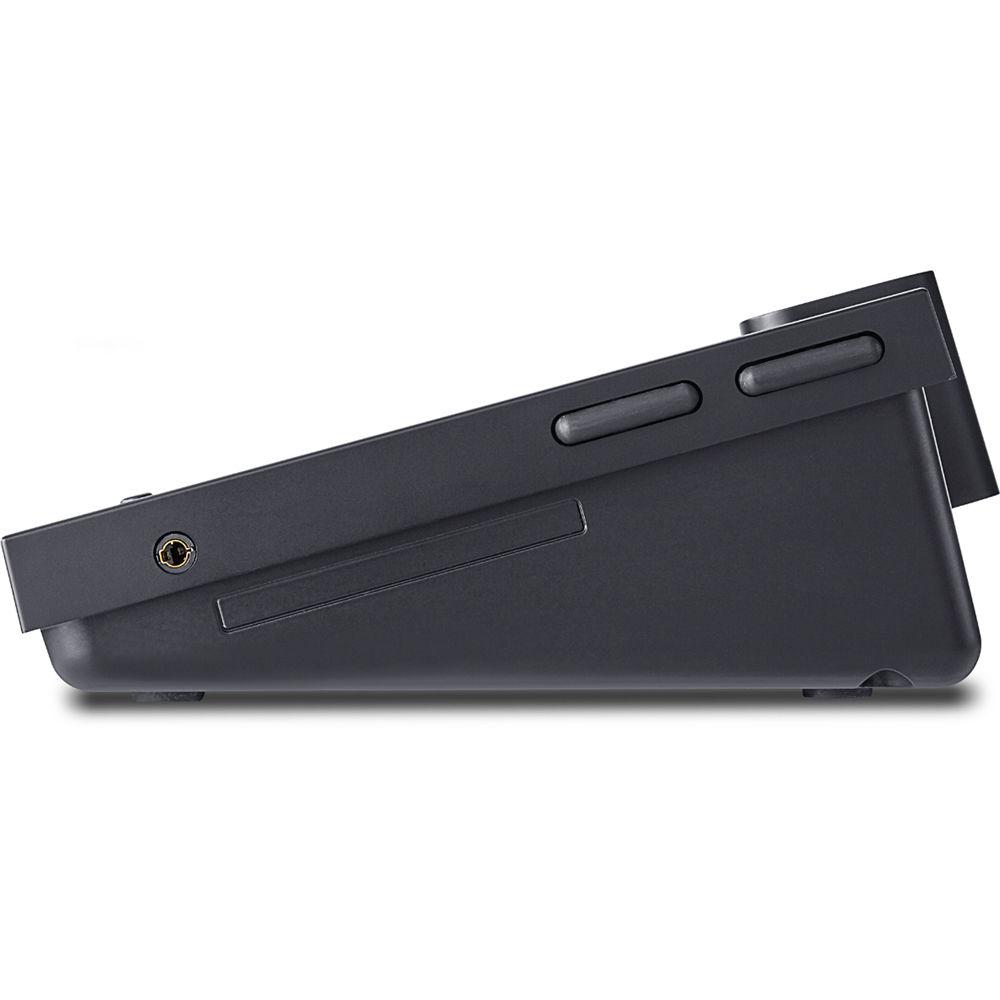

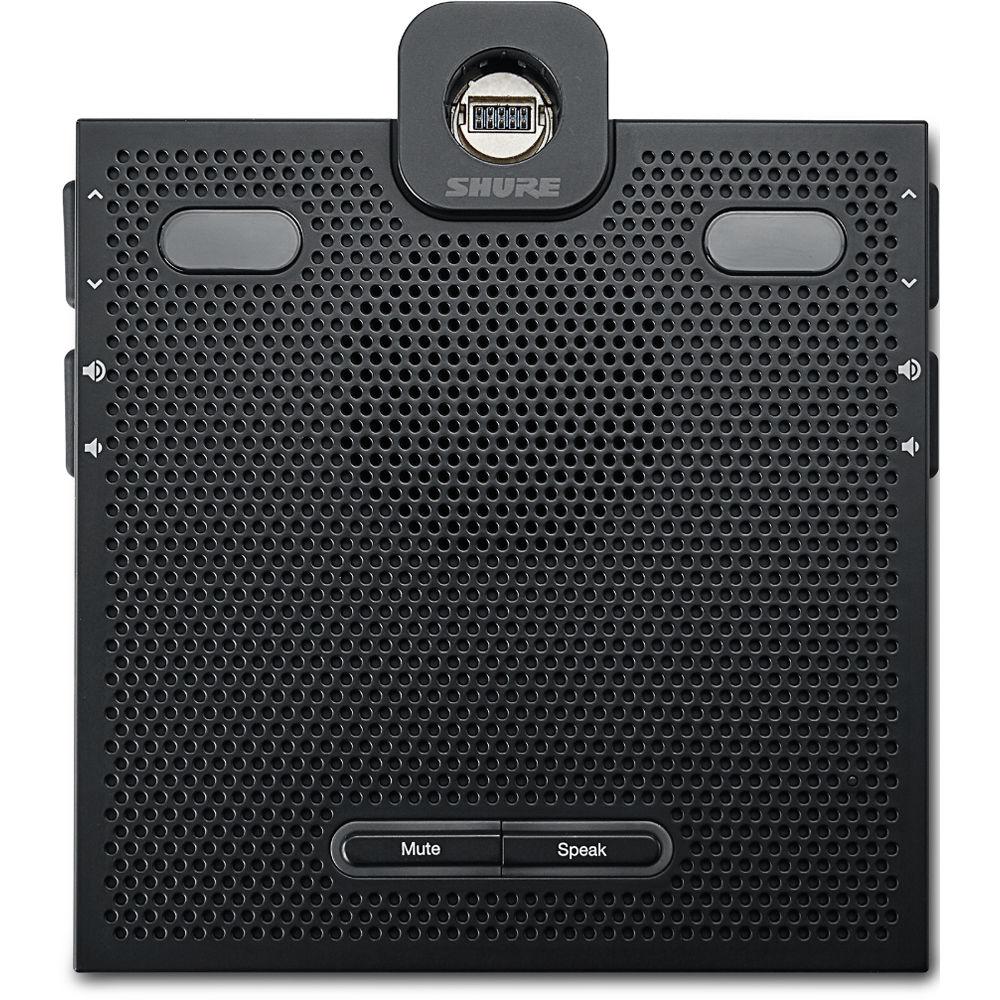

User Manual for Shure MXC615 Portable Conference Unit Click to enlarge the picture
Contents of the user manual for the Shure MXC615 Portable Conference Unit
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
 |
User manual for the Shure MXC615 Portable Conference Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MXC615 Portable Conference Unit from Shure is for use with the Microflex Complete (MXC) digital conference system (sold separately). It can be used by a chairman, delegate, or for shared use by two delegates—dual delegate operation requires a firmware update.The MXC615 features a microphone control button, a function button, a loudspeaker, a lockable microphone connector, two headphones jacks with individual volume controls, and two channel selectors. The microphone button enables a user to activate/deactivate the microphone directly or to submit a request to speak.Additionally, the MXC615's LED indicates if the microphone is on or in request to speak mode. A function button can be programmed as a Mute, Mute All, Next On, Reply, or other function through the Central Control Unit (sold separately). The built-in loudspeaker provides sound reinforcement of local talkers and external audio sources except when the microphone is activated.Finally, the MXC615 is compatible with MXC-series gooseneck microphone and the 10-pin modular microphone connector can be locked with a hex key to prevent unauthorized removal of the microphone. The conference unit can be placed on a table or fixed for permanent installation with mounting holes underneath the unit. - Can be used by a chairman, delegate, or shared by two delegates (firmware update required)
- Speak and mute function buttons with LED status indicators
- Built-in loudspeaker mutes automatically when microphone is activated
- Dual 3.5mm headphone jacks with individual volume controls and channel selectors
- Compatible with MXC-series gooseneck microphones
In the Box Shure MXC615 Portable Conference Unit Braille Overlay Stickers for Microphone and Function Buttons Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXC615 Portable Conference Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXC615 Specs | | | Frequency Response | Channel Selector: 65 Hz to 16 kHz | | Frequency Range | Loudspeaker: 150 Hz to 15 kHz | | Power Consumption | 3 W | | Total Harmonic Distortion (THD) | <0.1% | | Signal to Noise Ratio | >90 dBA | | Microphone Connector | 10-Pin | | Headphone Connector | 2 x 1/8" / 3.5 mm Jacks, Female Socket TRS | | | | Local Area Network Interface | 2 x RJ45 Female Sockets (In/Out) | | | | Installation | Portable | | Temperature Range | 41 to 104°F / 5 to 40°C | | Dimensions (H x W x D) | 3.0 x 6.1 x 6.7" / 7.5 x 15.5 x 17.1 cm | | Weight | 22.9 oz / 650 g |
