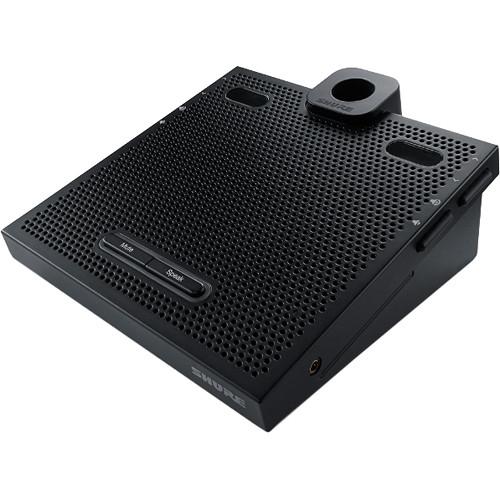

User Manual for Shure MXC620 Portable Conference Unit Click to enlarge the picture
Contents of the user manual for the Shure MXC620 Portable Conference Unit
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
|
User manual for the Shure MXC620 Portable Conference Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MXC620 Portable Conference Unit from Shure is for use with the Microflex Complete (MXC) digital conference system (sold separately). It can be used by a chairman, delegate, or for shared use by two delegates—dual delegate operation requires a firmware update. The MXC620 features an integrated NFC card reader, a microphone control button, a function button, two headphones jacks with individual volume controls, and two channel selectors. The NFC card reader identifies the user when an NFC card programmed with their name is inserted without additional software or feature licenses. With management software on a computer, access to the unit can be restricted to one user. In addition, the microphone button enables a user to activate/deactivate the microphone directly or to submit a request to speak. An LED indicates if the microphone is on or in request to speak mode. A function button can be programmed as a Mute, Mute All, Next On, Reply, or other function through the Central Control Unit (sold separately). Finally, the MXC620 is compatible with MXC-series gooseneck microphones and the 10-pin modular microphone connector can be locked with a hex key to prevent unauthorized removal of the microphone. The conference unit can be placed on a table or fixed for permanent installation with mounting holes underneath the unit. - Can be used by chairman, delegate, or shared by two delegates (firmware update required)
- Integrated NFC ID card reader allows attendee identification
- Speak and mute/function buttons with LED status indicators
- Built-in loudspeaker mutes automatically when microphone is activated
- Dual 3.5mm headphone jacks with individual volume controls and channel selectors
- Compatible with MXC-series gooseneck microphones
In the Box Shure MXC620 Portable Conference Unit Braille Overlay Sticker for Microphone and Function Buttons Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXC620 Portable Conference Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXC620 Specs | | | Frequency Response | Channel Selector: 65 Hz to 16 kHz | | Frequency Range | Loudspeaker: 150 Hz to 15 kHz | | Power Consumption | 3 W | | Total Harmonic Distortion (THD) | <0.1% | | Signal to Noise Ratio | >90 dBA | | Microphone Connector | 10-Pin | | Headphone Connector | 2 x 1/8" / 3.5 mm Jacks, Female Socket TRS | | | | Local Area Network Interface | 2 x RJ45 Female Sockets (In/Out) | | | | Installation | Portable | | Temperature Range | 41 to 104°F / 5 to 40°C | | Dimensions (H x W x D) | 3.0 x 6.1 x 6.7" / 7.5 x 15.5 x 17.1 cm | | Weight | 22.9 oz / 650.0 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
