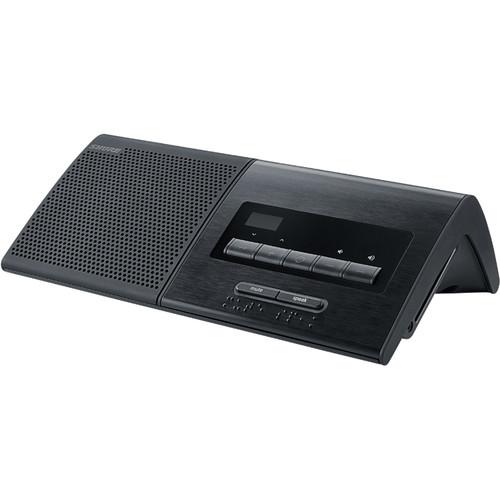

User Manual for Shure MXC630 Portable Conference Unit Click to enlarge the picture
Contents of the user manual for the Shure MXC630 Portable Conference Unit
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
 |
User manual for the Shure MXC630 Portable Conference Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

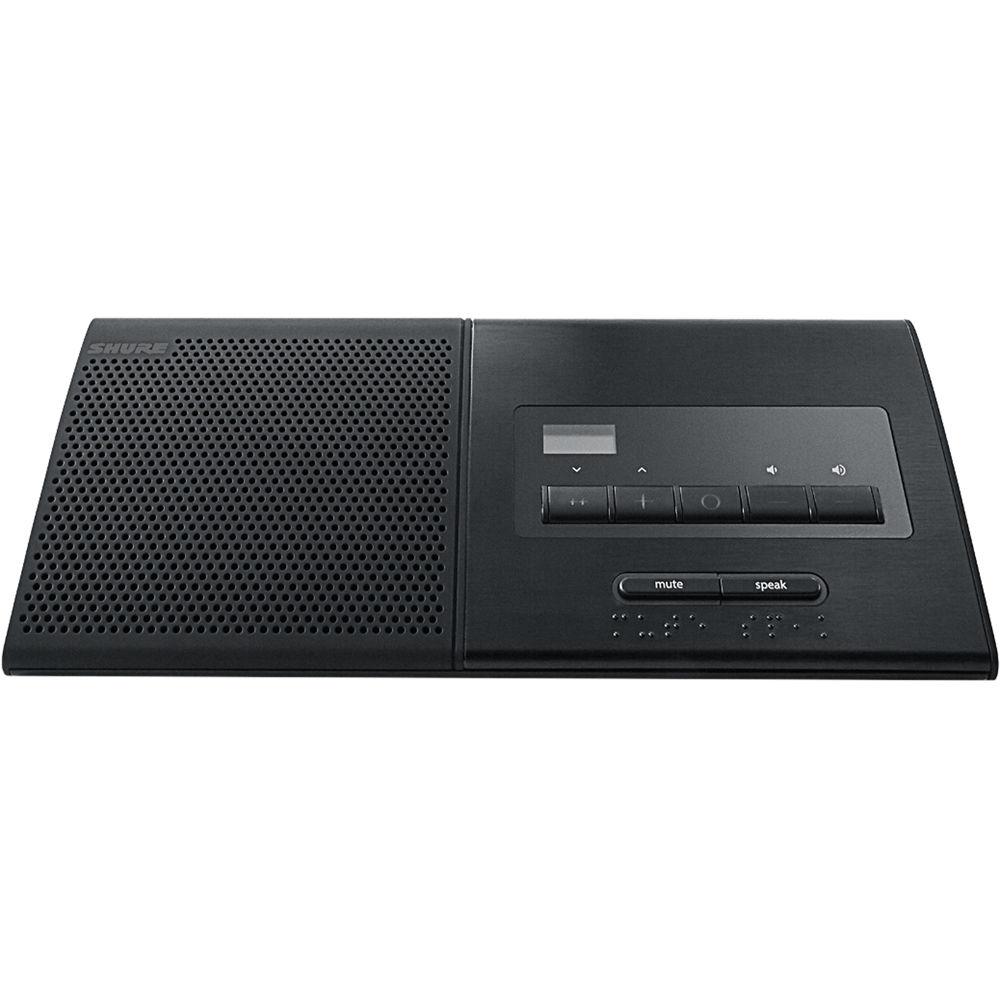

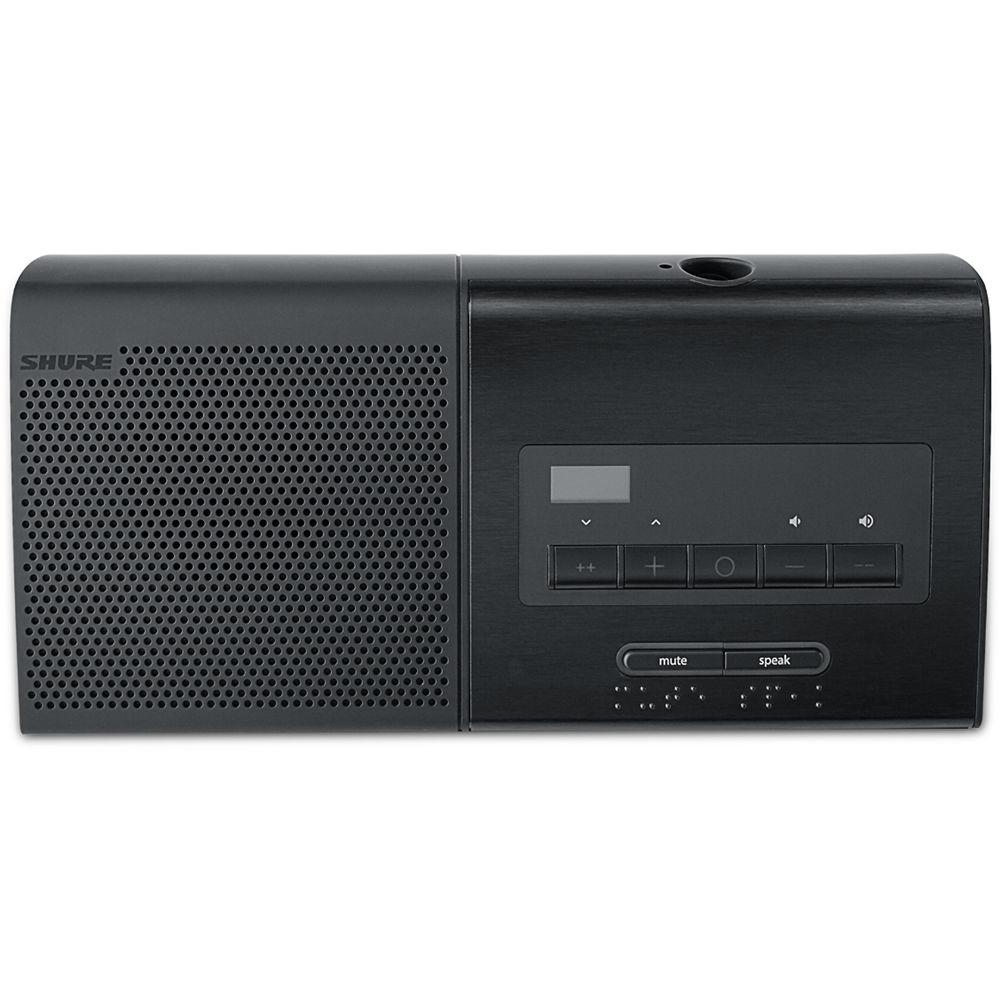

Product description The MXC630 Portable Conference Unit from Shure is designed for use with the Microflex Complete (MXC) digital conference system. It can be used by a chairman or a delegate in meeting spaces and features five voting buttons, an integrated NFC card reader, microphone and function buttons, two headphone jacks, and a channel selector. In addition, with an optional conference management software, system access, speech time, or other privileges can be limited for each participant as appropriate.The voting buttons enable the user to participate in 3- or 5-button voting sessions and attendance checks initiated from an MXC640 conference unit (sold separately) or conference management software. The microphone button enables the user to activate/deactivate the microphone directly or to submit a request to speak. An LED indicates whether the microphone is on or in a request to speak mode.Furthermore, the microphone and function buttons include Braille imprinting for visually impaired users. The built-in loudspeaker provides sound of the local talkers and external audio sources except when the microphone is activated. Headphone jacks allow the user to listen to the floor channel or interpretation channels through headphones.Finally, the MXC630 is compatible with MXC-series 10-pin modular gooseneck microphones and can be locked with a hex key to prevent unauthorized removal of the microphones. The MXC630 Portable Conference Unit can be placed on a table for temporary use or fixed to the table using mounting holes underneath the unit. - Supports 3- and 5-button voting and attendance verification
- Integrated NFC card reader for user identification
- Supports login via NFC card with optional conference management software on computer
- Configurable for Chairman or Delegate operation
- Microphone control and programmable function buttons with LED indicators and Braille imprinting
- Integrated high-quality loudspeaker
- Channel selector supporting the floor channel and 31 interpretation channels
- Two 3.5mm headphone jacks with volume control
- Lockable 10-pin microphone connector

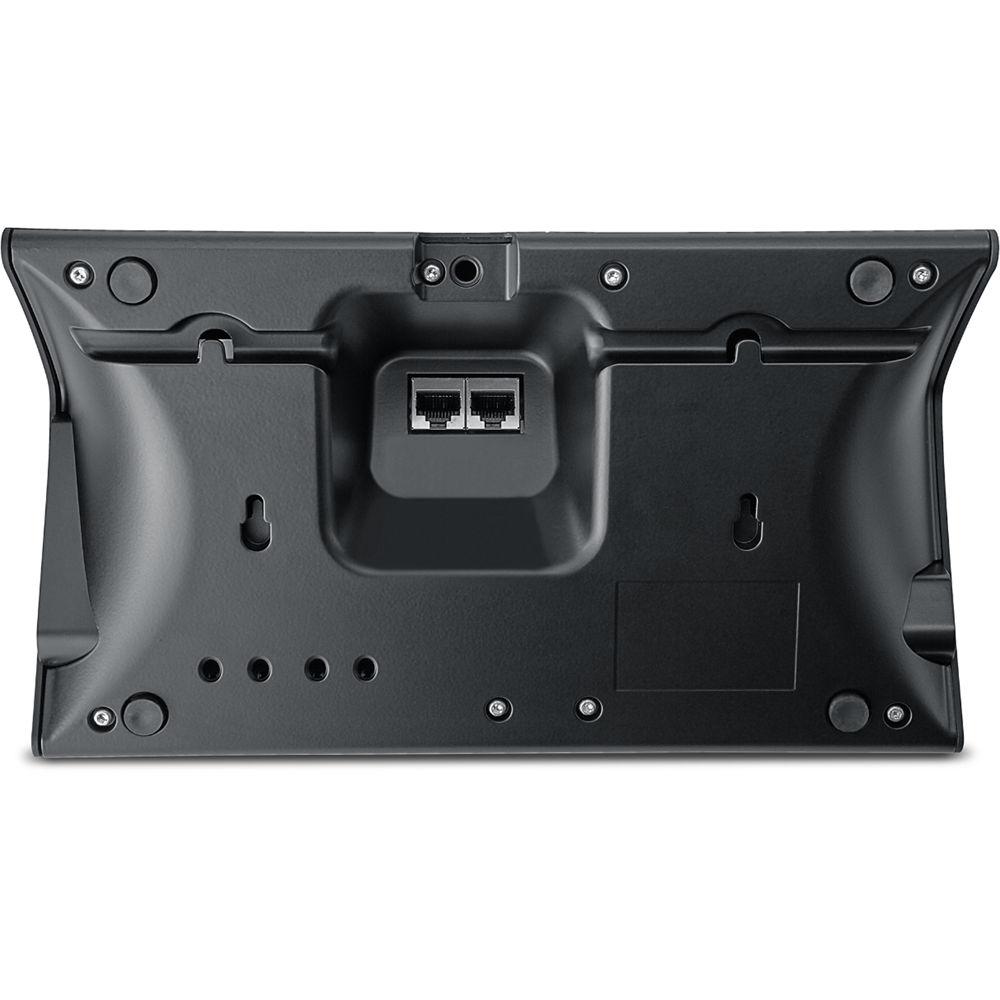

- Connects to DIS-CCU central control unit (sold separately) using shielded Cat 5e (or higher) F/UTP or U/FTP cabling
In the Box Shure MXC630 Portable Conference Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXC630 Portable Conference Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXC630 Specs | | | Frequency Response | Channel Selector: 65 Hz to 16 kHz | | Frequency Range | Loudspeaker: 150 Hz to 15 kHz | | Power Consumption | 4 W | | Total Harmonic Distortion (THD) | <0.1% | | Signal to Noise Ratio | >90 dBA | | Microphone Connector | 10-Pin | | Headphone Connector | 2 x 1/8" / 3.5 mm Jacks, Female Socket TRS | | | | Local Area Network Interface | 2 x RJ45 Female Sockets (In/Out) | | | | Installation | Portable | | Temperature Range | 41 to 104°F / 5 to 40°C | | Dimensions (H x W x D) | 2.9 x 6.0 x 10.6" / 7.4 x 15.3 x 26.8 cm | | Weight | 31.7 oz / 900 g |
