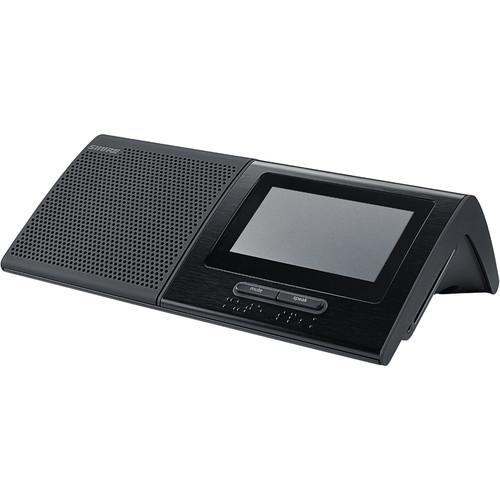

User Manual for Shure MXC640 Touchscreen Conference Unit Click to enlarge the picture
Contents of the user manual for the Shure MXC640 Touchscreen Conference Unit
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
 |
User manual for the Shure MXC640 Touchscreen Conference Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

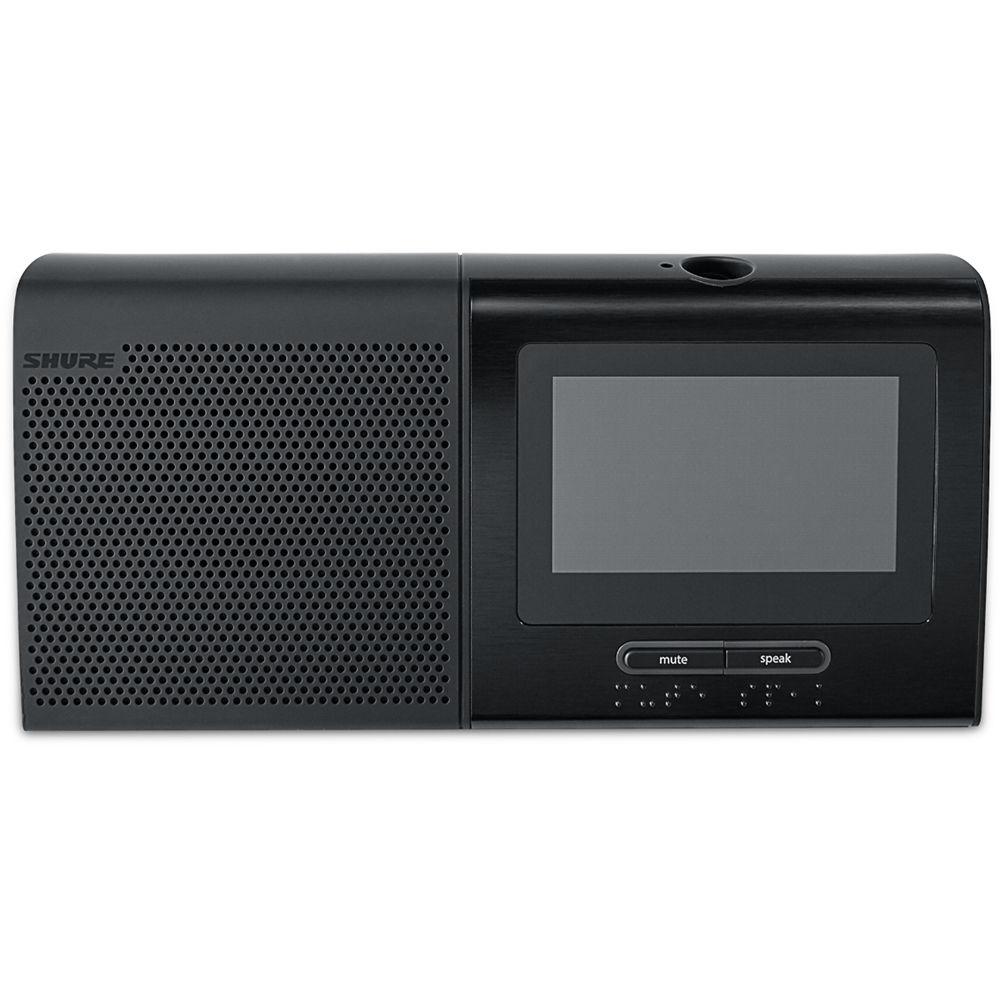

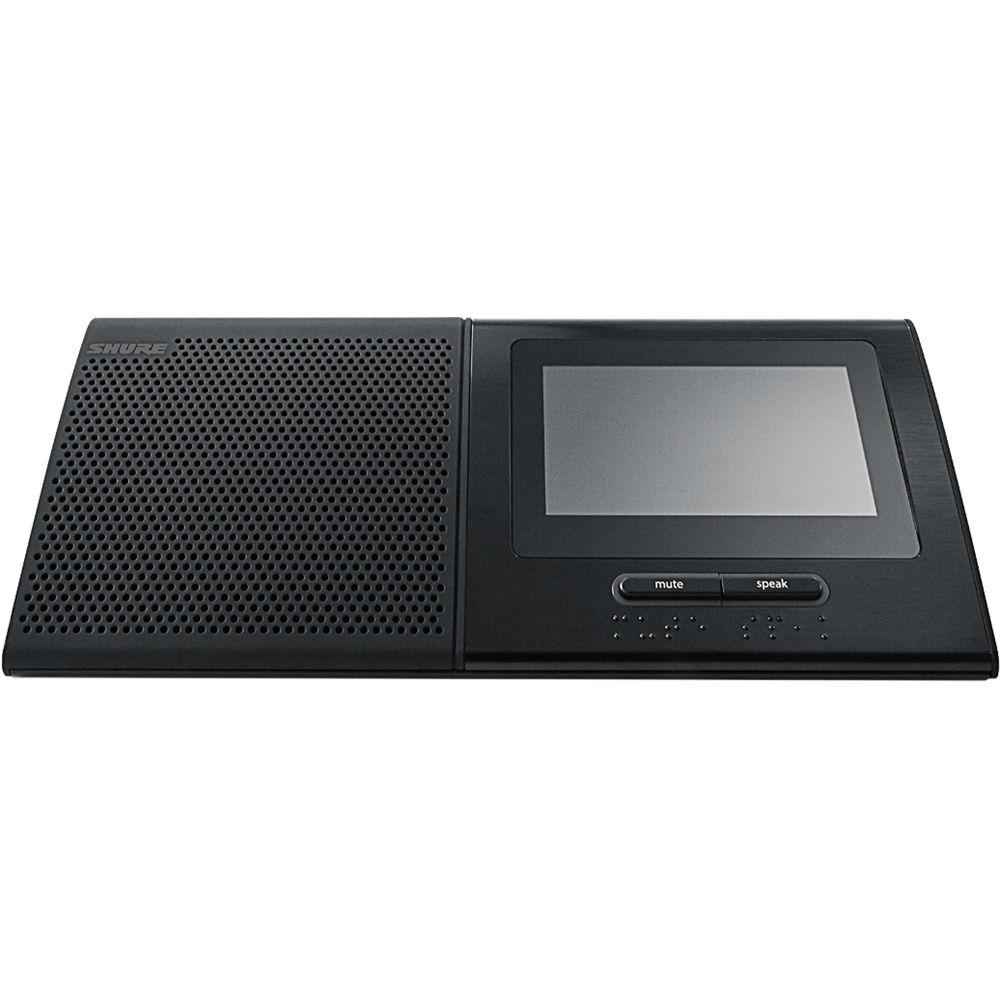

Product description The MXC640 Touchscreen Conference Unit from Shure features a multi-function 4.3" touchscreen display that allows the unit to be tailored to the needs of every attendee in the conference. It can be used to show conference information and provide easy access to controls and features in alternate languages. The MXC640 can be configured for use by a chairman, a single delegate, or shared by two delegates—dual delegate operation requires a firmware update. The touchscreen allows the chairman to see the list of active and waiting speakers, remotely control their microphones, initiate a pre-vote attendance check followed by a 3-button or 5-button voting session, and view the results in real time. Furthermore, for delegates, the screen displays the list of current speakers and the request queue. Voting buttons are shown when a voting session begins, and the results are displayed when the session ends. An integrated ID card reader allows standard NFC cards to be used to identify attendees by name, regardless where they sit. Finally, the speak button and programmable function button provides feedback when pressed, and surrounding LED's illuminate to indicate microphone status. The area immediately below the microphone and function buttons includes Braille imprinting for visually-impaired users. The built-in loudspeaker and dual 3.5mm headphone jacks provide comfortable listening to the floor audio or interpretation channels. - 4.3-inch color touchscreen for voting, conference information, and control
- Supports secret or open 3-button and 5-button voting and attendance verification
- Can be used by chairman or delegate, or shared by two delegates
- Integrated NFC card reader for user identification
- Speak and mute/function buttons with Braille imprinting for visually-impaired users
- Built-in loudspeaker mutes automatically when microphone is activated
- Dual 3.5mm headphone jacks with volume controls and channel selectors
- Compatible with MXC-series gooseneck microphones
- Lockable 10-pin microphone connector
- Requires DIS-CCU firmware version 8.4.2 or higher, and SW6000 software version 6.7.8 or higher
In the Box Shure MXC640 Touchscreen Conference Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXC640 Touchscreen Conference Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

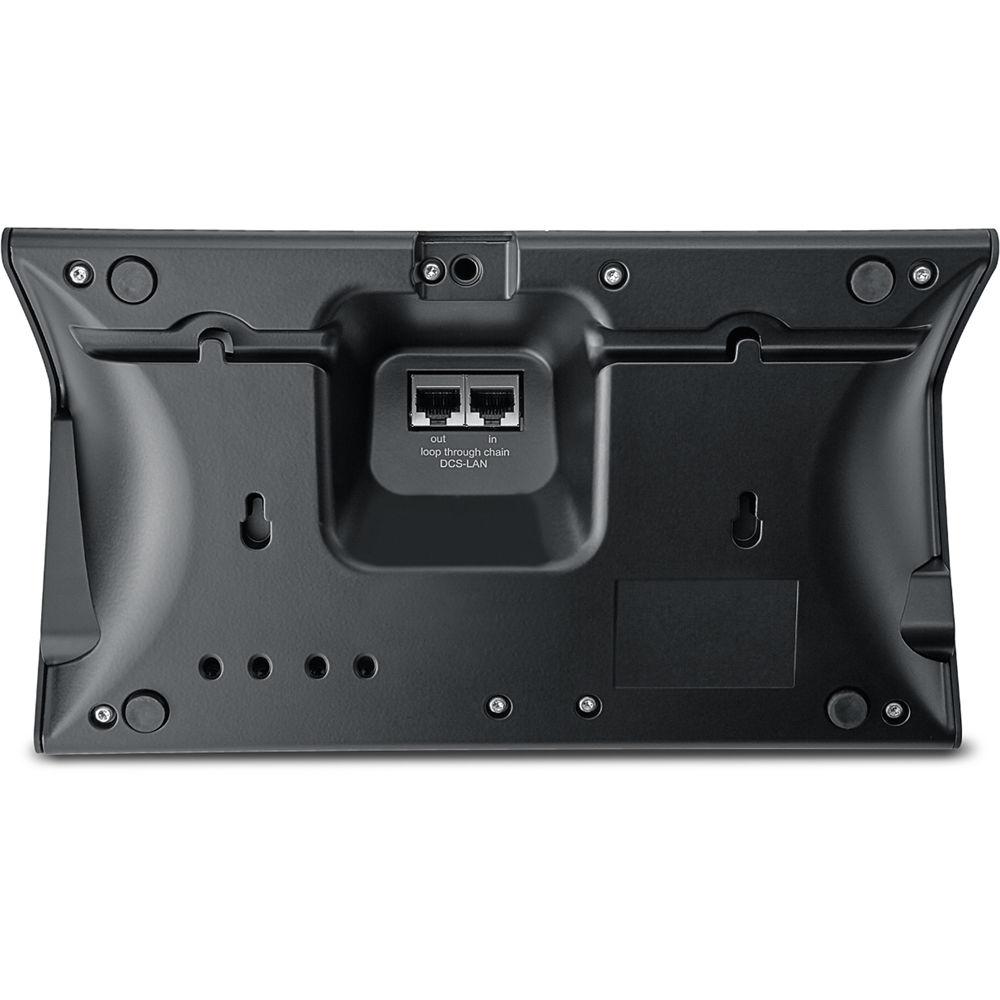

Technical parametersShure MXC640 Specs | | | Frequency Response | Channel Selector: 65 Hz to 16 kHz | | Frequency Range | Loudspeaker: 150 Hz to 15 kHz | | Power Consumption | 4 W | | Total Harmonic Distortion (THD) | <0.1% | | Signal to Noise Ratio | >90 dBA | | Microphone Connector | 10-Pin | | Headphone Connector | 2 x 1/8" / 3.5 mm Jacks, Female Socket TRS | | | | Local Area Network Interface | 2 x RJ45 Female Sockets (In/Out) | | | | Installation | Portable | | Temperature Range | 41 to 104°F / 5 to 40°C | | Dimensions (H x W x D) | 2.9 x 6.0 x 10.6" / 7.4 x 15.3 x 26.8 cm | | Weight | 31.7 oz / 900.0 g |
