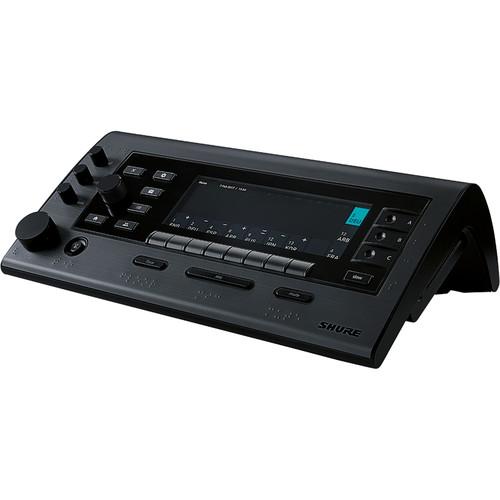

User Manual for Shure MXCIC Interpretation Console Click to enlarge the picture
Contents of the user manual for the Shure MXCIC Interpretation Console
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
 |
User manual for the Shure MXCIC Interpretation Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MXCIC Interpretation Console from Shure provides comprehensive facilities for professional interpretation when used with the Microflex Complete (MXC) digital conference system (sold separately). It can deliver high-quality audio performance even with variations of the interpreter's speech level. It eliminates background noise, distortion, and crosstalk for interpretation applications.The MXCIC supports three outgoing language channels and eight relay languages in addition to the floor. It also supports multiple interlocking modes such as A interrupt A, A interrupt B+C, and A interrupt A+B+C. A large color display shows both relay and outgoing language channels. The relay quality of each pre-selected language is shown, indicating if the monitored language is original from the talker, a direct interpretation, or relay interpretation.Furthermore, an integrated loudspeaker on the rear of the unit allows the interpreter to listen to the floor when interpretation is not active in the booth. In addition, an NFC ID card reader and a USB connector permits the interpreter to load and recall personal settings. Two 3.5mm TRRS jacks allow connection of headsets or headphones; there is also a 3.5mm TRS headphone jack on the bottom of the unit. Volume and tone controls allow the user to adjust the sound quality of the headphones. - Compliant with ISO 20109 requirements
- Three outgoing channels (A+B+C) with free/locked toggling
- Eight relay languages + floor
- Support for multiple interlocking modes
- Two 3.5mm headphone/headset jacks on the sides
- One 3.5mm headphone jack on the bottom
- Volume and tone controls for headphones
- NFC reader and USB connector
- Integrated high-quality loudspeaker
In the Box Shure MXCIC Interpretation Console Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXCIC Interpretation Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXCIC Specs | Interconnecting Cable | DCS-LAN: 2 x RJ45 | | Cable Requirements | Cat 5e or Higher | | Digital Signal Processing (DSP) | 24-Bit/ 32 kHz | | NFC | Card Compatibility: ACOS3 Dual Interface and Contactless
Antenna Type: Internal NFC Loop
Carrier Frequency: 13.56 MHz | | Microphone Input Type | 10-Pin Gooseneck, Proprietary Shure Pinout, Unbalanced | | Input Impedance | Mic: 26 kOhms
Headset: 2.2 kOhms | | Max Audio Input Level | Mic: -1.5 dBV at 1% THD
Headset: -5.5 dBV at 1% THD | | THD + N | Mic Input: 0.04%
Headset Input: 0.07% | | EIN | -115.8 dBV | | Dynamic Range | Mic Input: 110 dB (Unweighted), 112 dB(A-Weighted)
Headset Input: 92 dB (Unweighted), 94 dB(A-Weighted) | | Frequency Response | 20 Hz to 16 kHz (+0.5/-10 dB) | | Audio Output | 2 x 1/8" / 3.5 mm TRRS
1 x 1/4" TRS | | Nominal Output Level | 70 dB SPL at 0.5 m
Speaker: 82 dB SPL-A at 0.5 m
Headset: 1.7 dBV | | Frequency Response | Speaker: 200 Hz to 16 kHz (+0.5/-10 dB)
Headphone: 110 Hz to 16 kHz (+0.5/-3 dB) | | THD + N | Speaker: <1%
Headphone: <0.2% | | Dynamic Range | Speaker Out: 92 dB (Unweighted), MXCIC = 95 dB (A-Weighted)
Headphone: MXCIC = 91 dB (Unweighted), MXCIC + 93 dB (A-Weighted) | | Load Impedance | >8 Ohms | | Screen Type | 6.3" / 160 mm Color TFT Display
Resolution: 800 x 240 (134 PPI) | | Channels of I/O | Up to 32 (31 + Floor) Incoming
3 x Outgoing (A/B) | | Power Consumption | 5.5 W (Typical) 7.0 W (Maximum) | | Mechanical | Operating Temperature Range: 41 to 104°F / 5 to 40°C
Storage Temperature Range: -20 to 165°F / -29 to 74°C
Relative Humidity: 95% | | Compliance | EN55103-1, EN55103-2, FCC Rules Part 15, Class A, ICES-003, IEC 60065 | | Dimensions (H x W x D) | 7.8 x 12.8 x 3.8" / 198 x 324 x 96 mm | | Weight | 79.4 oz / 2250 g |
