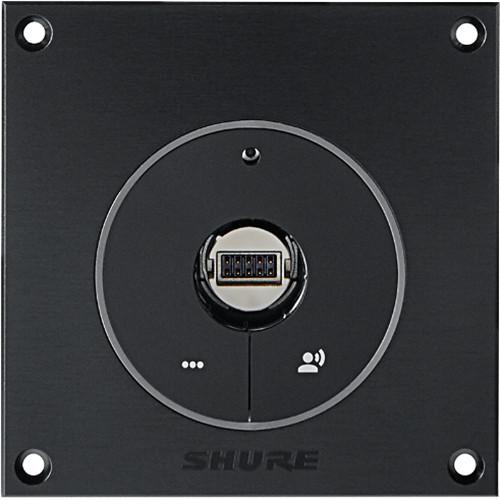

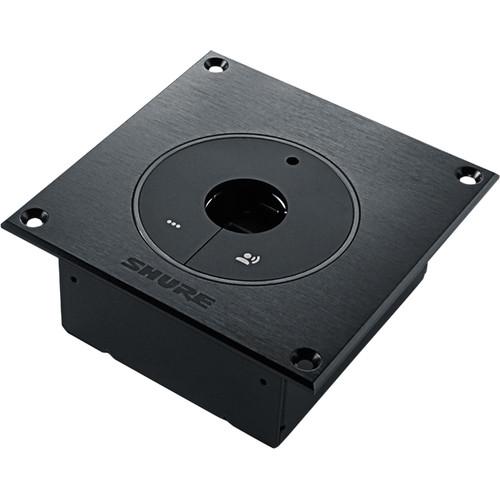

User Manual for Shure MXCMIU-FS Front Plate without Integrated Speaker Click to enlarge the picture
Contents of the user manual for the Shure MXCMIU-FS Front Plate without Integrated
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
 |
User manual for the Shure MXCMIU-FS Front Plate without Integrated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The black MXCMIU-FS Front Plate without Integrated Speaker from Shure is designed for use in combination with the MXCMIU multi-interface unit and the Microflex Complete (MXC) digital conference system (sold separately). It is suited for installations where a flush-mounted conference unit is required but limited space is available.The MXCMIU-FS non-user-facing components are contained in the MXCMIU interface unit and is mounted in a more spacious location under a table or in a floor pocket, which connects via the included HDMI cable. The MXCMIU-FS front-plate unit does not include a built-in loudspeaker. The front plate unit features a microphone button and a programmable function button. The microphone button enables the user to activate/deactivate the microphone directly or to submit a request to speak.In addition, an LED indicates if the microphone is on. The MXCMIU-FS Front Plate is compatible with MXC-series gooseneck microphones. The 10-pin modular microphone connector can be locked with a hex key to prevent unauthorized removal of the microphone. It is designed to be flush-mounted in the table surface. - Front plate unit for use with MXCMIU modular interface box
- Compact design for flush-mounting where limited space is available
- Configurable for chairman or delegate
- Microphone control and programmable function buttons with LED indicators
- Lockable 10-pin microphone connector
- Built without integrated speaker
- Connects to interface box with HDMI cable (included)
In the Box Shure MXCMIU-FS Front Plate without Integrated Speaker HDMI Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXCMIU-FS Front Plate without Integrated Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXCMIU-FS Specs | | | Connector | To MXCMIU Unit: HDMI Connector | | Frequency Range | N/A | | | | Installation | Flush Mount | | Color | Black | | Temperature Range | 41 to 104°F / 5 to 40°C | | Dimensions (L x W x H) | 3.5 x 3.5 x 1.7" / 9.0 x 9.0 x 4.2 cm | | Weight | Not Specified by Manufacturer |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
