User Manual for Shure MXCMIU Modular Interface Unit Click to enlarge the picture
Contents of the user manual for the Shure MXCMIU Modular Interface Unit
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
 |
User manual for the Shure MXCMIU Modular Interface Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

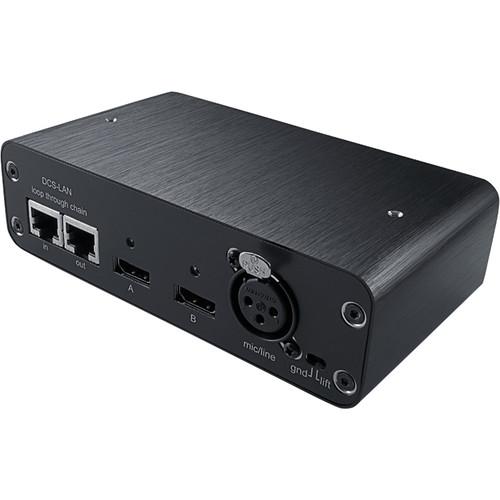

Product description The MXCMIU Modular Interface Unit from Shure is a modular conference unit for the Microflex Complete (MXC) digital conference system. It can be used and mounted under a table, inside furniture, or inside a floor box, allowing separate front plates to be installed flush in a table or podium where limited space is available.The MXCMIU supports one or two front plates (sold separately) with microphones, loudspeaker, and control buttons connected to two HDMI connectors. It can also support an analog audio signal from a microphone or audio playback device via the XLR audio input. A ground-lift switch is also provided.The MXCMIU Modular Interface connects to the DIS-CCU central control unit (sold separately) via the DCS-LAN chain, and delivers power, audio, and control data across a shielded Cat 5e cable. Note: Dual-delegate operation requires a firmware update. - Modular conference unit for use with MXCMIU-FS/FL front plates or external audio sources
- Compact design for remote mounting under the table
- Configurable for chairman or delegate
- HDMI and XLR mic/line inputs
- Connects anywhere in the DCS-LAN chain
- Requires DIS-CCU firmware version 8.4.2 or higher, and SW6000 software version 6.7.8 or higher
In the Box Shure MXCMIU Modular Interface Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXCMIU Modular Interface Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

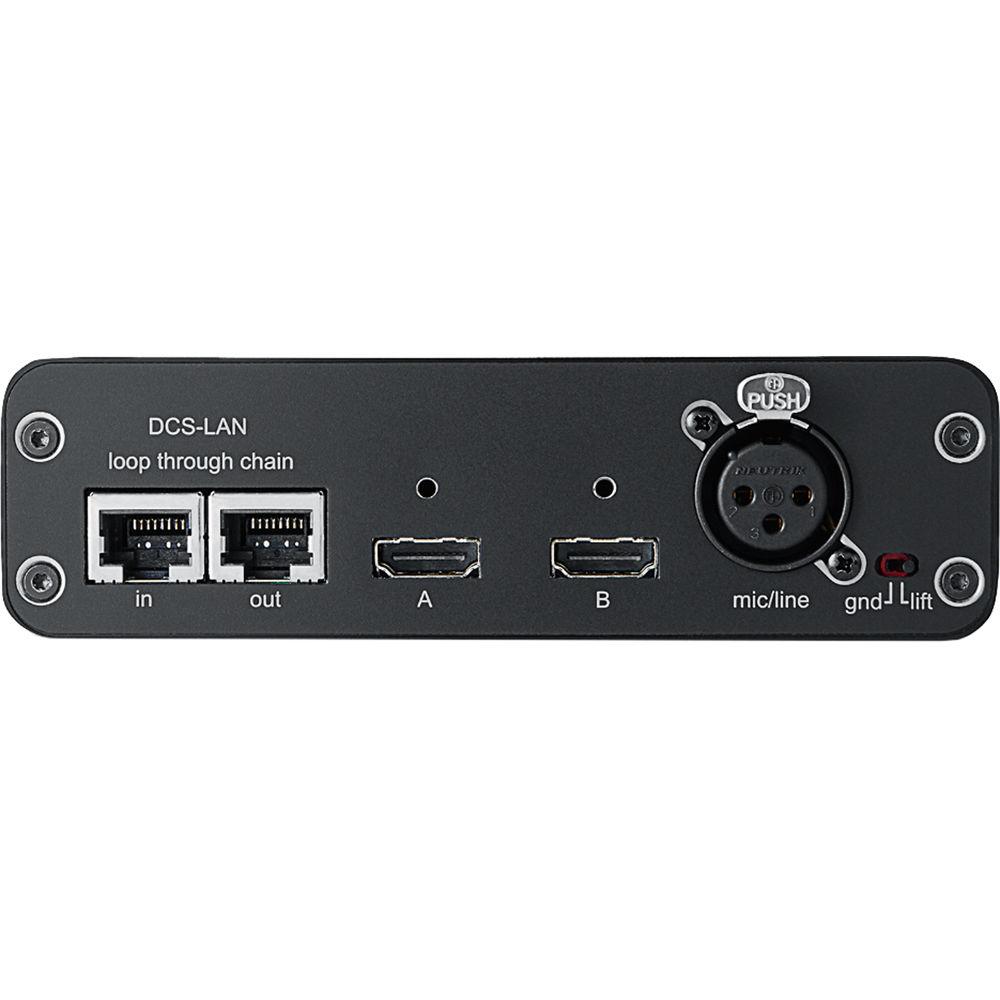

Technical parametersShure MXCMIU Specs | Compatible with | Shure Microflex Complete (MXC) Digital Conference System | | Connectors | 2 x HDMI
2 x DSC-LAN Cat 5e
1 x XLR Audio Input | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
