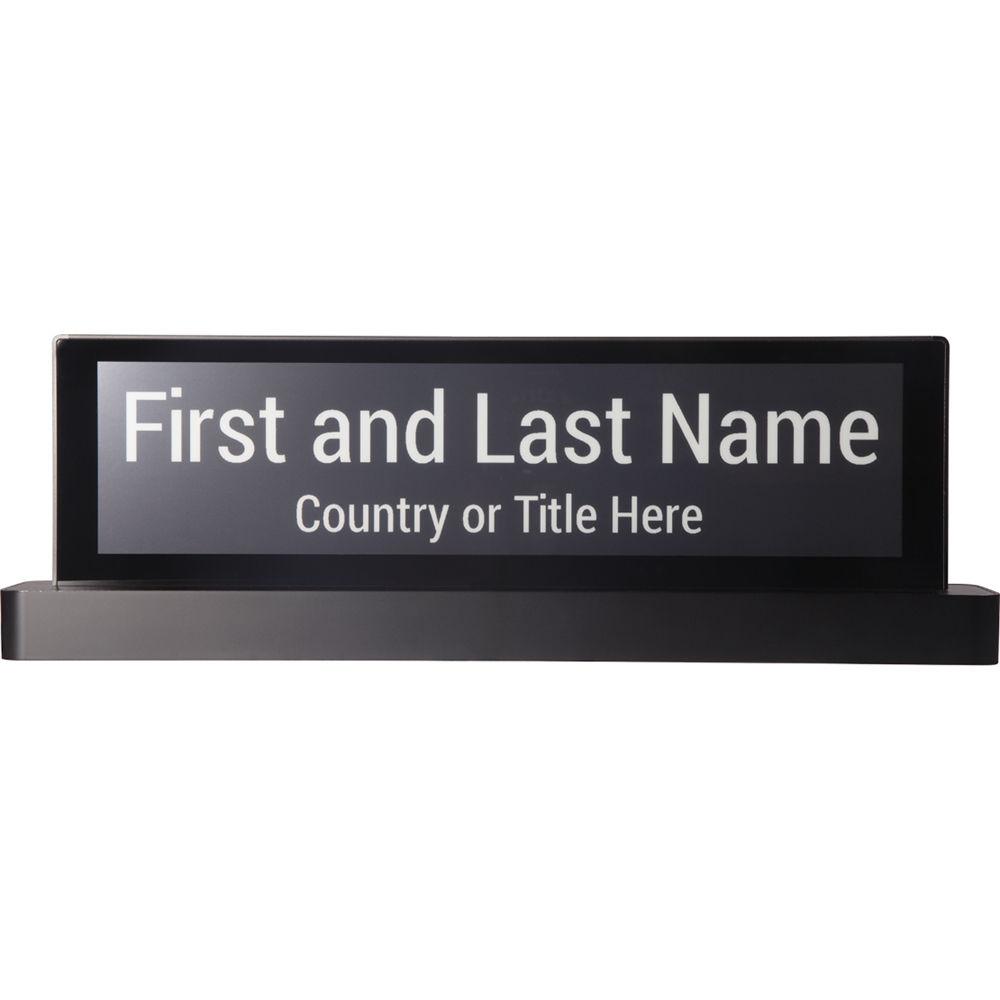

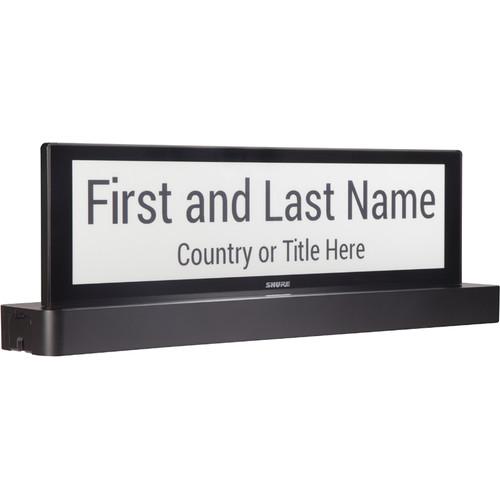

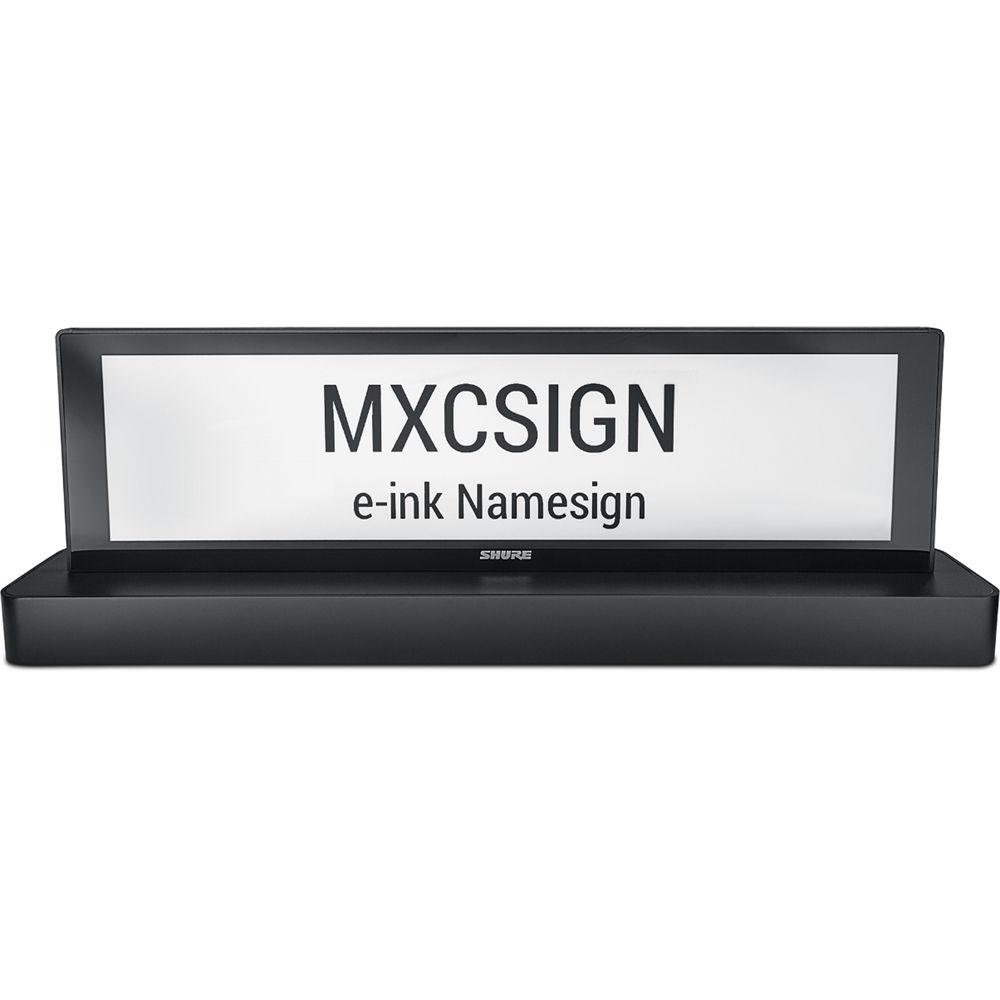

Product description The MXCSIGN Dual-Side e-Paper Information Display from Shure provides easily readable names, titles, or other text on conferences and panel discussions. It can be used with the Shure Microflex Complete (MXC) digital conference system and connects to DSC-LAN with loop-through RJ45 connections. The two-sided, high-contrast e-ink display and wide viewing angle deliver maximum readability from anywhere in the room, and the image is retained without power to the sign. Information can be uploaded to the sign from the DIS-CCU Central Unit (sold separately) via SW6000 software in real time. The MXCSIGN Dual-Side e-Paper Information Display can be placed on a table for temporary meetings or flush-mounted in permanent installations. - Easy to See
- High-resolution (1900 x 460 pixels, 133 ppi), high-contrast e-paper display for maximum readability
- E-paper screen retains image even without power
- Easy to Set Up
- Name updates automatically when conference starts (assigned seating) or when delegate inserts ID card (free seating)
- Dual-delegate mode allows two participants to share one sign
- Create custom templates with different layouts, fonts, reverse text

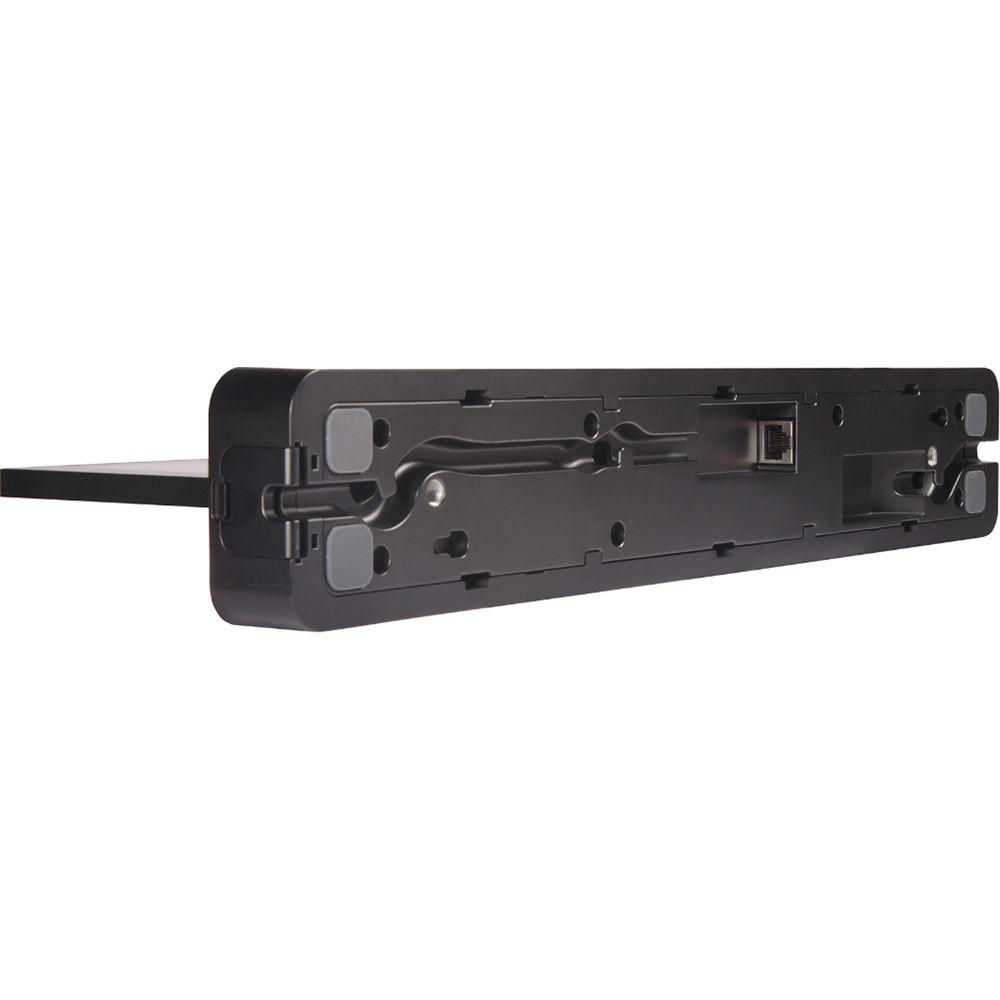

- Connects to DCS-LAN with loop-through RJ45 connections
- Easy to Use

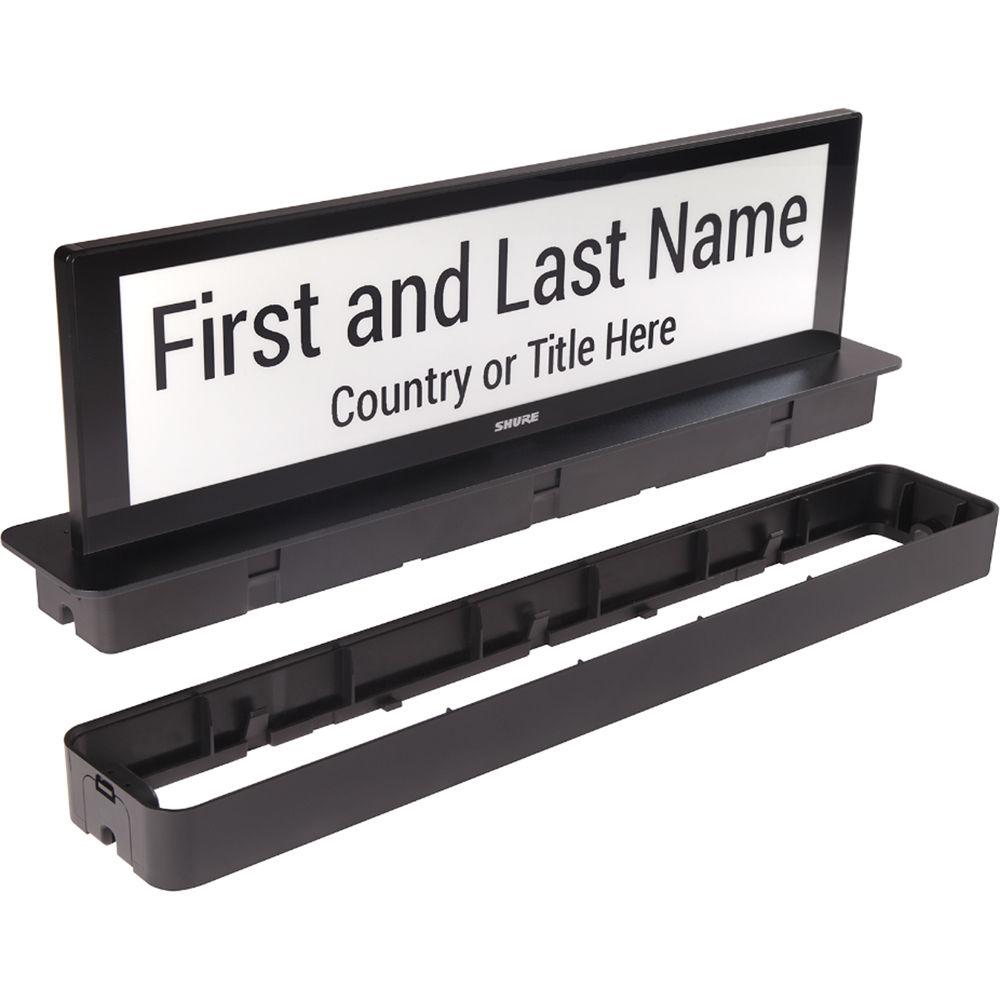

- Can be free-standing or permanently mounted with included hardware
- Requires DIS-CCU firmware version 8.4.2 or higher, and SW6000 software version 6.7.8 or higher
In the Box Shure MXCSIGN Dual-Side e-Paper Information Display Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXCSIGN Dual-Side e-Paper Information Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXCSIGN Specs | Compatible with | Microflex Complete (MXC) DIS-CCU Central Unit via SW6000 Software in Real Time | | Connectors | DCS-LAN with Loop-Through RJ45 | | Display Resolution | 1904 x 464 Pixels (DPI: 133) | | Power Requirements | 48 VDC, 4 W Max (DSC-LAN) | | Color | Black | | Material | Anodized Aluminum | | Operating Temperature | 20 to 104°F / -6.7 to 40°C | | Dimensions | 5.7 x 15.8 x 2.9" / 14.5 x 40.2 x 7.4 cm
Active Area: 14.3 x 3.5" / 36.4 x 8.9 cm | | Weight | 3.75 lb / 1.7 kg |
