User Manual for Shure MXCWAPT-A Access Point Receiver Click to enlarge the picture
Contents of the user manual for the Shure MXCWAPT-A Access Point Receiver
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
 |
User manual for the Shure MXCWAPT-A Access Point Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

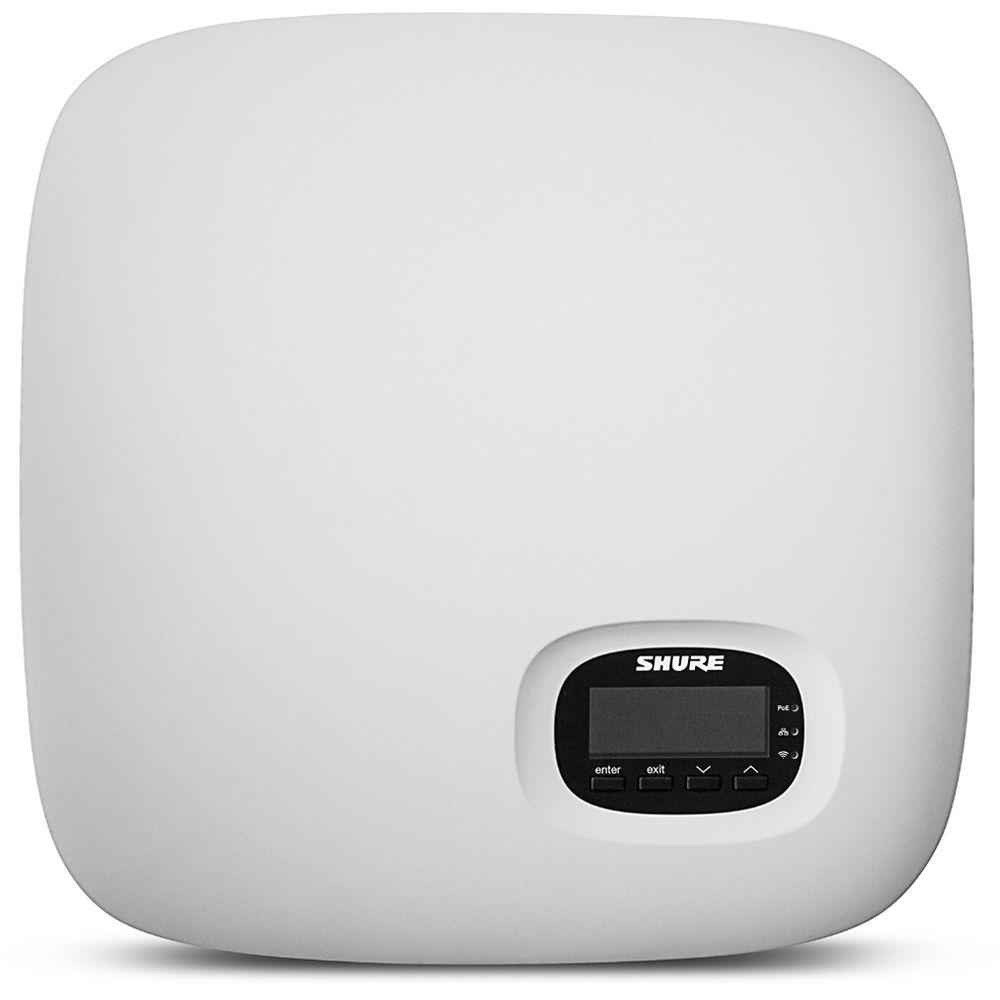

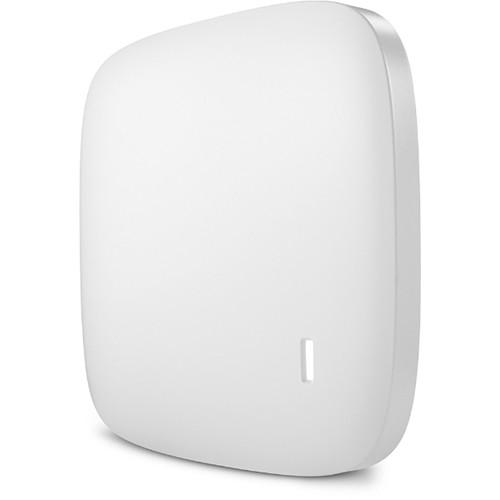

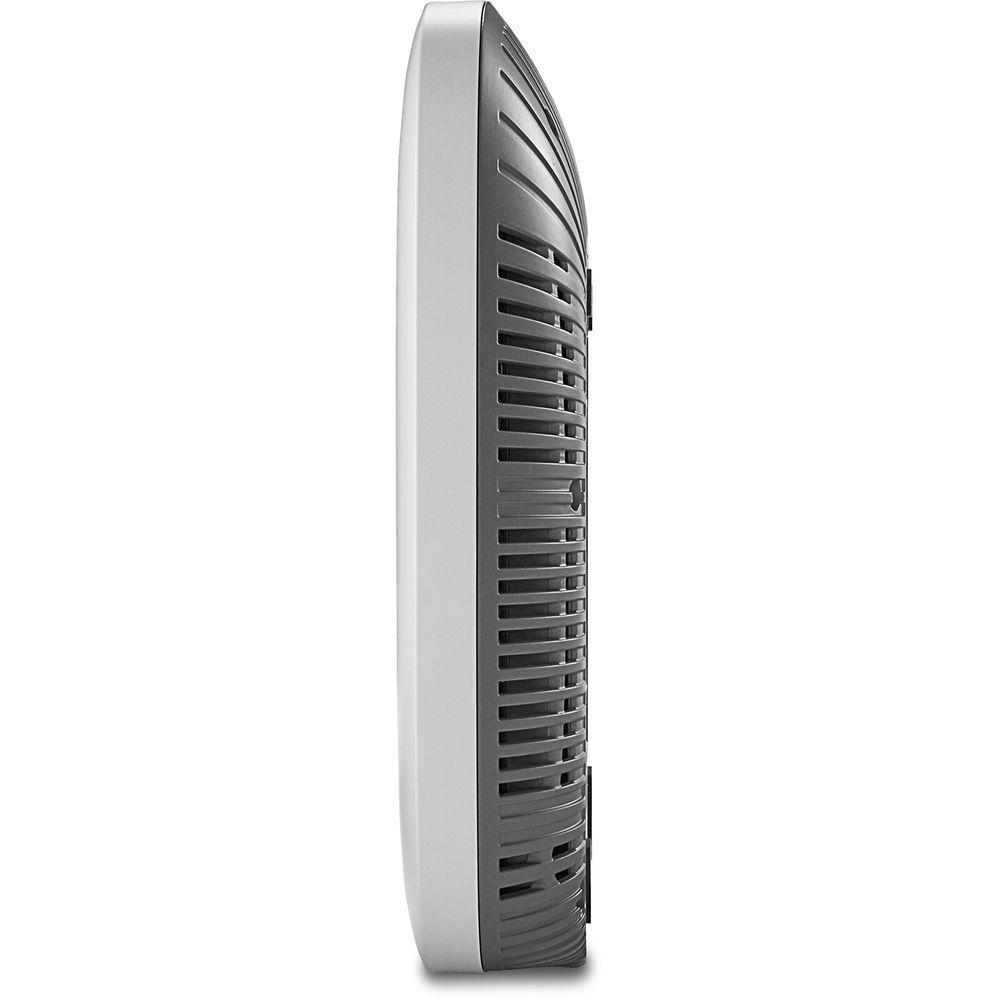

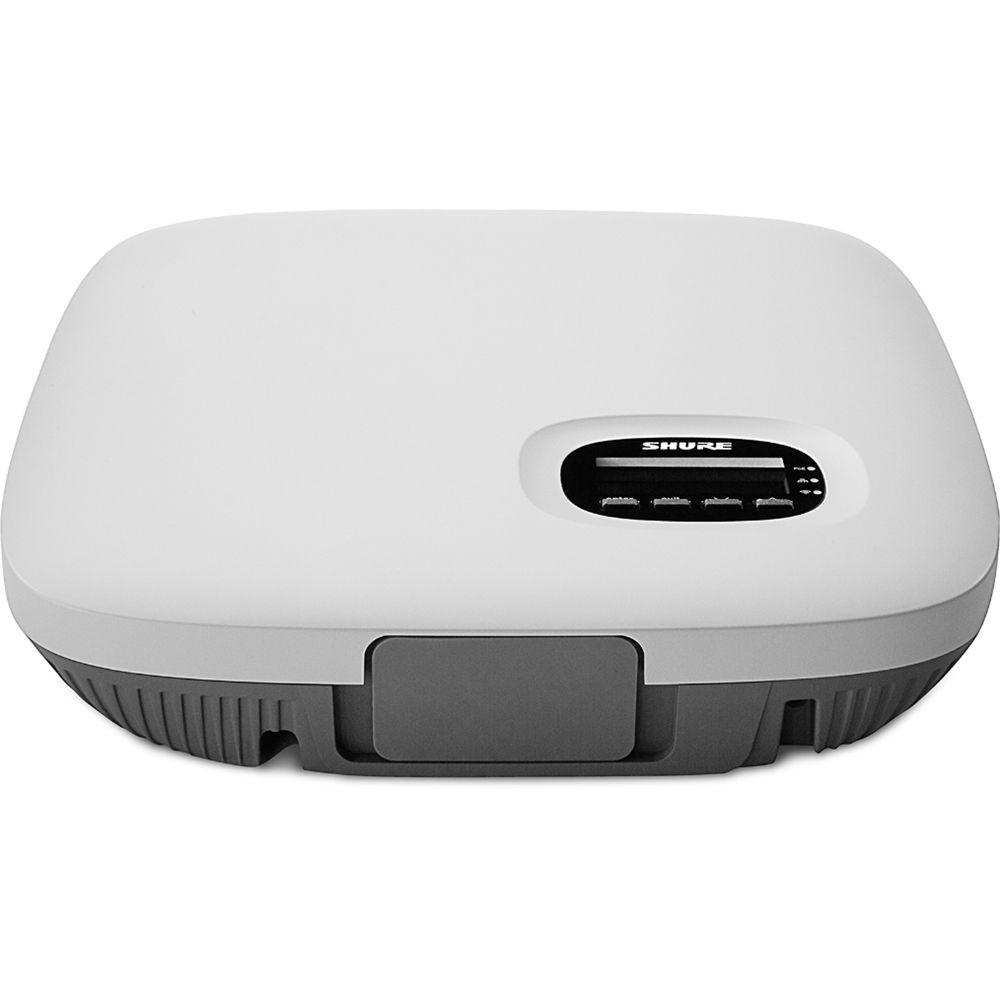

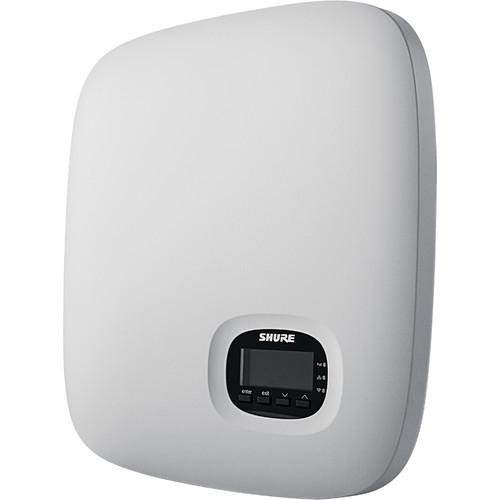

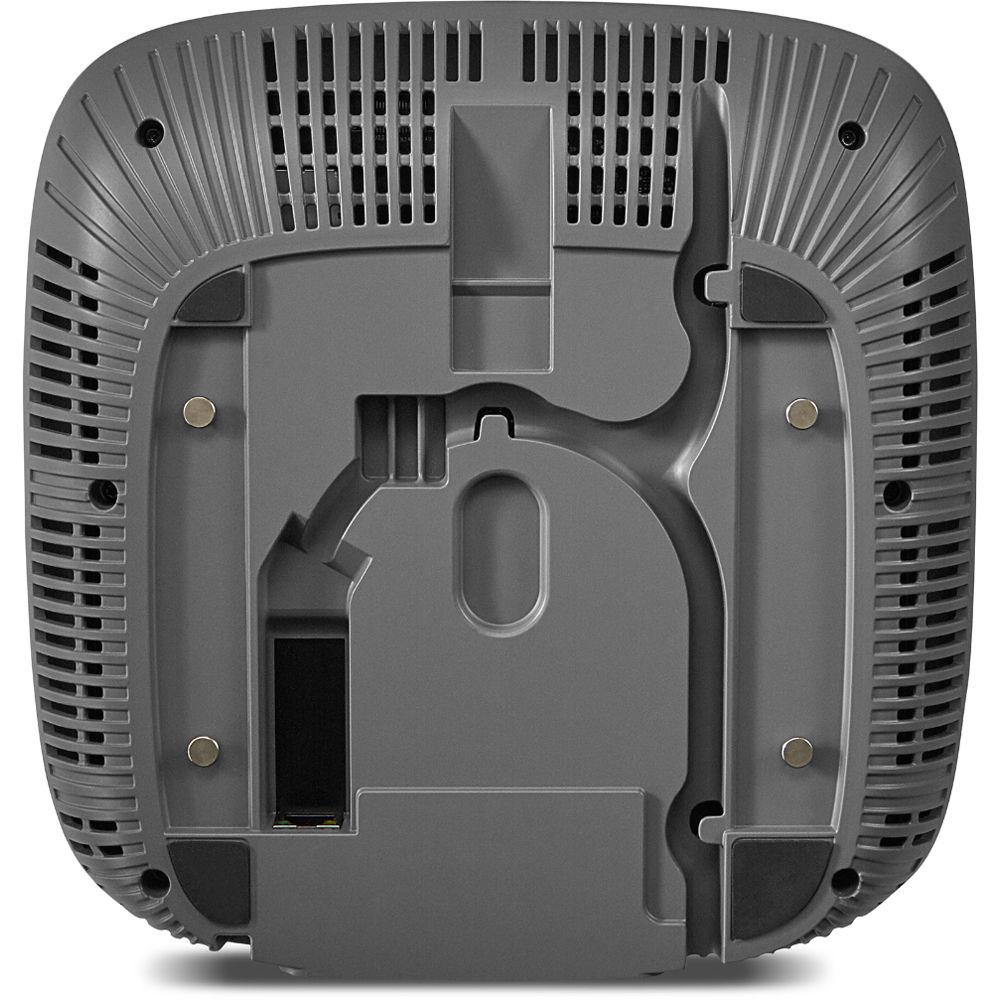

Product description The MXCWAPT-A Access Point Receiver from Shure is a hub for the Microflex Complete Wireless conference system. It can be used to manage audio routing, frequency coordination, and system control for up to 125 wireless conference units.The MXCWPT scans the 2.4 and 5 GHz frequency bands and identifies the clearest channel. It then conveys that information to the conference units. The system takes advantage of limited-access DFS spectrum to expand the number of available channels. If a conflict is identified, the Access Point instructs all conference units to change channels. It features AES-128 encryption for enhanced privacy.Furthermore, this Access Point includes a Dante networked audio connection that supports up to 10 input channels and 10 output channels. An analog XLR audio input and output allows for connection of a wireless microphone for a presenter or an external sound reinforcement system for an audience.The MXCWAPT includes an information display and controls for basic system configuration without a laptop. It is powered by a standard PoE switch or power injector. Finally, it can be mounted on the wall or ceiling with the included mounting bracket and paintable cover or placed on a table for temporary meetings. - Controls up to 125 MXCW640 wireless conference units
- Bi-directional wireless connection provides audio to and from conference units and enables real-time control of all settings
- Operates in 2.4/5 GHz frequency bands, including DFS spectrum
- Automatic frequency coordination, interference detection and avoidance
- Dante digital audio (10 inputs/10 outputs)

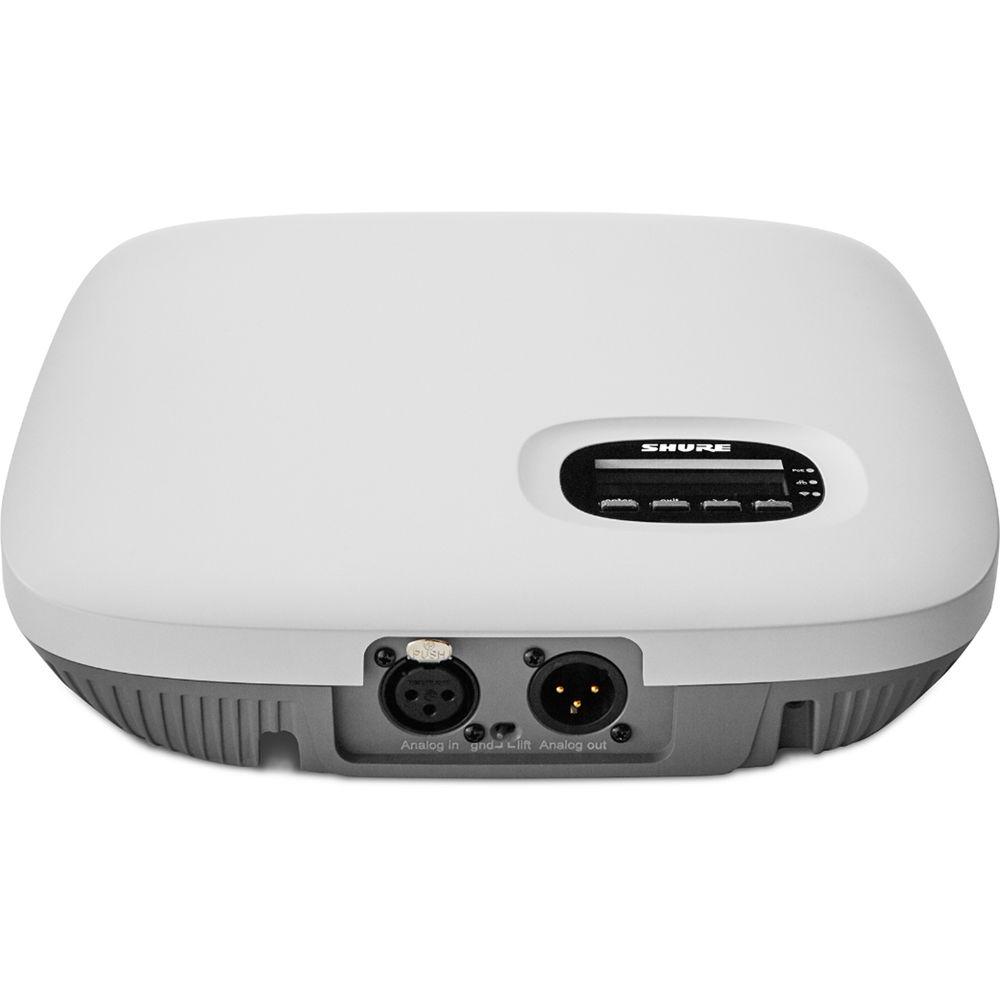

- Analog audio input and output (XLR)
- One Ethernet cable for audio, control, and PoE power
- AES-128 encryption for enhanced privacy
- Display for basic system configuration without a laptop
- LEDs indicate power, wireless connection, and network status

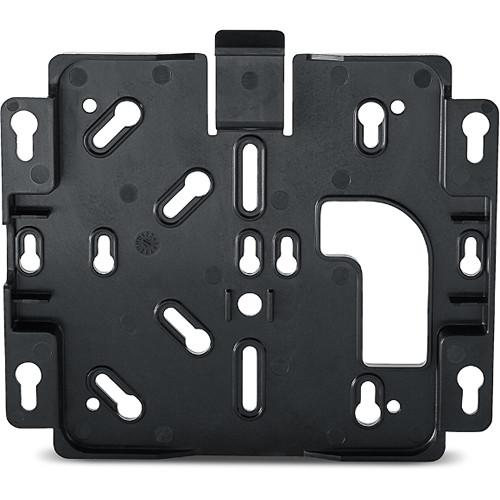

- Includes wall/ceiling mounting plate
In the Box Shure MXCWAPT-A Access Point Receiver (US Only) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXCWAPT-A Access Point Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXCWAPT-A Specs | Dimensions (L x W x D) | 9.5 x 9.6 x 1.9" / 24.2 x 24.3 x 4.7 cm | | Weight | Not Specified by Manufacturer |
