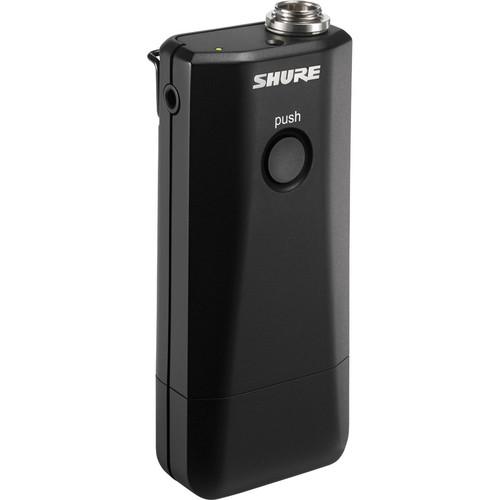

User Manual for Shure MXW1 Hybrid Bodypack Transmitter with Microphone Click to enlarge the picture
Contents of the user manual for the Shure MXW1 Hybrid Bodypack Transmitter with
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure MXW1 Hybrid Bodypack Transmitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MXW1 Bodypack Transmitter from Shure is a bi-directional bodypack transmitter designed for use with Shure's Microflex wireless conference system. It can be used in various environments for audio applications such as, boardrooms, corporate theaters, training/seminar centers, government, and more. It features an integrated omnidirectional microphone as well as a TA4M connector for an optional lavalier or headset mic. In addition to transmitting audio, the MXW1 receives a return channel of audio that can be monitored with an optional earphone through the unit's earphone output. The MXW1 protects your audio with 256-bit AES encryption, allowing for secure transmission.
The unit features a built-in rechargeable battery that is capable of up to 9 hours of use. It can be worn on an optional lanyard, tucked into a shirt pocket, or attached to your clothes with the included belt-clip. - Compact Low-Profile Design
- Fits comfortably into a shirt pocket or attaches to clothing
- Integrated Omnidirectional Mic
- Clearly captures full-range audio without connecting an external microphone
- External Microphone Input
- For connecting multiple styles of earworn or lavalier condenser microphones
- Bi-Directional Wireless
- Enables return channel audio and real-time remote control of all wireless microphone settings
- Earphone Output
- Listen to audio from a return channel for translation, cueing, or program material
- Programmable Mute Button
- Customize local or remote muting behavior per application, with options including push-to-talk, push-to-mute, and external control
- Standby Mode
- Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use
- Out of Range Alert
- Emits beeping sound when range is exceeded
UPC: 042406268592 In the Box Shure MXW1 Hybrid Bodypack Transmitter with Microphone (Z10: 1920 to 1930 MHz) Belt Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXW1 Hybrid Bodypack Transmitter with Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXW1 Specs | Frequency Band | Z10 (USA, Canada, Mexico) | | Frequency Range | 1920 to 1930 MHz | | Gain Adjustment Range | -25 to 15 dB (in 1 dB steps) | | Maximum Input Level | −9 dBV (mic gain @ -16 dB) | | Headphone Output | 1/8" (3.5 mm) dual mono (will drive stereo headphones) | | Output Power | Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 ohms) | | Antenna Type | Internal, spacial diversity, linear polarization | | Battery Type | Rechargeable Li-Ion | | Battery Life | Up to 9 hours (Calculated with a new battery. Runtimes vary depending on battery health) | | Charge Connector | USB 3.0 Type A | | Housing | Molded plastic | | Temperature Range | Recommended for Storage: 32 to 77°F (0 to 25°C) | | Connector | Microphone: 4-pin male mini connector (TA4M) | | Input Impedance | >20 kOhms (@ 1 kHz) | | Microphone | Internal: Omnidirectional (20 Hz to 20 kHz) | | Dimensions (HxWxD) | 0.9 x 1.8 x 3.9" (22 x 45 x 99 mm) | | Weight | 3.0 oz (85 g) with batteries, without microphone | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.087 x 4.567 x 3.386" |
