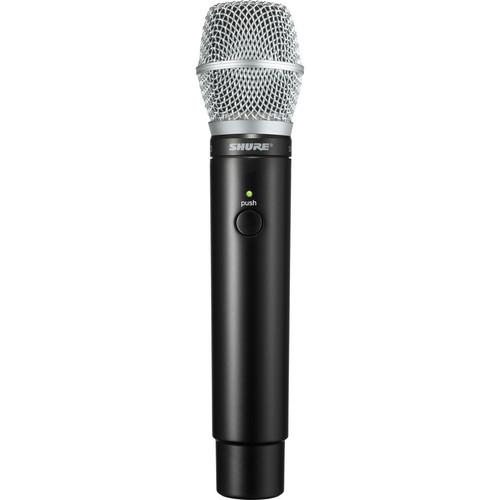

User Manual for Shure MXW2 Handheld Transmitter with SM86 Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Shure MXW2 Handheld Transmitter with SM86
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
|
User manual for the Shure MXW2 Handheld Transmitter with SM86 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MXW2 Handheld Transmitter with SM86 Microphone Capsule from Shure is a bi-directional handheld transmitter designed to be used with the Microflex wireless conference system. It features an interchangeable SM86 microphone capsule. The handheld transmitter has dual transmit antennas to provide additional transmission strength, depending on hand placement. The MXW2 is capable of a range of operation of up to 160-feet. Its built-in rechargeable battery can provide up to 15 hours of use. -
- Dual transmit antennas: Maximizes transmission strength depending on hand placement
- Bi-directional wireless: Enables real time remote control of all wireless microphone settings
- Programmable mute button: Customize local or remote muting behavior per application, with options including push-to talk, push-to-mute, and external control
- Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use
- Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
- Range warning alert: Emits beeping sound when range limit is exceeded
- Easy transmitter linking: Assign the microphone to an Access Point channel by simply docking it into a Networked Charging Station and pressing "link"
- Encrypted wireless: AES 256-bit encryption for secure transmission
- Advanced Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
- USB charging: Connects to any standard USB power source for "always on" usage
UPC: 042406268639 In the Box Shure MXW2 Handheld Transmitter with SM86 Microphone Capsule Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXW2 Handheld Transmitter with SM86 Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXW2 Specs | | | Gain Adjustment Range | -25 to 15 dB (in 1 dB steps) | | Maximum Input Level | -9 dBV (mic gain @ -16 dB) | | Headphone Output | 1/8" (3.5 mm) dual mono (will drive stereo headphones) | | Output Power | Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 Ω) | | Antenna Type | Internal, spacial diversity, linear polarization | | Battery Type | Rechargeable Li-Ion | | Battery Life | Up to 15 hours (Calculated with a new battery. Runtimes vary depending on battery health) | | Charge Connector | USB 3.0 Type A | | Housing | Molded plastic | | Temperature Range | Recommended for Storage: 32 to 77°F (0 to 25°C) | | Configuration | Unbalanced | | Input Impedance | >20 kΩ (@ 1 kHz) | | | | Type | Condenser | | Frequency Response | 50 Hz to 18 kHz | | Polar Pattern | Cardioid | | Sensitivity | -50 dBV/Pa (3.15 mV) 1 Pa = 94 dB SPL (@ 1 kHz) | | Clipping Level | 3 dBV (1.41 V) (1,000 Ω Load at 1 kHz) | | Maximum SPL | 147 dB (1,000 Ω load) (1% THD) | | Self Noise | 23 dB typical, A-weighted | | Dynamic Range | 124 dB (maximum SPL to A-weighted noise level) @ 1,000 Ω | | Signal to Noise Ratio | 71 dB at 94 dB SPL (IEC 651) (S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.) | | Power Requirements | 11 to 52 Vdc, 5.2 mA | | | | Dimensions (Ø x L) | 2.0 x 8.9" (51 x 226 mm) | | Weight | 11.4 oz (323 g) with batteries and microphone capsule | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 11.1 x 5.4 x 3.3" |
