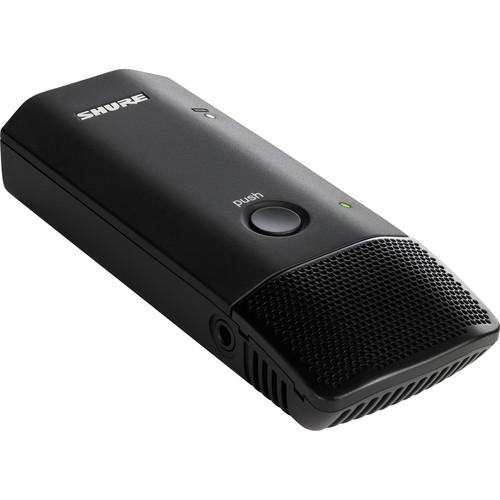

User Manual for Shure MXW6 Omnidirectional Boundary Transmitter Click to enlarge the picture
Contents of the user manual for the Shure MXW6 Omnidirectional Boundary Transmitter
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
|
User manual for the Shure MXW6 Omnidirectional Boundary Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MXW6 Omnidirectional Boundary Transmitter from Shure is a bi-directional boundary transmitter with a built-in omnidirectional microphone designed for use with Shure's Microflex wireless conference system. The unit has an earphone output that allows you to monitor return audio, useful for translations or programming material. It has a concealed power switch for preventing accidental turn-off. It transmits your audio with AES 256-bit encryption for secure broadcasting. The MXW6's built-in rechargeable battery can provide up to 9 hours of operation. -
- Wide frequency response: Full-range audio for clear voice transmission
- Bi-directional wireless: Enables return channel audio and real time remote control of all wireless microphone settings
- Earphone output: Listen to audio from a return channel for translation, cueing, or program material
- Concealed power switch: Prevents accidental powering off
- Programmable mute button: Customize local or remote muting behavior per application, with options including push-to talk, push-to-mute, and external control
- Encrypted wireless: AES 256-bit encryption for secure transmission
- Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
- Out of range alert: Emits beeping sound when range limit is exceeded
- Easy wireless linking: Assign the microphone to an Access Point channel by simply docking it in a Networked Charging Station and pressing "link"
- Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
- Standby mode: Enabled remotely during periods of inactivity to significantly extend battery life when not in use
- Low-battery LED: Visually alerts when there is 30 minutes of charge remaining
- USB charging: Connects to any standard USB power source for "always on" usage
UPC: 042406268714 In the Box Shure MXW6 Omnidirectional Boundary Transmitter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXW6 Omnidirectional Boundary Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXW6 Specs | Gain Adjustment Range | -25 to 15 dB (in 1 dB steps) | | Maximum Input Level | −9 dBV (mic gain @ -16 dB) | | Headphone Output | 1/8" (3.5 mm) dual mono (will drive stereo headphones) | | Output Power | Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 Ω) | | Antenna Type | Internal, spacial diversity, linear polarization | | Battery Type | Rechargeable Li-Ion | | Battery Life | Up to 9 hours (Calculated with a new battery. Runtimes vary depending on battery health) | | Charge Connector | USB 3.0 Type A | | Housing | Molded plastic | | Microphone Capsule | R183B | | Temperature Range | Recommended for Storage: 32 to 77°F (0 to 25°C) | | Dimensions (HxWxD) | 0.9 x 1.75 x 4.5" (23 x 44 x 114 mm) | | Weight | 3.8 oz (108 g) with batteries | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.7 x 4.3 x 3.4" |
