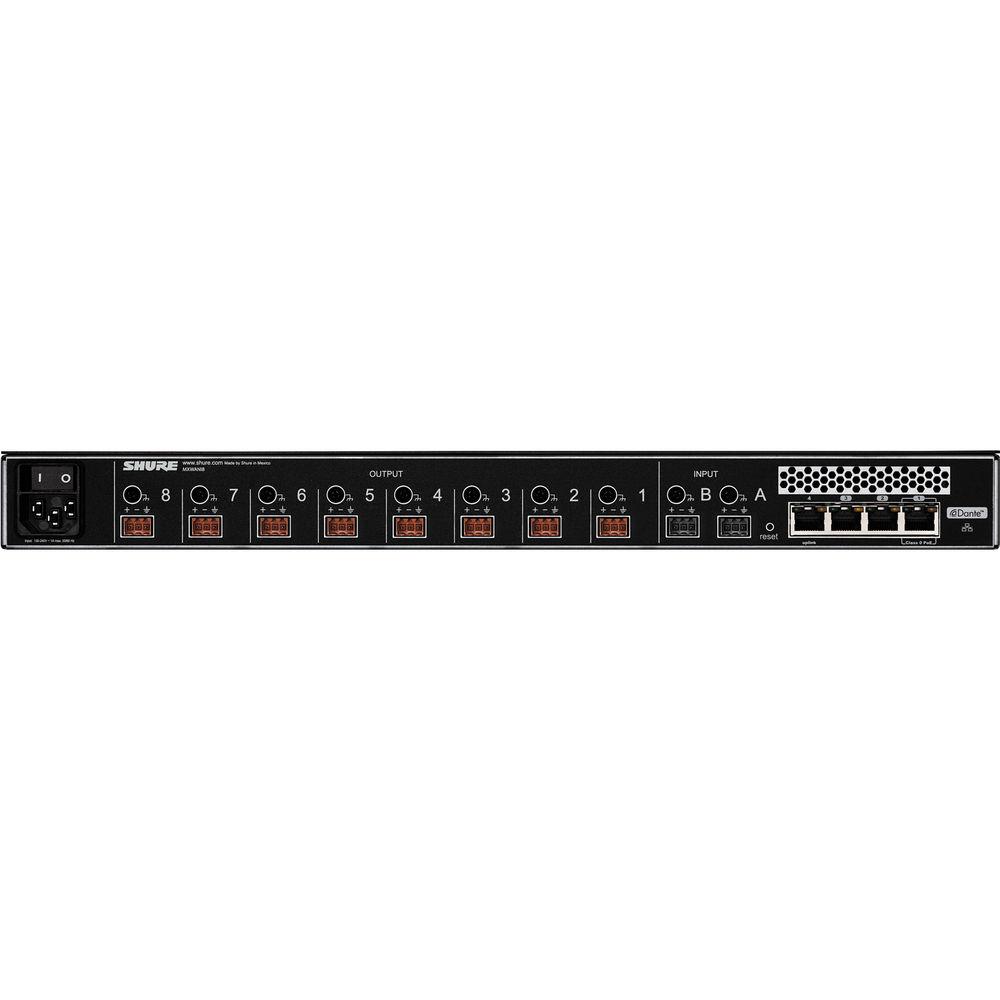

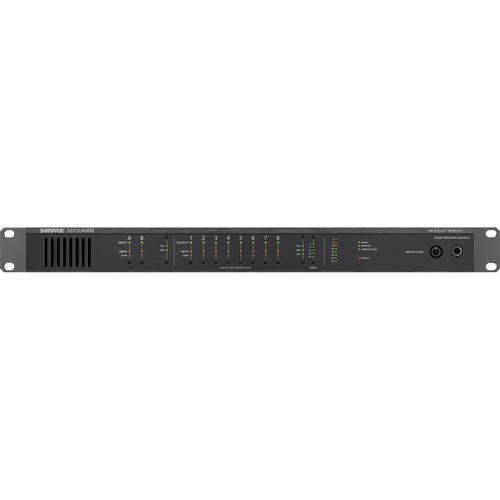

Product description The MXWANI8 8-Channel Audio Network Interface from Shure is designed to connect and distribute Shure's Microflex wireless system to conference room AV systems. It is Dante network compatible and features 8 analog outputs as well as a 4-port gigabit Ethernet switch. The MXWANI8 can be controlled through either its front-panel or through a networked Mac or PC running the Microflex Wireless Control software.
The unit can provide power over Ethernet (PoE) through its first port, allowing you to power such components as the Microflex MXWAPT transceiver. You can monitor your audio via the front-panel 1/4" headphone output. -
- Four port gigabit switch: Optimized port configurations for connection to the Access Point Transceiver and Networked Charging Stations, third party control systems, and corporate networks
- Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a corporate network
- Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the Access Point Transceiver for simplified installation
- Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the network for security and to reduce bandwidth
- Front panel controls: Mute or solo channels and set input/output levels easily from the front panel

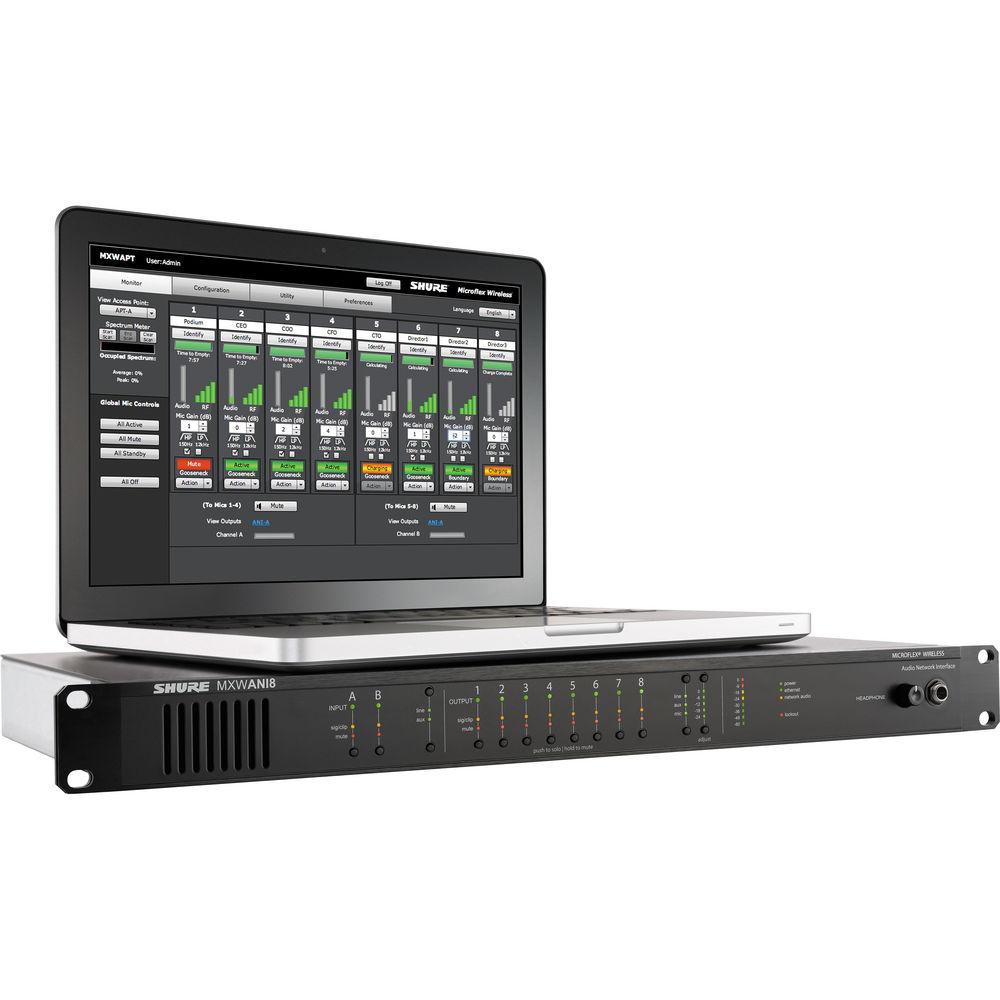

- PC/Mac software control: Access the Microflex Wireless Control Software from a networked computer for input/output levels and port configuration
- Dante networking: Transports low latency digital audio received from wireless microphones over Ethernet to any other Dante-equipped device
- Headphone output: Solo audio signal on any channel
UPC: 042406250115 In the Box Shure MXWANI8 8-Channel Audio Network Interface Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXWANI8 8-Channel Audio Network Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXWANI8 Specs | | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | Analog-to-Dante: 113 dB (20 Hz to 29 kHz, A-weighted, typical)
Dante-to-Analog: 110 dB (20 Hz to 29 kHz, A-weighted, typical) | | Output Noise | Line: −84.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
Aux: −95.2 dBV (20 Hz to 29 kHz, A-weighted, typical)
Mic: −106.5 dBV (20 Hz to 29 kHz, A-weighted, typical) | | THD + N | < 0.05% (20 Hz to 20 kHz@ +4dBu analog input, -10 dBFS digital input) | | Polarity | Non-inverting, any input to any output | | | | Configuration | Active balanced | | Impedance | 10.6 kΩ | | Clipping Level | Line: 23.8 dBV (minimum)
Aux: 10.8 dBV (minimum) | | | | Configuration | Active balanced | | Impedance | 310 Ω | | Clipping Level | Line: 26.2 dBV
Aux: 16.2 dBV
Mic: −3.8 dBV | | Headphone Output | 1/4" (6.3 mm) TRS, 100 mW, 350 Ω, dual mono (will drive stereo phones) | | | | AD/DA Conversion | 24-bit, 48 kHz | | Latency | Analog-to-Dante: 0.21 ms (Estimated Nominal, ±0.1 ms)
Dante-to-Analog: 0.24 ms + TN (Estimated Nominal, ±0.1 ms)
TN = Network latency in milliseconds, as set in Dante Controller
Note: Dante network latency is typically associated with the receiving device | | | | Network Interface | Four-Port Gigabit Ethernet Switch, Dante digital audio | | Uplinks | Port: Selectable, blocks multicast traffic (Port 4) | | PoE | Provided on Port 1 to power MXWAPT | | Cable Requirements | Cat 5e or higher, shielded, 100 m maximum between network devices | | Network Addressing Capability | DHCP, link-local, static | | | | Power Requirements | 100 to 240 V AC, 50-60 Hz, 1 A | | Housing | Steel; Extruded aluminum | | Temperature Range | Operating: 0 to 145°F (-18 to 63°C)
Storage: -20 to 165°F (-29 to 74°C) | | Dimensions (H x W x D) | 1.7 x 19.0 x 14.4" (44 x 483 x 366 mm) | | Weight | 7.1 lb (3.2 kg) | | | | Package Weight | 9.85 lb | | Box Dimensions (LxWxH) | 22.3 x 15.6 x 2.7" |
