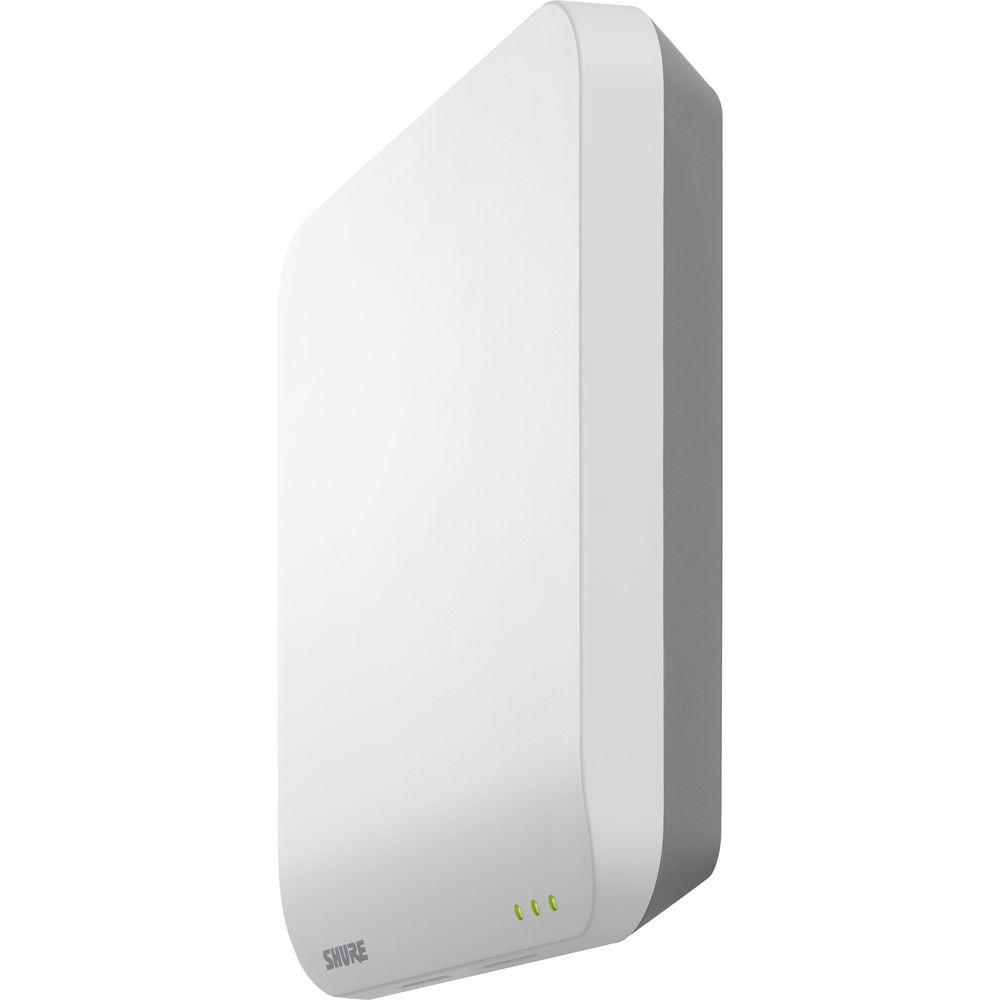

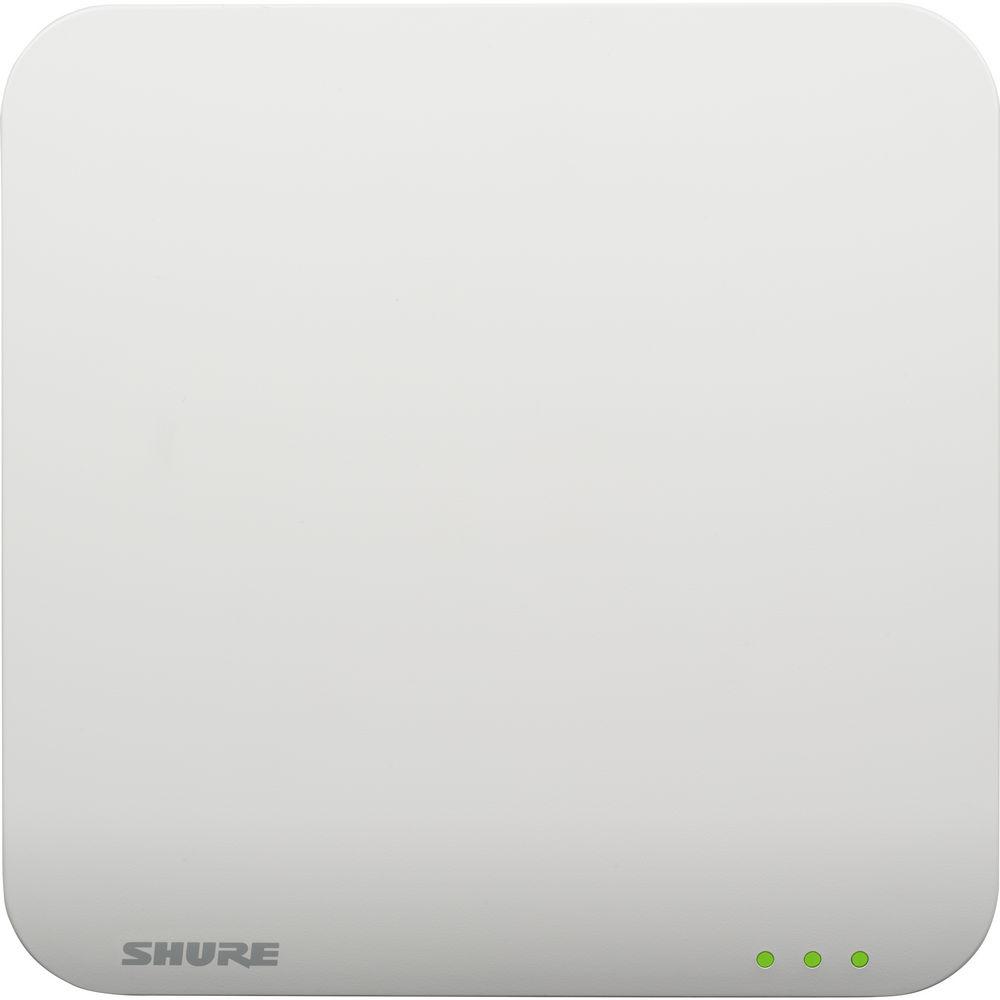

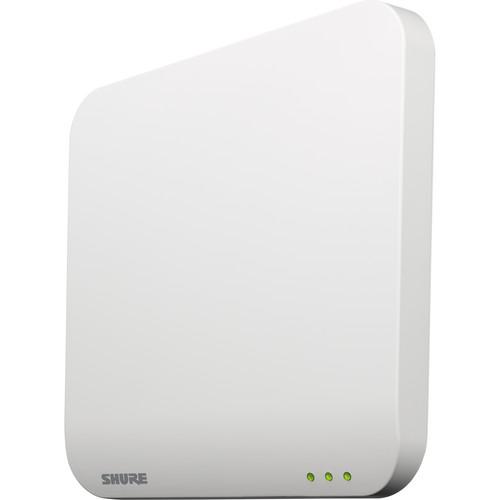

User Manual for Shure MXWAPT4 4-Channel Access Point Transceiver Click to enlarge the picture
Contents of the user manual for the Shure MXWAPT4 4-Channel Access Point Transceiver
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
 |
User manual for the Shure MXWAPT4 4-Channel Access Point Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The MXWAPT4 4-Channel Access Point Transceiver from Shure is a bi-directional transceiver designed for use in Shure's Microflex wireless systems. It receives and sends up to 4 channels of AES 256-bit encrypted transmissions to and from compatible transmitters and audio network interfaces in an AV environment. The unit itself is wall and ceiling mountable and has a paintable cover, allowing it to blend in to its environment.
The MXWAPT4 is Ethernet compatible allowing for PoE and Dante network compatibility. It can be connected with additional units for up to 32 compatible channels. -
- Slim profile: Lightweight, discreet unit with paintable cover to match interior room colors and blend into AV environments
- Includes wall/ceiling mounting plate and connects to the system over single Ethernet cable (PoE compatible)
- Plenum rated: Meets rigorous fire safety test standards for installation above drop ceiling tiles
- Scalable configurations: Multiple units can be combined to support configurations of up to 32 compatible channels
- Bi-directional wireless: Provides return channel audio to wireless transmitters and enables real time remote control of all wireless microphone settings
- Automated frequency coordination: Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
- Dante digital networked audio: Transports low latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
- Encrypted wireless: AES 256-bit encryption for secure transmission
- Selectable output power: Optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range
- Diagnostic LEDs: Provide easy visual reference to system activity and indicate power, wireless connection, and network audio status
UPC: 042406273503 In the Box Shure MXWAPT4 4-Channel Access Point Transceiver Paintable Cover Mounting Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure MXWAPT4 4-Channel Access Point Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure MXWAPT4 Specs | Network Interface | RJ45: Gigabit Ethernet, Dante digital audio | | Plenum | Rating: UL 2043 | | Power Requirement | Power over Ethernet (PoE) Class 0, 6.5 W | | Antenna Type | Internal, spacial diversity, circular polarization | | Housing | Molded plastic, cast zinc | | Dimensions (HxWxD) | 1.35 x 6.70 x 6.70" (24 x 170 x 170 mm) | | Weight | Unit: 1.88 lb (856 g)
Paintable Cover: 0.2 lb (85 g)
Mounting Bracket: 0.15 lb (68 g) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 8.268 x 7.559 x 2.992" |
