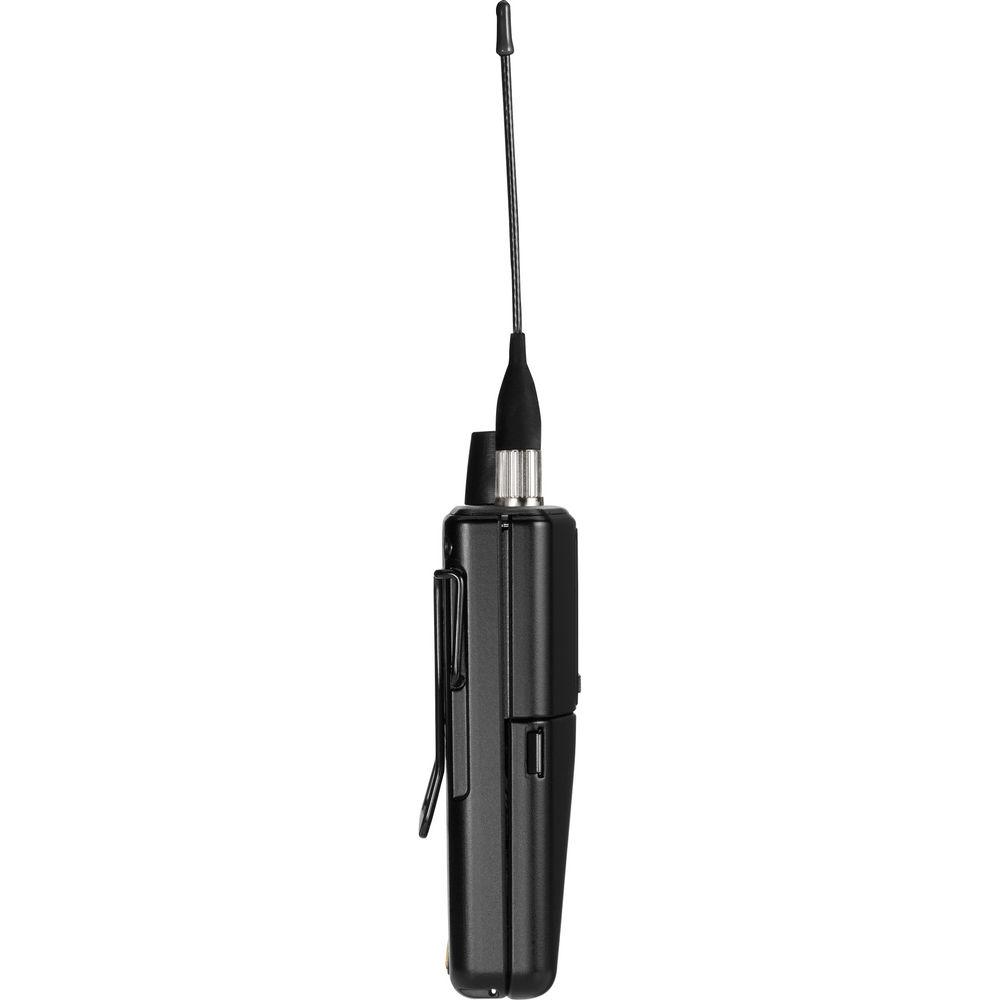

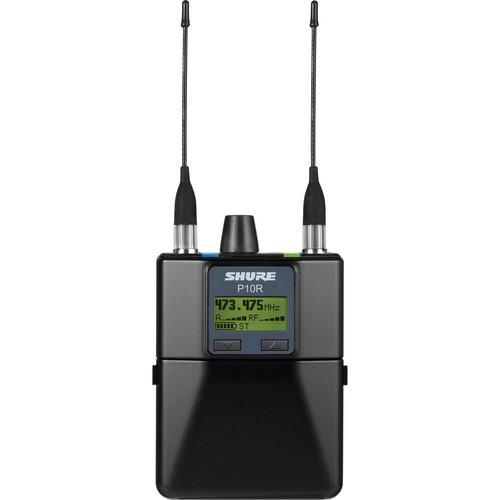

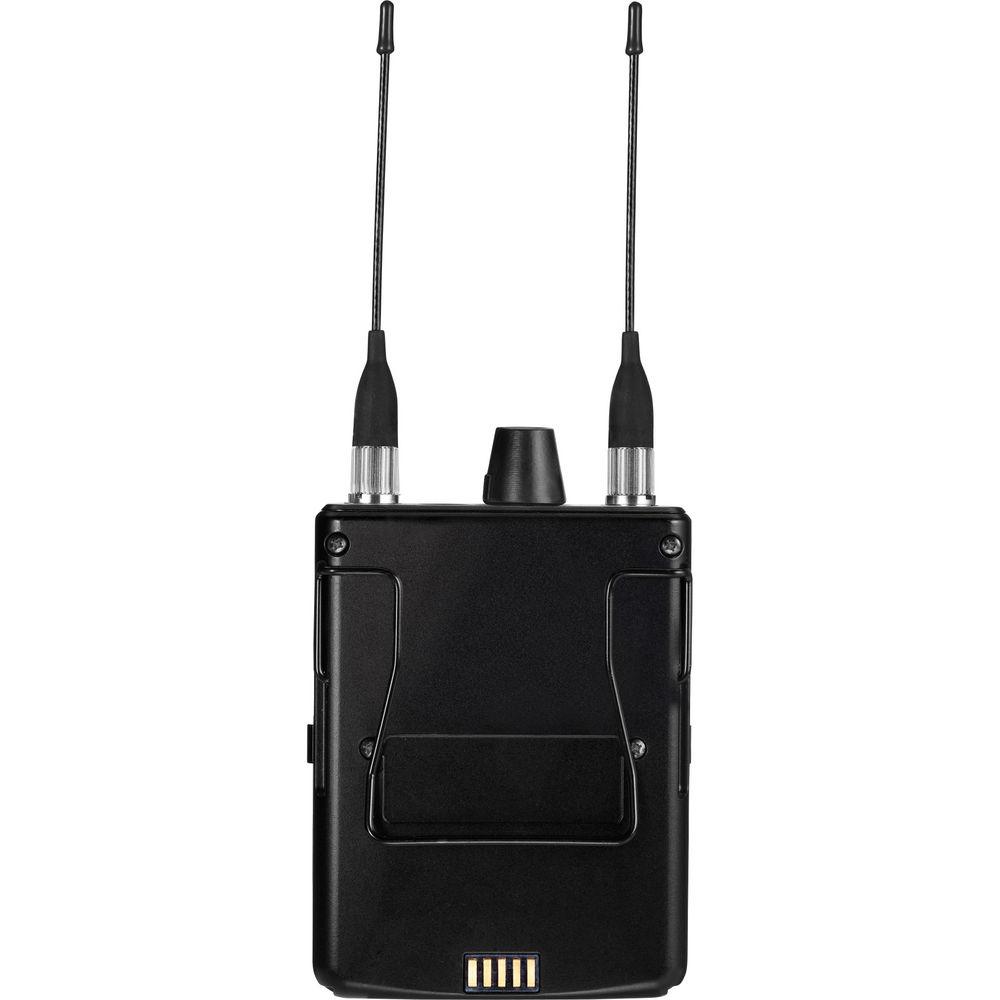

Product description The P10R Wireless Bodypack Receiver for PSM1000 (G10: 470-542MHz) from Shure is a professional-quality wireless stereo bodypack receiver designed to be used as part of a PSM1000 wireless personal monitoring system. The receiver has a slim and compact extruded aluminum construction for easy placement on a performer and lasting durability. The receiver has an enhanced digital stereo encoder to provide excellent audio clarity and detail. RF scan and automatic gain features provide excellent RF stability and channel availability, and prevent dropout due to RF overload. Output power is a strong 100mW to provide a robust link in any environment.
The receiver syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function. Volume and balance controls are provided for easy customization. A selectable high frequency EQ boost is also provided. A patent-pending CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack. The receiver also includes audio and RF status LEDs, as well as audio level and battery life metering. The P10R operates on a pair of standard AA batteries for 4-6 hours of continuous use, and it can also be used with Shure Li-ion rechargeable batteries for extended life. The P10R has a standard 3.5mm headphone jack and is compatible with all Shure SCL sound isolating earphones, which are designed specifically for use with PSM systems. - Slim and compact extruded aluminum construction for easy placement on a performer and lasting durability
- The diversity design improves reception and wireless range
- Precision front-end RF filtering eliminates out-of-band interference for a cleaner and stronger RF signal, fewer dropouts, and artifacts that are less audible
- An enhanced digital stereo encoder provides excellent audio clarity and detail with wide separation
- Full bandwidth scan capability finds clear compatible frequencies and provides a graphic spectrum plot that can be viewed from the onboard menu screen
- An automatic RF gain control provides excellent RF stability and channel availability, and prevents dropout due to RF overload, allowing more channels to be used simultaneously
- Syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function
- Output power of 100mW to provide a robust link in any environment
- Volume and balance controls are provided for easy customization
- Selectable high frequency EQ boost
- Patent-pending CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack
- MixMode technology lets the user balanced the level of 2 separate channels while simultaneously monitoring the signals in both ears
- A pair of bright LEDs let you monitor battery life and RF signal presences
- Operates on a pair of standard AA batteries for 4-6 hours of continuous use, and can also be used with a Shure rechargeable battery for up to 10 hours
- The standard 3.5mm headphone jack is compatible with all Shure SCL sound isolating earphones and other standard headphones
- The LCD screen displays settings and menus, as well as audio and RF metering
- Convenient detachable antennas
- Backwards-compatible with PSM900 transmitters
UPC: 042406204675 In the Box Shure P10R Wireless Bodypack Receiver for PSM1000 (G10: 470-542MHz) 2 x Antennas 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure P10R Wireless Bodypack Receiver for PSM1000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure P10R Specs | Modulation | FM, MPX Stereo | | Operating Range | 300' (90 m) | | Frequencies | G10: 470-542MHz | | Frequency Response | 38Hz - 15kHz | | Signal to Noise Ratio | 90dB | | RF Sensitivity | 2.2µV | | Filter | -3dB @ 30.5MHz, From Center Frequency of Each Band | | Gain Control | 31dB | | Image Rejection | > 90dB | | Adjacent Channel Crosstalk | > 70dB | | Blocking | > 80dB | | Squelch | 22dB SINAD | | Intermodulation Distortion | > 70dB | | Load Impedance | 9.5 Ohms | | Output Power | 100mW per Output | | Gain Boost | +2dB, +4dB @ 10kHz Selectable | | Limiter | 3-9, Selectable | | Connectors | 1 x 3.5mm Headphone Jack
2 x Antenna Connectors | | Battery Type/Life | 2 x AA, Approx 4-6 Hours
1 x SB900 Li-ion Rechargeable Pack, Approx 10 Hours | | Dimensions (HxWxD) | 3.9 x 2.6 x 0.9" (99 x 66 x 23mm) | | Weight | 6.56 oz (186g) (With Batteries) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.9 x 5.3 x 3.3" |
